10 мВт 500 м RS232/RS485/TTL/USB порт беспроводной радиоприемник для передачи данных 433 МГц/868 МГц/915 МГц радиочастотный передатчик и модуль приемника
- Категория: >>>
- Поставщик: Shenzhen Yishi Electronic Technology Development Co. Ltd.
Сохранить в закладки 1162492969:
Описание и отзывы
Характеристики

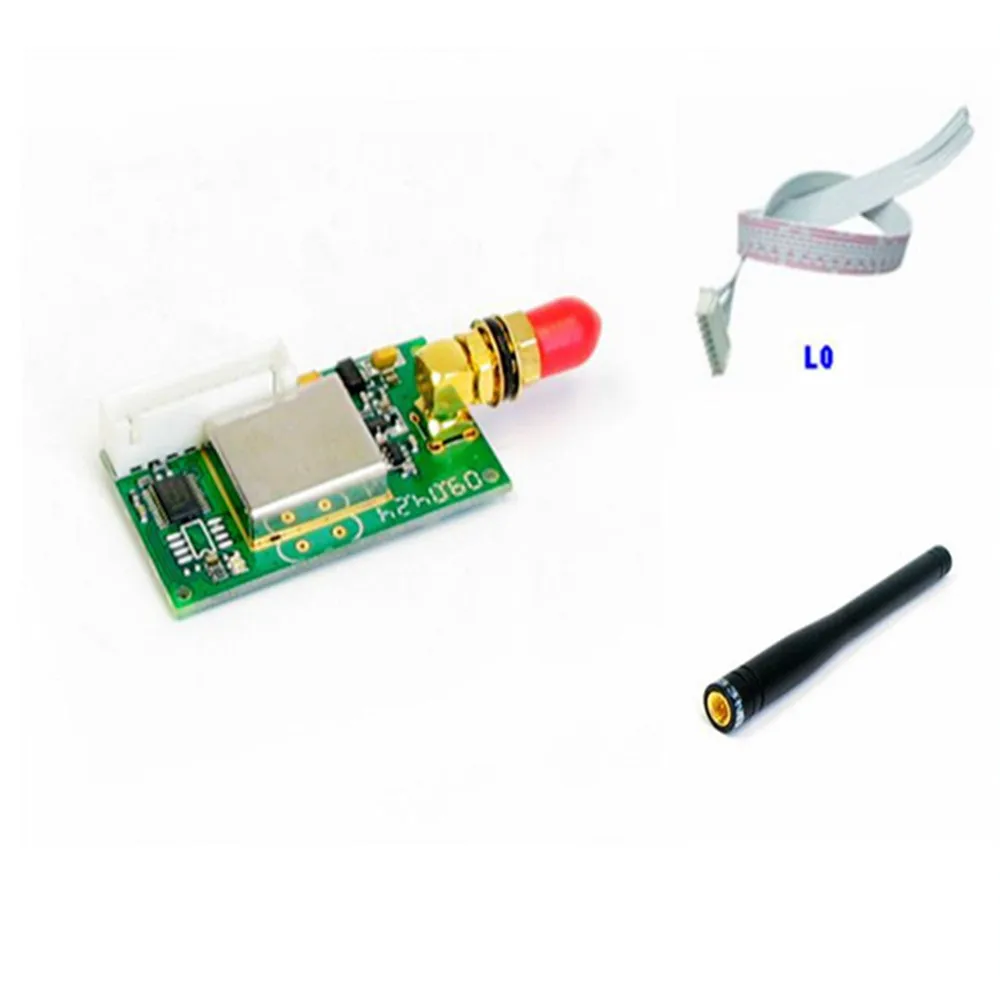

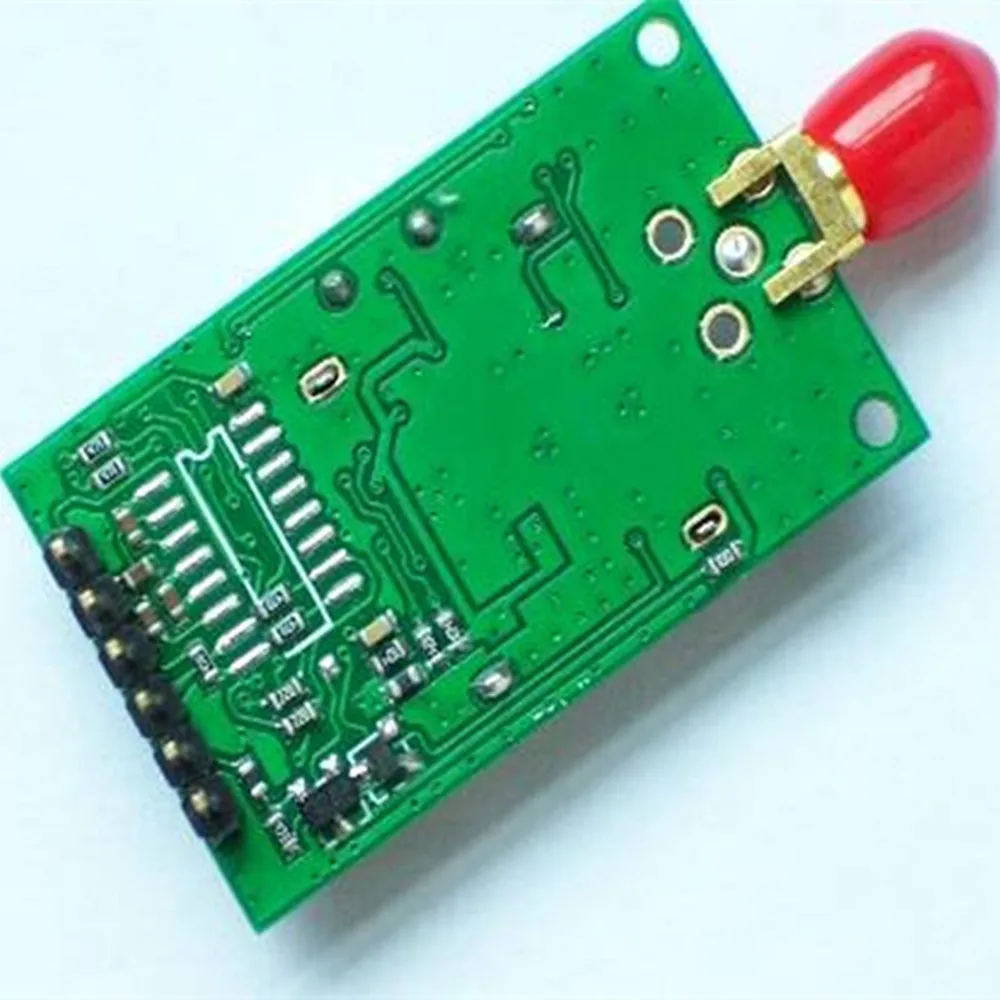

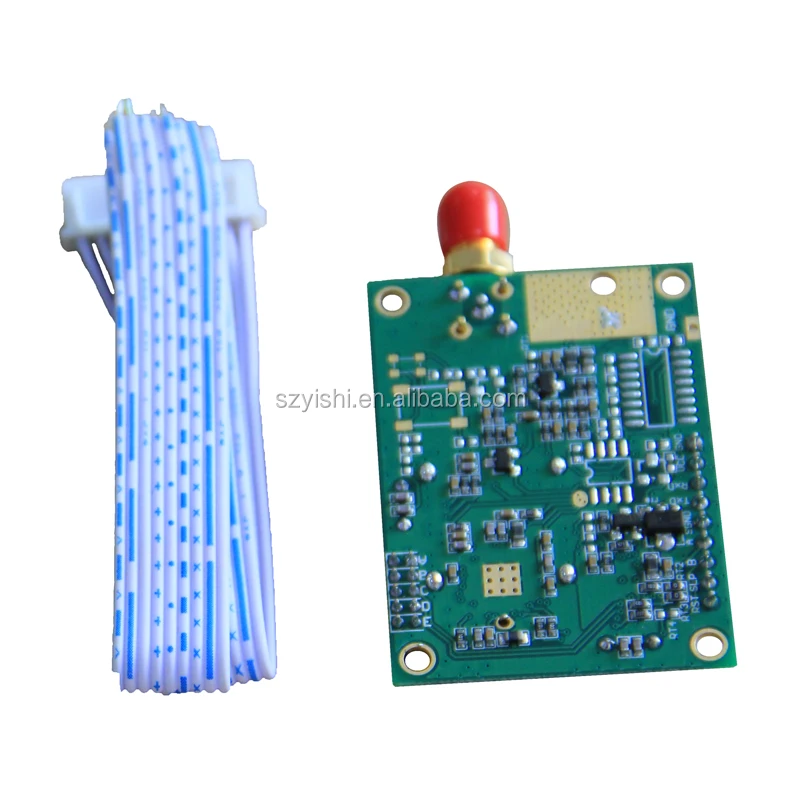

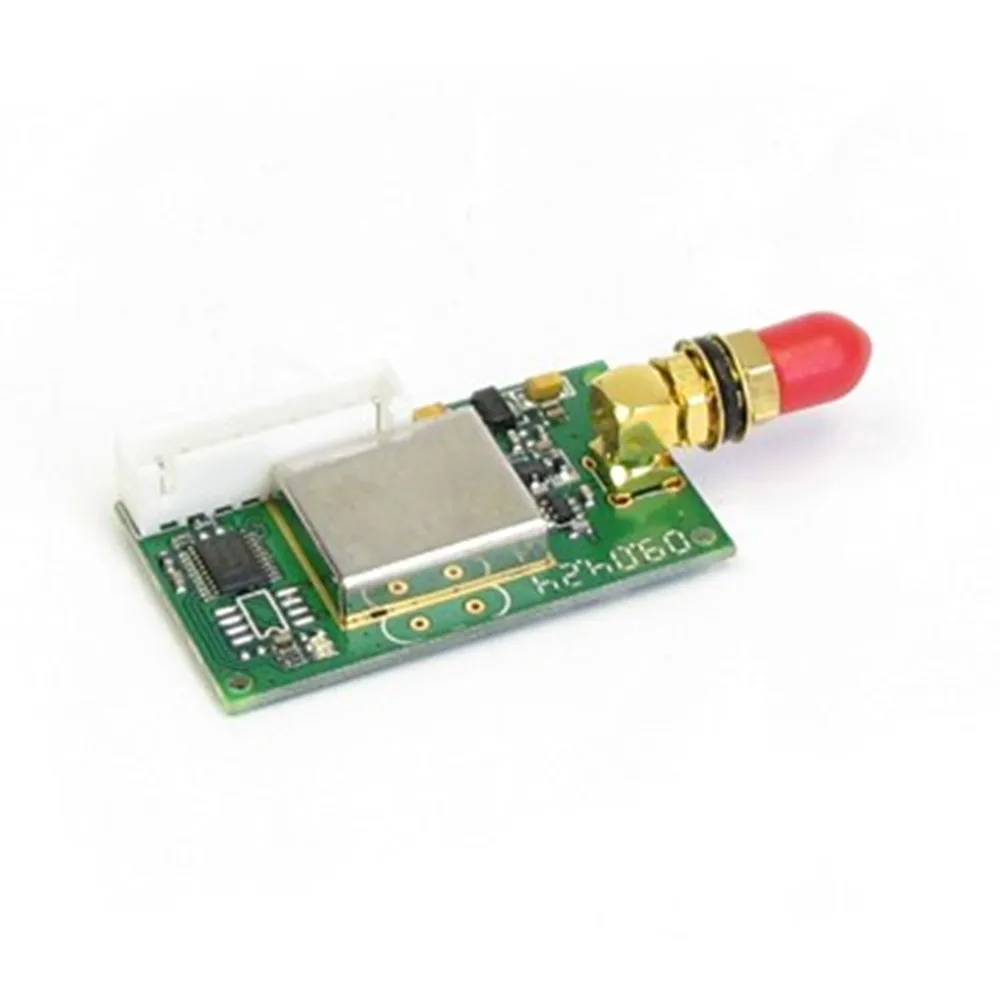

10mW 500M RS232/RS485/TTL/USB port Wireless Data Radio Transceiver, 433Mhz/868Mhz/915Mhz RF Transmitter and Receiver Module
Product Description
- RF modules designed for professional wireless data transmission systems in short range
- Module works on ISM frequency band, half duplex integrated receiving, and transmitting
- User's could use RS-232, RS-485 and UART/TTL level interface port for direct connection with PC, RS485 devices, monolithic processors, and other UART components kind of applications
- Transparent data interface, nakedness, and wide temperature design handles most industrial application tough indoor/outdoor environments
- RF power: ≤10dBm/10mW
- Frequency: 433, 450, 868 and 915MHz or ISM others
- Interface: RS-232, RS-485, and TTL (optional)
- Receiving current: ≤25mA
- Transmitting current: <40mA
- Sleep current: <20μA
- Range: 500m (BER: 10 to 3 at 9,600bps in open area)
- Power supply: 5 or 3.3V DC
- Size: 47 x 26 x 10mm (without antenna port)
1.Products Main Features:

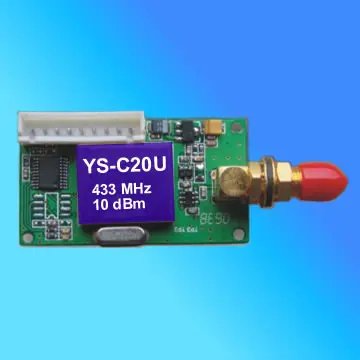

Product Name | YS-C20UA RF module | |
Specifications | 10mW output, 433/450/868/915MHz | |
Brief Introduction | Power: 10mW output Distance: 0.5km Used name: YS-1020U | |
* Carrier frequency: 433 MHz, 450MHz,868MHz, 915MHz or ISM others;
* Provide rich interface: RS-232/ TTL/ RS-485;
* 8 channels, expandable for 16/32 channels according to requirements of customers;
* Baud rate: 1200/2400/4800/9600/19200bps;
* Interface format: 8N1/8E1 user-defined, or customization for other format interface;
* Integration of receiving and transmitting and half duplex;
* Low power consumption and sleep function;
* Temperature: -35~+75 C ;
* Impedance: 50 Ohm(SMA antenna port, multiple antenna options available);
* Complying with EN 300220 and ARIB STD-T67.
2.Application areas:
* Automatic meter reading (AMR) and home automation
* Supervisory control and data acquisition (SCADA)
* Remote control,industry data collection;
* Monitoring of remote systems
* Production reporting of active systems
* Sports training & competition;
* Wireless POS, PAD wireless smart terminal;
* Electronic bus station and intelligent traffic;
* Point to multi-point wireless network, Industrial wireless remote control.
* Supervisory control and data acquisition (SCADA)
* Remote control,industry data collection;
* Monitoring of remote systems
* Production reporting of active systems
* Sports training & competition;
* Wireless POS, PAD wireless smart terminal;
* Electronic bus station and intelligent traffic;
* Point to multi-point wireless network, Industrial wireless remote control.
3.Specifications
* Power supply: DC 5v or 3.3V;
* RF power: 10mW;
* Receiving current: <25mA;
* Transmitting current: <40mA;
* Sleep current: <20uA;
* Size: 47mm*26mm*10mm (without antenna port ).
*Transmission distance:
500m (BER=10-3@9600bps);
800m (BER=10-3@1200bps);
500m (BER=10-3@9600bps);
800m (BER=10-3@1200bps);
4. Installation dimension:
5. Interface definition:
Pin | Pin name | Description | Level | Remands |
1 | GND | Grounding of power supply | ||
2 | Vcc | Power supply DC | +3.3~5.5V | |
3 | RXD/TTL | Serial data receiving end | TTL | |
4 | TXD/TTL | Serial data transmitting end | TTL | |
5 | DGND | Digital grounding | ||
6 | A(TXD) | A of RS-485 or TXD of RS-232 | ||
7 | B(RXD) | B of RS-485, RXD of RS-232 | ||
8 | SLEEP | Sleep control (input) | TTL | Low level sleep |
9 | RESET | Reset (input) | TTL | Negative impulse reset |
6. Setting of channel, interface, and data format:
The user can change or view interface baud rate, channel and address code. Parameter setting or reading as per the testing software "SPRG.EXE"in the CD (for free) come with the products.
Channel | Frequency | Channel | Frequency | Channel | Frequency | Channel | Frequency |
1 | 429.0325MHZ | 2 | 430.0325MHZ | 3 | 431.0325MHZ | 4 | 432.0325MHZ |
5 | 433.0325MHZ | 6 | 434.0325MHZ | 7 | 435.0325MHZ | 8 | 436.0325MHZ |
NOTE: Generally the module in receiving state, if the IDLE pin continuously connect low level (>200millisecond), the module will be in sleep state, at the same time the module can not receive or transmit any data, only when the IDLE pin hang or in the state of high level (VH<3.5V), the module can be in receiving state again.
