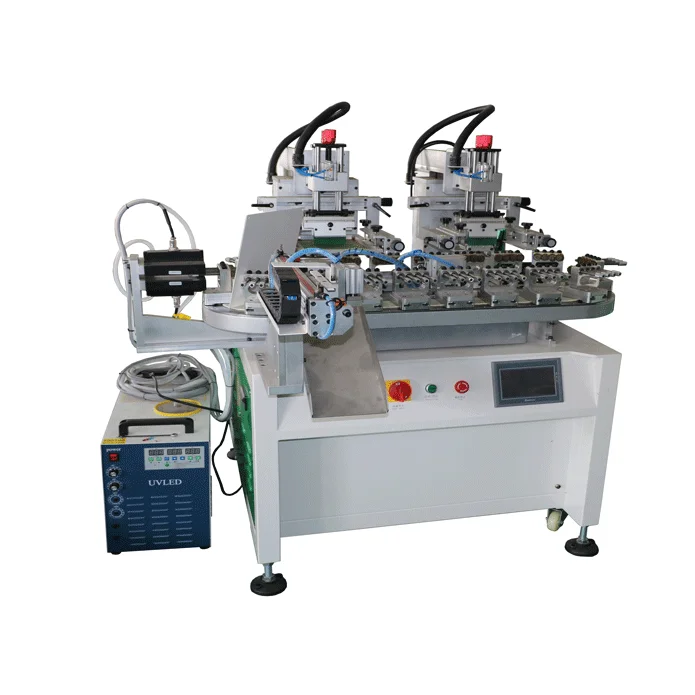

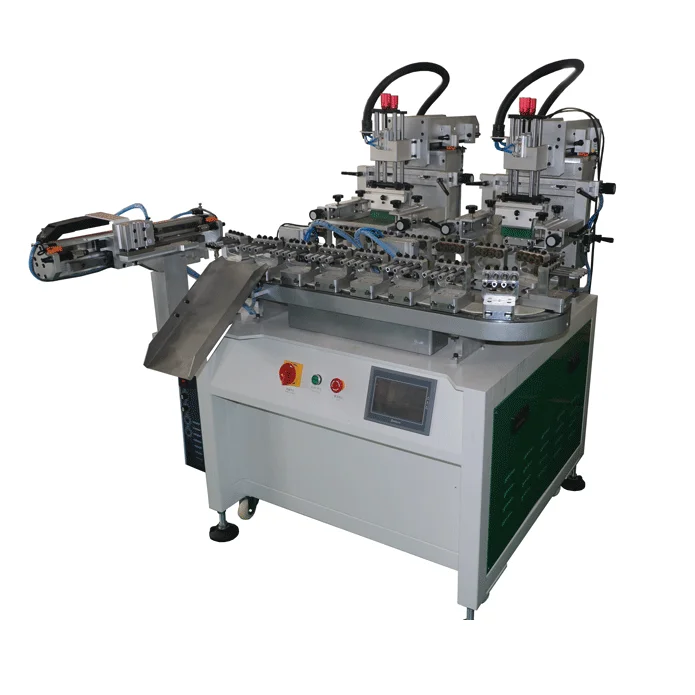

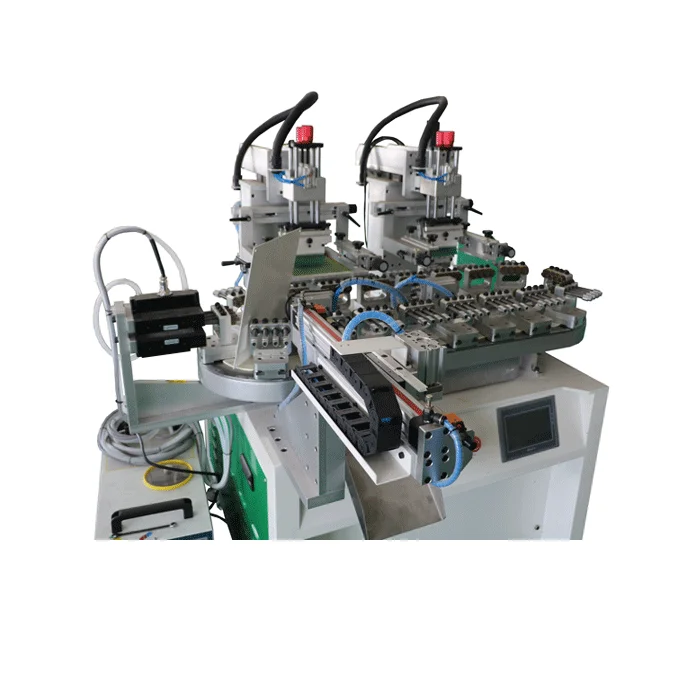

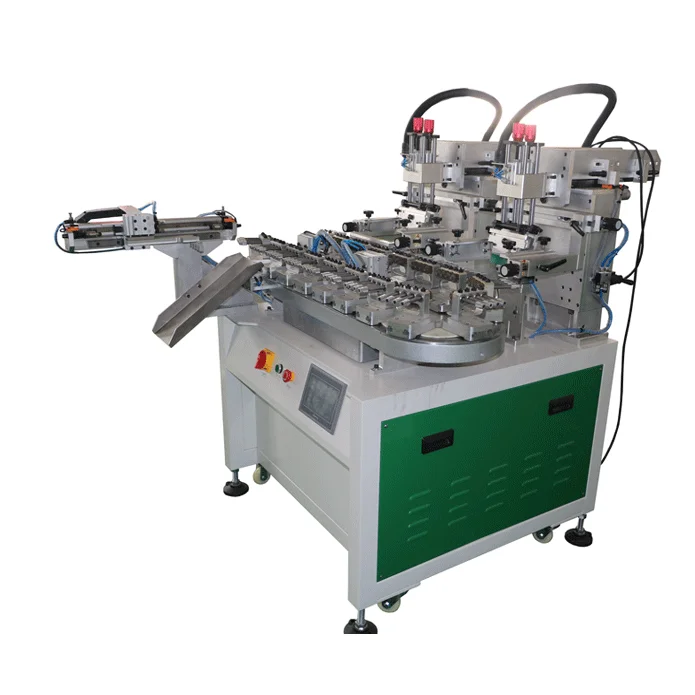

Двухцветная автоматическая машина для шелкографии новая светодиодная УФ сушильная система конвейер двигатель печати этикеток PLC Трафаретный принтер используется в

Сохранить в закладки 1170945342:


Цена:2 249 140,22 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Screen printing samples


         The speed of the shuttle multi-color screen printing machine is relatively slow, and it is difficult to meet the needs of users with high output requirements. The multi-color turntable flat screen printing machine is still the best-selling model in the market. The screen printing system and UVLED curing system of the multi-color screen printing machine are arranged around a central axis and remain in a fixed state, while the jig and products are placed on the disc that rotates around the central axis, and the stop position is controlled by the divider. When the turntable stops , the silk screen printing system descends for silk screen printing, and then turns to the next station for UVLED curing.
        The turntable screen printing machine can still achieve high-precision overprinting through precise operation, and the printing speed can be increased by 2 times. This is the design scheme of the main screen printing machine and has been widely accepted by the market.
       Since the space of the turntable screen printing machine is large enough, the adjustment process is more convenient. The multi-station setting of the workbench can also facilitate the installation of pre-press processing devices, feeding manipulators and unloading manipulators, which further increases the intelligence of printing. .







Machine description









































































SA2-1015C20UV Automatic 2 colors  Flat screen printing machine with conveyor //Structure



Working table



 Conveyor working table, Size: 100*150mm



Actions



Up-down of screen plate



To be printed




  • Plain objects



Squeegee stroke



Adjust the Limited switch



Squeegee and screen plate control



 High precision guide shaft



SA2-1015C20UV Automatic 2 colors  Flat screen printer with conveyor //Usage and characters



Guide




  • 20 stations conveyor table to facilitate the production of  platics;

  • Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;

  • Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;

  • Screen forme Clamping device free to adjust to fit different sizes of screen;

  • Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;

  • Stroke of the scraper can be flexibly adjusted the pattern to suit different size;

  • Squeegee pressure can be individually adjusted to fit any high-precision screen printing.

  • High accurate Splitter controll rotating plate;

  • Automatic robot downloading;

  • PLC operation system.



Application




  • The machine panel, plastic parts, Paper,  furniture industry, glass industry, circuit board industry, film, wooden case



SA2-1015C20UV  Flat screen printing Machine with Conveyor //Parameters



Technical parameters




  • Max printing thickness: 260 mm;

  • Air consumption: 90Litre/Min;

  • Dimension of working table: 100×150mm;

  • Max printing areas: 80×130mm;

  • Max printing speed: 900Pcs/H;

  • Max frame dimension: 250×350mm;

  • Compress air: 5-7 bar;

  • Stroke of cylinder up and down:160mm;

  • Stroke of Squeegee: 200mm.



Works supply




  • 110V-220V Power supply;

  • 5-7Barcompress air;



Package parameters




  • Outer dimension:1.97×1.45×1.65m;

  • Net weight: 490kg;




  • Package dimension:1.47×1.49×1.70m;

  • Gross weight: 583kg;

  • CBM: 3.7235



H.S.CODE



8443192190



Certificate



CE



SA2-1015C20UV  2 Colors Flat screen printing Machine with conveyor //Advantage



Function




  • Conveyor table to facilitate the production .

  • Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;

  • Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;

  • Screen forme Clamping device free to adjust to fit different sizes of screen;

  • Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;

  • Stroke of the scraper can be flexibly adjusted the pattern to suit different size;

  • Squeegee pressure can be individually adjusted to fit any high-precision screen printing;

  • Microcomputer program control operations;

  • 4-Digit auto counter; to facilitate the measurement of production efficiency.






Structure




     LED is a light-emitting diode. UVLED refers to a diode that emits ultraviolet light. Ultraviolet light can trigger the transformation of some acrylic resins from colloid to solid. This is the basic principle of UV technology. The UV curing technology of mercury lamps made of traditional metal halide compounds is a potential challenge, and now the application on semi-automatic UV machines and fully automatic screen printing machines is becoming more and more mature.
UVLED is a cold light source with almost no infrared radiation. The surface temperature rise of the object to be illuminated is low, and the thermal damage to products that require UV curing is small. Especially for temperature-sensitive products, there is no deformation in shape and damage to the operator's skin and eyes low level.
Its advantages:
(1) Long life: The service life of LED-UV lamps is more than 10 times that of traditional mercury lamps, and the service life is not affected by the number of switches.
(2) The maximum power UV output can be reached without preheating.
(3) High energy, stable light output, good uniform irradiation effect, and improved production efficiency.
(4) Mercury-free and ozone-free, it is a safer and more environmentally friendly alternative to traditional light source technology.
(5) Low energy consumption, the power consumption is only 10% of the traditional mercury lamp curing machine, which can save 90% of the power.
(8) The environmental coordination of the traditional UV curing system is enhanced.


Details photo





Our Services








  • Printing machinery industry  Alibaba 17 years golden supplier .

  • 28 years of sales experience. areal understanding of customer need.

  • Clearly marked price, earn consciencemoney. Profits no more than 20%.





Packaging & Shipping





    Suitable middle-asia country.





 All machine parts, Small machine, Shipment document will be shipped with express company.


Please follow it via office website.





Company Information


       The world is only one China, China only one LC, we are the production and sale of pad printing machines, silk screen machines, bronzing machines and automatic printing equipment and world famous!













           Excellence in product quality depends on the high precision machining equipment;
      The company has dozens of leading domestic CNC, printing machines, silk screen machines, bronzing machines and other special printing equipment, data and standardized management in the forefront of the domestic.Excellence in product quality depends on the high precision machining equipment;
      The company has dozens of leading domestic CNC, printing machines, silk screen machines, bronzing machines and other special printing equipment, data and standardized management in the forefront of the domestic.













Pad printers:



  •  1 color, 2 colors, 4 colors, 6 colors, 8 colors, 10 colors

  •  Closed cup pad printer and open inkwell pad printer;

  •  Customize full automatical pad printer;


Screen printer:



  • Plain screen printing machine and Multi-function screen printing machine

  • Pneumatical screen printing machine, Motor screen printing machine

  • Full automatical screen printing machine


Hot foil stamping machine



  • Manual, Sem-auto plain hot stamping machine and Cylinder hot stamping machine

  • Hydraulic hot foil stamping machine;

  • Full automatical hot foil stamping machine










All Machine has CE certification.


    CE of pad printers


     CE of screen printers


     CE of hot foil stamping machine


     CE of UV exposure machine and UV curing machine.          Etc







Our clients







FAQ


1) What are your main products?
     Pad printers,


     Silk screen printers,


     Hot stamping machines,


     and the supply chain related to the above-mentioned industrial printing, we will also provide users with complete printing solutions.





2) What kind of pre-sale service do you provide.



   Free technical consultation, pictures, technical materials, and video materials are provided. For those that cannot be provided, we may provide design solutions.





3) What kind of payment method should I choose?



 For new users, if the amount is smaller, you can use the credit guarantee order, TT, and if the amount is larger, you can consider a letter of credit. In order to protect the safety of customers' funds, we do not recommend customers to transfer to personal accounts, or use Western Union, paypal and other personal payment methods. Unless the customer makes a special request.004.png








4) How to order the machine?
   When you confirm to buy the machine, we will provide PI, and pay according to the payment method guided by PI. We will produce the machine and arrange the calculation until you get the machine safely.







5) Questions about proofing?
For direct users, it is very important to confirm whether the machine is suitable for their products and require the factory to carry out proofing as the standard for machine delivery, because pad printing machines, screen printing machines and hot stamping machines usually require fixtures, printing plates, and inks. The perfect match of the bronzing paper can meet the requirements. For the proofing of the customer's confirmed order, we are free. For the proofing without the confirmed order, we will charge a certain proofing fee. When you confirm the order, the proofing fee will be deducted from the machine purchase price.










6) How about after-sales service?



Companies that sell through the Internet are usually small in scale, and none of them have set up after-sales service points overseas. After-sales service requires online support from sales staff. In general, pad printers, screen printers and hot stamping machines are relatively simple machines, and most problems can be solved through online communication.







7) How do you evaluate the quality of your products?
   When each user purchases a product, he balances price and quality. This balance may be difficult to grasp, but this is how you do business. Most of the products sold on the Internet are in the middle of whether the price is not low or the quality is not bad. end. You have to negotiate professionally with the sales staff for better products. There are roughly 300 similar manufacturing plants and more than 8,000 trading companies in China. It is not difficult to choose products that suit you.
