ЦНИИ автоматического тестирования калибровки машины EPS208 коллектора системы впрыска топлива Фюле форсунок кодирования
- Категория: >>>
- Поставщик: Shandong Beacon Machine Manufacturing Co. Ltd.Shandong Ltd.
Сохранить в закладки 1200002622051:
Описание и отзывы
Характеристики
Product Description

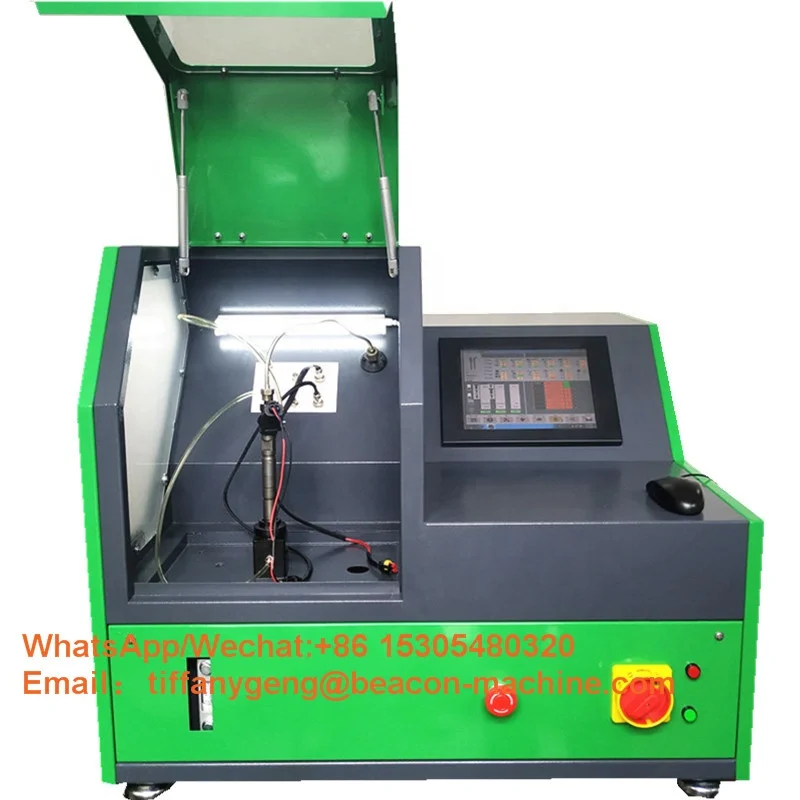

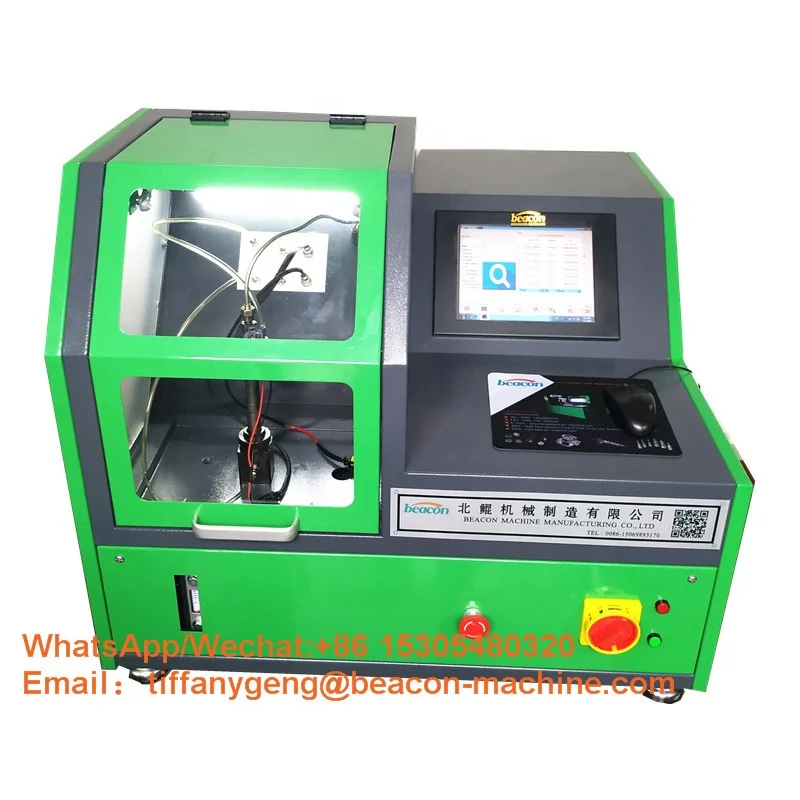

CRDI Auto Testing Calibration machine EPS208 common rail diesel fule Piezo injector coding Test Bench eps205
BCS208 eps208 common rail diesel fuel injector test bench
is our latest independent researched special device to test the performance of high-pressure common rail injector, controlled by industrial computer, Windows operating system.
EPS208(Common Rail System EPS208)high pressure common rail injector test bench is imitation diesel engine ECU（Engine Control Unit），by the same time supply Bosch, Electric installation, Delphi, Siemens and other common rail system control signals（CP1/ CP2/
CP3/ HP3/ HP4/ DELPHI），Drive high pressure common rail pump and high pressure common rail injector to work，
The driving signal parameters can be set according to the actual situation of the user，And can be saved in groups,It is convenient for maintenance personnel to judge and maintain the working condition of high-pressure common rail system.
The Power of EPS208 High Pressure Common Rail Test-bed is 2.6KW.
Detailed Images
CHARACTERISTIC
1.Support for high-speed solenoid valve common rail injector and third generation high pressure common rail technology of piezoelectric crystal common rail injector (optional function);
2.Single channel common rail injector;
3.Support for multiple rail
pressure sensors（BOSCH/DEOSN/DELPHI）；
4.Intelligent PID algorithm, pressure control more accurate;
5.Hardware and software short
circuit protection, the machine is more reliable;
6.Multi-lingual selection, Chinese / English / Russian;
7.Safety protection design to prevent operators from misoperation, use more secure.
Main Functions
1.Testing seal performance of common rail injector.
2.Testing the full load performance of Common Rail Injector.
3.Test the mid-load performance of common rail injector.
4.Testing idle performance of common rail injector.
5.Testing the pre-injection performance of Common Rail Injector
TECHNICAL PARAMETER | ||
1. output power | 2.6KW | |
2. power voltage | 220V 1phase 50HZ | |
3. Measuring speed | 0～1000rpm； | |
4. Working pressure： | 0-160MPa | |
5. Fuel tank volume： | 10L | |
6. Test oil filter precision： | 3μ | |
7.Oil measuring mode： | flowmeter | |
8.Common rail pump type： | CP1H； | |
9.Overall dimension（mm）： | 750×820×750； | |
10.Net weigh： | 150Kg | |
Accessories
TESTING SYSTEM:(OPTIONAL)
Test system 1:
Newest Beijing common rail test system
Test system 2:
CRS990 new common rail test system.
Test system 3
CRS960 classic common rail test system.
Can add the printer to print the testing data:
Featured functions:
1.Special injector test---Piezo injector testing;
2.All common rail injector test--- BOSCH DENSO DELPHI SIEMENS；
3.Flow sensor testing；
4.Remote assistance -- engineer can solve question through software；
Our other products
Pls click the machine model below, you will see more details.
Packing & Delivery
Our Service
Our Company
Shandong Beacon Machine Manufacturing Co., Ltd. is the leading manufacture in diesel injection pump test bench and turbocharger balancing machine in China ,our products already sold to more than 100 countries . Our products including common rail injector test bench ,common rail injector tester (CRDI), diesel injection pump test bench EUI/EUP tester cam box ,Denso ECD-V3 ,V4, V5 pump tester ,PT cummins pump and injector tester ,common rail tools and spare part .
Welcome you to visit our factory and cooperate in the future.
FAQ
1.Q:How can I start the order?
A:STEP1,please let us know what model do you interest and quantity you need;
STEP2,then we will
make a PI for you to confirm all the order detail;
STEP3,after you confirmed all the detail,then you can arrange the payment;
STEP4,after we received the payment we will start the production and delivery for you.
2.Q:What is the delivery time?
A:It dependon what kind of product do you need,if you need a small tester or the spare parts, about 2-3 work days. For big product such as
test bench or balancing machine takes about 7-10 work days.
3.Q:What is the payment term?
A:We support TT/ WEST UNION/LC/ MONEY
GRAM / ALIBABA TRADE ASSURANCE.
4.Q: what is your after sale service?
A: One year warranty for our product, whole life technical
support whole-life.
5.Q:What delivery term do you support?
A:For sea shipping,we can do the term EXW,FOB,CFR,CIF,DDU and DDP. For
courier service,we can delivery by DHL TNT,FEDEX,EMS and etc....
6.Q: How can i get this product?
A: We can do the delivery by sea
shipping to your nearest port,or to your specific address. Also we can do the air transport to directly your nearest air port or your specific address.
7.Q:How can I pay,what kind of payment will be accepted?
A:We support TT payment,West Union,also paypal and
Trade assurance.
8.Q:Do you have common rail tools or spare parts?
A:Yes,for sure,we have the common rail tools and spare partsalso with best quality and most competitive price.
