Супер яркий светодиодный Предварительно проводной светодиод dip 12 в 5 мм

Сохранить в закладки 1205761045:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики





Our Advantages:





1)High intensity and low light decline





2)Standard T-1 3/4 diameter package,With Flange





3)General purpose leads





4)Reliable and rugged





5)High brightness and long life time





6)Good price and fast delivery





7) Accord with CE &Rohs





8)Red 620-630nm,Yellow 585-595nm,Blue460-470nm ,Green 515-525nm,UV 370-420nm ,IR 850&940nm,4-PIN RGB,2-PIN RGB fast flashing,Slow flashing  ,warm white 3000-3500K,pure white 4000-4500K ,and cool white 6000-6500K (Optional) ;





9)Wide viewing angle range are optional (8deg,15deg,25deg,40deg,60deg,90deg,120deg and 180deg)





10)Lens color :Water clear ,White diffsued and coloured body are available;





11)Diameter of Round LED:1.8mm,3mm,4.8mm,5mm,8mm and 10mm(Optional)

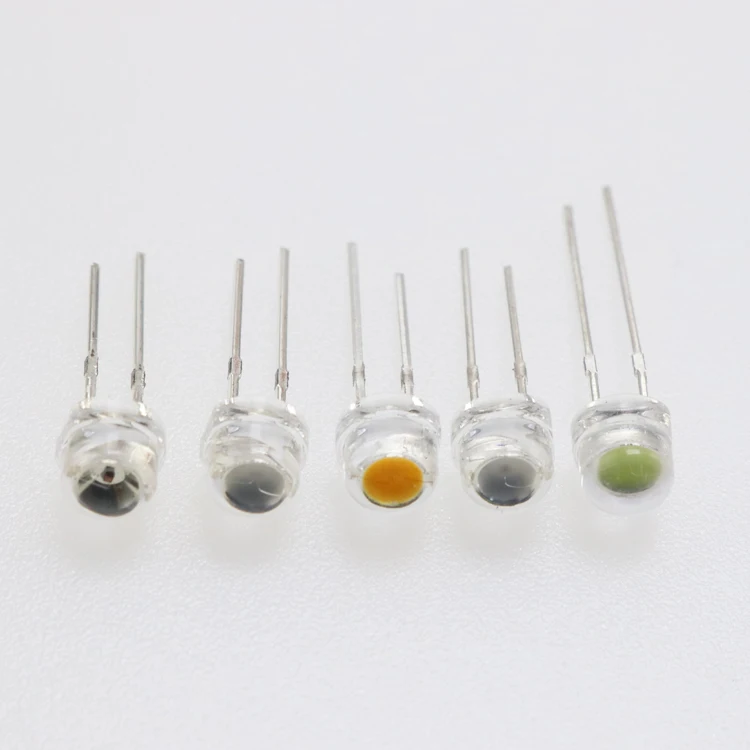

12)led shape:Round,Flat top, Rectangle,cylinder-shaped and so on are could make for you if you needed .





13)Free samples and no M.O.Q





14)Factory price and fast delivery





15)Working Voltage of pre wried led :DC5V,DC9v and DC12v are available ;





16)Ce&Rohs confirmed


17)Warranty:2 year


Package Dimension for Pre wired 5mm led light source   :













Specifications of Pre wired 12v 5mm led:






























































Part No.Emitted ColorVoltageCurrentIv(mcd)wavelengthAngle
TL-5WRred9-12VDC20mA12000-15000-18000625-630nm15-20
TL-5WAAmber&yellow9-12VDC20mA12000-15000-18000588-592nm15-20
TL-5WBblue9-12VDC20mA8000-12000-15000465-470nm15-20
TL-5WGgreen9-12VDC20mA20000-25000515-520nm15-20
TL-5WWwhite9-12VDC20mA15000-20000-250002700-12000K




1)Built -in resistor for high voltage operation;

2)Color of wires:Red&black;

3)Length of wires:7.8" 20cm from both pin ;

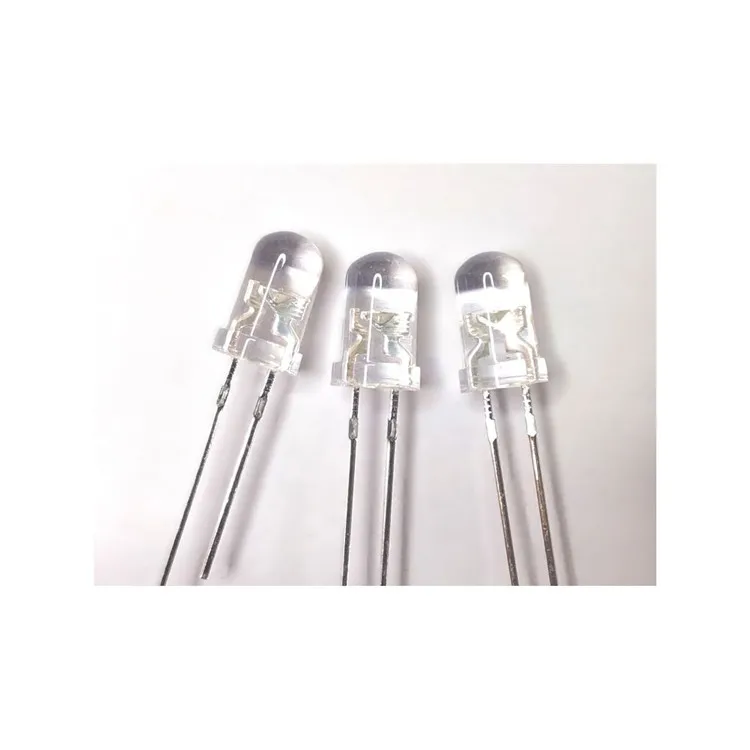

4)light source:Super bright 5mm Round LED;

5)Packing:100 PCS/Bundle,1000PCS make a small carton;

6)The Diameter of the LED and the length of the wires can be customized ;

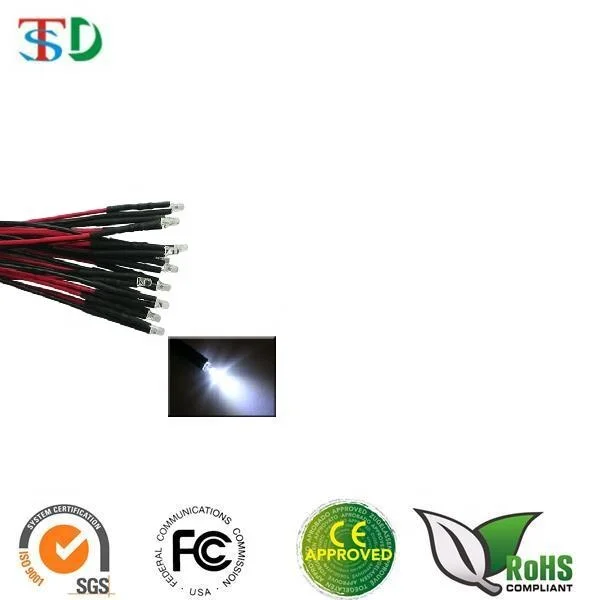

7) These pre-wired 5mm waterclear LEDs are designed for direct connection to a 12 volt power supply without the need for a resistor to be wired in series. (resistor is fitted)
The pre-soldered wires are 200mm long and are coloured red and black for easy polarity identification.



Trade Terms
1.Payment: T/T  or Western Union in advance


2.Production lead time  :within 3 working days for samples,5-7 working days for bulk order


3.Sample can be delivered in 3days
4.Shipping freight are quoted under your requests
5.Shipping port: Shenzhen, Mainland China
6.Discounts are offered based on order quantities


Our service
1.Your inquiry related to our products or prices will be replied in 24hrs.

2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized lightings we can help you to design and put into product.
4.Distributoership are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information





Shipping:





1)We can shipping all over the world by DHL,Ups,FedEx and TNT.The packing is very safe and strong,if you have any special needs ,please let me know.





2)It will take around 3-5 working days to reach your hands.





3)We only guarantee delivery in time but we wouldn't control exprss delivery time.Our related sales person will be responsible to send the AWB(Tracking Number) for the delivered goods in the next workday.You can check the AWB on the website which we send to you.For the AWB you also can call to the local branch of the express company in your country .





4)Delivery :3-5 working days for sample order,7-10 working days for bulk order .

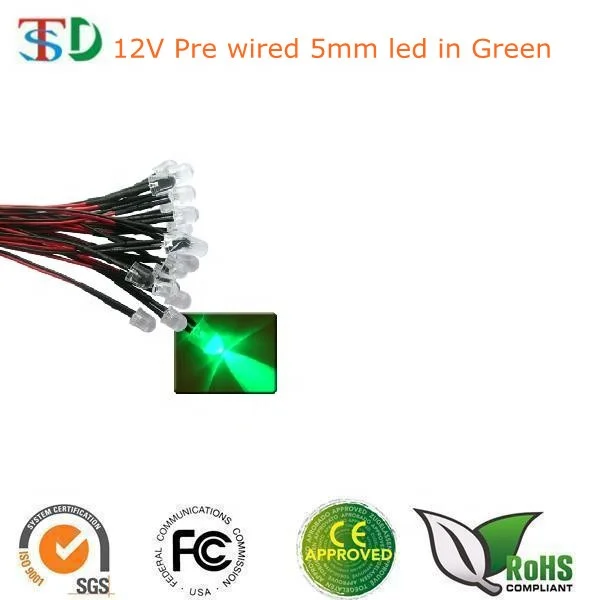

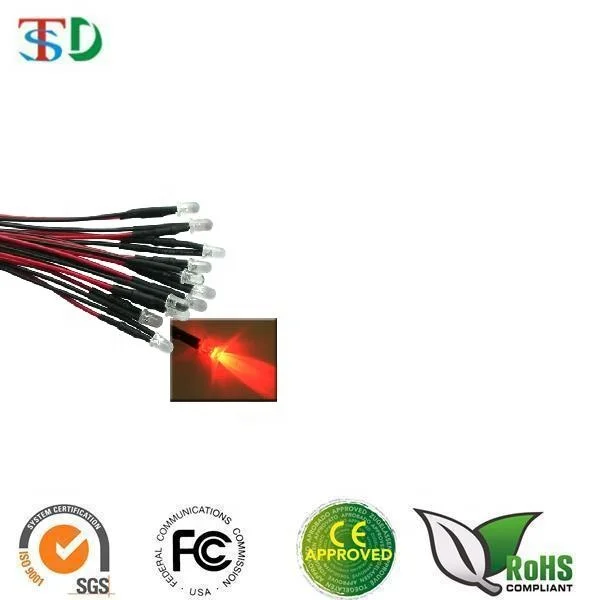

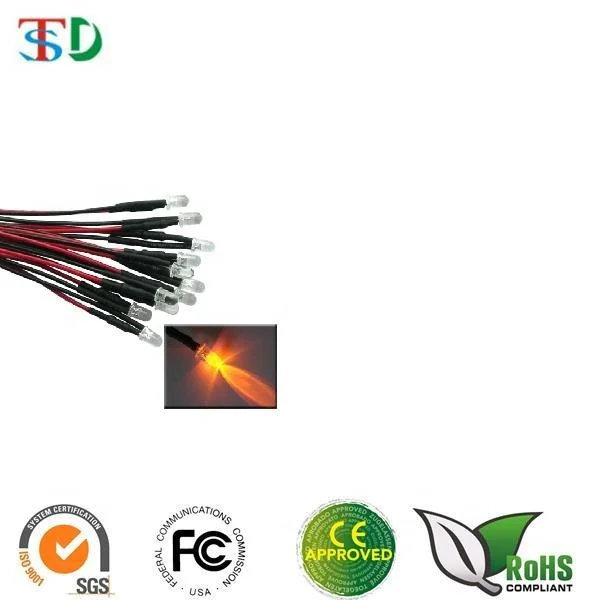

Amber pre wired .jpgUV Pre led .jpgRed pre led .jpgPink pre led .jpgGreen Pre led .jpg

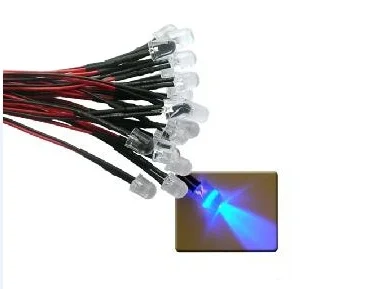

Cool white pre led .jpgBlue pre wired led .jpg











Light Split-01.jpgLight Split-02.JPG.JPG

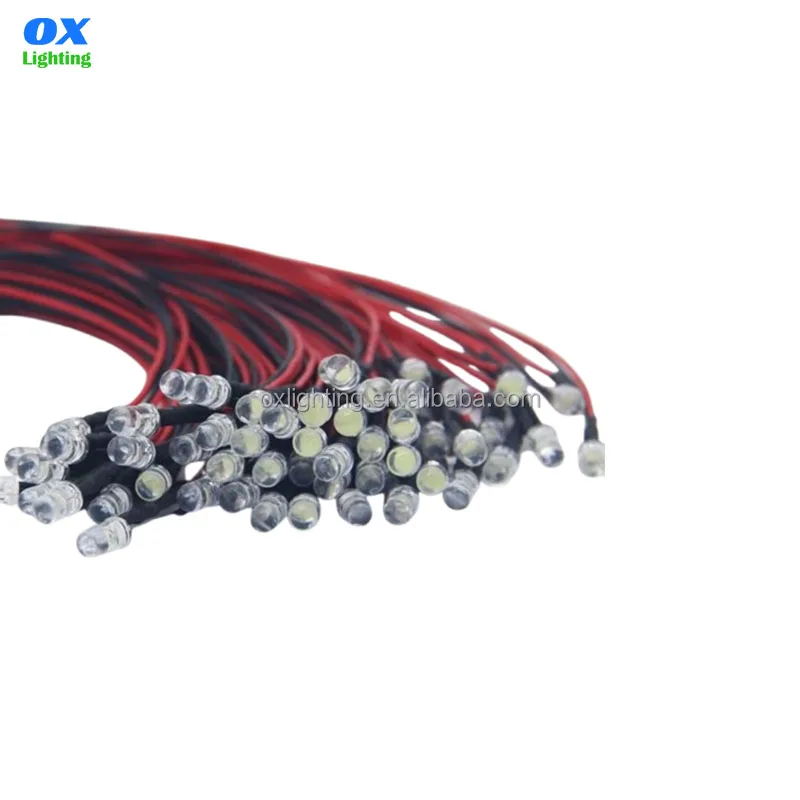

Pre wired led.jpgPre wired led.jpgPre wired -1.jpg
