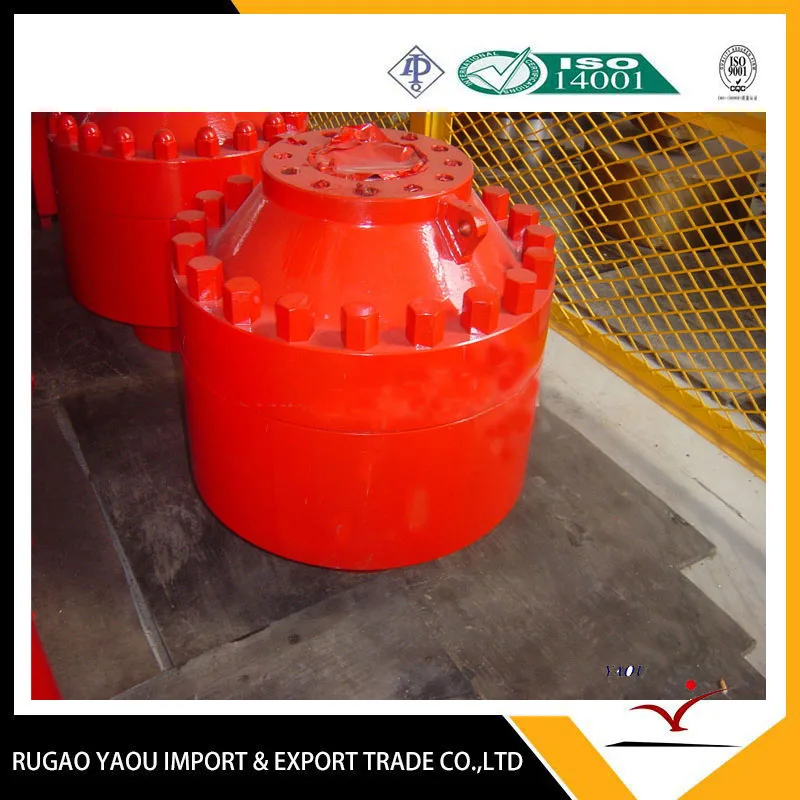

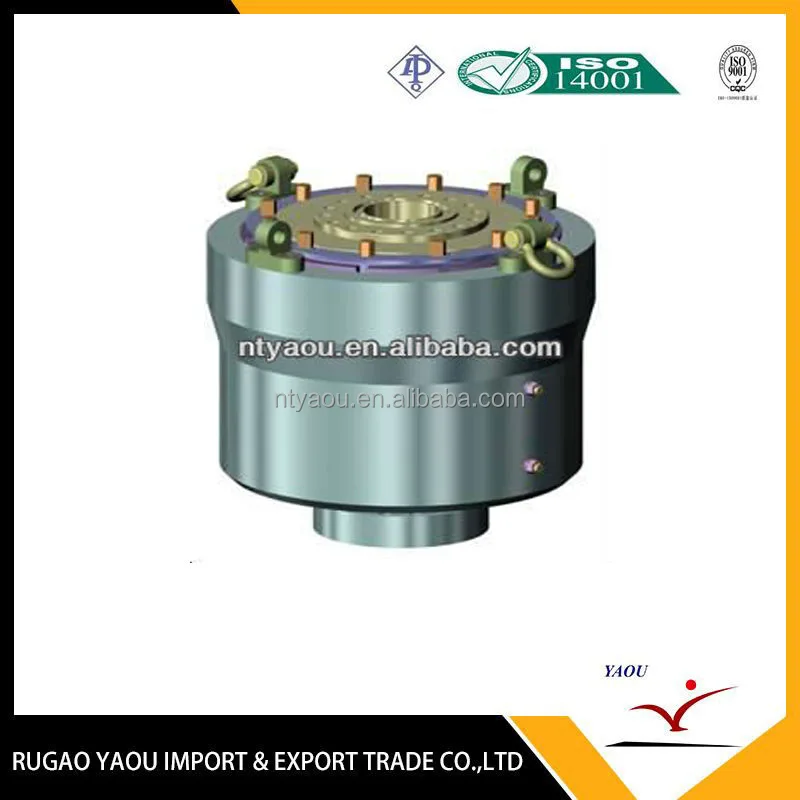

Стандарт API Caremon и Shaffer кольцевой продувки предотвращатель (BOP) со сферической резиной
- Категория: >>>
- Поставщик: RUGAO YAOU IMPORT & EXPORT TRADE CO. LTDRUGAO LTD
Сохранить в закладки 1274855262:
Описание и отзывы
Характеристики
Products Description

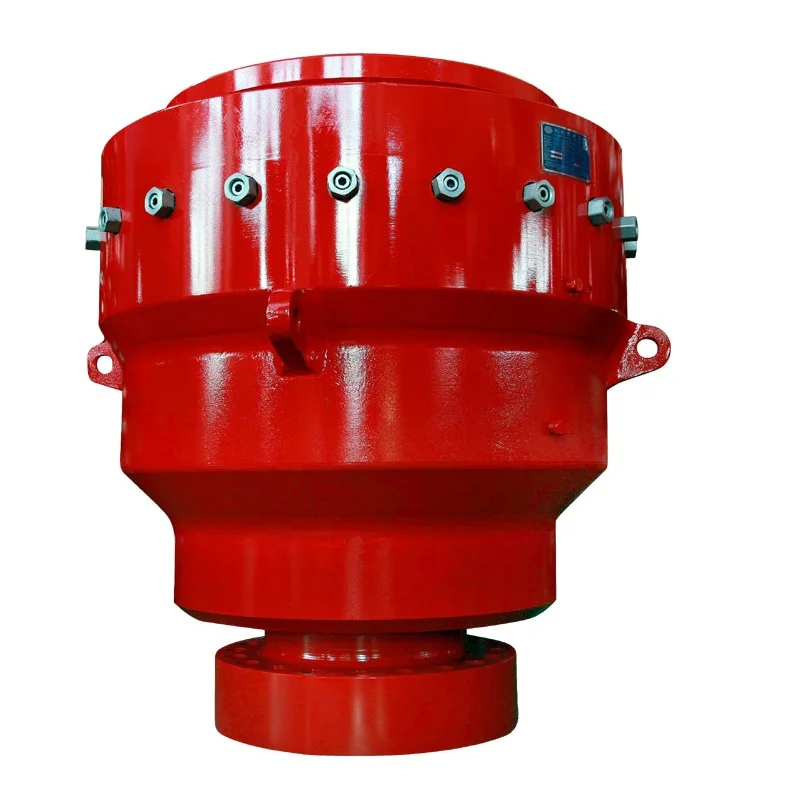

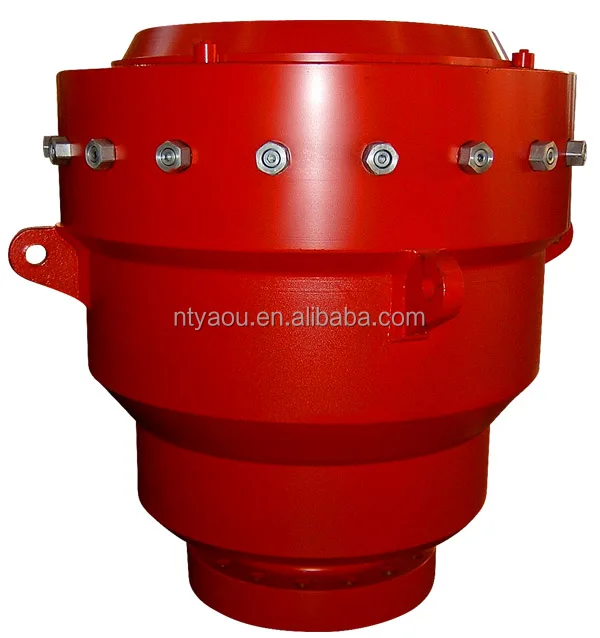

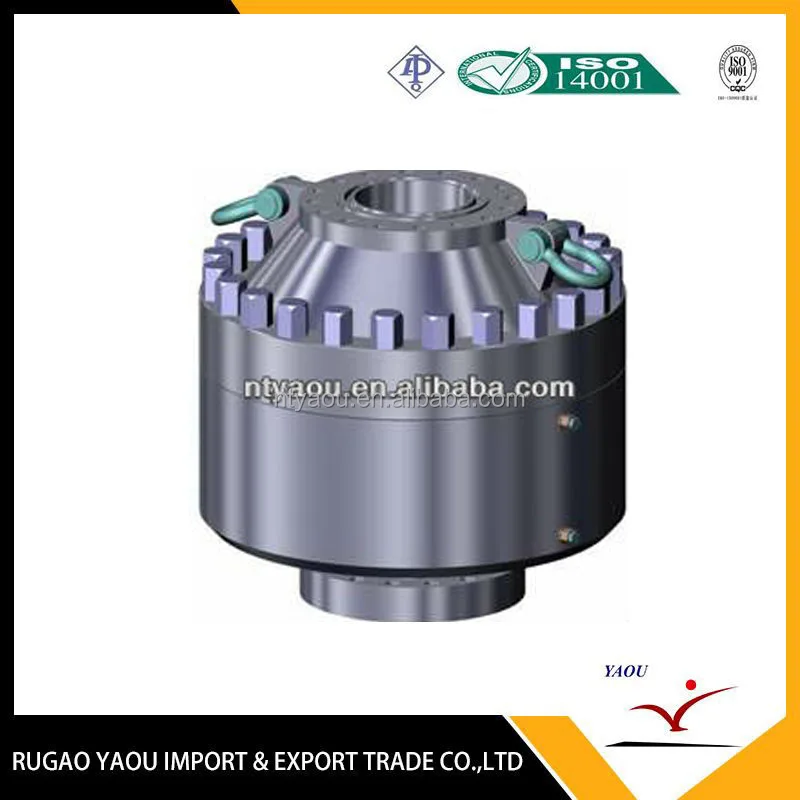

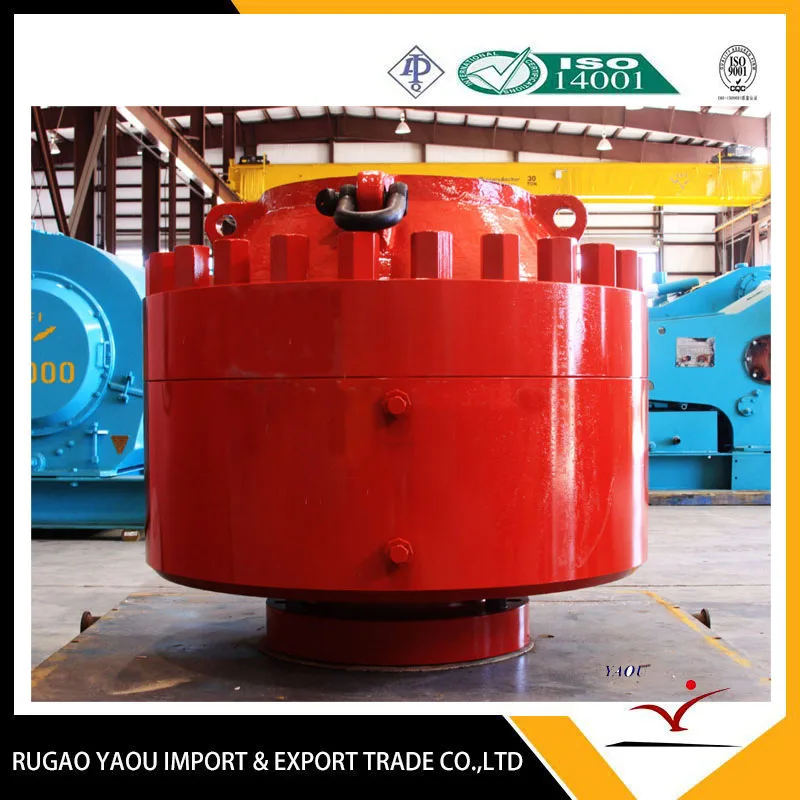

annular BOP
1.Annular BOPs are designed to form a seal in the annular space between the drill pipe and the wellbore and are usually mounted at the top of the BOP stack.
2.Annular BOP is used for controlling wellhead pressure during drilling to prevent well blowout effectively and realize safe

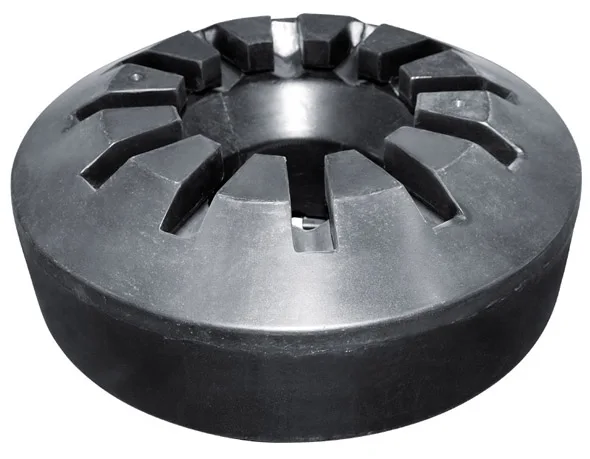

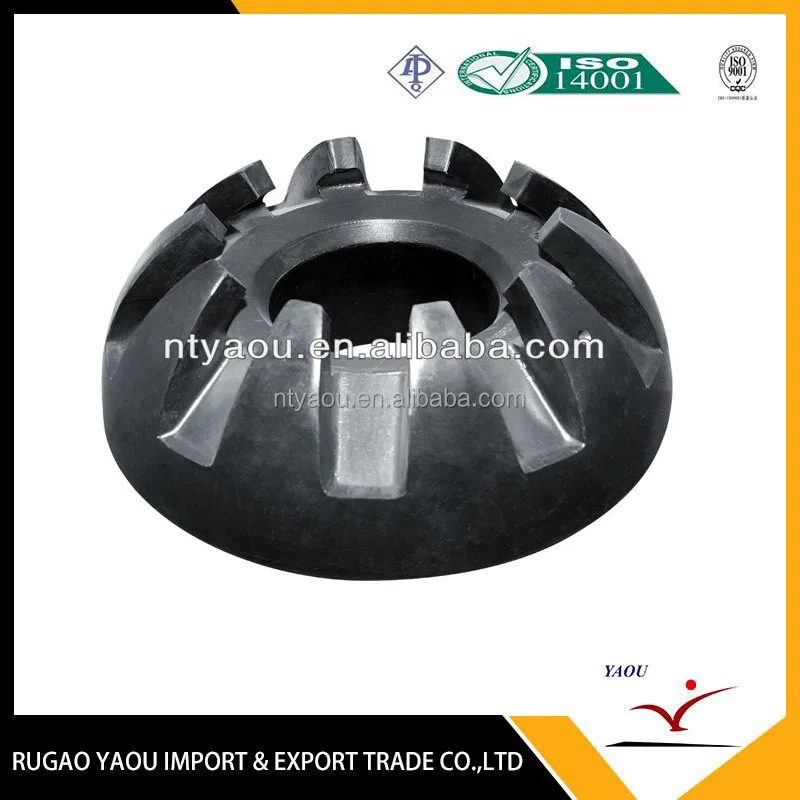

Adopts sphere rubber core or tapering core structure.
The top and bottom connection is flange or thread.
ANNULAR BOP
1. Standard:API16A
2. Bore size:7 1/16—21 1/4”
3. Material :forged and casing
4. Pressure: 2000-10000psi
There are A type (cone gum core )annular BOP and D type(ball gum core) annular BOP
1. Annular Blowout Preventer Technical parameter
1.13 5/8" 10000 / 15000psi Annular Blowout preventer
2.Shaffer and Hydril type BOP
3.Annular BOP is simple and requires less-maintenance.
4.Low profile saves the installing space.
5.Packing unit has enough rubber volume and long service life.
6.Wide losing rang, losing various sizes of drill tools and wire line less than Bop bore
7.According to the latest API Spec 16A standard,NACE MR-01-75andquality standard of ISO 9001
8.H2S Trim.
9.Packing unit can be interchanged by Hydril's
10.Top connection:13 5/8"10000psi 6BX BX159 CRA Studded or Flanged
11.Bottom connection: 13 5/8" 15000psi 6BX BX159 CRA Flanged or Studded
12.Weight:14416kg
13.Dimension:1636 x 1636 x 1802
14.A hydraulic control system is used to close or open the annular preventer,when it is closed,high pressure oil is directed to the closing chamber positioned in the lower side of the piston,causing the piston to move upward.The rubber core is compressed by the moving piston.Because the annular BOP has a cap,the packing unit can not move upward and only can move toward the center of the well to pack off a string or seal off the well.
When well open is required,operate the reversal valve to direct high pressure oil from the upper oil-port into the chamber in the upper side of the piston so as to push the piston to move down,and then the closing chamber is relieved,the squeeze pressure at the cone of rubber core is removed,the wellhead is opened.
2. Annular BOP Available:
1.Annular BOPs are designed to form a seal in the annular space between the drill pipe and the wellbore and are usually mounted at the top of the BOP stack.
2.Annular BOP is used for controlling wellhead pressure during drilling to prevent well blowout effectively and realize safe
Adopts sphere rubber core or tapering core structure.
The top and bottom connection is flange or thread.
ANNULAR BOP
1. Standard:API16A
2. Bore size:7 1/16—21 1/4”
3. Material :forged and casing
4. Pressure: 2000-10000psi
There are A type (cone gum core )annular BOP and D type(ball gum core) annular BOP
1. Annular Blowout Preventer Technical parameter
1.13 5/8" 10000 / 15000psi Annular Blowout preventer
2.Shaffer and Hydril type BOP
3.Annular BOP is simple and requires less-maintenance.
4.Low profile saves the installing space.
5.Packing unit has enough rubber volume and long service life.
6.Wide losing rang, losing various sizes of drill tools and wire line less than Bop bore
7.According to the latest API Spec 16A standard,NACE MR-01-75andquality standard of ISO 9001
8.H2S Trim.
9.Packing unit can be interchanged by Hydril's
10.Top connection:13 5/8"10000psi 6BX BX159 CRA Studded or Flanged
11.Bottom connection: 13 5/8" 15000psi 6BX BX159 CRA Flanged or Studded
12.Weight:14416kg
13.Dimension:1636 x 1636 x 1802
14.A hydraulic control system is used to close or open the annular preventer,when it is closed,high pressure oil is directed to the closing chamber positioned in the lower side of the piston,causing the piston to move upward.The rubber core is compressed by the moving piston.Because the annular BOP has a cap,the packing unit can not move upward and only can move toward the center of the well to pack off a string or seal off the well.
When well open is required,operate the reversal valve to direct high pressure oil from the upper oil-port into the chamber in the upper side of the piston so as to push the piston to move down,and then the closing chamber is relieved,the squeeze pressure at the cone of rubber core is removed,the wellhead is opened.
2. Annular BOP Available:
working Pressure (MPa) | Bore Sizes (mm) | ||||||||||||||
180 (7-1/16") | 230 (9") | 280 (11") | 346 (13-5/8") | 426 (16-3/4") | 476 (18-3/4") | 527 (20-3/4") | 540 (21-1/4") | ||||||||
70 | √ | 　 | √ | √ | |||||||||||
35 | √ | √ | √ | √ | √ | √ | √ | ||||||||
21 | √ | √ | √ | √ | √ | ||||||||||
14 | √ | ||||||||||||||
3.BOP Technical Specification:
No. | Item | Technical Specification |
1 | Standard: | API Spec 16A |
2 | Bore size: | 7-1/16” - 26-3/4” |
3 | Working pressure: | 2000psi-10000psi (14 Mpa-70Mpa) |
4 | Operating temperature:- | 18deg--121deg |
5 | Top & nottom connection: | Flanged,studded, etc. |
6 | Material | AISI 4130, AISI4140, 35CrMo, Forging or Casting |
7 | Ram Type: | Pipe ram, bland ram, variable ram and shearing ram |
Marketing Campaign
Details Images
Product packaging
According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Company Profile
Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Certifications
FAQ
Q1. How to get an accurate quotation?
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
Похожие товары
Насос/3217866752/Boltec 235/Boomer 353/Детали буровой установки
2,00 $

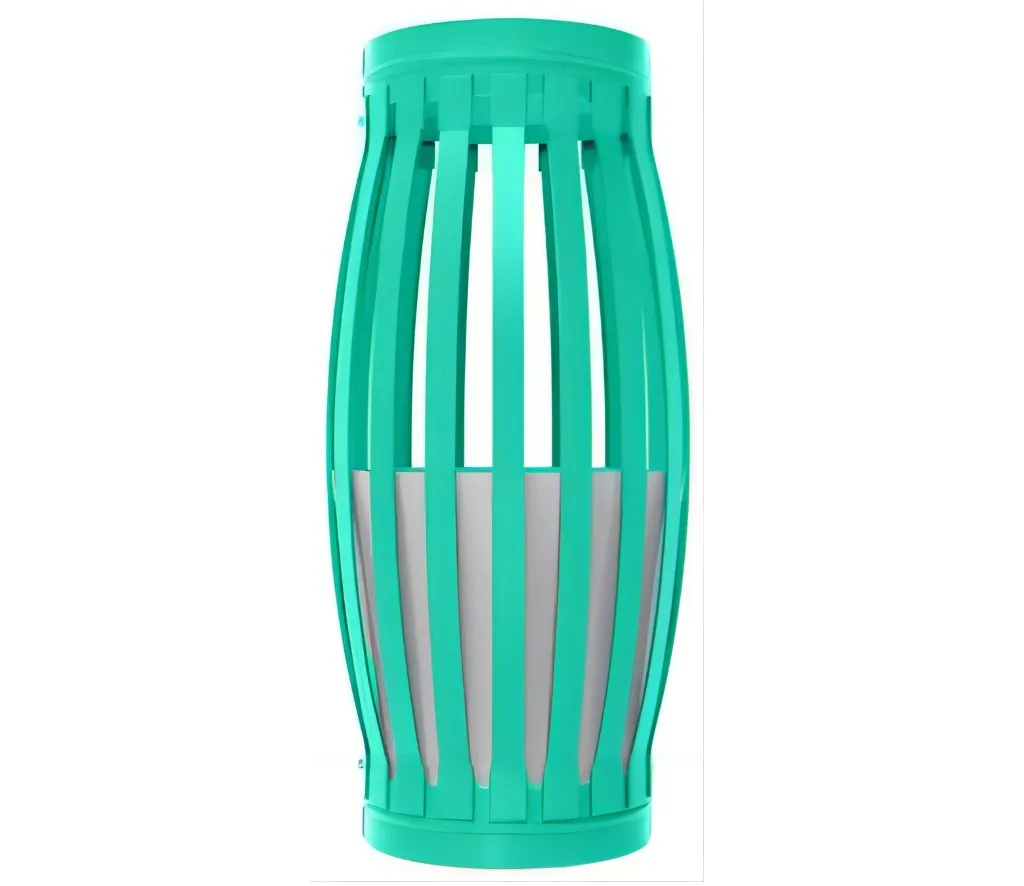

7-5/8 'скользящая сварная цементировочная корзина по хорошим ценам API Standard OEM цементная
120,00 $
API масляная скважина Келли кран клапан для бурения и газа
400,00 $

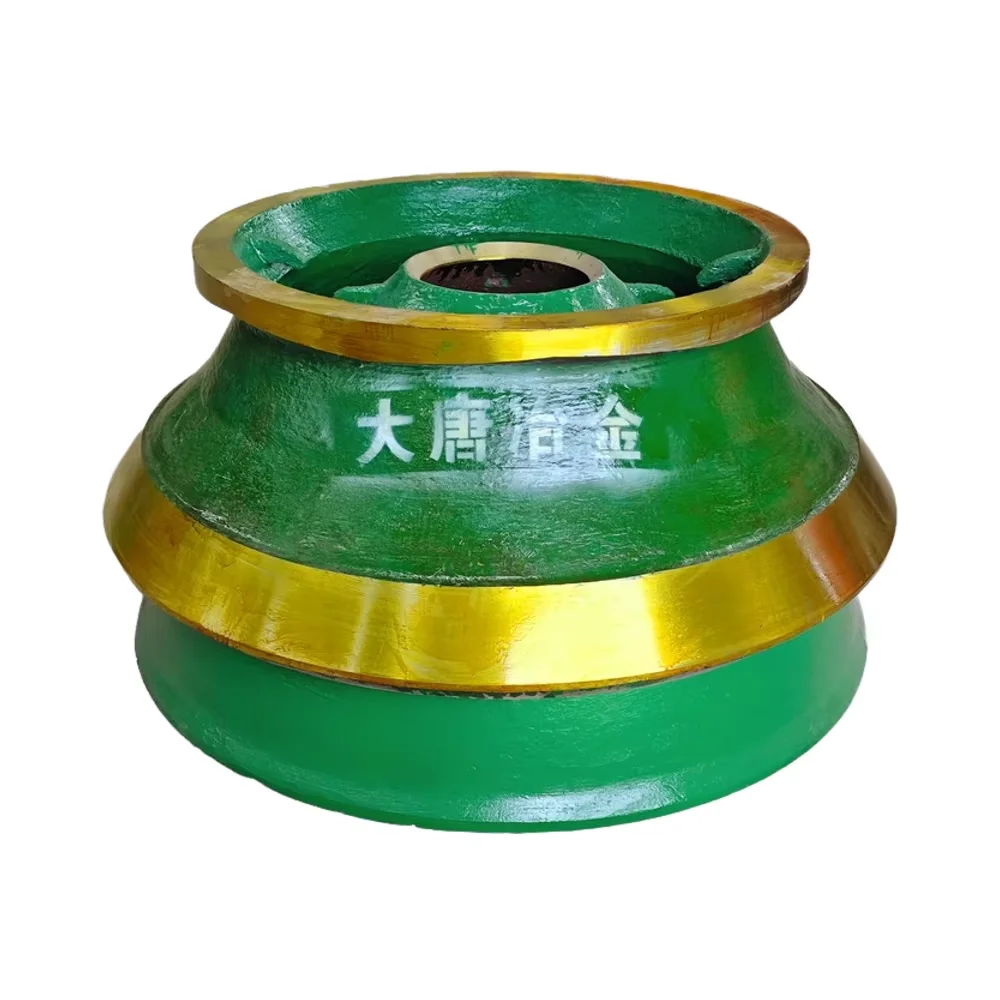

Прямые с завода настраиваемые прочные заводские цены Конусная Дробилка износостойкие детали мантия вогнутая чаша вкладыш для продажи
1,63-2,55 $
Верхний молоток сверлильный хвостовик адаптеры COP1435 для Atlas Drifter
50,00 $

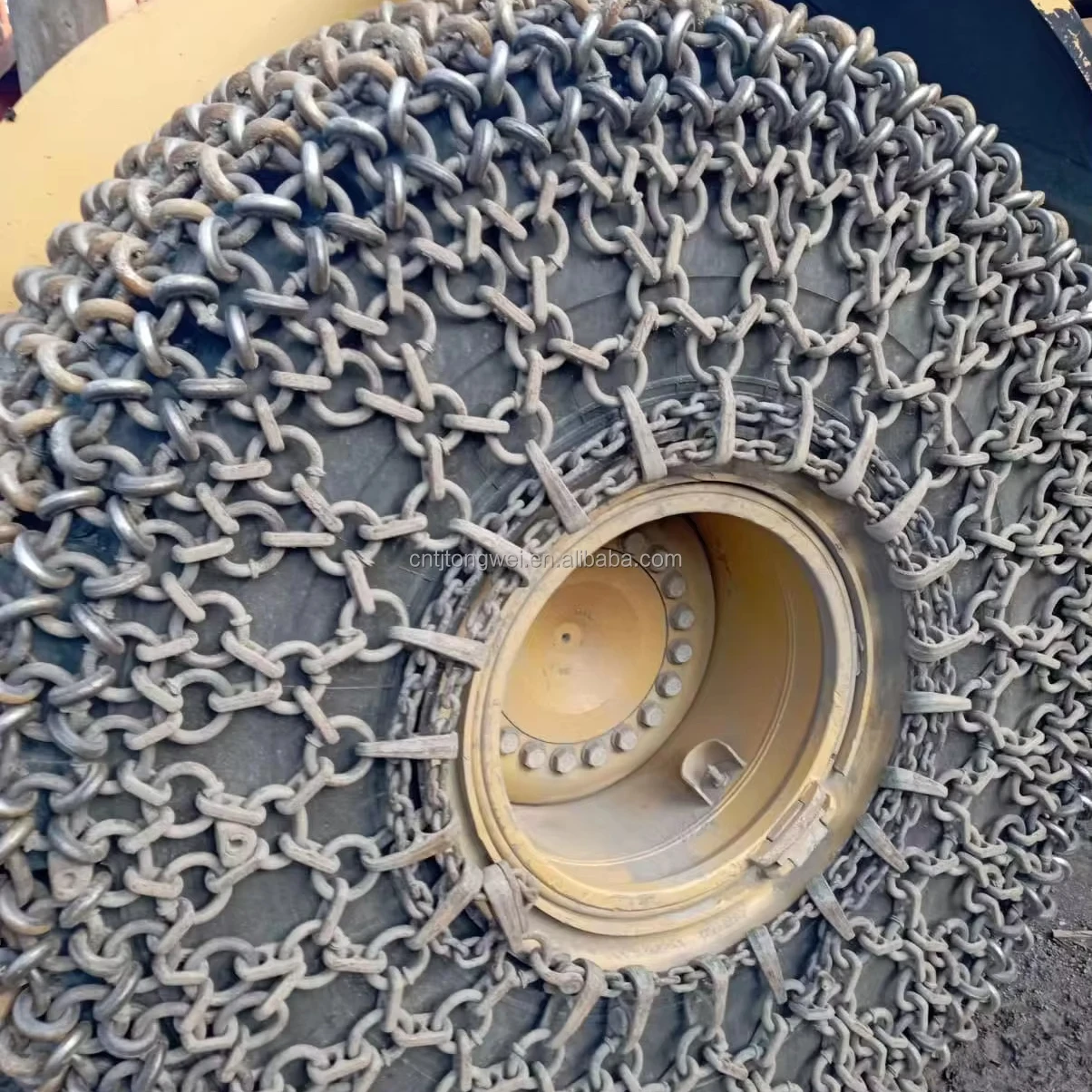

Кольцевая цепь для защиты от шин 35/65-33 погрузчика CAT988H
1 800,00 $

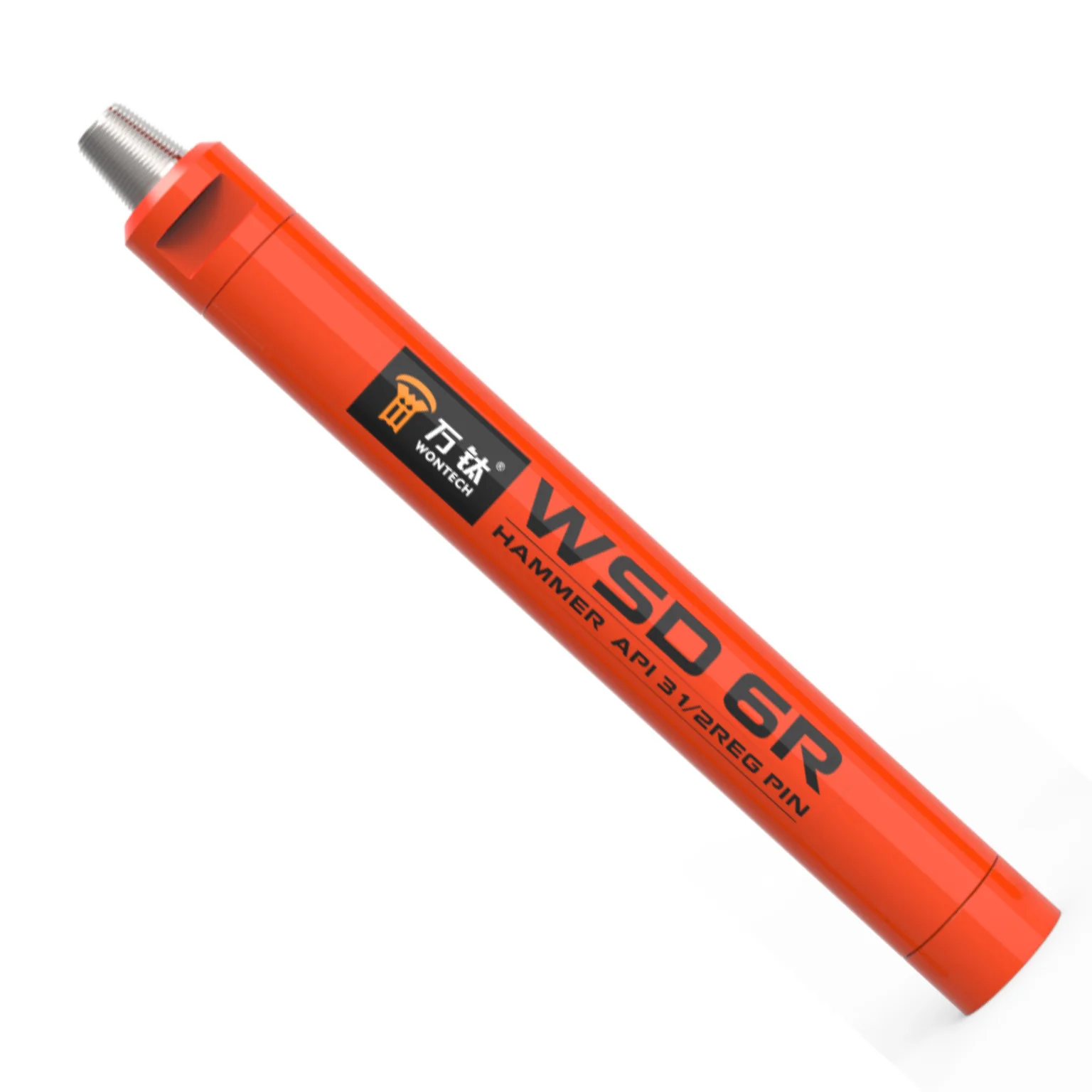

Wontech Скважинное бурение эффективный SD6 6-дюймовый DTH молоток
