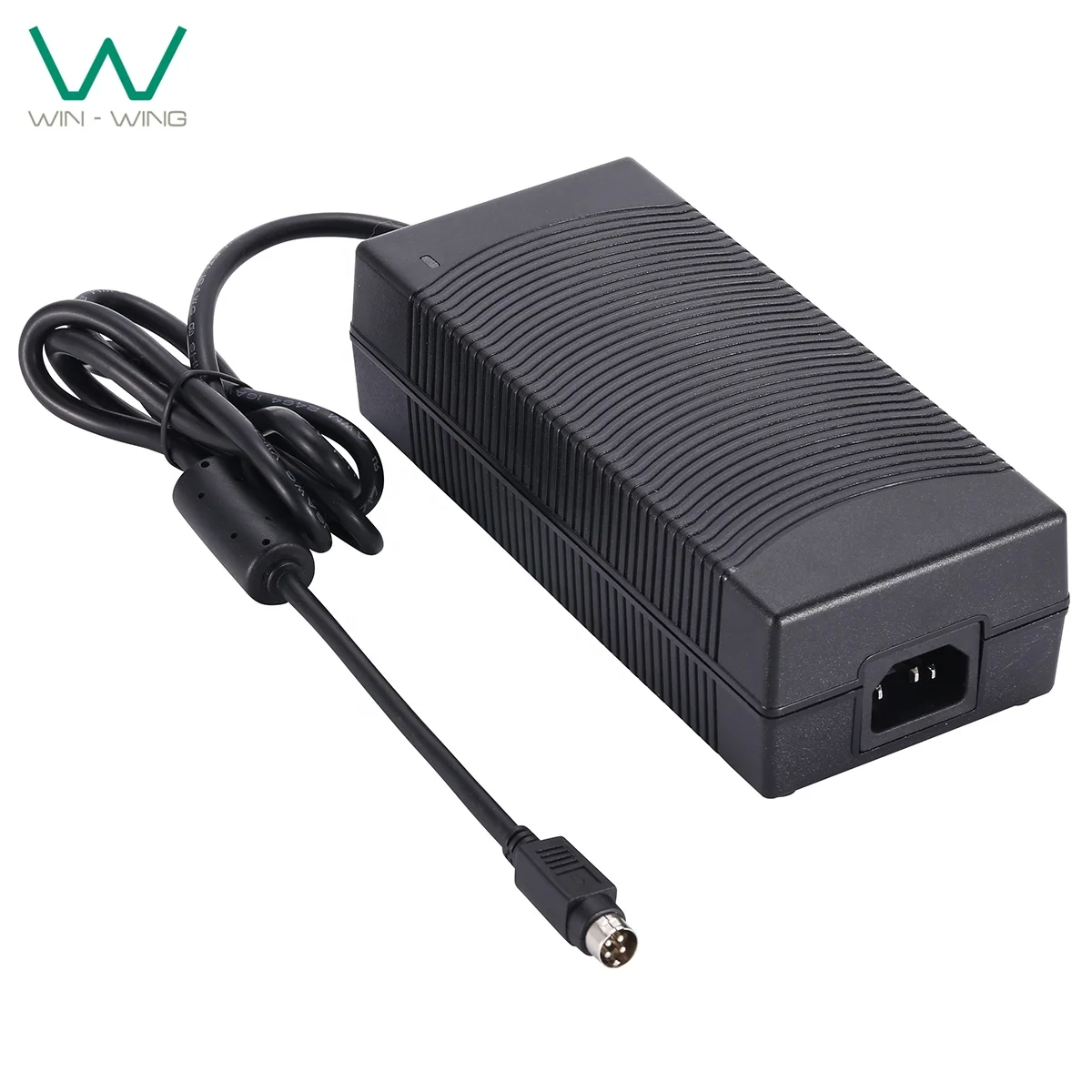

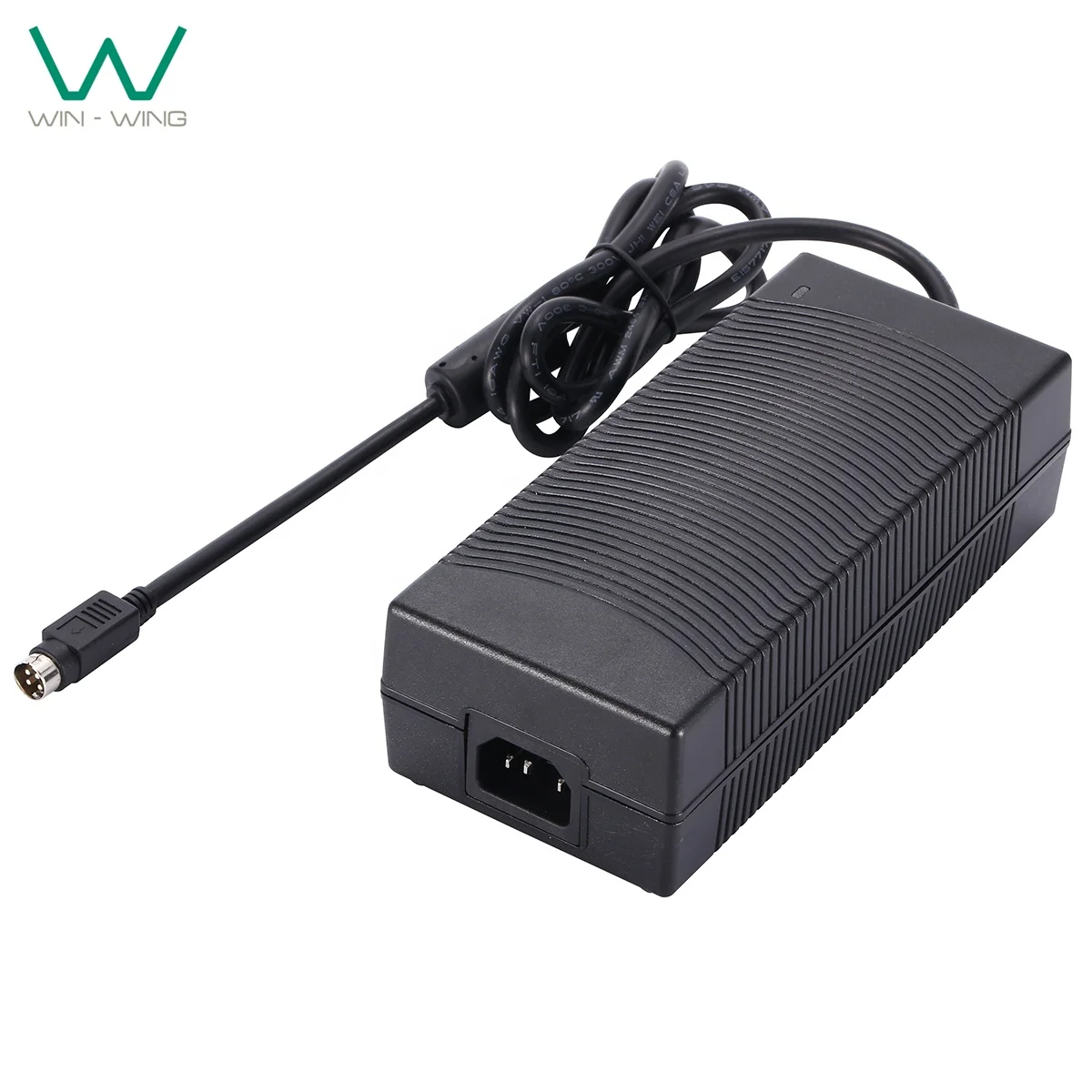

Адаптер переменного тока 24 В постоянного 7 5 А источник питания UL62368 EN62368 IEC62368

Сохранить в закладки 1276265310:


Цена:25,90 $ - 27,50 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


AC Adapter 24V DC 7.5A Power Supply UL62368 EN62368 IEC62368



Features:

Universal AC Input/full Range

4hrs Full Aging Testing

Cost effective and reliable

UL FCC GS TUV CE PSE KC SAA fully safety approved

Fully enclosed plastic case

MTBF>50,000 hours

Energy Star, Erp Step2, CEC, MEPS Compliant

2 year warranty



Application:

LCD Monitor, LED Lights, HDD Enclosure, ADSL, DPF, Refrigerators, Portable DVD, Stereo, Radio, Security System Products Etc.





Specification:

InputVoltageAC 100V ~ 240V full range
 Frequency50-60Hz
 Input Current120A/240VAC
 Leakage Current50,000hrs
OutputDC24V 7.5A, 180W
OtherRipple & Noise120mV Max
 ProtectionOver-Voltage, Over-Current, Short-Circuit
 Hold Up Time>5mS @115VAC
 CoolingNatural Cooling
 MTBF50,000hrs/ MIL-HDBK-217F
Mechanical AC Input TypeIEC C14 3PIN
 DC Output TypePer Customer's requirement
 Dimensions175mm(L)*75mm(W)*48mm(H)
 Net Weight800-820G
EnvironmentTemperatureOperating 0 to 40C, Storage -25 to +85C
 Conducted EMIFCC Part15 Class B , EN55022 class B
 Safety CertificateCUL/UL CE GS SAA PSE KC CCC





Pictures:

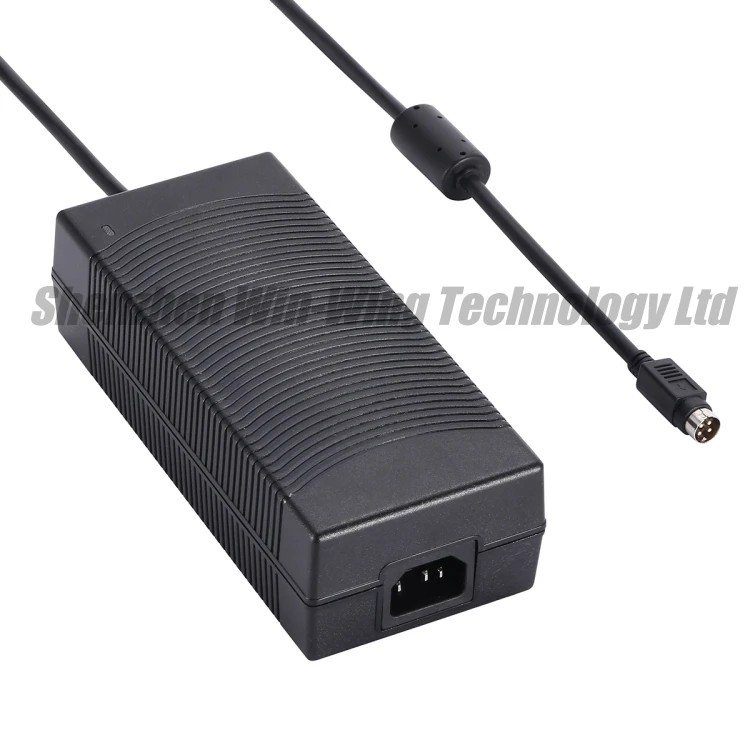

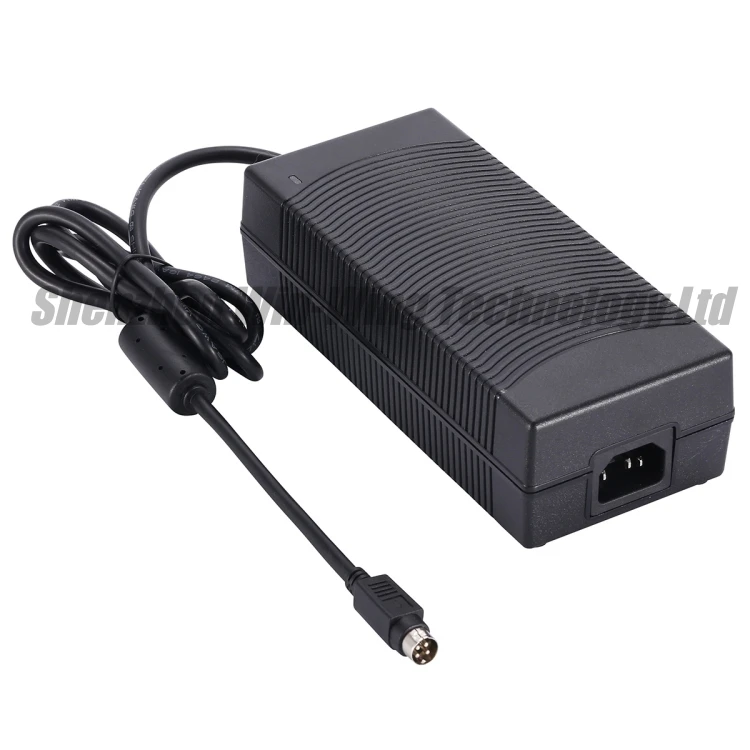

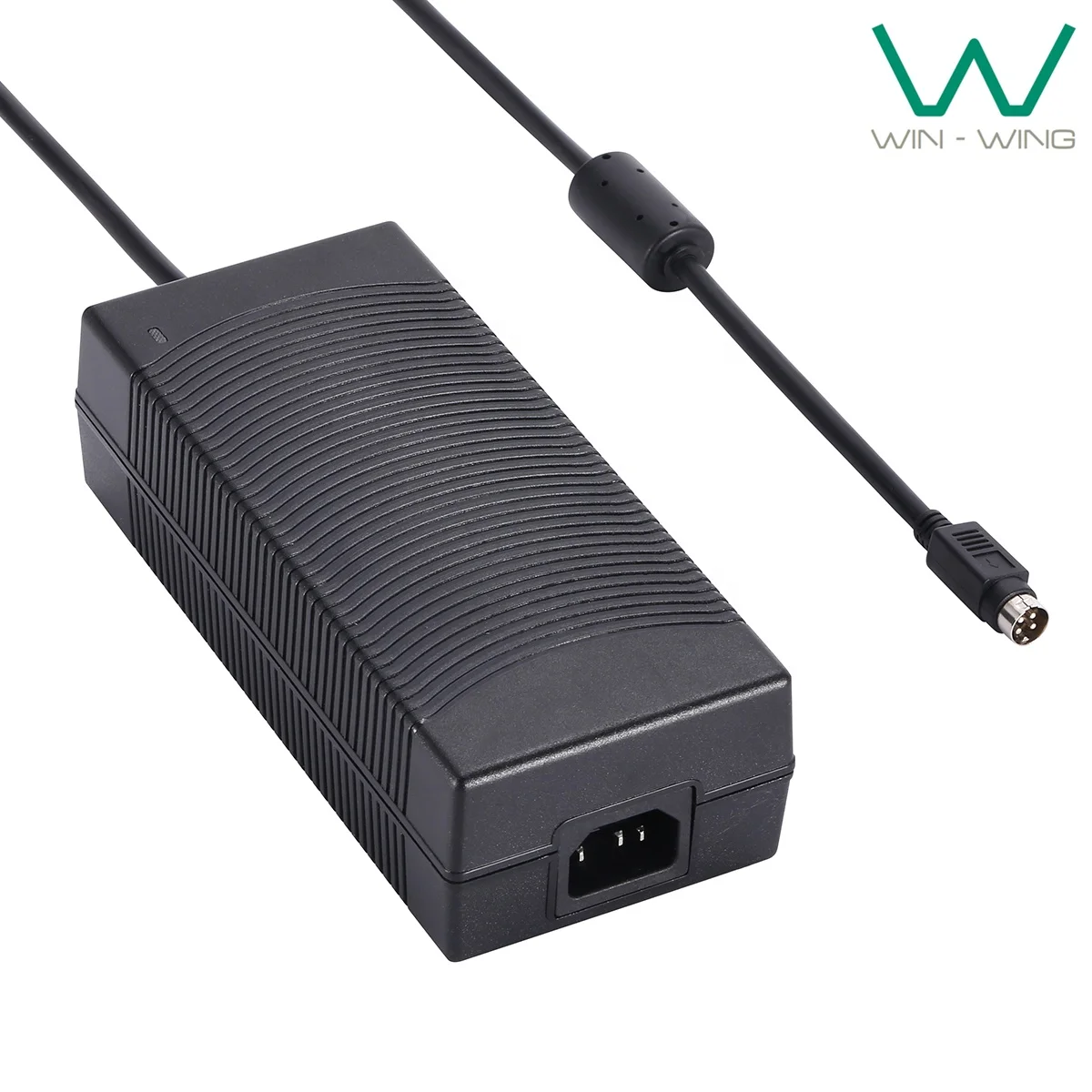

 24V 7.5A 1-24V 7.5A  2-24V 7.5A  3-24V 7.5A  4-
