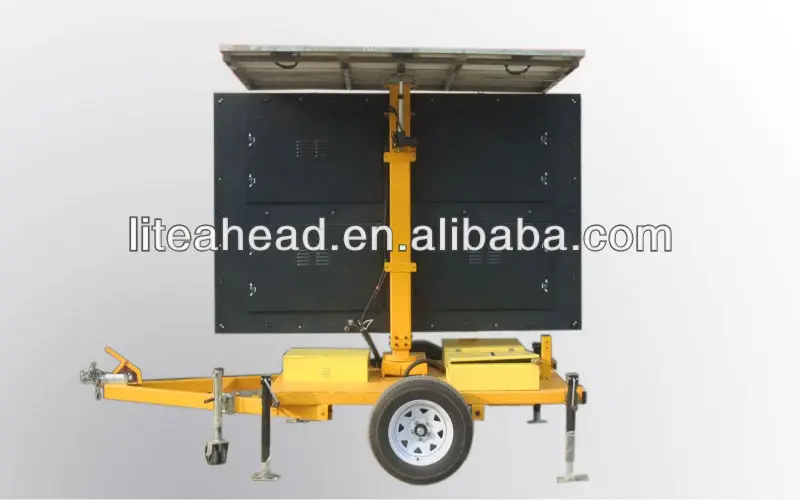

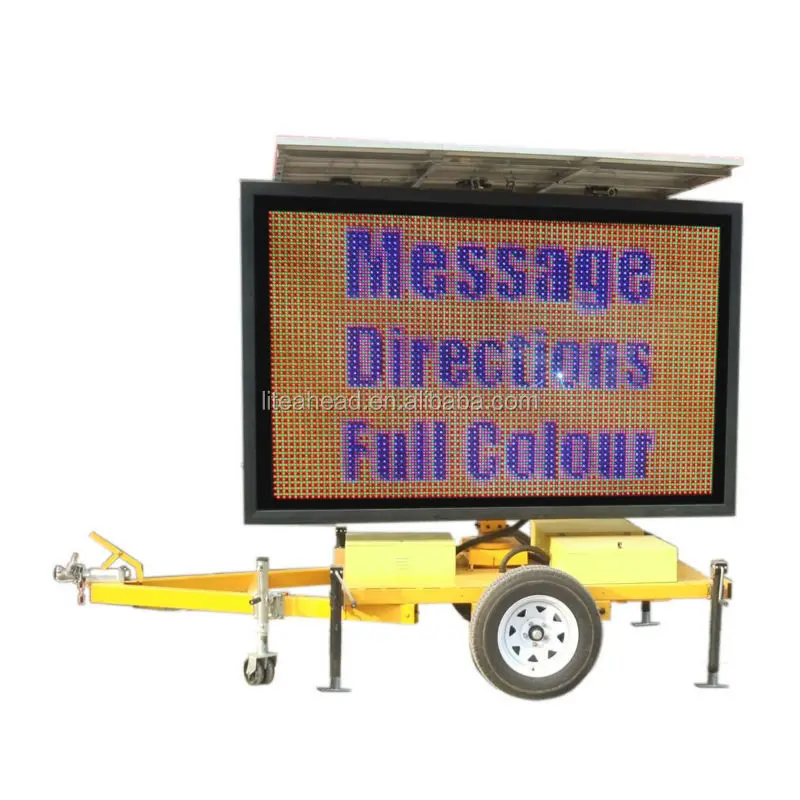

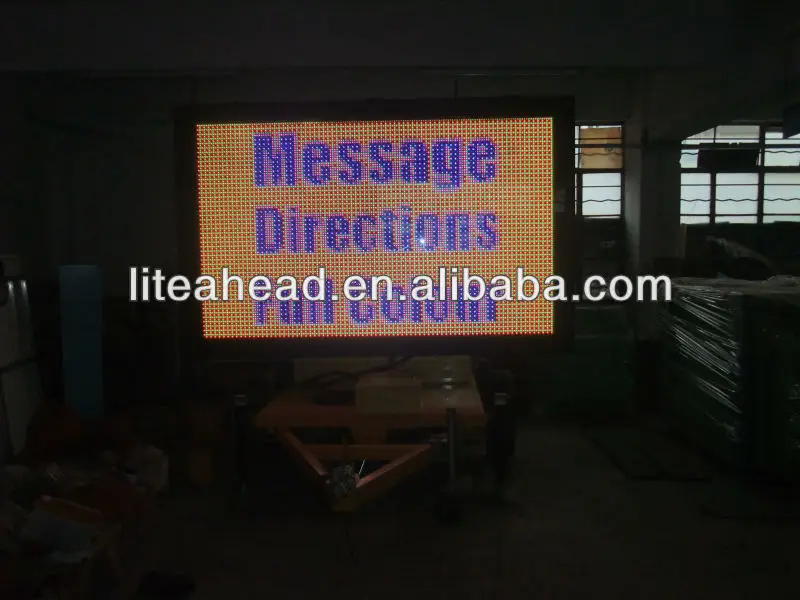

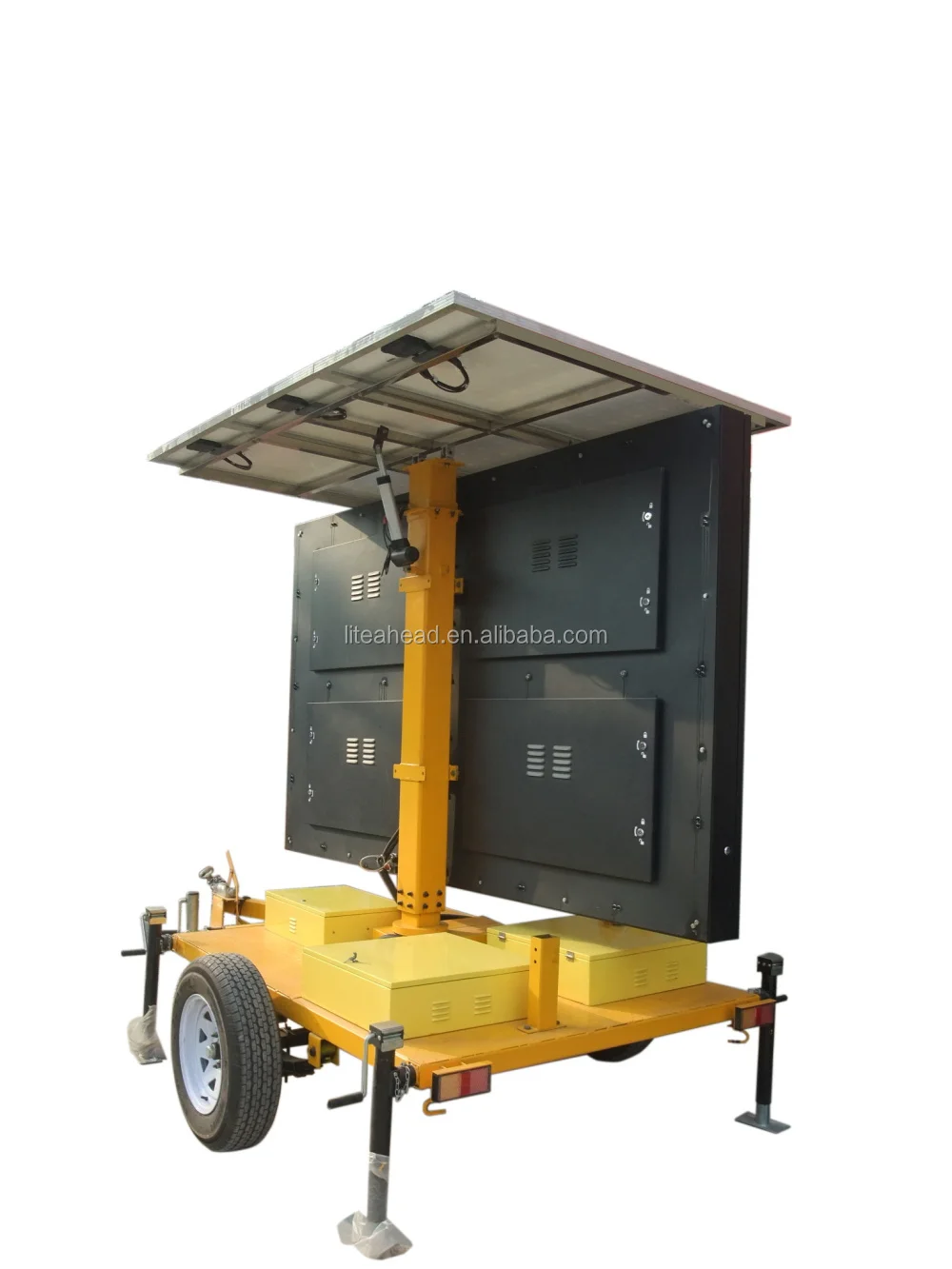

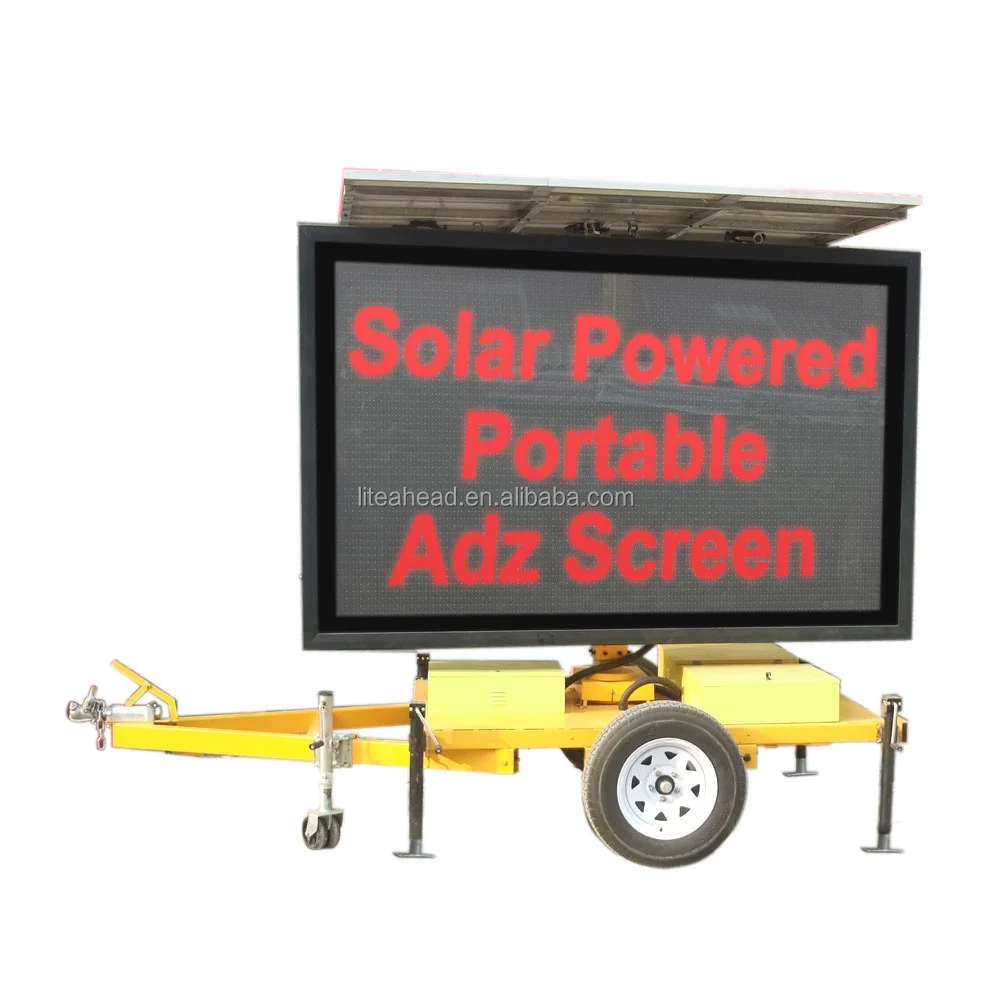

P31.25 портативный Экран прицепа на солнечных батареях

Описание и отзывы

Характеристики

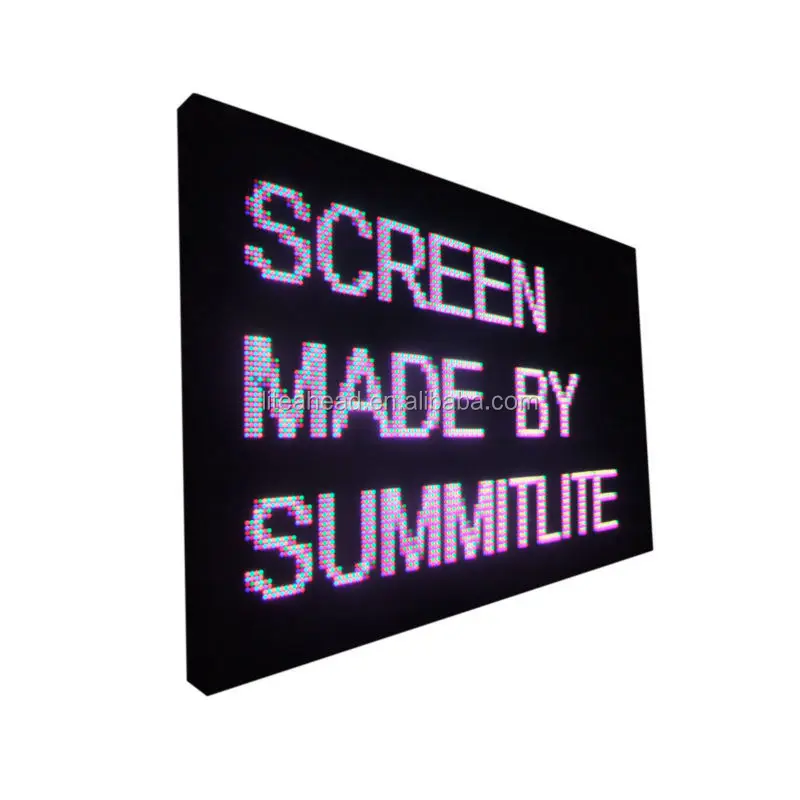

RGB FULL COLOR P31.25

Screen size: 2500mm W x 1500mm Has display size,

With aluminum alloy Boarder Size: 2800mmX1760mm

Pixel: P31.25 80X48 Dots totally 4800 Dots

2R1G1B full color brightness >3000cd/m²

Display letters:   max 12X6 letters

Brightness adjective function

Power Max 800Watt Average less than 300Watt. Average 15A@24V.

Screen control systems: offline + option (GPRS wireless editable + brightness control+Wifi. Control system built-in cabinet

The battery 4X 120AH = 480AH average 1 day @ full charge

 Solar panel 200X3pcs =600Watt

Solar control systems all in one!

The trailer size

3.5m x 2.0m

15” tires X2

Lift length 1.5M

More details check below!

Advantage:

Offline control, Full color LED Screen, Matrix screen is outdate tech from 2010.

Heavy Load trailer max load 2.0 tons

Max lift1.5M length the longest one In VMS screen industry (others are 1.2 or 1.3m)

Pan rotation control via a button. The old trailer still use the simple rotation by hand.

Long term use under full charge

Higher resolution in led trailer industry

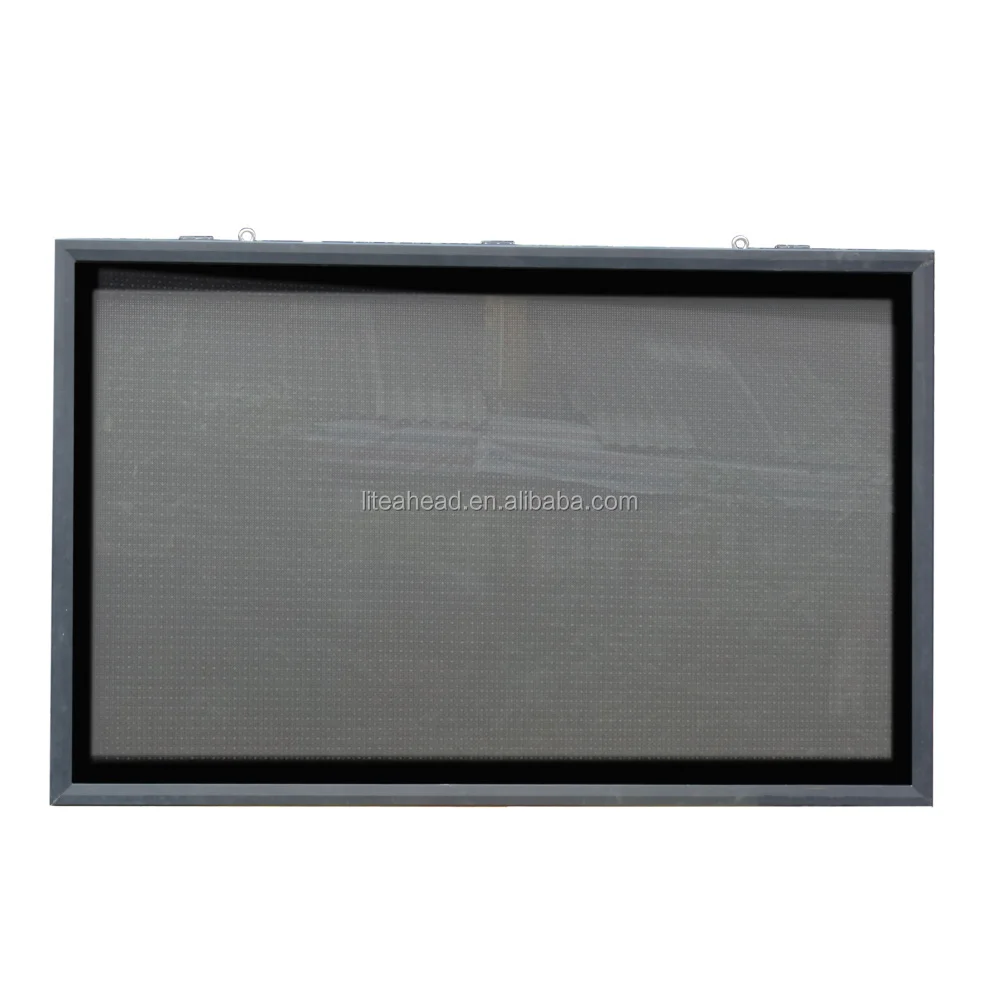

Aluminum cabinet for IP65 protection, anti-scratch, dust

Strong power system, up to 600W solar panel / 480AH battery

All in one control system

Technical Information:

Pixel pitch: 31.25mm

Pixel configuration: 2RED + 1 GREEN + 1 BLUE

Display brightness: >4000 nits (cd/m2)

View angle (horizontal): 120 degrees

View angle (vertical): 120 degrees

Refresh Rate: >400 Hz

Control input (PC-interface): RJ45

Operating voltage: 24V

Power consumption (average):300W/SET (Peak: 600W/SET)

Working temperature: -20°C to +60°C

IP-Rating: IP65

Operating system: Remote control; SD-card / U –stick and PC

For Trailers Features:

L X W X H: 3500 X 2000 X4720MM (max height include solar support)

L X W X H: 3500X1500X2420MM (Lowest Height with solar panel)

Operating height::4720mm

Pan rotation: 360 ° control

Draw bar length: A frame type 1100mm

Screens can stop in the middle height, up and down via remote control

For corner jack stands: 14 inch, 3000LBS

Draw bar jack stand (with 6inch jockey wheel): 2000LBS

Coupler: 5000LBS; 50mm ball

Wheel type: 15 inch

Disc brake system for the wheel (no asbestos)

Hydraulic function for video panel lift

Manual Hydraulic Backup

Extension legs:500mm extendable

3mm steal check plate

Solar tilting system: 40° Vertical

Control Systems

Offline control, remote control systems with your PC/Laptop.

Programming options GSM&GPRS, SMS,Wifi, 3G etc

Software: Windows Compliant Free automatic software updates!!

Can be used to play video, flash animations, etc. (wide file type support: AVI, MPG, MPEG, ASF, WMV, DAT, VOB, SWF, JPG, BPM, GIF …)

Large store memory with extension card socket

Lead time only 35 days.
