Винтовой зажим натяжения для волоконного кабеля OPGW мертвого

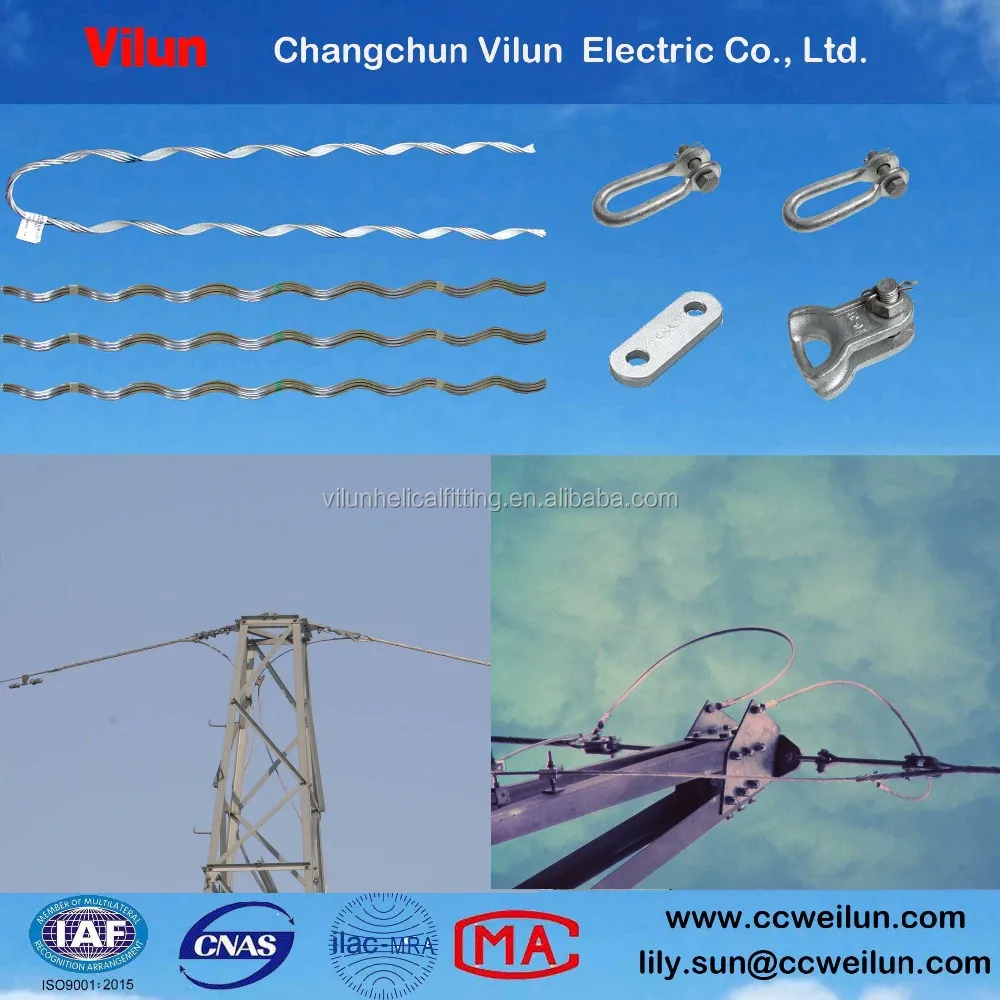

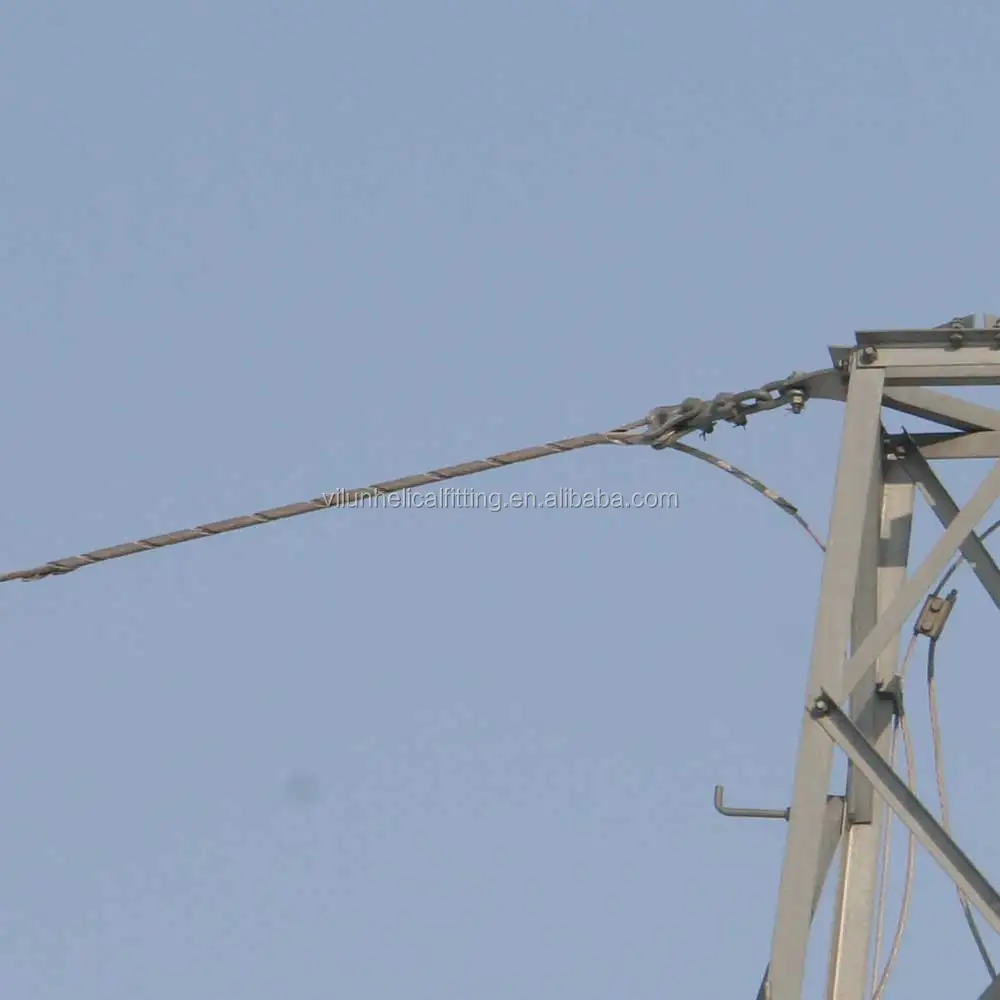

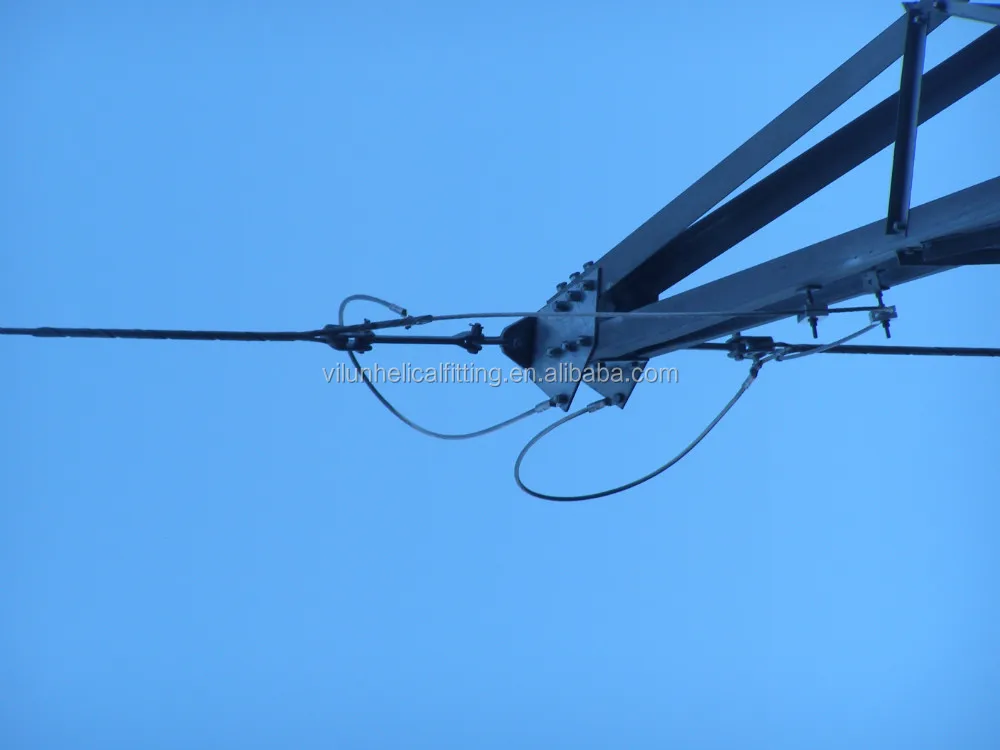

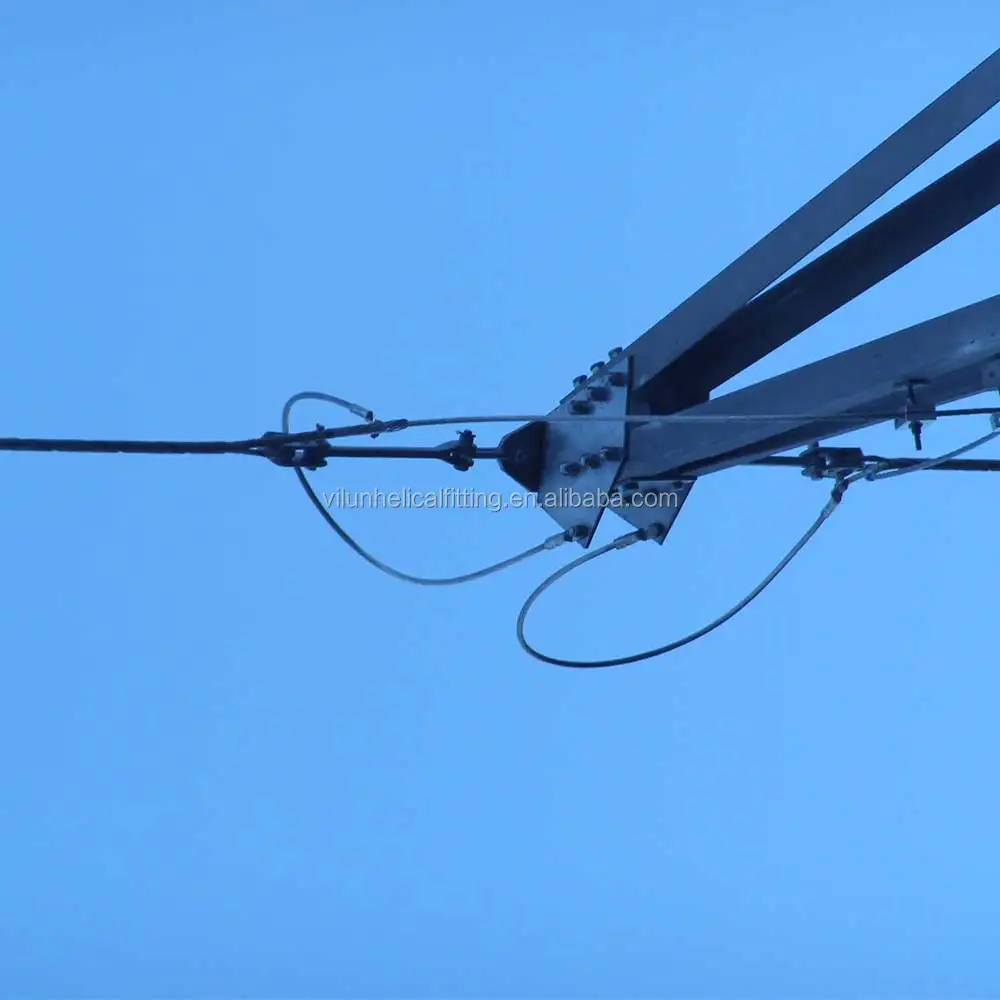

This kind of clamp is used for connection between cable and linear support or support with corner or elevation more than 25°. The concrete configurations: For terminal pole/tower-one to one; for tension/splicing/corner pole/tower-two to one.

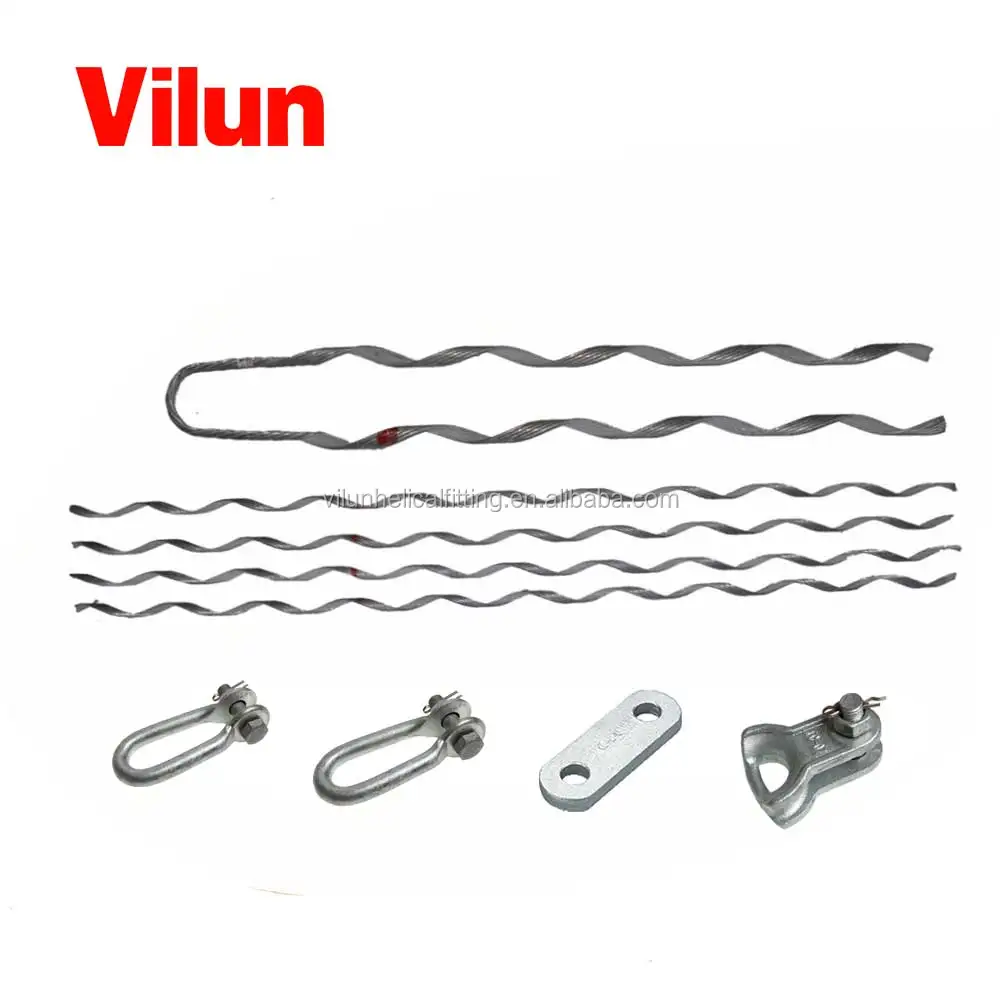

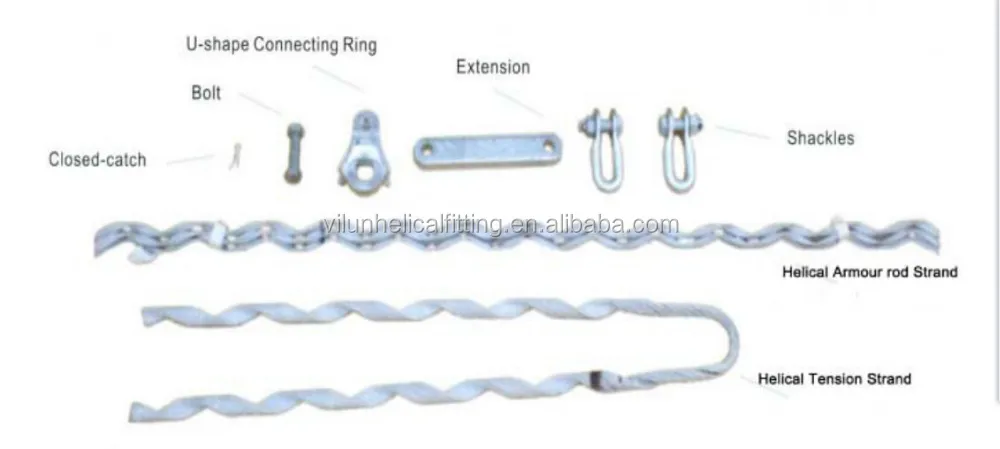

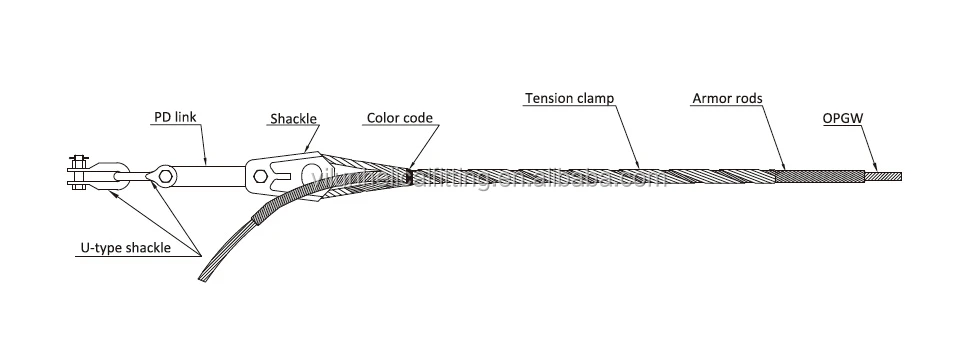

Structure:

Tension clamp: Aluminum allow;

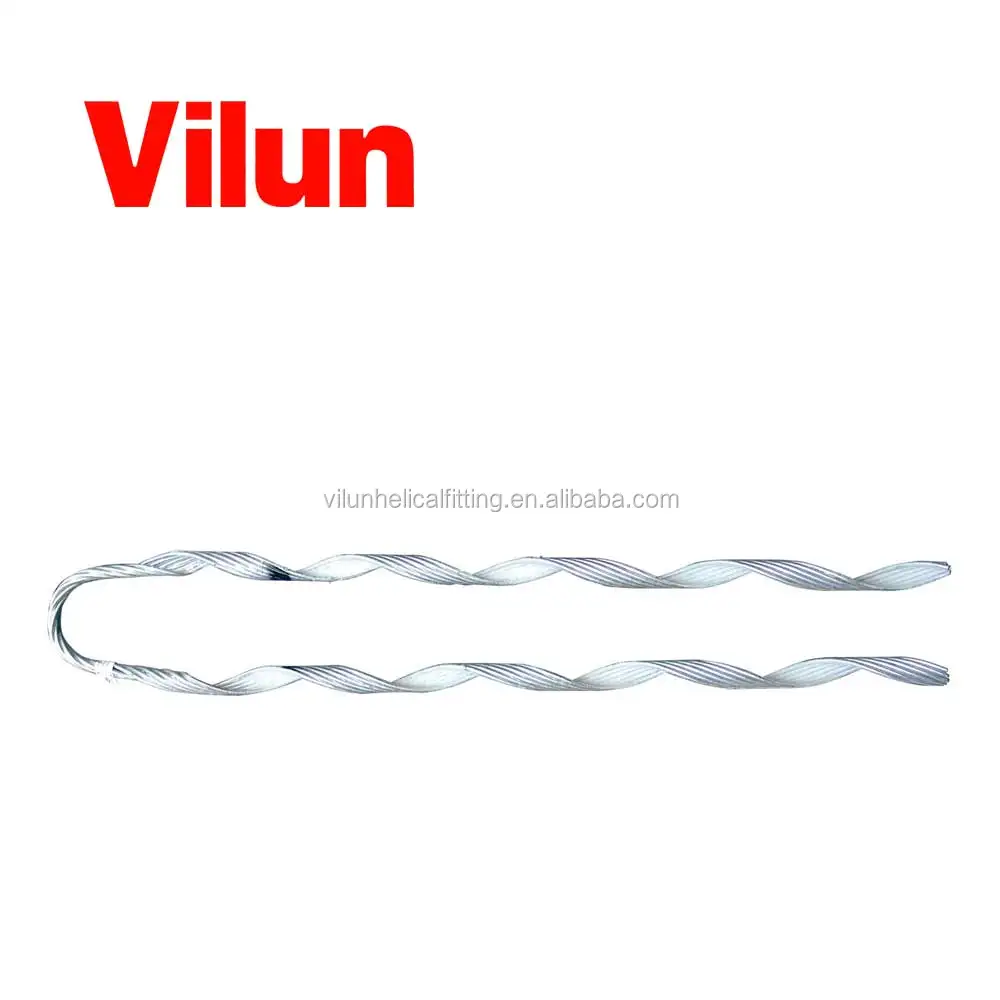

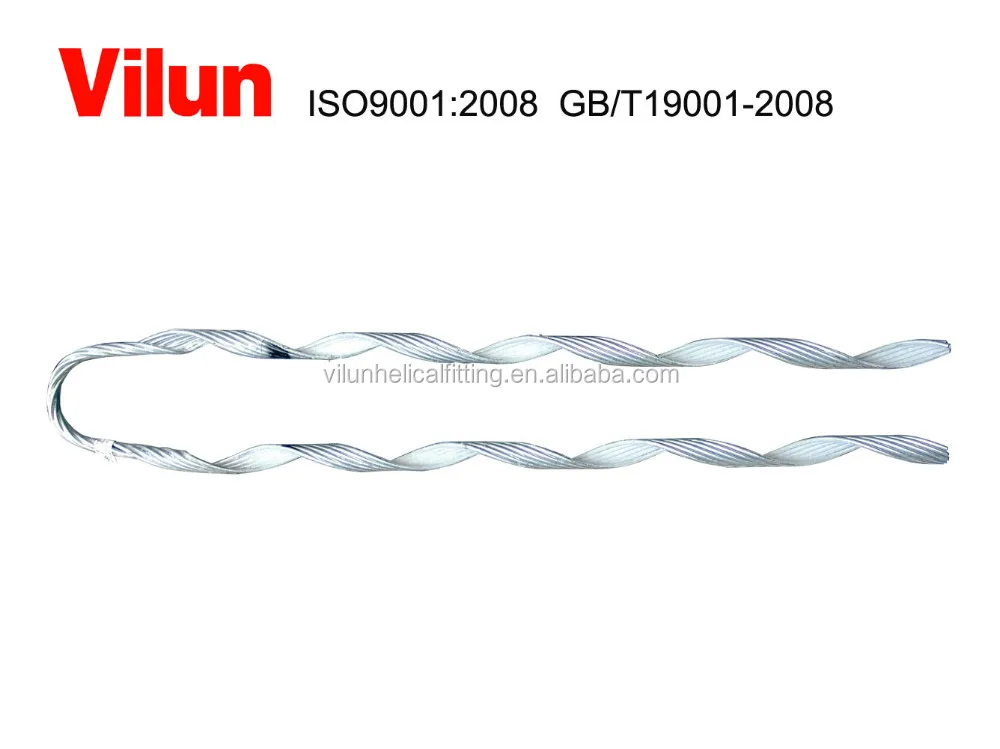

Helical Armor rod wire: Aluminum alloy

U-type holder: Aluminum alloy, breaking load: 80kN,120 kN;

PD-type plate: Hot-dip galvanized steel, breaking load: 80kN,120 kN;

Shackle: Hot-dip galvanized steel, GB fitting.

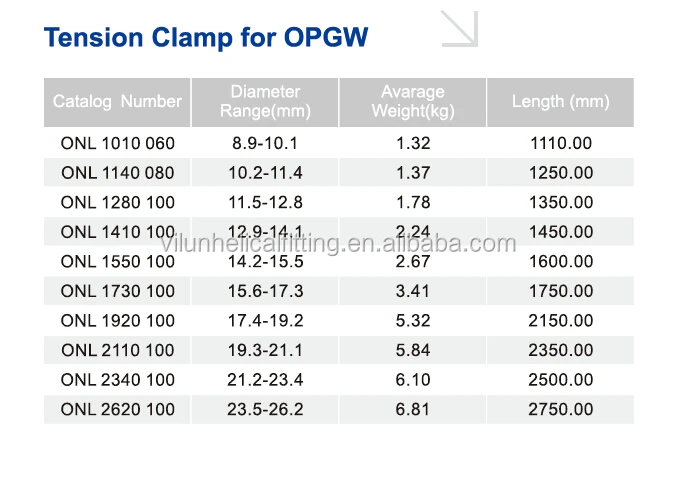

According to different breaking load products are separated into 60kN,80kN,100kN,120kN.The consumer can choose Tension clamp according to cable diameter, maximum allowable tension or spacing.

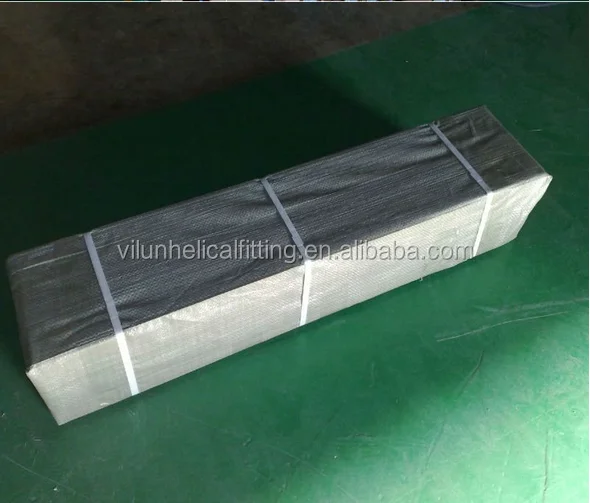

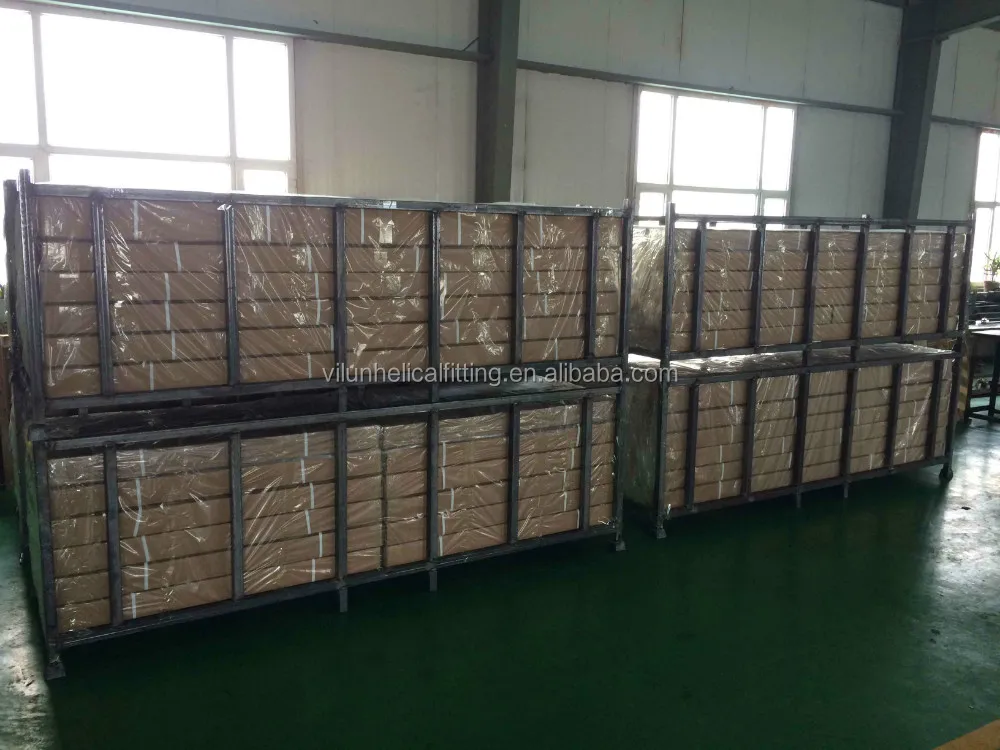

Carton, iron case or wooden box packaging and shipping by sea or by air. Also according to your requirements.

We can supply sample according to your drawings and technical requirements.

  Vilun Electric Co., Ltd is a professional manufacturer for helical-formed fitting and power switchgear. Researching, manufacturing and sales are in our line of business.

    It is guaranteed the company’s products safety and reliability by scientific production technology, professional technical personnel, perfect quality assurance system, and advanced test and inspection equipments. Vilun has already obtained the production license of power fitting, license of power facilities contractor by national technical supervision and inspection organization; And also through the ISO9000 quality management system authentication.

    The main products of Vilun are: helical-formed conductor tension and suspension clamp, helical-formed guy end grip for guy wire, helical-formed ADSS and OPGW optical cable fitting,  helical-formed splicing, helical-formed spiral anti-vibrator, helical-formed damper and so on.

    The special spiral helical-formed product design, makes our helical-formed fittings have the benefit of easy installation, reliable performance, anticorrosion, anti-fatigue and guarantee the installation quality easily. It can improve the protection of line and reduce the influence to the line under guarantee the requirement of design. Vilun's products have applied to power transmission and distribution of power system companies widely, and get extensive praise after many years application on lines. Vilun's products have sold to many countries in Europe and America, Asia, Africa, Oceania.

    Holding on the principle of “develop with technique, subsist with quality’’, the company provides the customers with first-class products, fine pre-sale and post-sale service. “The pursuit of excellence, and create the future together “, all staff in Changchun Vilun will continue devote us to developing power transmission and distribution fitting with all world power enterprises.
