slim film viewer of radiology with triple bank

Цена:*

Количество:

Technical Parameters
Product Name		LED X ray film viewers ( X-ray illuminator / X-ray view box / LED negatoscope )
Type		SINGLE SCREEN	DUAL SCREEN	TRIPLE SCREEN	QUADRUPLE SCREEN
Model		JD-01AIII	JD-01BIII	JD-01CIII	JD-01DIII
Dimensions (mm)	Frame (L x H x T)	500 x 510 x 45	850 x 510 x 45	1200 x 510 x 45	1570 x 510 x 45
Dimensions (mm)	Viewing Area (W x H)	360 x 440	736 x 440	1112 x 440	1488 x 440
Mitsubishi brand Screen		√	√	√	√
Film Sensor		√	√	√	√
Light Source		Matrix LED	Matrix LED	Matrix LED	Matrix LED
LED lifespan		> 100,000hrs	> 100,000hrs	> 100,000hrs	> 100,000hrs
Light Uniformity		> 98%	> 98%	> 98%	> 98%
Brightness		>15,000 lux >4,500 cd/m2	>15,000 lux >4,500 cd/m2	>15,000 lux >4,500 cd/m2	>15,000 lux >4,500 cd/m2
Dimming		√	√	√	√
Jinde Patent elastic silicon chips		√	√	√	√
Power Supply Input		AC100-240V 50/60Hz	AC100-240V 50/60Hz	AC100-240V 50/60Hz	AC100-240V 50/60Hz
Power Consumption		15W	30W	45W	60W
Built-in Power Adapter		√	√	√	√
Aluminum Alloy Board & frame		√	√	√	√
Net Weight (Kgs)		3 Kgs	5 Kgs	7.5 Kgs	9 Kgs
Gross Weight(Kgs)		5Kgs	7 Kgs	10 Kgs	13 Kgs
Single package size(mm)		600 x 610 x 110	960 x 610 x 110	1320 x 610 x 110	1680 x 610 x 110
All Jinde products are CE certified and manufacturer under ISO9001 system

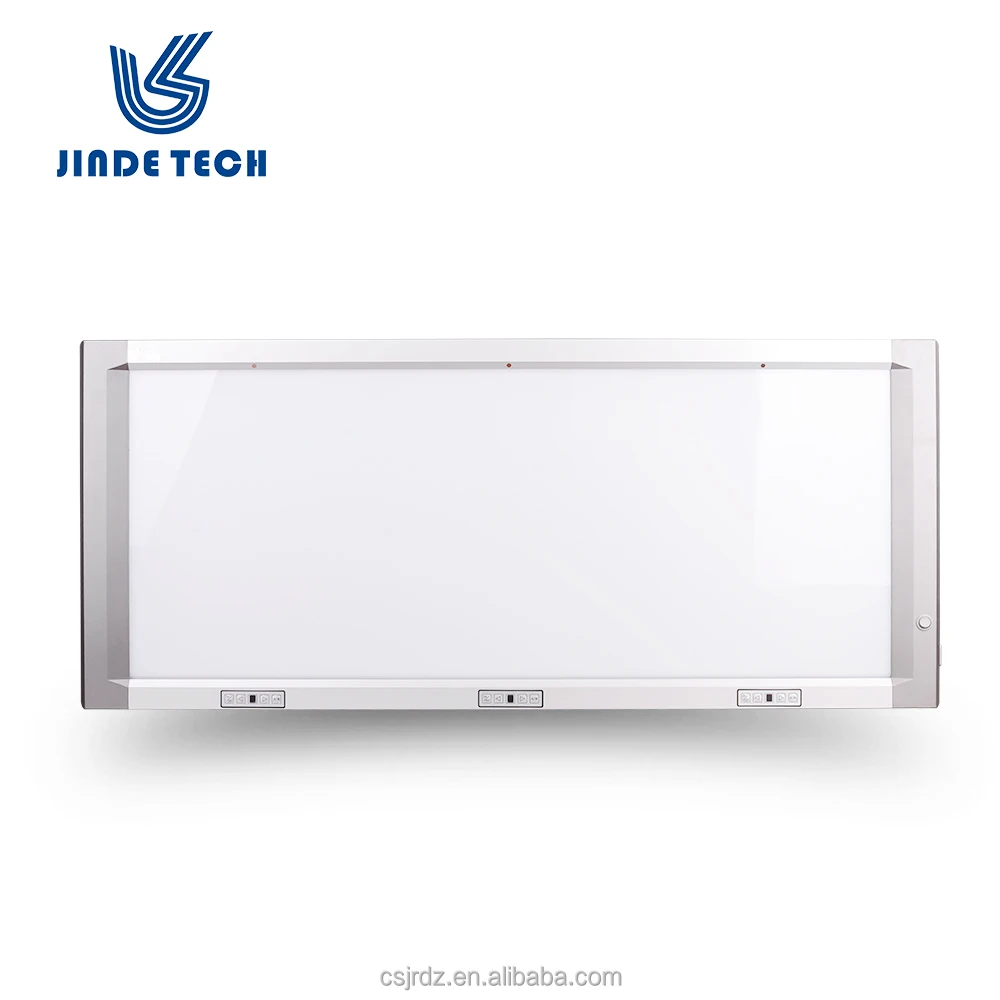

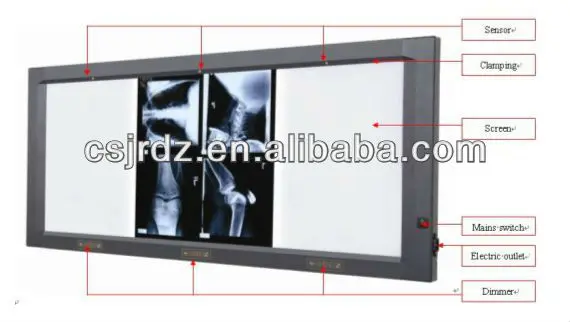

	Three panels LED film viewer
Model	JD-01CIII
Viewing Dimension(inch)	42×17
External Dimension(mm)	1200×510×45
Mainly technical parameters	be in line with the newest filed standard YY/T0610-2007
Light source	LED,lifespan>10000 hours
Color temperature	>6500K
Brightness	The central brightness of the viewing area>4000cd/m2
uniformity	>90%

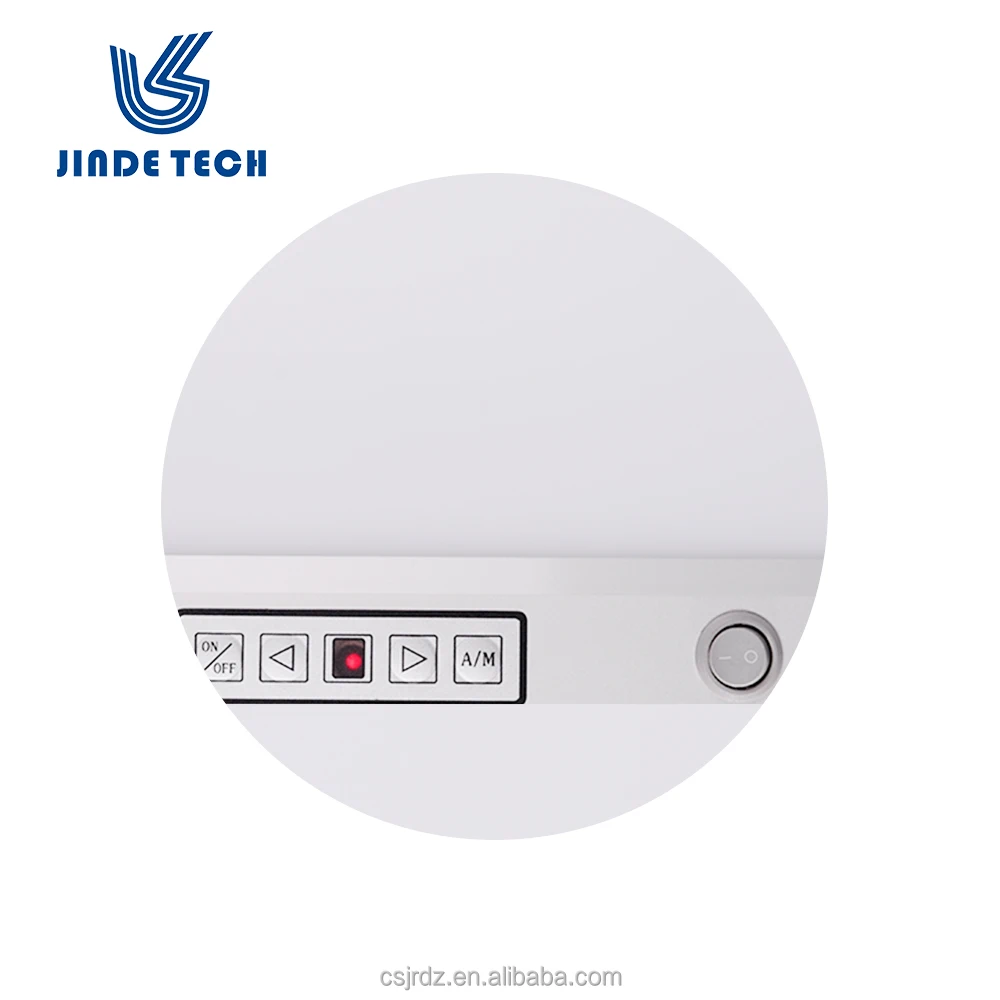

Dimming	Using a digital dimming of micro-switch
Lighting	Each can light up and adjust the light separately ,when full screen light up there will have not the dark area between each bank .With the sensor it will light up when film insert.
Power supply installation	Internal power supply when turn off the switch the full screen will off the power supply.
Clip	Adopt elastic silica clip
Thickness	<50mm
Spare part	With the fix frame for desk installation
Screen	Mitsubishi brand can provide the related certificates.
Power supply	110V-240V/50HZ
Power	≤75W
Certificate	CE, ISO9001-2008
