Educational science kit,Education trainer,Electrician Technology Training Device for Power Electronic Technology XK-DLDZ1

Training Set-Device Description:

PRODUCT INTRODUTION

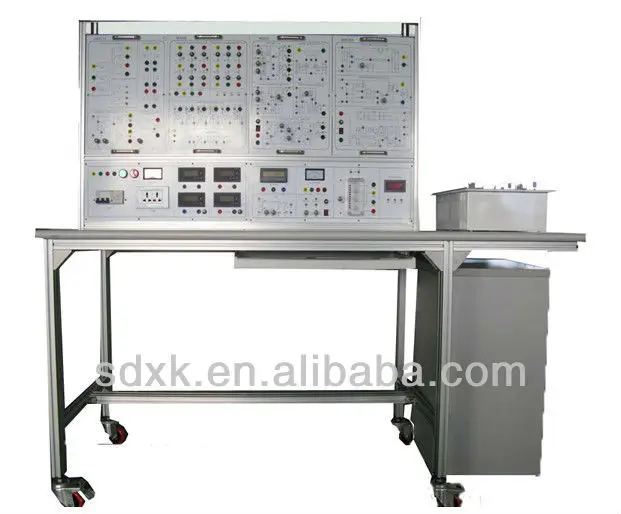

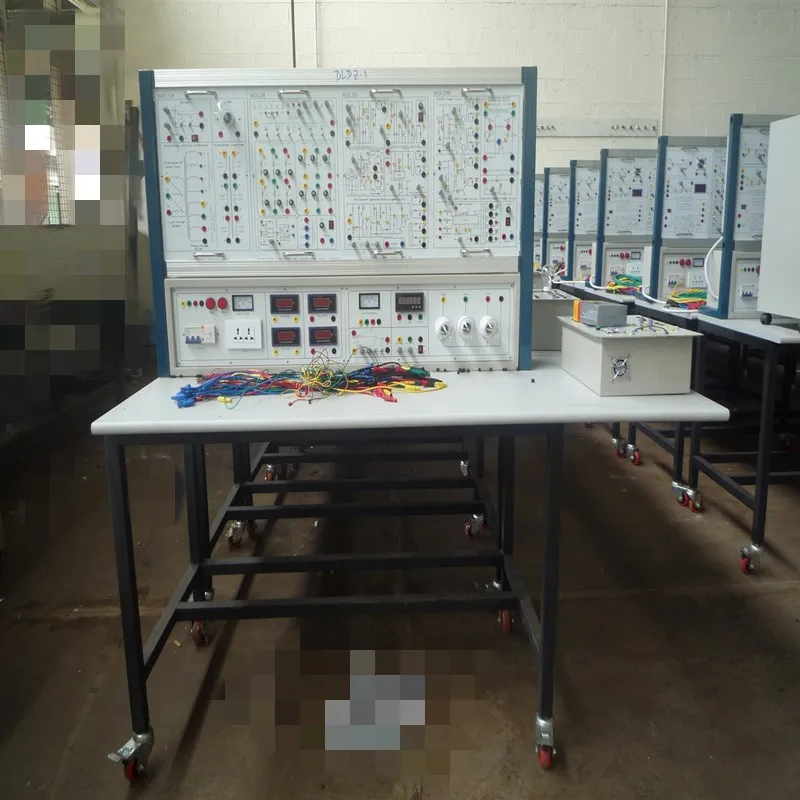

XK-DLDZ1 adopts modular construction, function extension flexible, training bench including thyristor main circuit, KC04 trigger circuit, TCA785 trigger circuit, TC787 trigger circuit, acousto-optic control circuit, active inverter etc.

XK-DLDZ1 equipped with leakage protector, isolation transformer protection, high reliability leakage protector, current type leakage protector and anti-electric shock socket and reliable grounding, constitute multiple, reliable, comprehensive safety protection system. Training bench with signal source, convenient wheels

It will finish experiments of power electronics, electrician etc

TECHNICAL PARAMETERS

Size: 1700mm *700mm *1500mm

Power supply: three phase five wires system,

With power indication light,power supply indication

Signal Source Technology Parameter

±15V adjustable DC power source

4-20mA adjustable current source

0-450V AC power source output

ACCESSORIES

Experiment wires: 50 pieces

Bread board jumper wires: 100 pieces (weak current connection wires: length 60cm;

Strong current connection wires: 60cm)

Digital multmeter: DT-830L 1pcs

TRAINING ITEMS

Single phase half-wave controlled rectifier

Single-phase full-wave bridge rectifier is not controlled

Three-phase full-wave controlled rectifier bridge

Single-junction transistor trigger circuit

Sine wave synchronous phase shift trigger circuit

Sawtooth synchronous phase shift trigger circuit

Single-phase AC voltage regulator trigger circuit

Single-phase parallel inverter trigger circuit

TCA785 trigger circuit

KC04 integrated phase-shift trigger circuit

TC787 trigger circuit

Single phase half-wave controlled rectifier circuit experiment

Single phase half-wave controlled rectifier bridge circuit experiment

Single-phase full-controlled rectifier bridge and the active inverter circuit experiment

Three-phase half-wave controlled rectifier circuit experiment

Three-phase half-wave active inverter circuit experiment

Three-phase half-controlled bridge rectifier circuit experiment

Fully controlled three-phase bridge rectifier and active inverter circuit experiment

Single-phase AC power regulation circuit experiment

Three-phase AC voltage regulator circuit experiment

Switching power supply training

Sound and light control circuit training

Automatic temperature control circuit training
