DS703A EDM глубоководные и малогабаритные сверлильные машины цена
- Категория: >>>
- Поставщик: TAIZHOU JIANGZHOU NUMBER-CONTROLLED MACHINE TOOL MANUFACTURE CO. LTD.
Сохранить в закладки 1426855441:
Описание и отзывы
Характеристики
Products Description
Item | DS703A |
Worktable Size | 400*300mm |
Worktable Travel | 250*200mm |
Servo Travel | 330mm |
Spindle Travel | 200mm |
Electrode Diameter | 0.3 - 3mm |
Max. Working Current | 22A |
Power Input | 380V/50Hz 3.5kW |
Machine Weight | 600kg |
Overall Dimension | 1070m*710m*1970mm |
Homepage | |
Price |
Introduction

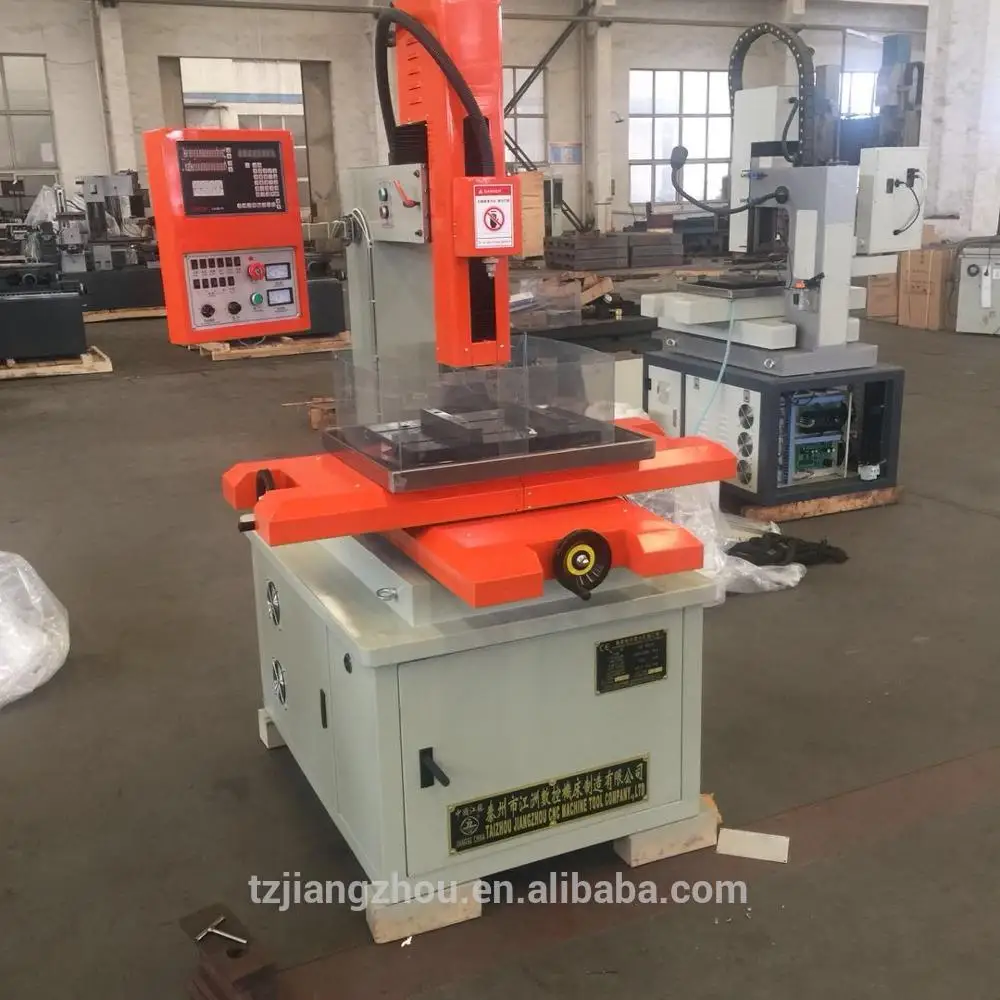

1. The mechanical part is mainly composed of the coordinate worktable, spindle head, swivel head, column and machine tool body.

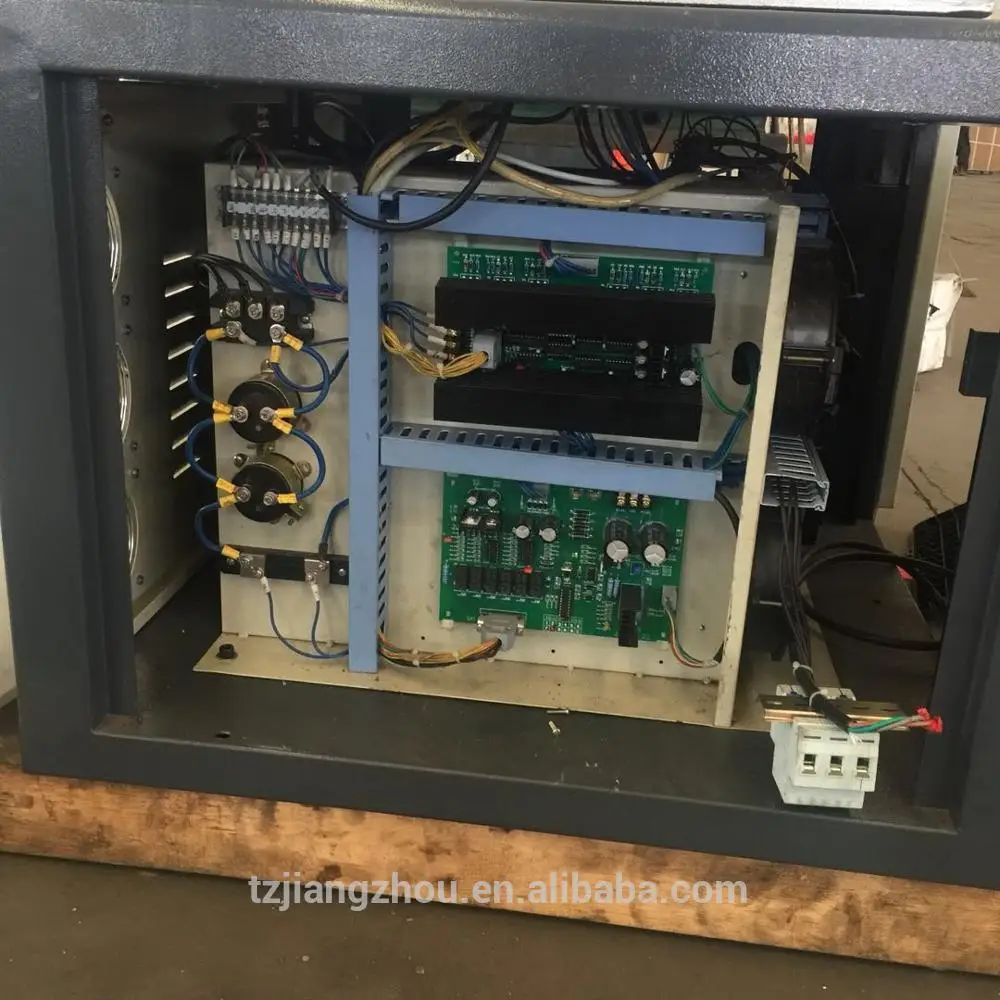

2. The electric cabinet is fixed in the machine tool body, including the pulse power supply, the principal axis servo system and the machine tool electric-appliances.
3. The operating fluid system includes the high-pressure pump and the operating fluid container, which are located at the side of machine tool body.
4. Using pure water or tap water as the working fluid.

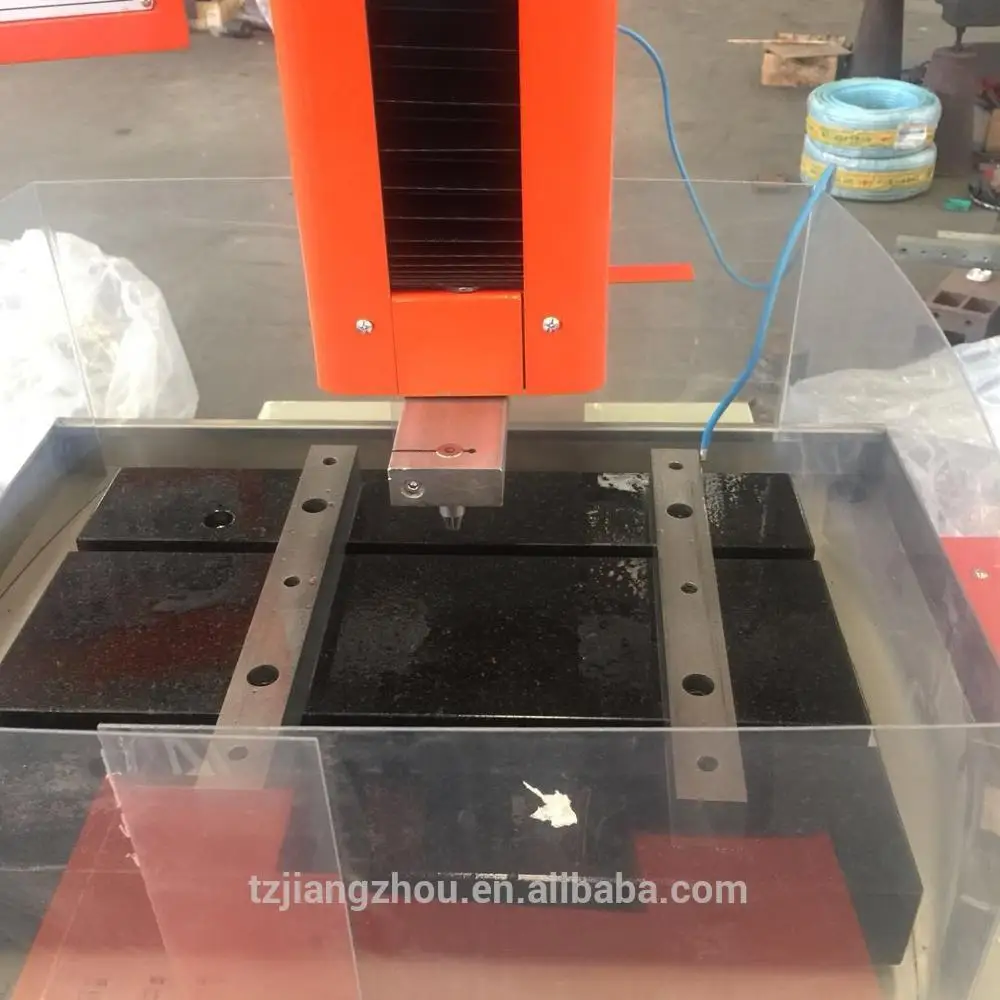

5. The X-axis and Y-axis of the worktable are equipped with digital device.
6. It can penetrate the slant face and curved surface of the workpiece to process directly.
7. The largest depth-diameter-ratio of the hole can be over 200:1.
Usage
1. Used for processing deep and small size hole in many kind of conductive materials like stainless steel, hardened steel,
carbide, copper, aluminum.

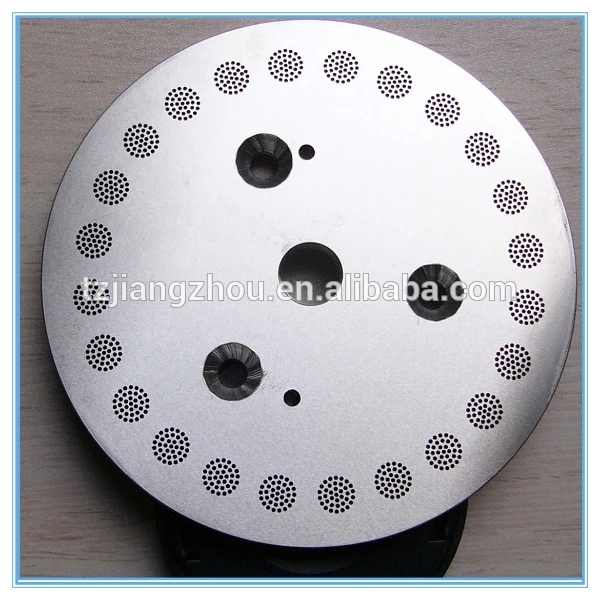

2. Used for silk hole in WEDM, spinneret hole in spinning jet and plate, group holes in filter board and sieve plate, cooling
holes in motor blades and cylinder body, oil and gas channel hole of hydraulic and pneumatic valve.
3. Used for removing aiguille and screw tap of workpiece without damaging the original hole or threads.
2. The electric cabinet is fixed in the machine tool body, including the pulse power supply, the principal axis servo system and the machine tool electric-appliances.
3. The operating fluid system includes the high-pressure pump and the operating fluid container, which are located at the side of machine tool body.
4. Using pure water or tap water as the working fluid.
5. The X-axis and Y-axis of the worktable are equipped with digital device.
6. It can penetrate the slant face and curved surface of the workpiece to process directly.
7. The largest depth-diameter-ratio of the hole can be over 200:1.
Usage
1. Used for processing deep and small size hole in many kind of conductive materials like stainless steel, hardened steel,
carbide, copper, aluminum.
2. Used for silk hole in WEDM, spinneret hole in spinning jet and plate, group holes in filter board and sieve plate, cooling
holes in motor blades and cylinder body, oil and gas channel hole of hydraulic and pneumatic valve.
3. Used for removing aiguille and screw tap of workpiece without damaging the original hole or threads.
Product Display
Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem, we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.
1.Technical support online service provided .
2.Technical files service provided.
3.Machine operation video provided
4.On-site training service provided.
5.Spare parts replacement and repair service provided.
6.All of the questions will be replied within 24 hours
During warranty period, if you have any parts broken because of qulity problem, we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.
1.Technical support online service provided .
2.Technical files service provided.
3.Machine operation video provided
4.On-site training service provided.
5.Spare parts replacement and repair service provided.
6.All of the questions will be replied within 24 hours
Main Products
Company Profile
1. 20 years experience in research, development and manufacture of cnc machine tool.
2. Covering an area of about 1500 square meters, Jiangzhou is equipped with professional engineers, skilled workers and scientific management system.
3. Reliable sale and after-sale service.
2. Covering an area of about 1500 square meters, Jiangzhou is equipped with professional engineers, skilled workers and scientific management system.
3. Reliable sale and after-sale service.
Certifications
Packing & Shipping
FAQ
Q: What information will you need to make the proposal?
A: The worktable size and worktable travel, your special requirements.
Q: Are you a manufacturer or trade company?
A: We are the professional manufacturer of cnc machine tool, commited to this field for above 20 years.
Q: Do you provide training and maintenance?
A: Yes. In order to make your production more efficient, after signing contract, you can send someone to my company for
professional operation training.
A: The worktable size and worktable travel, your special requirements.
Q: Are you a manufacturer or trade company?
A: We are the professional manufacturer of cnc machine tool, commited to this field for above 20 years.
Q: Do you provide training and maintenance?
A: Yes. In order to make your production more efficient, after signing contract, you can send someone to my company for
professional operation training.
Похожие товары
Печатная плата для мобильного телефона, топ 10 поставщиков печатных плат в Китае, блок печатных плат, производитель печатных плат
Pcb и pcba сборки для медицинский аппарат для чистки зубов 10 + летним опытом работы агрегата PCB
5,00 $ - 15,00 $
Altium pcb Дизайнер 10 в дешевый приз
Китайский изготовленный на заказ Многослойная печатная плата компании по производству 10 слоев Pcb производитель

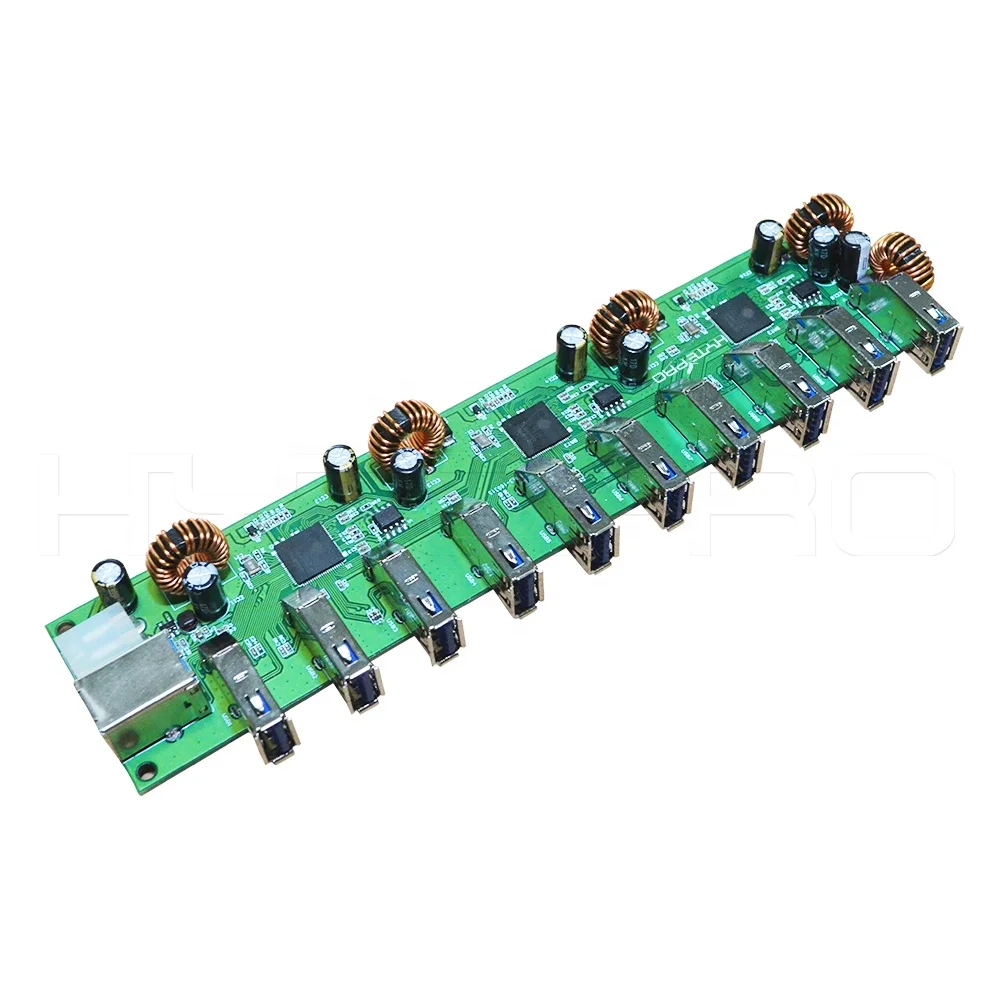

Настольная Высокоскоростная Печатная плата 10 портов внешний концентратор USB 3,0 печатная плата со скоростью 5 Гбит/с
