Reamer
HSS H7 morse taper shank machine reamer with straight flute

HSS H7 morse taper shank machine reamer with straight flute

Категория: Reamer >>>
Поставщик: Chongqing Yuqing Machine Tools Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

HSS M2 H7 morse taper shank machine reamer with straight flute

Type of front end with edge angle of in clination are ordered according to non-standard .

Outside Dia.	Overall Length	Flute Length	No.
10	140	22	1
11	140	22	1
12	105	25	1
13	105	25	1
14	160	25	1
15	160	25	2
16	170	25	2
17	170	25	2
18	180	28	2
19	180	28	2
20	190	28	2
21	190	28	2
22	200	28	2
23	200	28	2
24	220	28	3
25	220	28	3
26	230	30	3
27	230	30	3
28	240	30	3
30	240	30	3
32	240	30	3

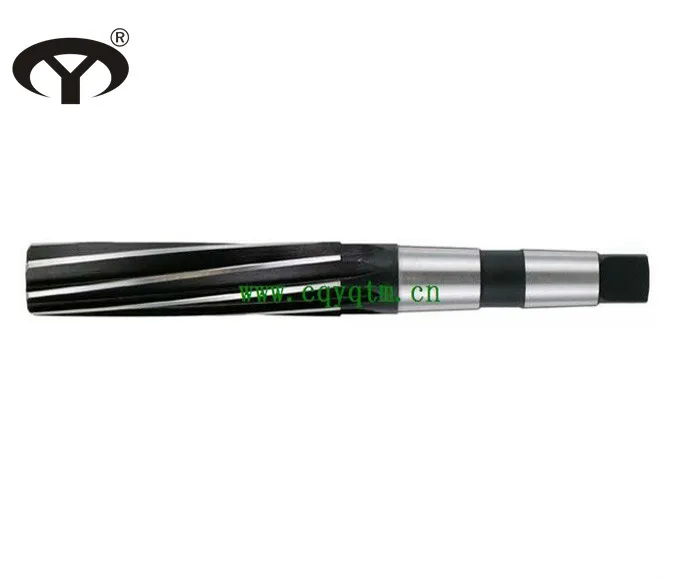

Taper shank machine reamer.jpg

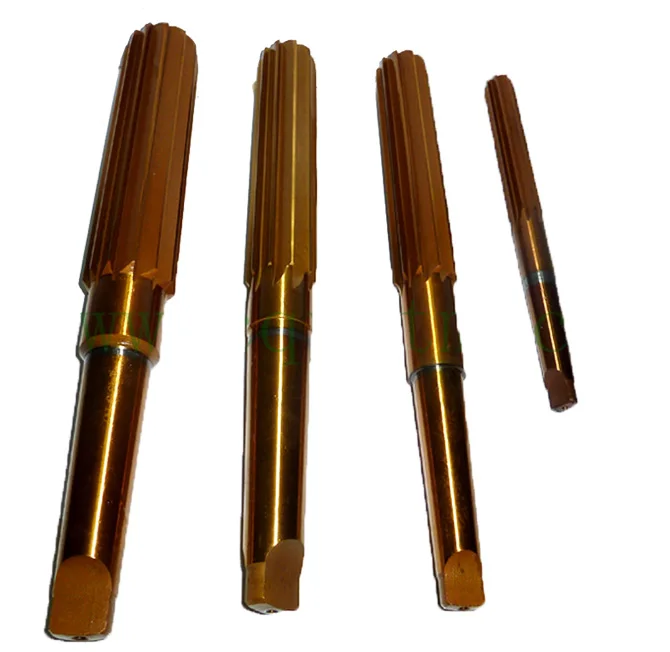

Shank machine reamer1.jpg

Reamer series : Taper shank , straight shank machine reamer , taper pin reamer , taper reamer, complex reamer.

Production process of HSS M2 morse taper shank machine reamer :

Material Introduction:

A. W6Mo5Cr4V2 (GB) M2( ASTM), S6-5-2(DIN), SKH51(JIS)
chemical composition:C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.00, Mo 4.80 V 1.85
main application:It is widely used for making all kinds of cutters and durability cold-work die

B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), 1.3243(DIN), SKH55(JIS)
chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
main application:It is often used for making blades with high-speed and great cutting difficulty as it’s good abrasive resistance

W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
