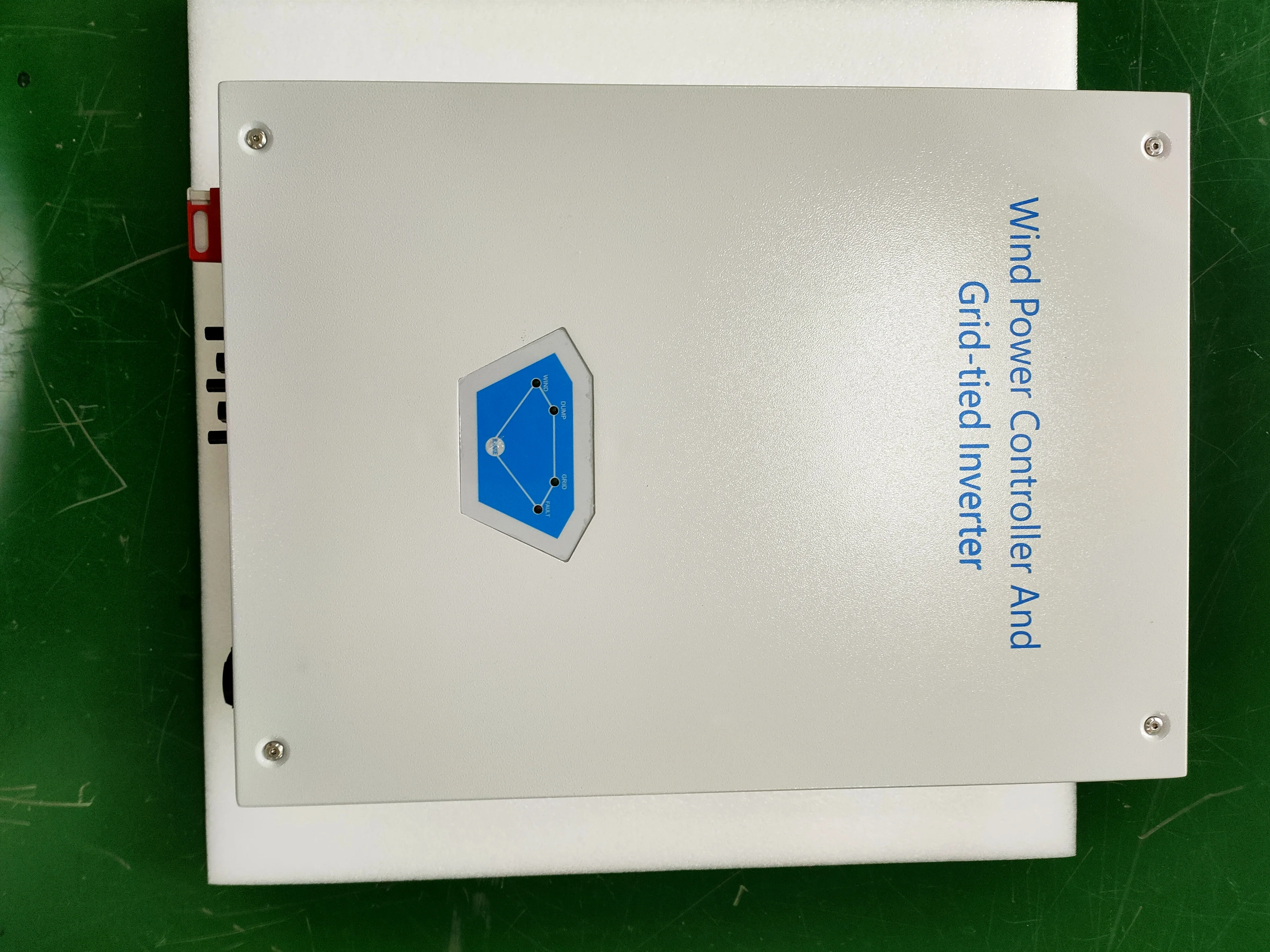

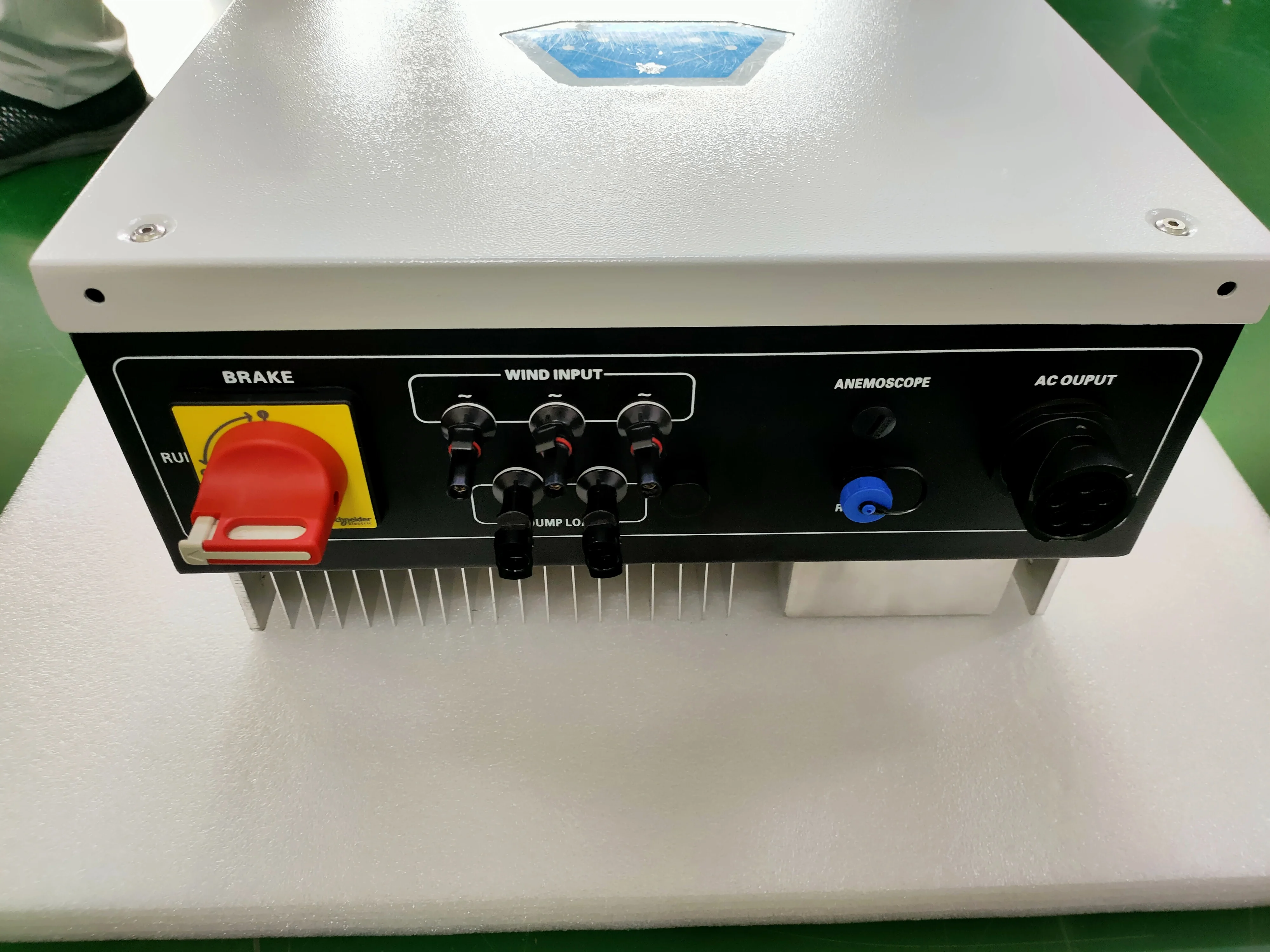

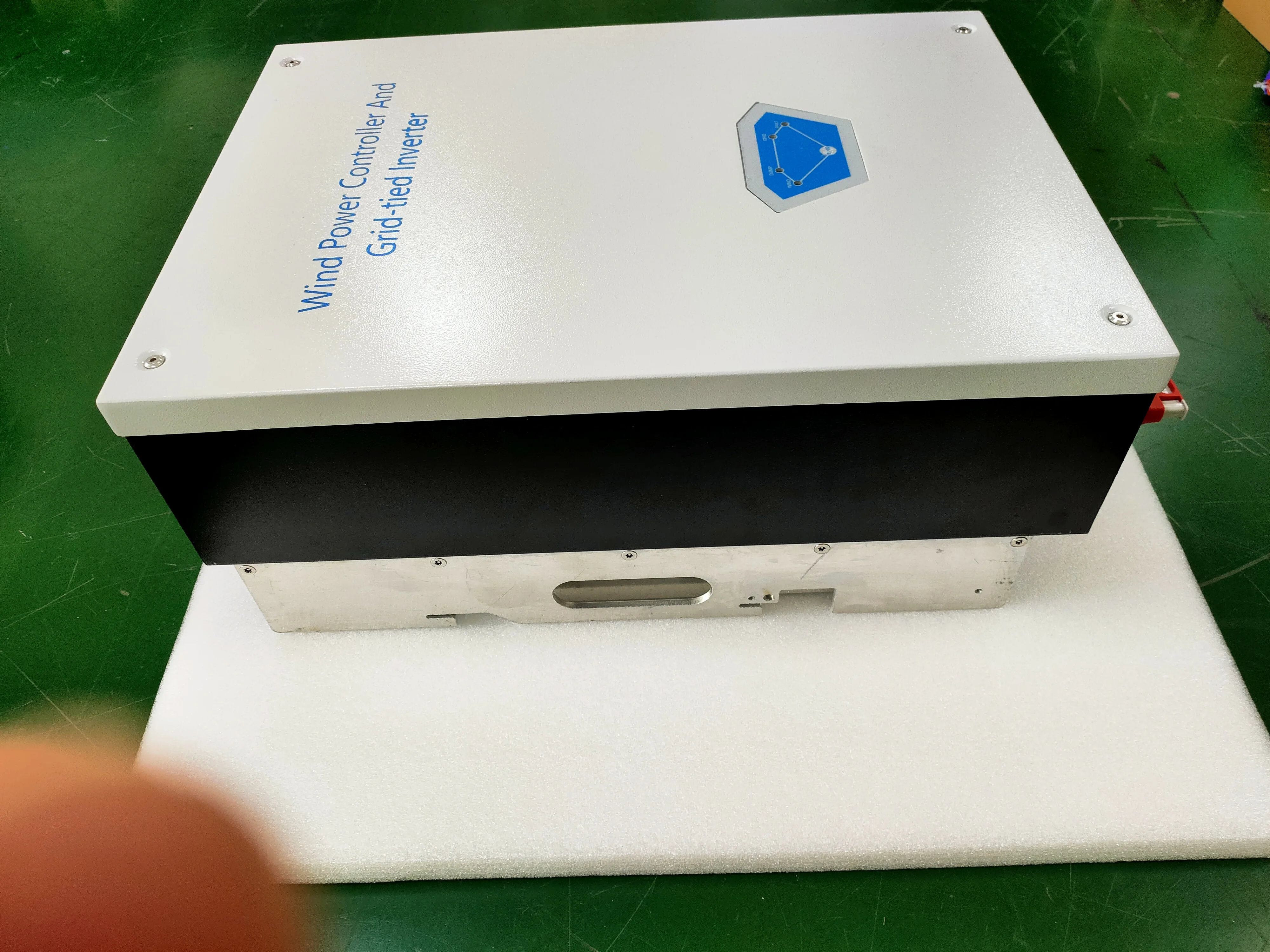

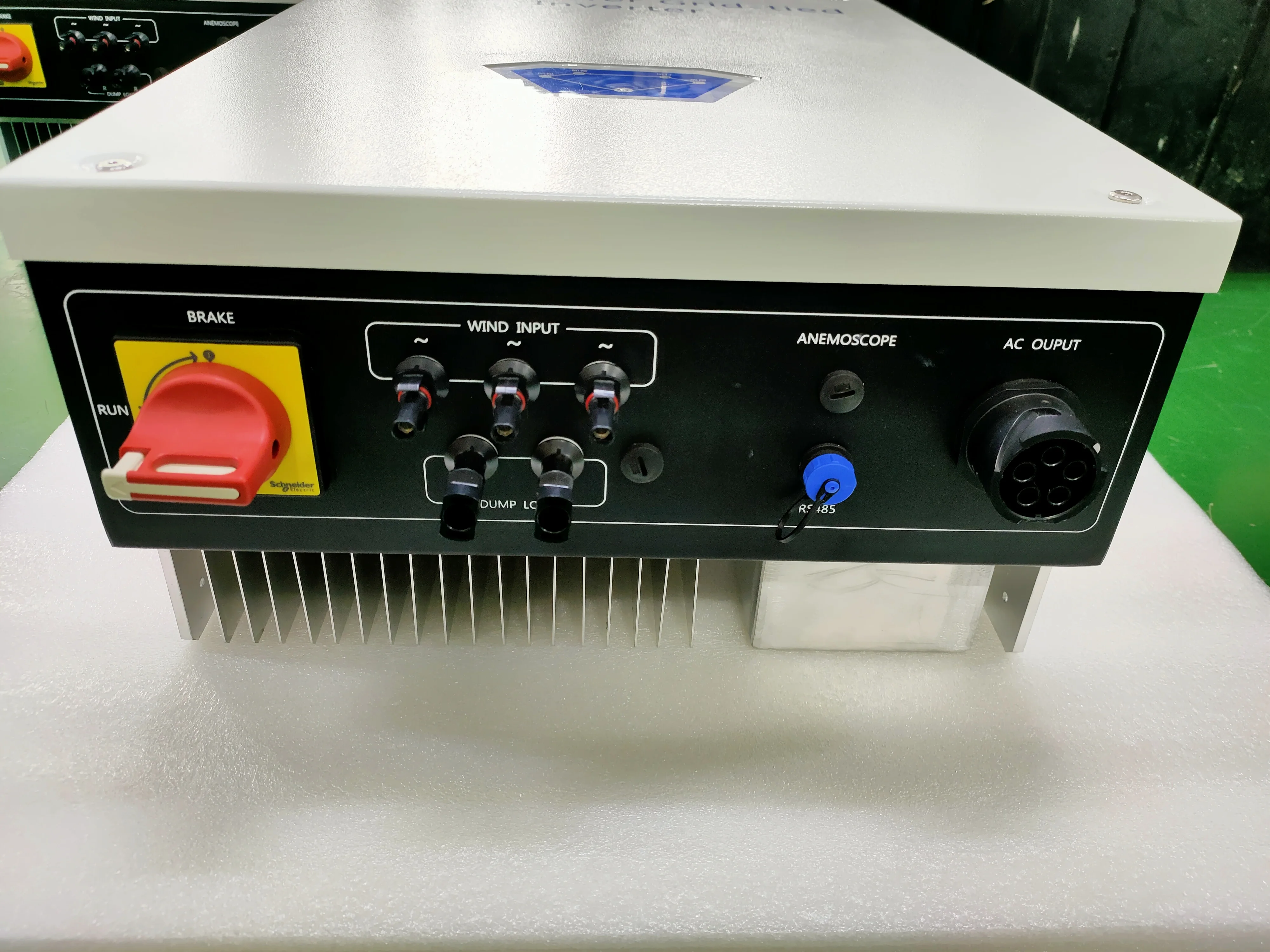

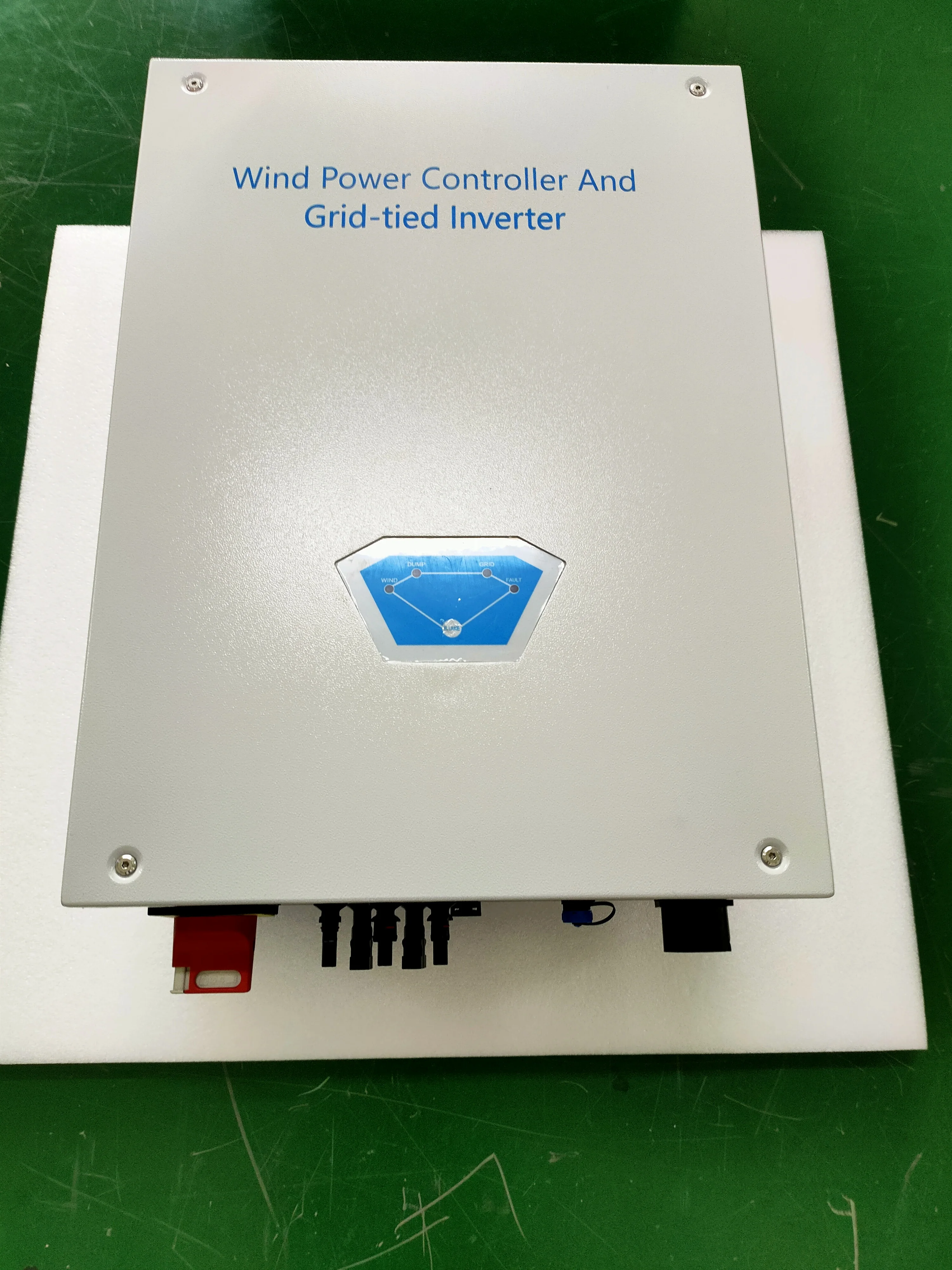

Wind Power Grid Tie Inverter
CTW-3KS/CTW-3.6KS/CTW-5KS
Product Features
*Inverters and controllers could import the AC current from wind power electronic generator into grid after commutating and inverting. Wind power grid tie inverter is the core product that converts wind mechanical power to AC current power, which then will be input to the grid. The product is very efficient and reliable, and also has low frequency
*IPM IPM could convert AC current from electronic generator to AC current that has the same frequency as the grid, and then send the AC current into grid after the process of voltage transformer and wave filter.
*The inverter has the cooling feature using smart fan wind, and it also has a compact, safe, and simple structure. The solid design also allows the inverter to be parallel connected to wind turbine with higher power.
*Because of the layout of the voltage transformer, the input range could reach 60VDC ~ 550 VDC. Even though the wind speed is low, the inverter could still send power to the grid.
Technical Data
Model | GTW-3KS | GTW-3.6KS | GTW-5KS |
Input Parameter | |||
Range of MPPT Voltage (DC) | 60V - 550V | ||
Maximum Power of Turbine | 3300W | 4000W | 5500W |
DC Voltage VPP | VPP < 10 % | ||
Output Parameter | |||
Power Rating | 3000W | 3600W | 5000W |
Range of Grid Voltage | 190 – 260V AC | ||
Range of Grid Frequency | Choice of either 50Hz or 60Hz | ||
Power Factor | > 0.99 | ||
Maximum Efficiency | 94% | ||
Standby Consumption | < 11 W | ||
Protections | Anti-island, Over Temperature, Over Load, Over Current, Over Voltage | ||
Total Harmonic Distortion (THD) | < 4 % | ||
Mechanical Characteristics | |||
Dimensions W×H×D in mm | 480/680/235 | ||
Weight | 56kg | 60kg | 67kg |
Protection Level | IP65 | ||
Installation Method | Wall-mounted | ||
Working Environment Temperature | -25°C ~+60°C | ||
Storage Temperature | -40°C ~+70°C | ||
Inverter Characteristics | |||
Cooling Method | Fan & Convection | ||
Display | LCD & Signal Lamps | ||
Communication | RS485 | ||
Points of Power Curve | Minimum 5, Maximum 20. |
Zhangjiagang Great-Trust New Energy Technology Co.,Ltd.is a manufacturer and trader specialized in the research,development and production of solar and
production of solar energy products.
We are located in Zhangjiagang,Jiangsu,China,with convenient transportation access.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
"First Quality,Best Service" is our operation philosophy.
We are looking forward to forming successful business relationships with new clients around the world in the near future.
