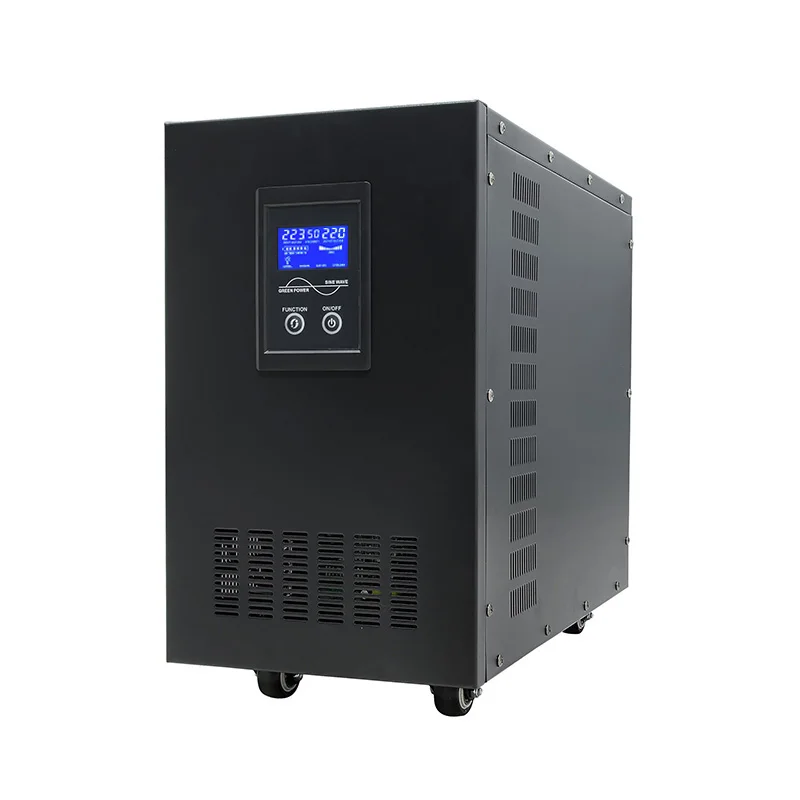

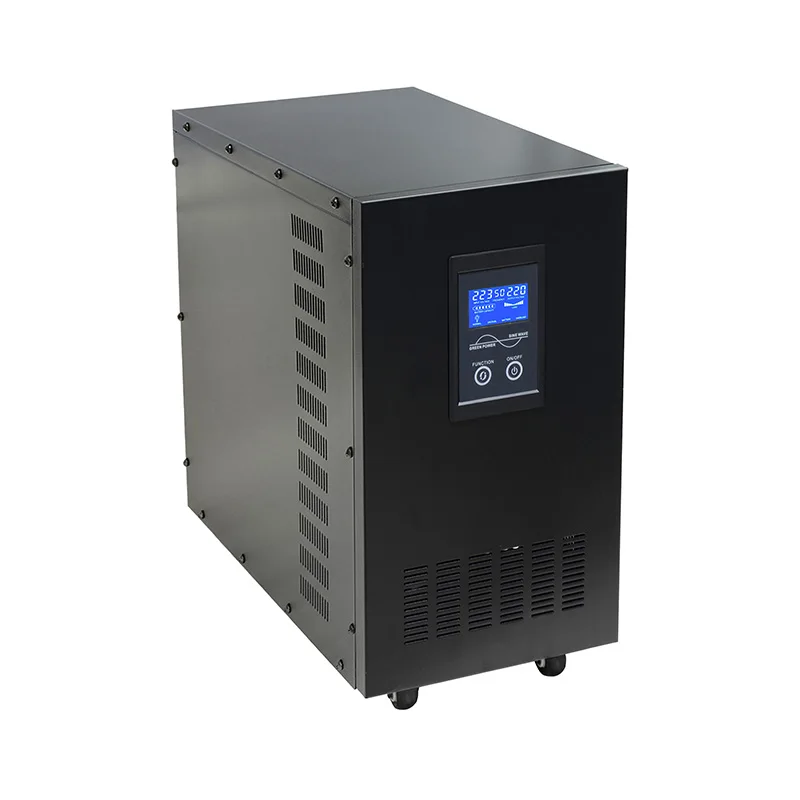

Лучший преобразователь постоянного тока в солнечный инвертор переменного 48 В/96 в/192 В от 4 кВт до 8 сертификат CE ROSH

Лучший преобразователь постоянного тока в солнечный инвертор переменного 48 В/96 в/192 В от 4 кВт до 8 сертификат CE ROSH

Категория: >>>
Поставщик: Guangdong Xindun Power Technology Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

AC to DC Inverter

1.better compatibility,more stability
2.high quality,low defective rate

Features:

1.The real short-circuit protection, regardless of how long the short time the products and electrical appliances are safe.

2.The multi-purpose socket design, it is suitable for any plug.

3.Under voltage, overload, over current, high temperature and high pressure, short circuit and multiple protection function, to ensure that products and electrical safety.

4.Advanced circuit design, high-quality imported components, low heat and extremely low repeat rates.
5.Unique SMT + module combination of processing technology, more stable performance.
Range of application: mobile phone charging, laptops, lamps and lanterns, camera, TV, shaver, CD, fan, video game, security, professional tools, instruments of all electrical power.

Technology:

Model XD-WNB		42296	50296	60296	702192

Rated power		4200W	5000W	6000W	7000W
Battery		48VDC/96VDC		96VDC/192VDC
Size(W×D×H)mm		430×420×260
Shipping size(W×D×H)mm		500×490×320
Net weight(kg)		44	51	52	55
Gross weight (kg)		46	53	54	57
Universal parameter
Input	Voltage	145V~275V
	Frequency	45Hz~65Hz
Output	Voltage	220V±2%(Battery mode)
	Frequency	50Hz±0.5%
Output wave from		Sine wave
Output wavefrom distortion		≤±0.3%
Charging		5A-15A(Adjustable)
Display		LCD
Transfer time		<4ms
Surrounding	Noise	≤50dB
	Temperature	0°C~40°C
	Humidity	10%~90%(no condensate)
Efficiency		≥85%
Protection	Overload	Overload110%,30seconds automatic closed-down;Overload120%,2seconds automatic closed-down;city electric mode overload not closed-down,the buzzer sends out alarm sound
	Short-circuit	Output short-circuit, a buzzer ringing, 20 seconds after the automatic closed-down
	Battery	Battery high-voltage and low-voltage protections
	Reverse polarity	Battery reverse polqrity protections
Alarm sound	A	When the city electricity when in normal work,the maching without alarm,when the utility power failure,the machine is in the working state of the battery,a buzzer 30 seconds each tweet 4
	B	Battery low voltage alarm buzzer two times per second,a call.Battery mode,the maching fails,the buzzeris urgeng
	C	Overload buzzer,tweet once per second

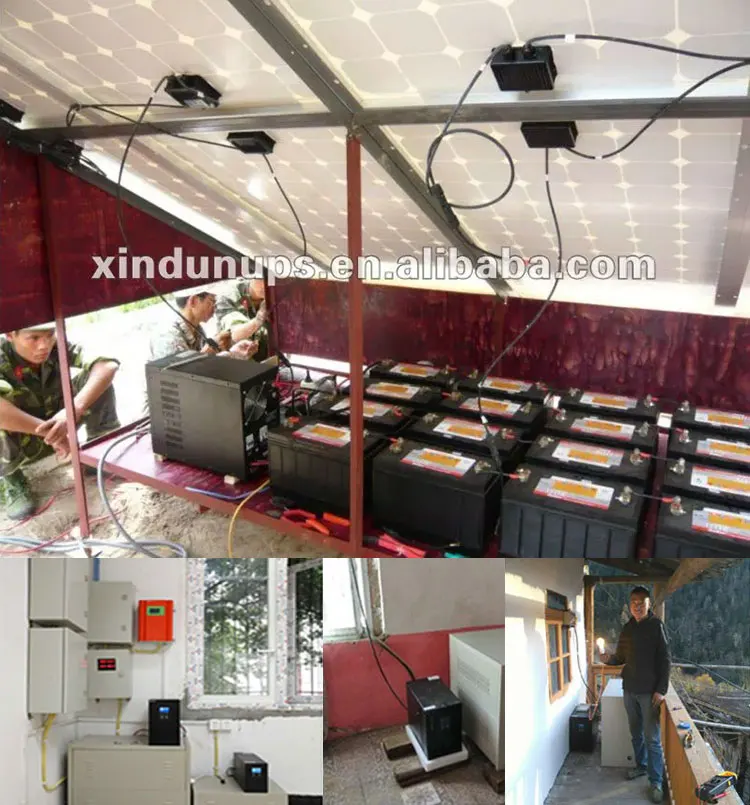

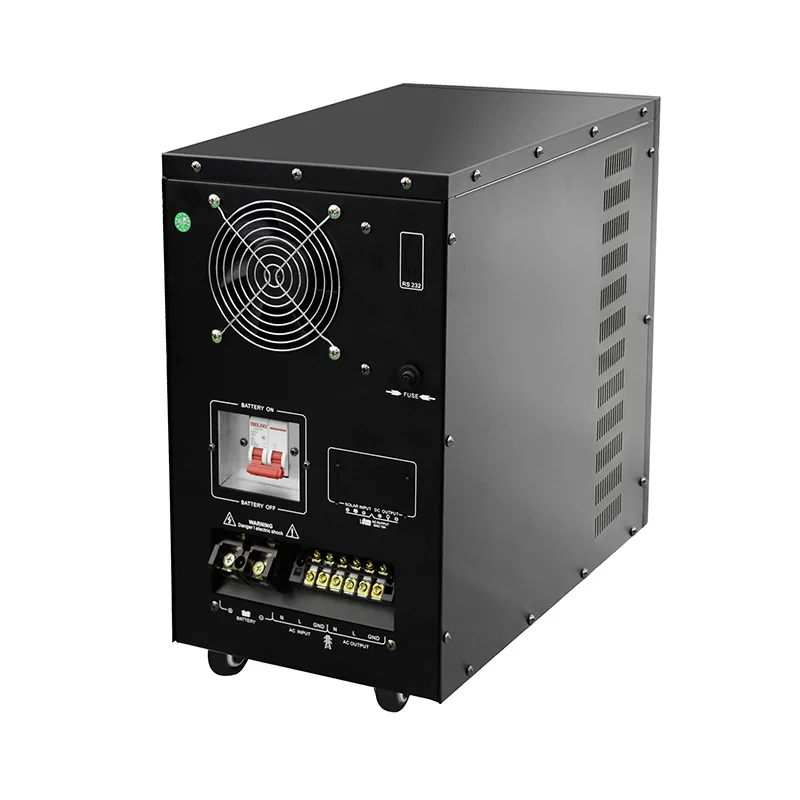

More Pictures:

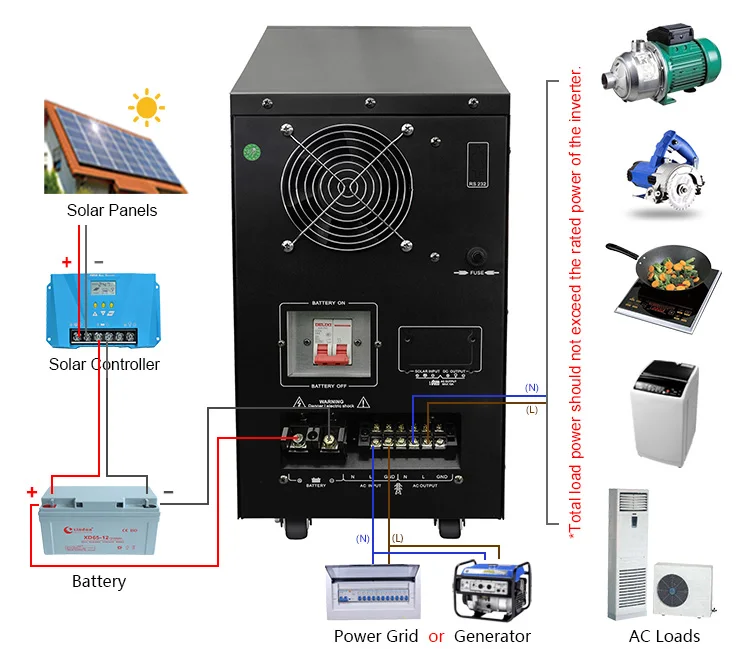

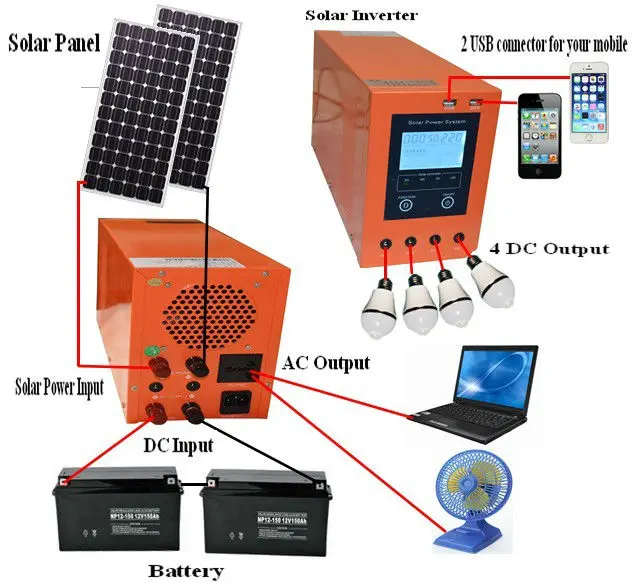

Solar Hybrid inverter connections

Certificate:

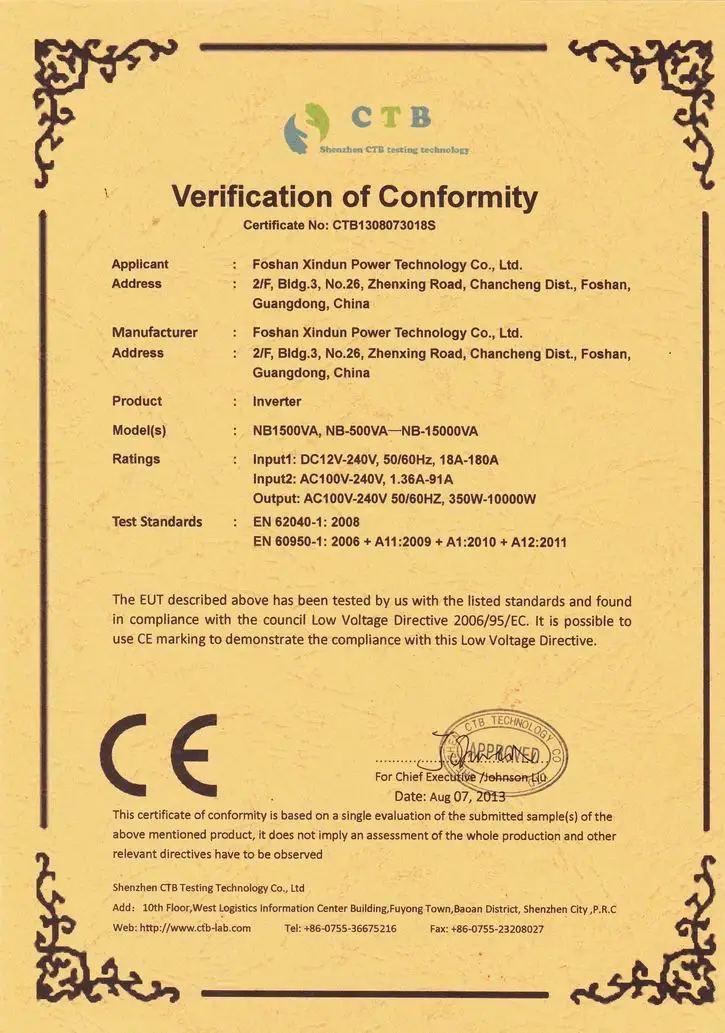

CE-EMC
