TEM1300 450F95 1.3MP USB цифровой показатель астрономический телескоп

Сохранить в закладки 1495645743:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Features:





1. Digital imaging module: Wider dynamic range 1.3MP imaging module;

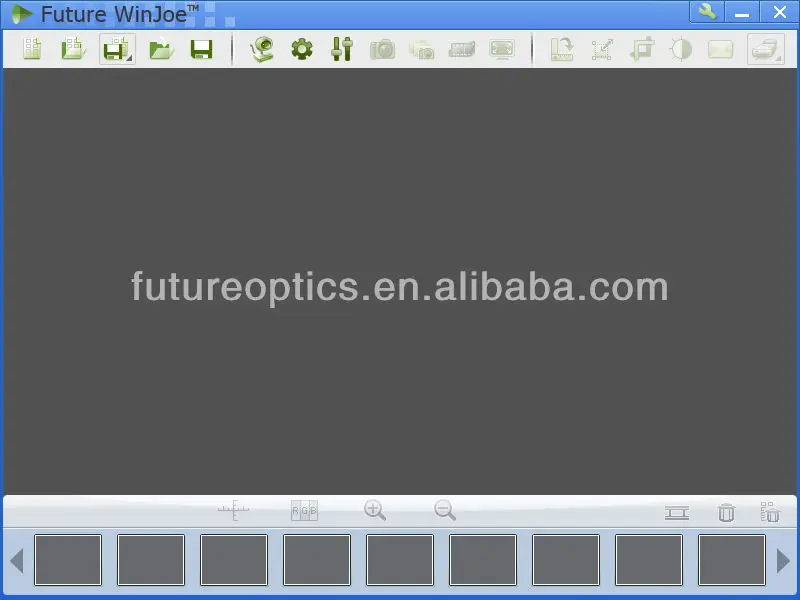

2. Imaging software: astronomical imaging software of Future Win Joe.

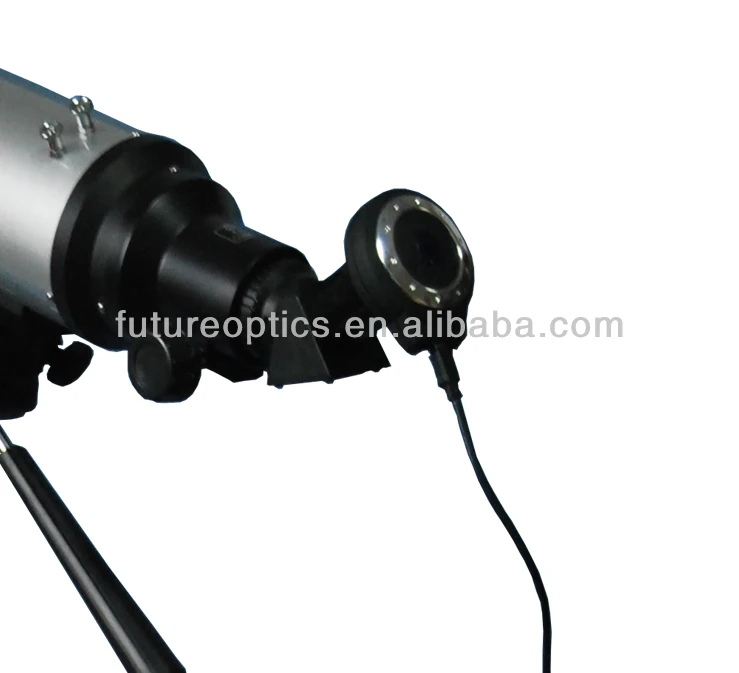

3. Optical imaging module: 95mm aperture and 450mm focal length, refractor type;


4. Mount module: 125cm telescopic aluminum tripod.





Applications:


Future Optics’ USB digital telescopes perform extremely well under the control of software which makes them ideal for astronomical objects viewing and images or movies capture, and even be used to take images of terrestrial subjects during daytime.It’s an affordable imaging solution for astronomy.








Functions:

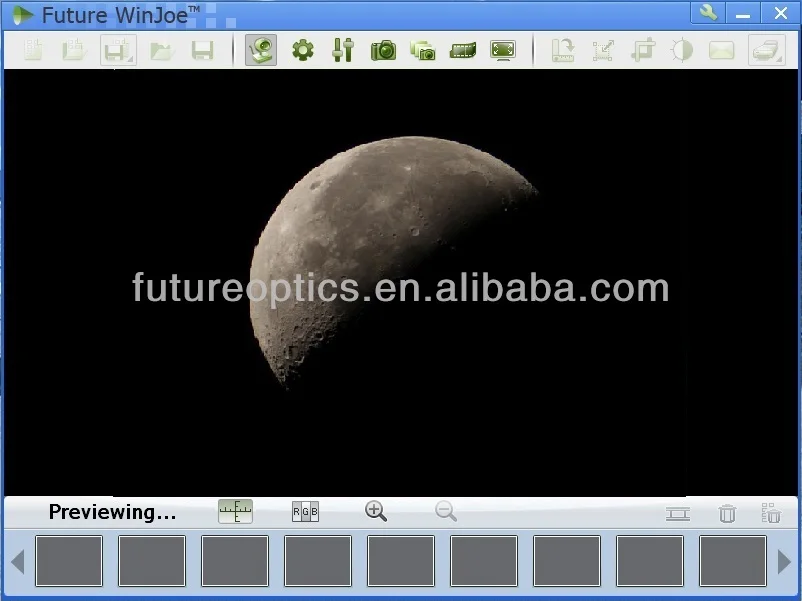

1. To preview images on screen of PC and to shoot pictures or to record movies, no squinting with one eye, just be enjoyable and to share with others;

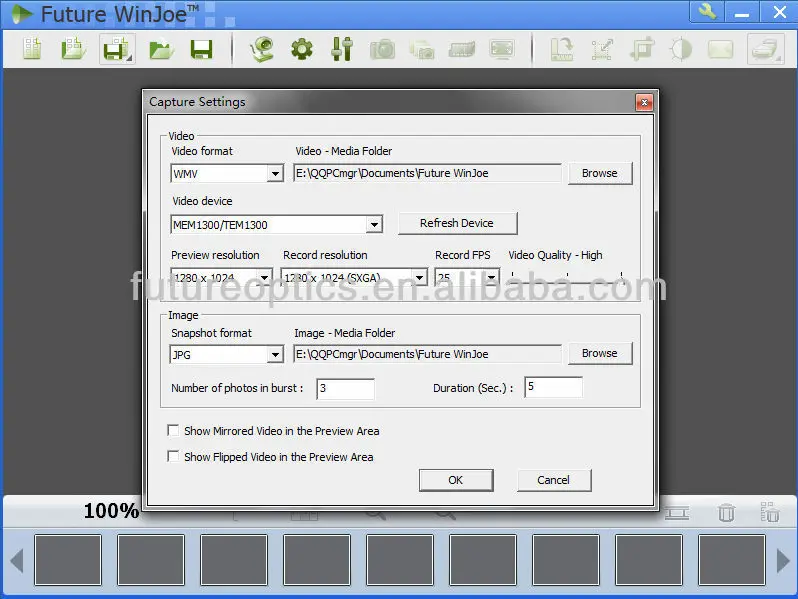

2. To adjust the gain, contrast, exposure time, frame rate and color saturation manually for best images and to recognize dim target which could not be found by human eye;


3. To offers function of images inverted vertically and horizontally that renders the image in its natural orientation on screen, so no extra erecting lens is needed;


4. The performance of powerful equivalent digital magnification acts as a super power zoom and high magnification eyepiece.

















Benefits:


1. Easy installation, convenient operation;


2. Compatibility with Win/MAC/Linux;


3. High resolution of 1280*1024 for preview, picture shoot and video recording


4. Real active resolution, no interpolation, no jaggies in picture.


5. Copyright software with 8 languages version.





♦Quality control:


CE issued by SGS laboratory Verification No. SHEMO0808001971T01C


FC issued by SGS laboratory Verification No.SHEMO081100389IT01C


ROHS issued by POCE laboratory, Verification No.POCE13072325TCR


Copyright software of Future Win Joe V1.0  Registration Code:2009SR035346


ISO9001-2008 issued by kunlun certification co., Ltd Verification No. 16814QZ0030R0M





♦OEM/ ODM:


Available for both hardware and software to be designed and made on clients' specification.


Including:


Logo package printing;


Optical system design;


PCB imaging module design;


Shell design ;


Software amendment.


♦Detailed specifications:


























































































Capture Mode



Picture and Video



Active pixels of sensor



1280*1024



Sensitivity



1.0V/lux-sec



Dynamic Range



71dB



S/N Ratio



44dB



Spectral Range



400-650nm(with IR-filter)



Frame Rate



17fps@1280*1024



Preview Model



1280x1024,800x600,640x480,352x288,320x240



Exposure



ERS or Manual



Power Consumption



190mW



Focus of Objective Lens



450mm



Diameter of Objective Lens



95mm



Focus of Optics Eyepiece



20.0mm, 12.5mm



Optics Magnification



22.5X, 36X



Digital Zoom



96X (17” LCD screen)



Power Supply



USB Powered



Device Weight



4.5 kg (including Equatorial)



Device Size



49cm*18*cm23cm



USB2.0 Cable length



3.0 m



Function of Software



Image & video Capture, Edit and Management



PC Requirements



CPU: Inter Core2 2.8GHz or Higher; Memory:


2GB or More; USB Port:USB2.0 High-speed Port
