Description

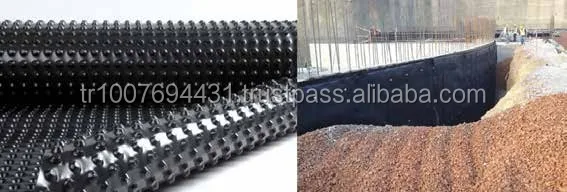

DRAIN-B is high density polyethylene (HDPE) based, plant roots and decay resistance drainage dimple board to protect curtain walls against water and moisture by separated from the earth.



Fields of Application



It is used for the protect water and heat insulation systems which applied on foundation and curtain wall of buildings.



Features and Benefits




  • Provides uniform distribution of the pressure given by earth.

  • Resistant to plant roots and decay.

  • Prevents any damage on the waterproofing that occur while the land case.

  • Allows the breath of buildings.



Technical Data












Weight


Tensile Strength


Elongation at Break


Compressive Strength


Roll Weight


Roll Height


Roll Width


Roll Thickness


Dimple Height


Number of Dimples


HS Code



400 g/m2


(largely-lengthy) 200-200 N/5 cm


(largely-lengthy) %20-25 N/5 cm


TS EN 826 – 120 kN/m2


16 kg


20 or 30 m


2 m


0,55 mm


8 mm


1900 pcs/m2


3925.90.80.00.00



500 g/m2


(largely-lengthy) 250-250 N/5 cm


(largely-lengthy) %20-25 N/5 cm


TS EN 826 – 200 kN/m2


20 kg


20 or 30 m


2 m


0,65 mm


8 mm


1900 pcs/m2


3925.90.80.00.00




Application Procedure



Application Method


DRAIN-B is inserted as 15 cm above from the waterproofing layer and bubbles it has faced with application surface. DRAIN-B is immobilized on the application surface as 20 cm distance or engaged on the surface with pressure profile. Waterproofing surface must be protected during the montage. At least 20 cm overlapping and additional fastening equipment is need on the plate joint areas.



Packaging



2m x 20m roll
