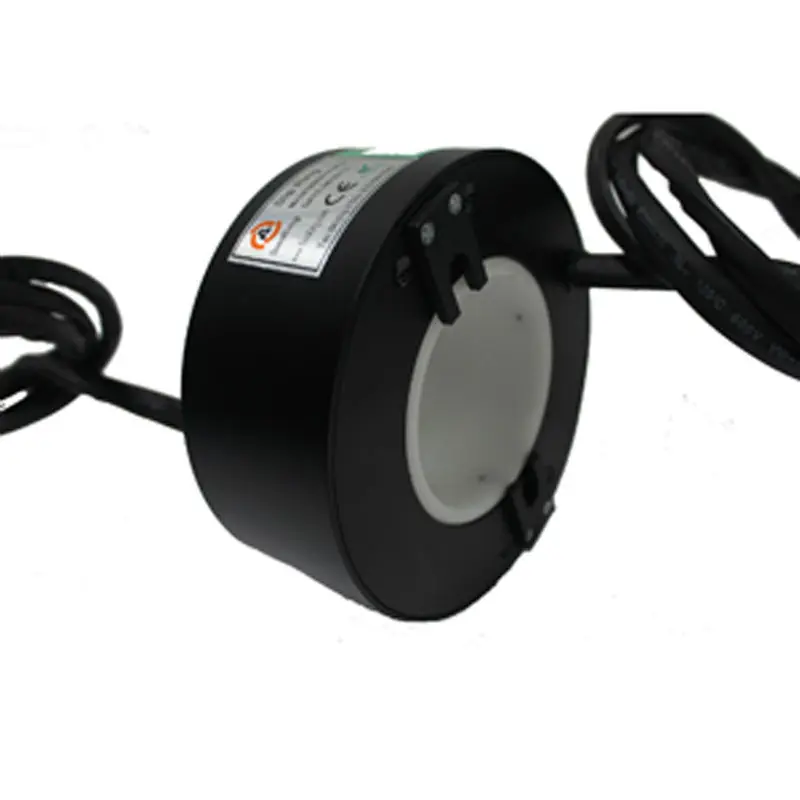

Соединительный коннектор для проводника размер отверстия 70 мм 6 проводов/цепи 10 А сквозное скользящее кольцо

Сохранить в закладки 1564710655:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики



The SNH070, with 70.00mm through bore size and compact 140mm outside diameter, uses SenRing's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.

SNH060(Standard) Dimensions


SNH060 Specifications(Standard)

  • Contact Material

    Precious metal brush,Silver plated rings

  • Current Rating

    10A/per circuit

  • Number of Circuits

    6

  • Operating Speed

    300 rpm* continuous

  • Lead Wire

    UL Teflon® Awg28,Awg22,Awg16,Awg10 (200 mm)

  • Voltage

    600 VAC

  • Operating Temp.

    -40°C to 80°C

  • Working Humidity

    60%RH

  • Torque

    Approx. ≤9.55 g·m (for reference )

  • Dielectric Strength

    ≥1000V@50Hz between each circuit

  • Insulation Resistance

    1000MΩ@ 600VDC

  • Noise

    Less than 60 mΩ @ 6 VDC, 50 mA, 5 rpm

  • Housing Material

    Aluminum Alloy

  • Protection

    IP51

Benefits
  • transfers control and data signals
  • Fiber brush technology provides maintenance-free operation (no lubrication required)
  • Modular design meets special requirements through off-the-shelf manufacturing techniques
  • Customized configurations for your application
  • Quick shippments
Lead Wire Color Code

Circuit No.123455
ColorBLKREDYELGRNBLUWIT
Circuit No.789101112
ColorBRNORGGRAYCLARWIT-REDWIT-RED
12 circuits/per group, groups with tags
Type Application

Industrial machineryFilling equipment
Exhibit / display equipmentMedical equipment
machining centerserotary index tables
Mechanical armSurgery lamp
heavy equipment turrets or cable reelsRevolving door
Packaging machineCoiling machine
test equipmentpackaging machines
