Attention:
When order qty. reaches 8 piece, there is discount.
Please make payment after the price(s) in the order revised.
Manual (copy and paste to browser address to view and downlaod):
cdn.shopify.com/s/files/1/0028/5032/4545/files/ZL-6x0A_V4.4_en_20170830_20181126.pdf?3776751917446339245

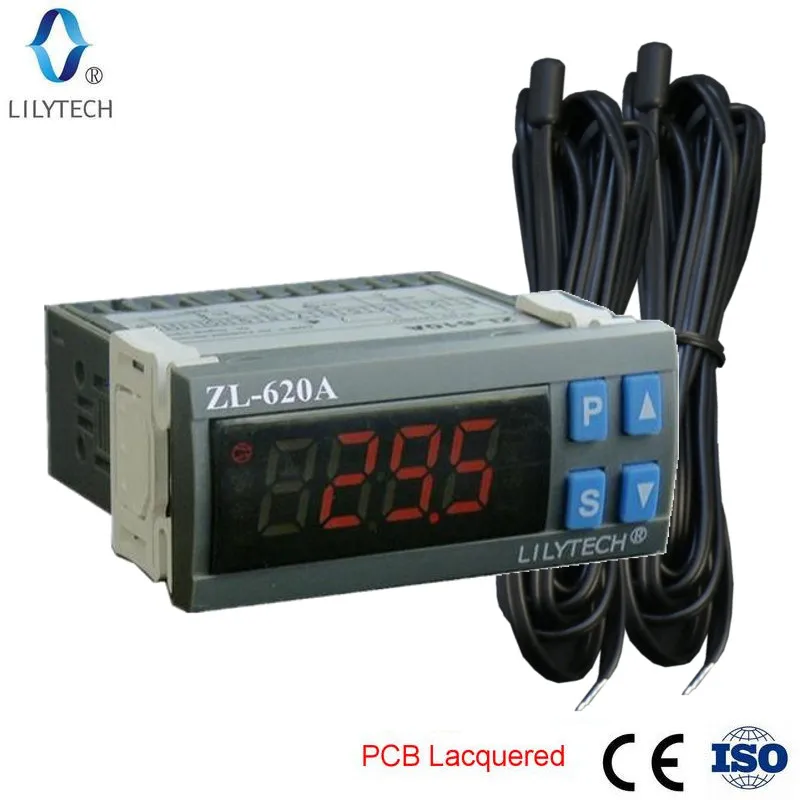

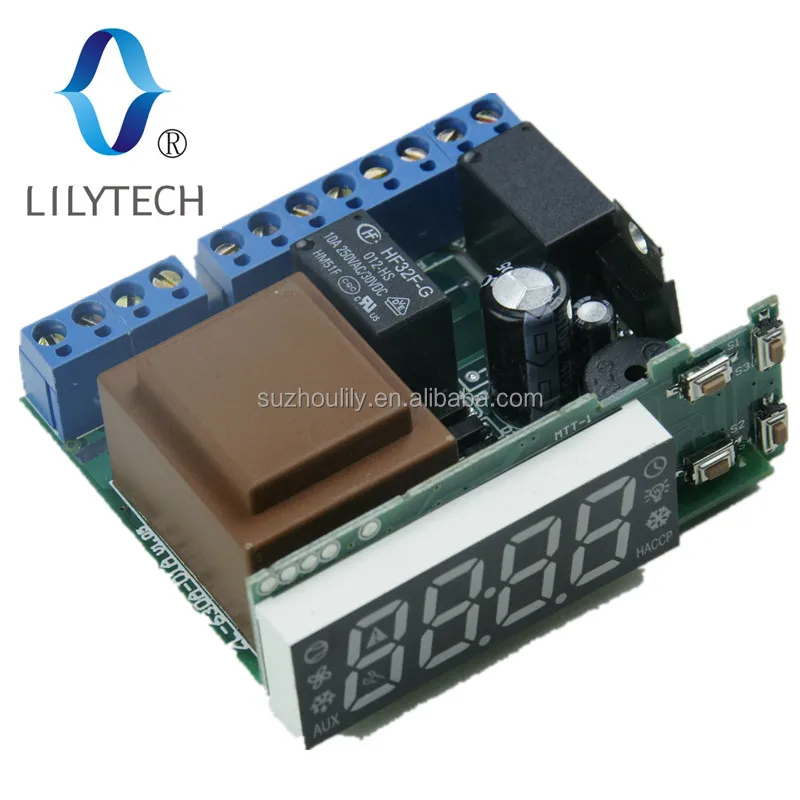

ZL-6x0A
Temperature Controller
Introduction
ZL-6x0A thermostat is for cold storage, seafood storage, water heater, and so on.
Main Function
Cooling or heating mode
Periodic or intellectual defrost
Fan control
Temperature calibration
High/low over temp. warning
Temp. output delay protection
Sensors failure warning
Buzzer warning
External warning input
Modes
Model | Function | |||
ZL-610A | Cooling/heating | Periodic defrost |
| External warning input |

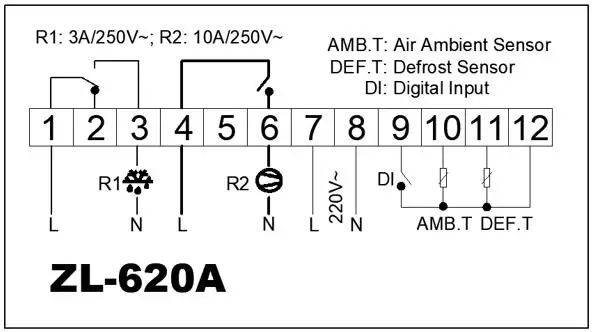

ZL-620A | Intellectual defrost |
| ||
ZL-630A | Intellectual defrost | Fan control |
Main Specification

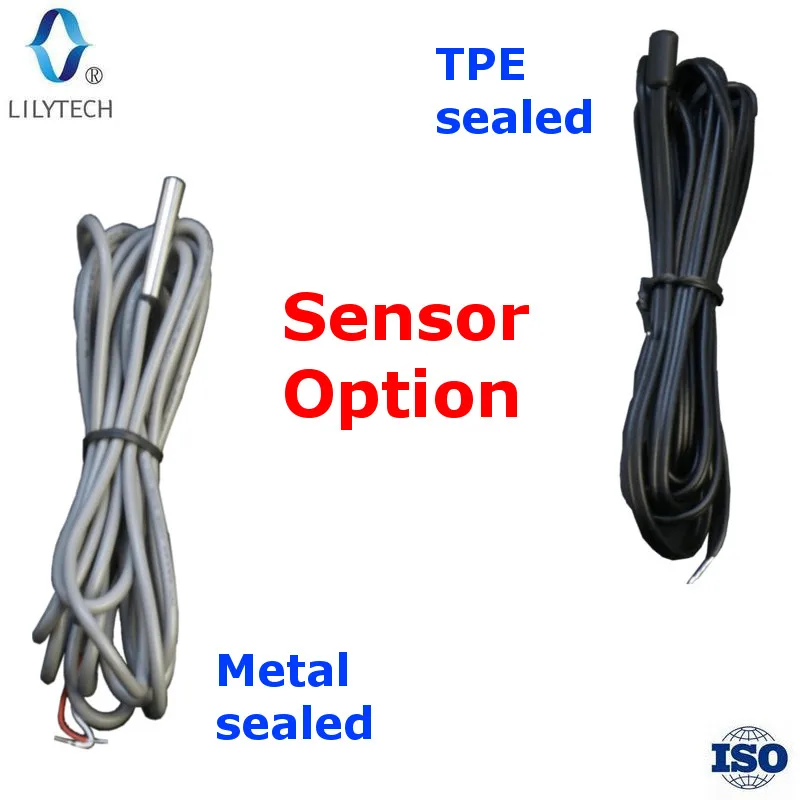

Sensor wire: 1.5 meters long (sensor included)
Sensor: NTC
Setting range: -40~120℃
Display range: -50~130℃
Power supply: 185~245Vac, 50/60Hz
Terminal wire: ≤ 2*1.5mmP2, or 1*2.5mmP2
Load: 3A, 10A, 250Vac (resistance)
Storage: -30~70℃
Working: -10~45℃
Working: 5~85%RH without dew
Case materials: PC + ABS fire proof
Protection level: IP65 (Front side only)
Dimension: L78 x W34.5 x D71 (mm)
Installation drilling: L71 x W29 (mm)
CE
ISO
One piece packing: 11 * 9 * 7.5 cm, 0.326 kg
One carton packing: 33 * 37 * 47 cm, 21.9 kg, 64 pcs
