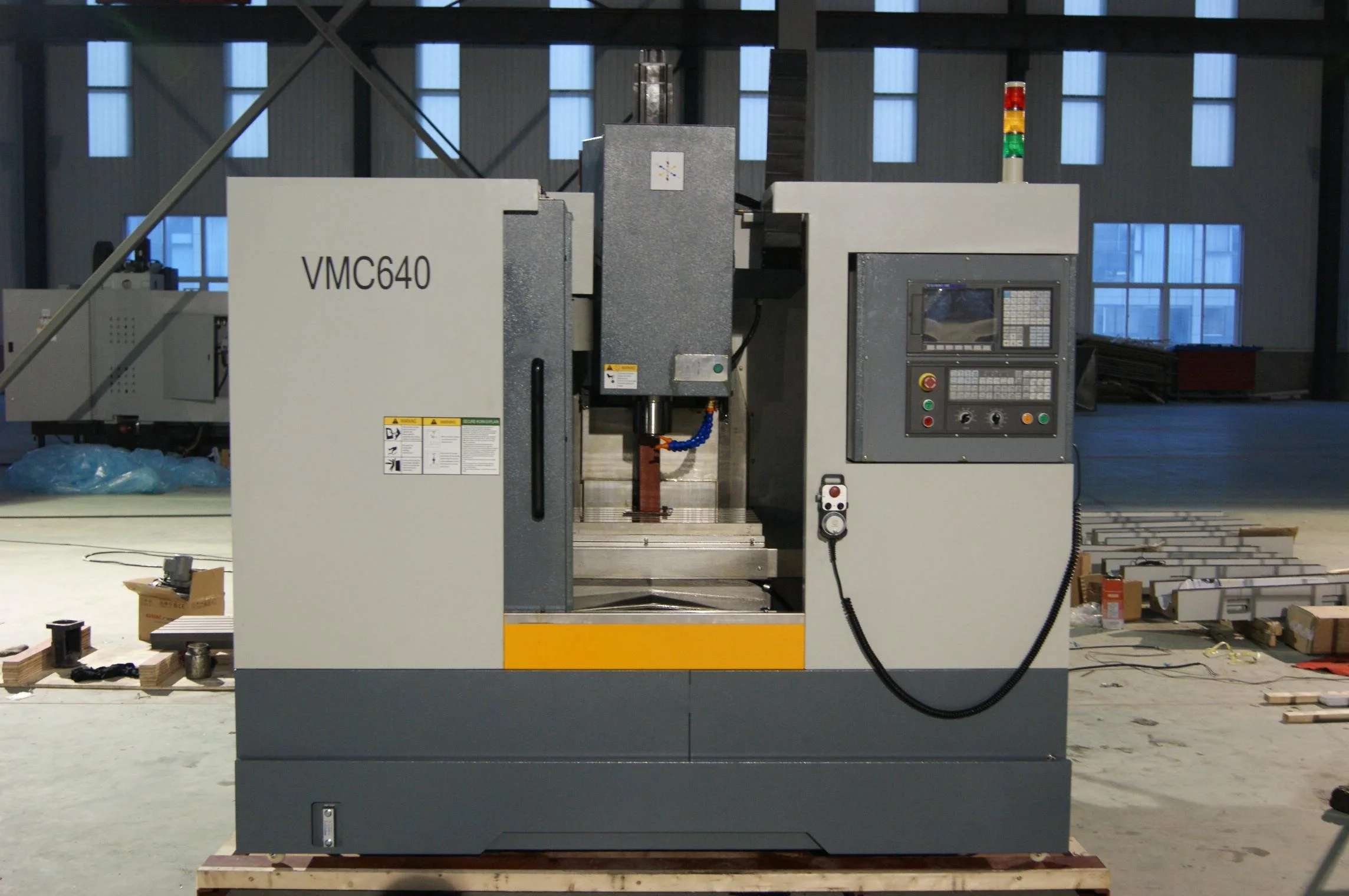

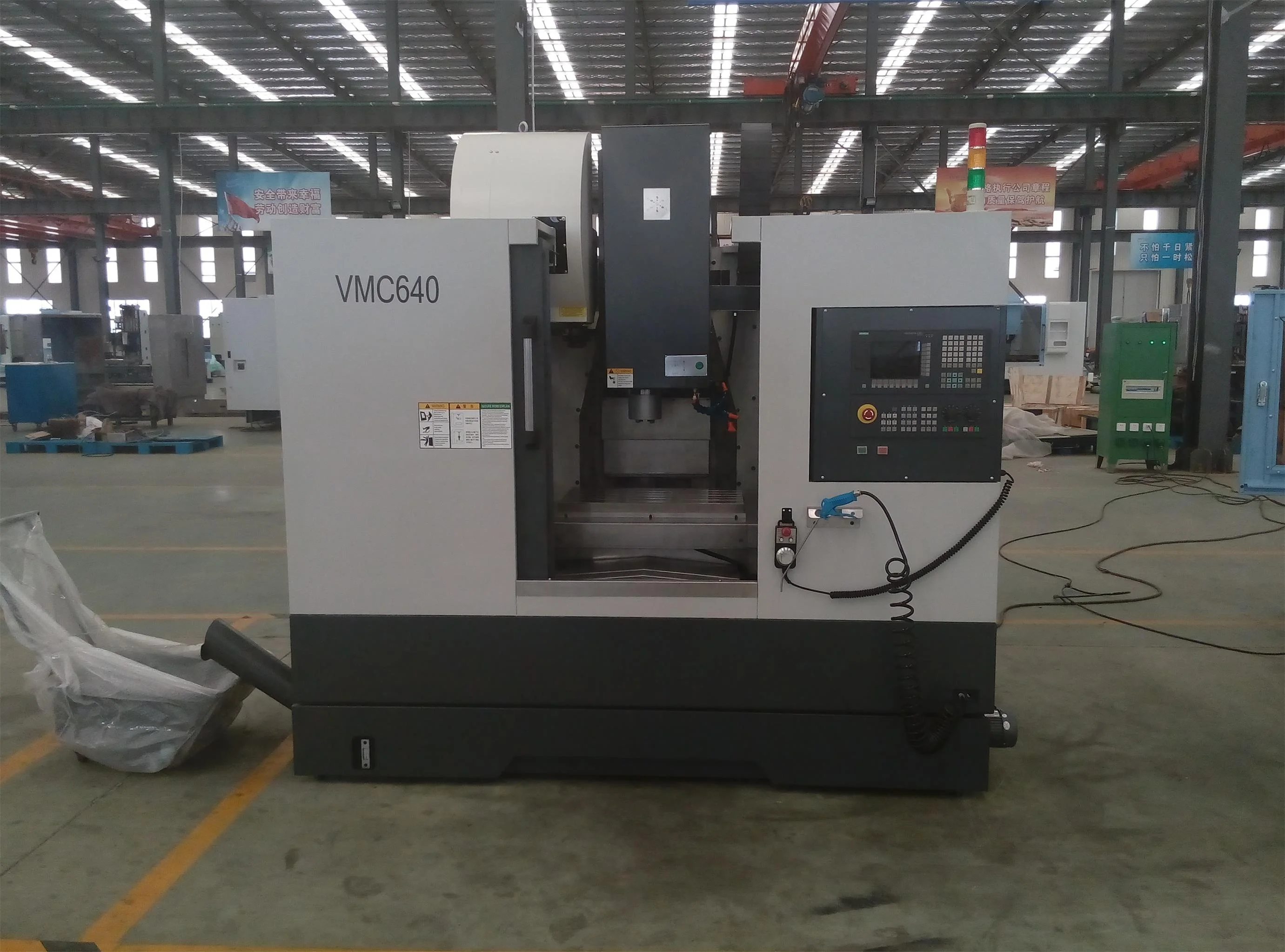

VMC640 китайский завод маленький VMC CNC обрабатывающий центр вертикальная фреза с ЧПУ
- Категория: Machine Centre & Parts >>>
- Поставщик: Shandong Miller Machine Tool Co. Ltd.
Сохранить в закладки 1600050746854:
Описание и отзывы
Характеристики
Feature:
This vertical machining center has X/Y/Z three axis which are controlled by the servo system. The whole structure is compact and the spindle is controlled by servo motor. This milling machine is suitable for milling, drilling, tapping and boring for every kinds of plate, shell and mold pieces. The machine is an ideal processing equipment for machine manufacturing, mold, instrument, automobile, motorcycle, hardware, motors and other trades. It can be used not only in small batch production but also in production line to ensure the quality and efficiency. The machine’s superiority is more obvious in processing the high precision and complex workpiece.
Configuration：
Standard：Automatic cooling system, Automatic lubrication system, Full cover, Work light, Taiwan Linear way, Taiwan Spindle, Taiwan Ball screw, etc.
Optional: 14T Armless Magazine, 20T Arm Magazine, 4th axis Rotary table, Water through spindle, Air conditioner, Tool set, Chip conveyor, etc.
This vertical machining center has X/Y/Z three axis which are controlled by the servo system. The whole structure is compact and the spindle is controlled by servo motor. This milling machine is suitable for milling, drilling, tapping and boring for every kinds of plate, shell and mold pieces. The machine is an ideal processing equipment for machine manufacturing, mold, instrument, automobile, motorcycle, hardware, motors and other trades. It can be used not only in small batch production but also in production line to ensure the quality and efficiency. The machine’s superiority is more obvious in processing the high precision and complex workpiece.
Configuration：
Standard：Automatic cooling system, Automatic lubrication system, Full cover, Work light, Taiwan Linear way, Taiwan Spindle, Taiwan Ball screw, etc.
Optional: 14T Armless Magazine, 20T Arm Magazine, 4th axis Rotary table, Water through spindle, Air conditioner, Tool set, Chip conveyor, etc.
Product Description
SPECIFICATIONS | UNIT | VMC640 |
Table size | mm | 700×410 |

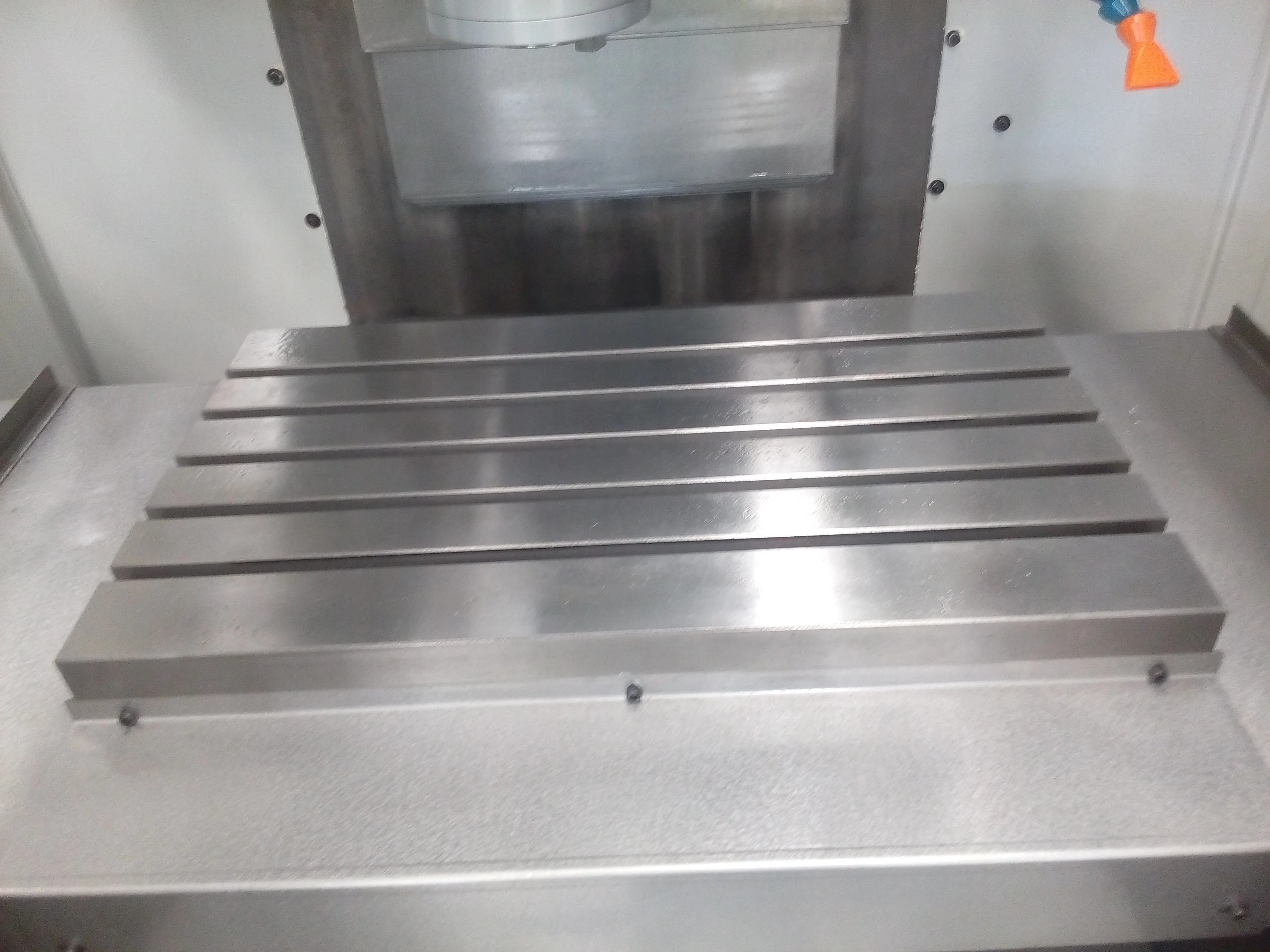

T-slot (No.×width×pitch) | mm | 5-14×63 |
Max. table loading | mm | 400 |
X/Y/Z Guide way | X/Y/Z Linear way | |
X/Y/Z axis ball screw | mm | 4008/4008/4008 |
X/Y/Z Travel | mm | 650/450/510 |
Distance from spindle to worktable | mm | 150-660 |
Distance from spindle to column | mm | 467 |
Spindle taper | BT40 | |
Main motor | kw | 5.5 |
Max speed of spindle | rpm | 8000 |
Spindle drive | Belt drive | |
Cutting feed speed | m/min | 0-10 |
Rapid feeding | m/min | 20×20×18 |
Max. diameter of tool | mm | 100 |
Max. length of tool | mm | 300 |
Max. weight of tool | kg | 8 |
Positioning accuracy | mm | ±0.005/300 |
Repositioning accuracy | mm | ±0.003/300 |
Machine size | mm | 2200×2050×2300 |
Weight | t | 4.1 |
Frame Body:
Optional Equipments:
16/24T Arm Tool Magazine
12/16T Armless Tool Magazine
Water Through Spindle
Chain Chip Conveyor
4th axis Rotary Table
5th axis Rotary Table
Controller for Choose:
GSK; SIEMENS; FANUC; SYNTEC; KND; MITSUBISHI, etc.
Quality Assurance
Recommend Products
Company Introduction
Company Overview:
Shandong Miller Machine Tool Co., Ltd. is Specialized in the produing of various types of machine tools, which is built in 2010 year, and located in Tengzhou city, Shandong province. The company covers an area of 100,000 square meters and has over 100 workers, 10 Technical R & D workes, 5 Quality control Workers. The company's annual production value over 10 Million US Dollars.
Company Main production:
Shandong Miller Machine Tool Co., Ltd. main products are: CNC Vertical Machining Center, Cnc Milling Machine, Cnc Lathe, Conventional Lathe, Milling Machine, Drilling Machine, Planer etc.
Company Culture:
Company Target: Provide the best products at the best price
Company Idea: Customers are our God, quality is God's request
Shandong Miller Machine Tool Co., Ltd. is Specialized in the produing of various types of machine tools, which is built in 2010 year, and located in Tengzhou city, Shandong province. The company covers an area of 100,000 square meters and has over 100 workers, 10 Technical R & D workes, 5 Quality control Workers. The company's annual production value over 10 Million US Dollars.
Company Main production:
Shandong Miller Machine Tool Co., Ltd. main products are: CNC Vertical Machining Center, Cnc Milling Machine, Cnc Lathe, Conventional Lathe, Milling Machine, Drilling Machine, Planer etc.
Company Culture:
Company Target: Provide the best products at the best price
Company Idea: Customers are our God, quality is God's request
Customer Photos
Our Advantages
Products Advantages:
Our company has over 10 years producing history, with professional technical team and quality control team.
Our factory has 5 work shops with over 300 sets all kinds of machines, and has over 300 workers.
Production process is strictly in accordance with the production process, ensure that each machine is qualified before delivery.
Service advantages:
Pre-sale service:
1. Provide Lathes technical consulting services to customers free of charge.
2. Provide the company with the company profile and credit certificate.
3. Invite customers to visit our company to inspect the manufacturing process.
In Producing service
Customers can come to our company to know the progress of production at any time.
After-sale service
1. Our company can dispatch technicians to carry out on-site installation and commissioning according to customer requirements.
2. Customers can send employees to our company for acceptance and training.
3. The warranty period of our company's lathe machine is ONE year. During the warranty period, our company provides damaged parts for customers free of charge, and dispatches technicians to solve problems on the spot according to customer requirements.
4. Our company promises to respond to customer questions in a timely manner after receiving feedback of qualit, and provide solutions within 24 hours.
Our company has over 10 years producing history, with professional technical team and quality control team.
Our factory has 5 work shops with over 300 sets all kinds of machines, and has over 300 workers.
Production process is strictly in accordance with the production process, ensure that each machine is qualified before delivery.
Service advantages:
Pre-sale service:
1. Provide Lathes technical consulting services to customers free of charge.
2. Provide the company with the company profile and credit certificate.
3. Invite customers to visit our company to inspect the manufacturing process.
In Producing service
Customers can come to our company to know the progress of production at any time.
After-sale service
1. Our company can dispatch technicians to carry out on-site installation and commissioning according to customer requirements.
2. Customers can send employees to our company for acceptance and training.
3. The warranty period of our company's lathe machine is ONE year. During the warranty period, our company provides damaged parts for customers free of charge, and dispatches technicians to solve problems on the spot according to customer requirements.
4. Our company promises to respond to customer questions in a timely manner after receiving feedback of qualit, and provide solutions within 24 hours.
Certifications
FAQ
Q1. How can I get a quotation?
A1. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Whatsapp / Phone:+86-18063203806 or Telephone.
Q2. Can you provide customized machine or SPM (Special purpose machine)?
A2. Yes, we provide smart CNC solutions for our customer, in order to increase efficiency.
Q3. Can you provide training for operation CNC machines?
A3. Yes, free training in our factory is available.
A3. Yes, free training in our factory is available.
Q4. What's your warranty terms?
A4.We will supply a replacement for parts that prove to be defective for a period of one year.
Extended warranty is available at the time of purchase.
A4.We will supply a replacement for parts that prove to be defective for a period of one year.
Extended warranty is available at the time of purchase.
Q5. What’s the delivery time, and what’s the package?
A5. Normally the delivery time is about 30-45 days. All our CNC machines are packed with PLYWOOD package.
A5. Normally the delivery time is about 30-45 days. All our CNC machines are packed with PLYWOOD package.
