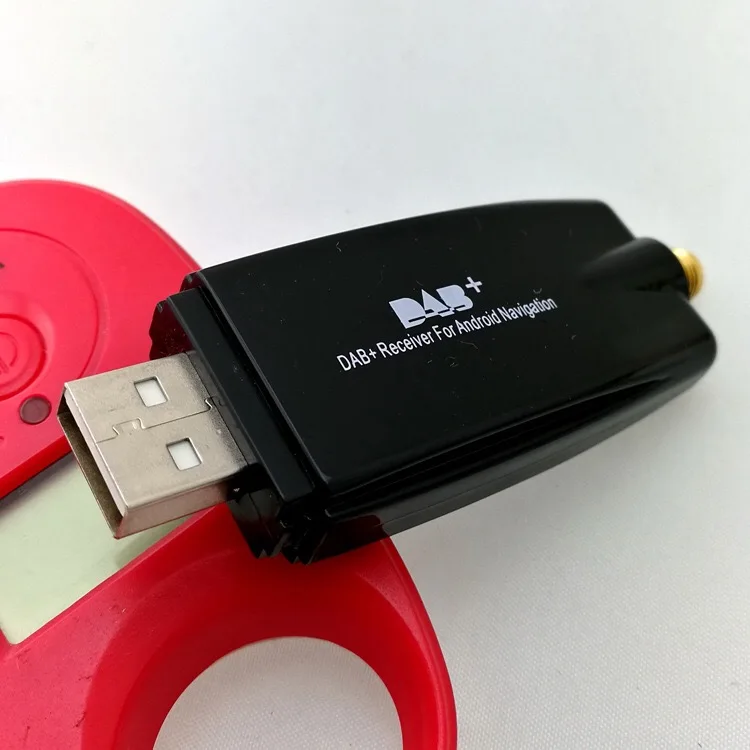

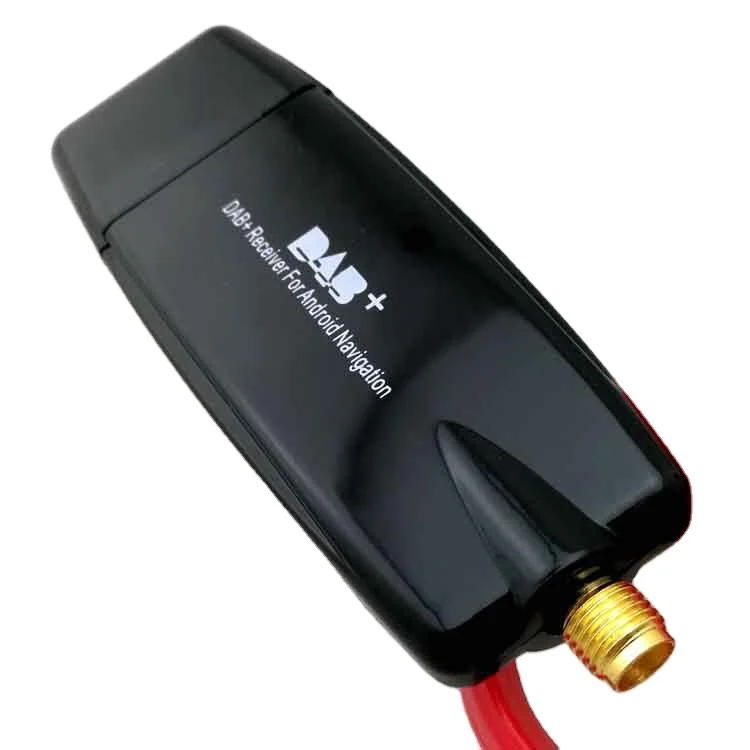

Universal USB Adapter Receiver DAB+ Radio Antenna for Europe for Car Dvd Radio Player

roduct Features:

This product uses a coefficient FPC printed antenn of high conductivity and low temperature resistance as a reception antenna, so that it has a strong signal receiving function and good directivity. You can install it under the windshield of rear window or under the windshield of front window. Please do not install it vertically below metal.

Electric Spec:

1. Working Voltage: DC 5V
2. Working current: 30mA-60mA
3. Product Size(approx.): Receiver: 70 * 28 * 12mm / 2.76 * 1.10 * 0.47in, antenna length: 3m / 9.84ft
4. Rated Current: 40mA-50mA
5. Working Frequency: 170MHz-240MHz (Band III) 1452MHz-1492MHz (L-Band)
6. Output Gain: 20dB ± 2dB (BandIII) 12dB ± 3Db (L-Band)
7. Output impedance: 50 / 75Ω
8. V.S.W.R: ≤2
9. NS: ≤2dB
10. Working Temperature: -30degree Celsius ~ + 80degree Celsius
11. Storage Temperature: -40degree Celsius ~ + 90degree Celsius
12. Cable specification: 1.5DS, about 3m / 9.84ft
13. Connector: SMA Plug

Product Advantages:

Plug and play, lossless installation for stronger signal gain. The car will not be affected when adjusting the driving signal.

Instructions:

1. Firstly confirm whether your car DVD / one player is of Android 4.4 above system.

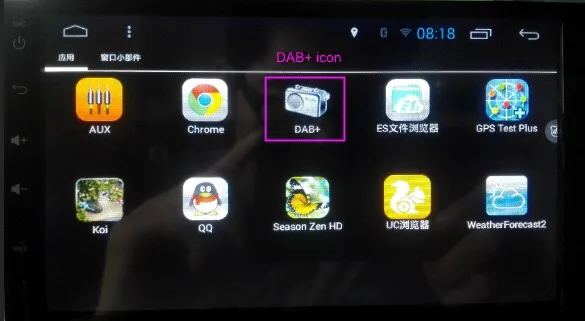

2. Download the link below the APP, and install on the car player (just download it from either of the two links)
3. Install the DAB + antenna to the car windshield, and connect the DAB + receiver.

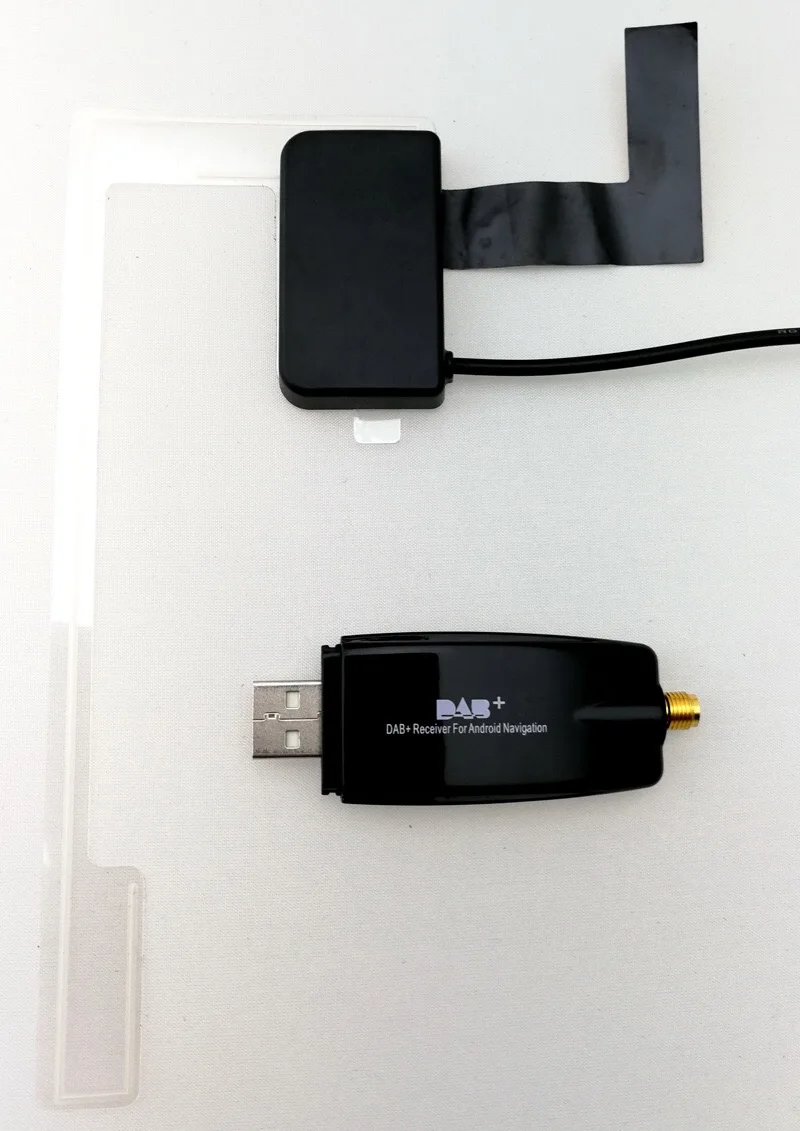

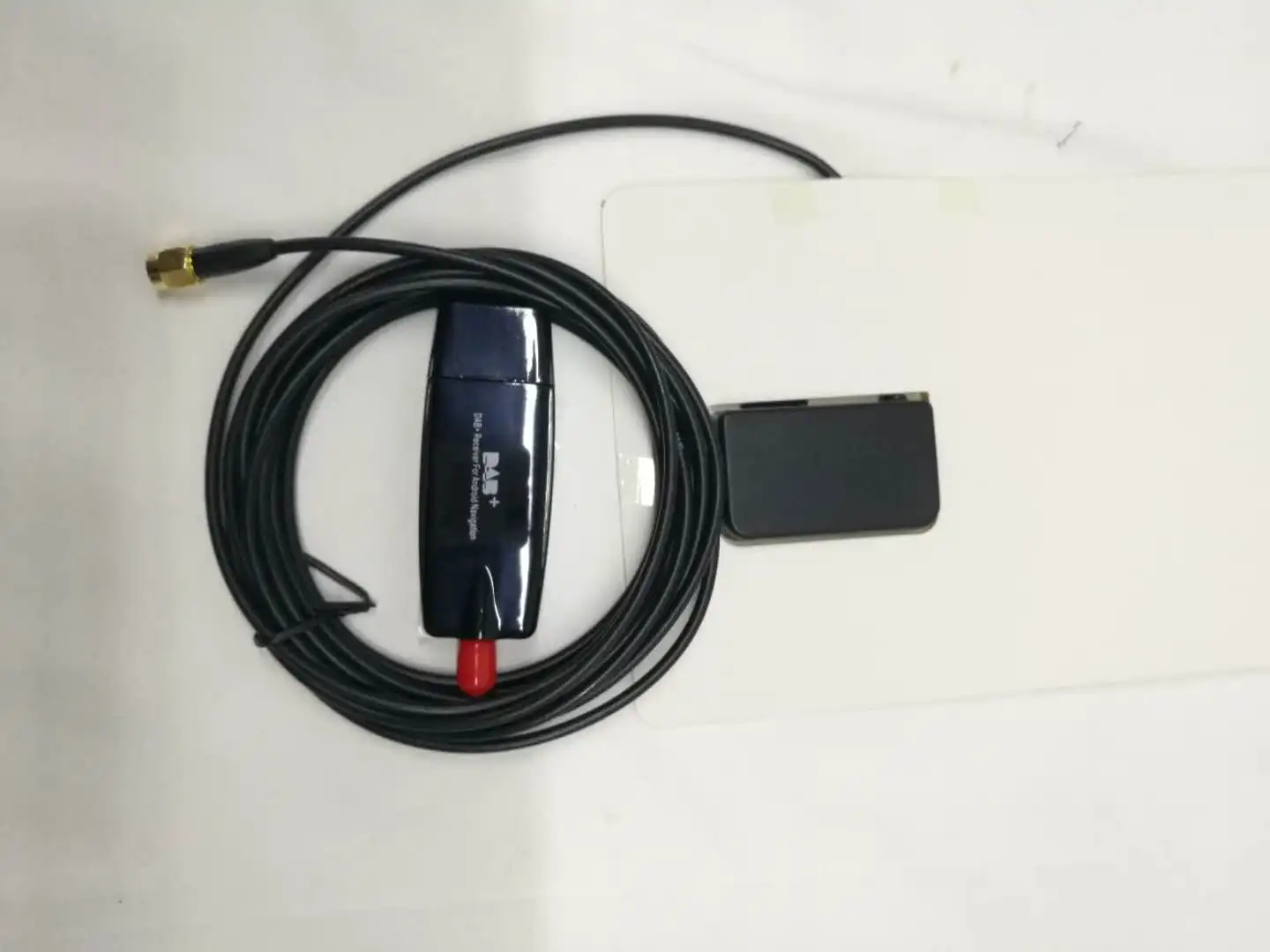

Packing List:
1 * DAB + antenna
1 * DAB + signal receiver
