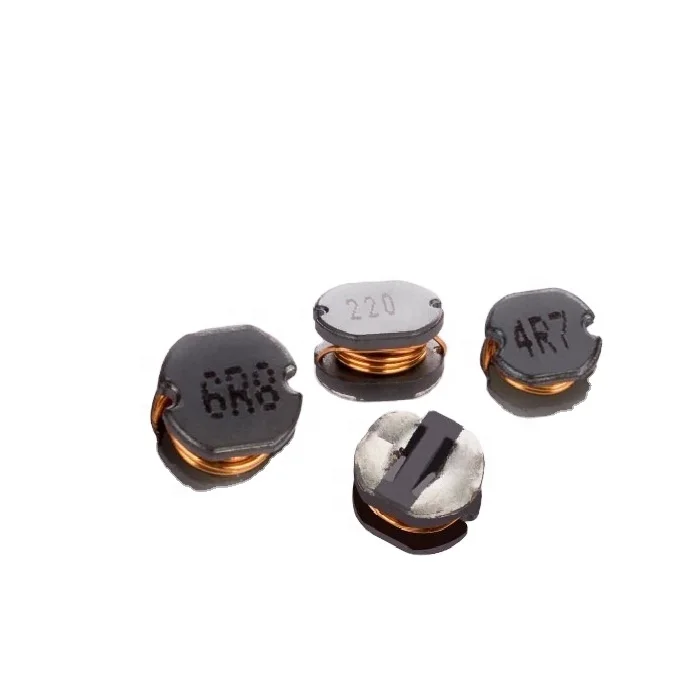

Проволочная обмотка helmholtz coil 1mH, ферритовый сердечник, неэкранированный тороидный Индуктор для материнской платы foxconn
0,01 $

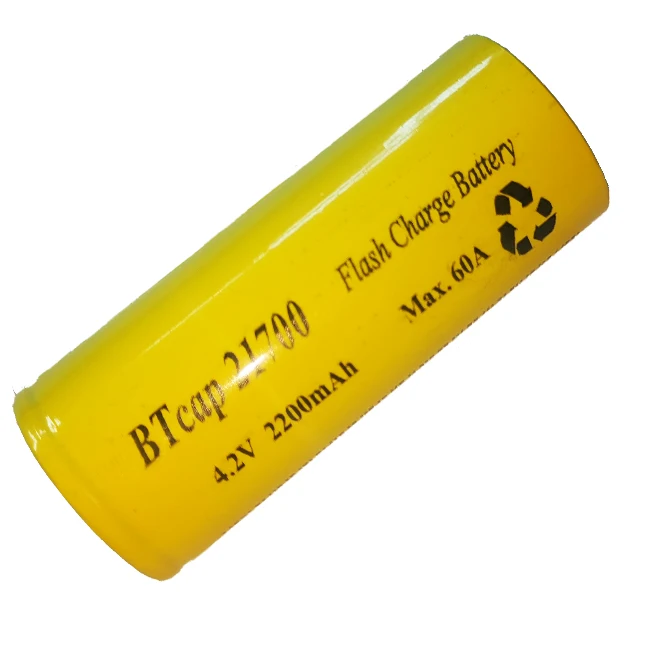

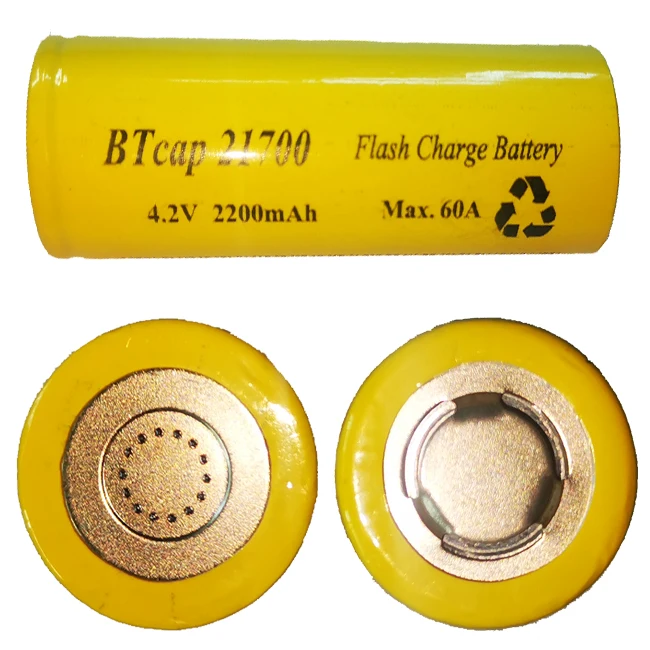

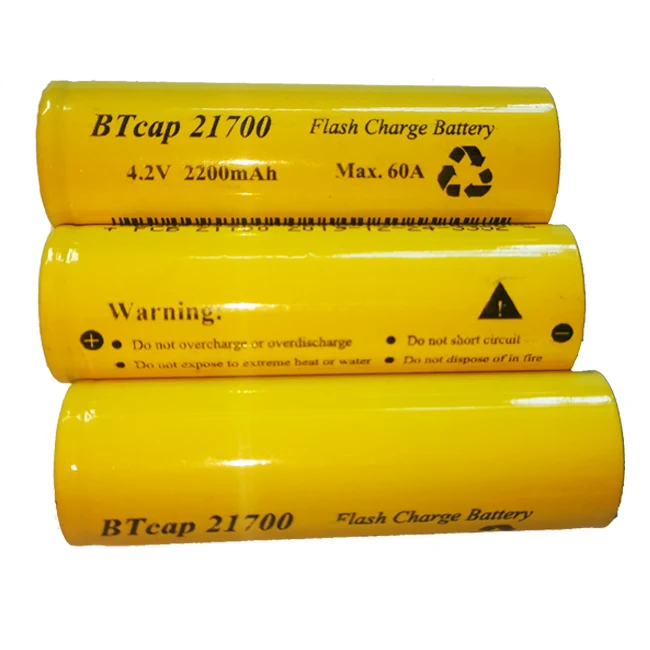

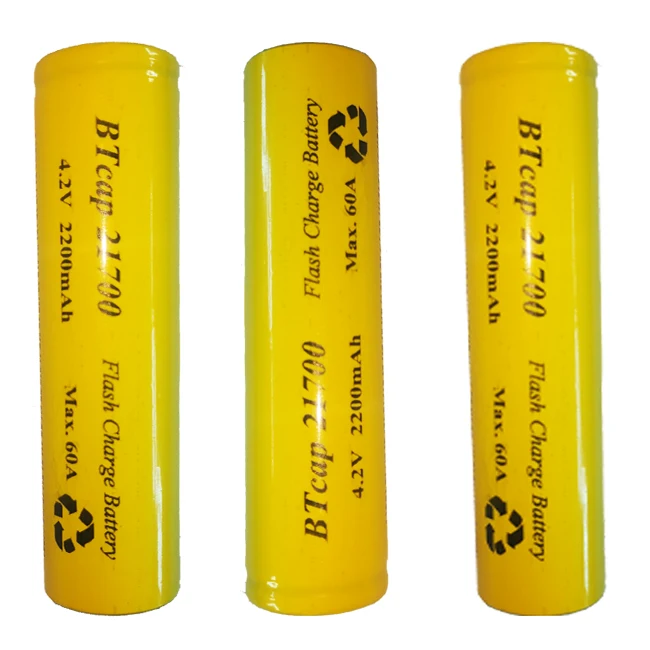

4 2 в 7900F Золотой конденсаторный аккумулятор 21700 батарея 10 шт. упаковке
- Категория: Passive Components >>>
- Поставщик: Shenzhen Yunkun Technology Co. Ltd.
Сохранить в закладки 1600051553347:
Описание и отзывы
Характеристики
Product Description
Advantages of super capacitor battery
Super capacitor battery is a new type of high-power power battery made by mixing super capacitor and lithium ion battery; one of its electrodes is activated carbon electrode of super capacitor, and one electrode is lithium ion battery electrode! He has the following advantages:
2. The power that can be released instantly is nearly ten times higher than that of ordinary batteries, and it will not be damaged.
3. The charge and discharge cycle life is more than 30000-100,000 times, which is one of the biggest advantages. Traditional batteries can only be charged and discharged hundreds of times.
4. Can be used normally in an ambient temperature of 40 to 60 degrees, the performance of traditional batteries will be greatly reduced at low temperatures.
5. With super charge retention ability, the leakage is very small, the traditional battery needs to be charged frequently to maintain the state.
6. Charging is fast, its speed is dozens of times faster than ordinary batteries, and it can fully charge the power required by a car in a few minutes.
7. It will not cause pollution to the environment itself, and it is truly maintenance-free, while traditional batteries are still polluted.
Specification
Series | Merits | Values |
1 | Rated Capacity | 2200mAh+5% |
2 | Upper limit voltage | 4.2V |
3 | Lower limit voltage | 2.5V |
4 | DC internal resistance (10ms) | ≤11mΩ |
5 | Standard charging current | 6.6A(3C) |
6 | Fast charging current | 22A(10C) |
7 | Rated discharge current | 22A(10C) |
8 | Maximum continuous discharge current | 60A(30C) |
9 | Maximum discharge duration | 100s |
10 | Maximum temperature rise | 55±5℃ |
11 | safety | Refer to GB / T 31485-2015 "Safety requirements and test methods for power batteries for electric vehicles" |
12 | Charge and discharge temperature range | -40~85℃ |
13 | Storage temperature range | -40~55℃ |
14 | Fast charge cycle life (@ 25 ± 2 ℃) | ≥30,000 times(10C) |
15 | Slow charge cycle life | ≥50,000 times(1C) |
16 | weight | ≤65g |
17 | Dimensions (diameter D × height H) | Φ21mm×70mm |

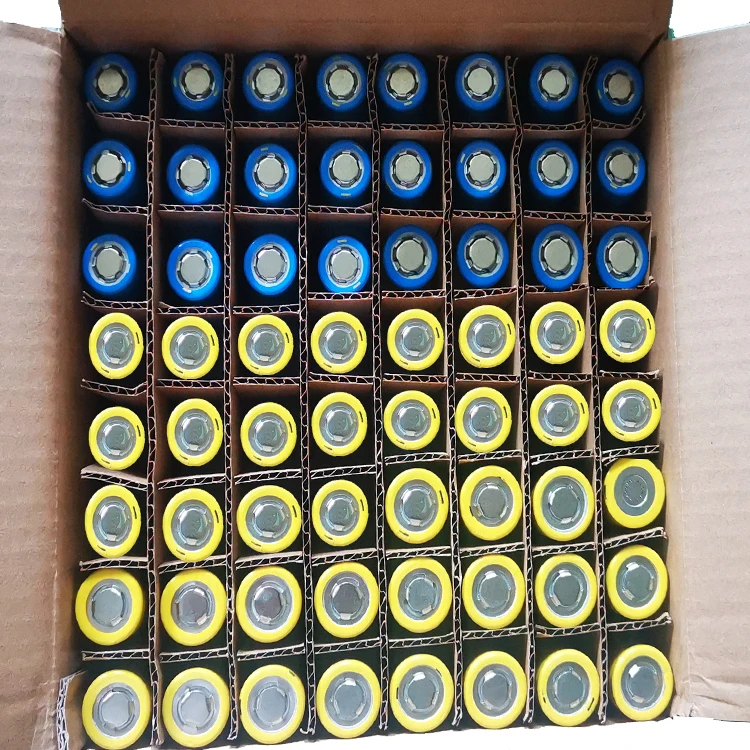

Packing & Delivery
Our company
Dust-free workshop
Colleagues working in dust-proof operation box in dust-free car
Electrode coating machine
Coating machine is producing electrode
Circuit board test
Colleagues test the circuit board
Electrode roll forming workshop
Super capacitor electrodes are formed by pressing in this workshop
Business colleagues
Corner of the office
A corner of a dust-free factory
This is where we work
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products
Похожие товары

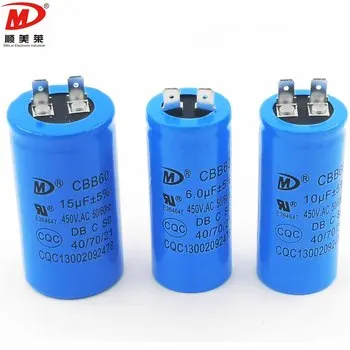

Конденсатор 0,1 мкФ-22 мкФ 250v 450v cbb61 3,5 мкФ

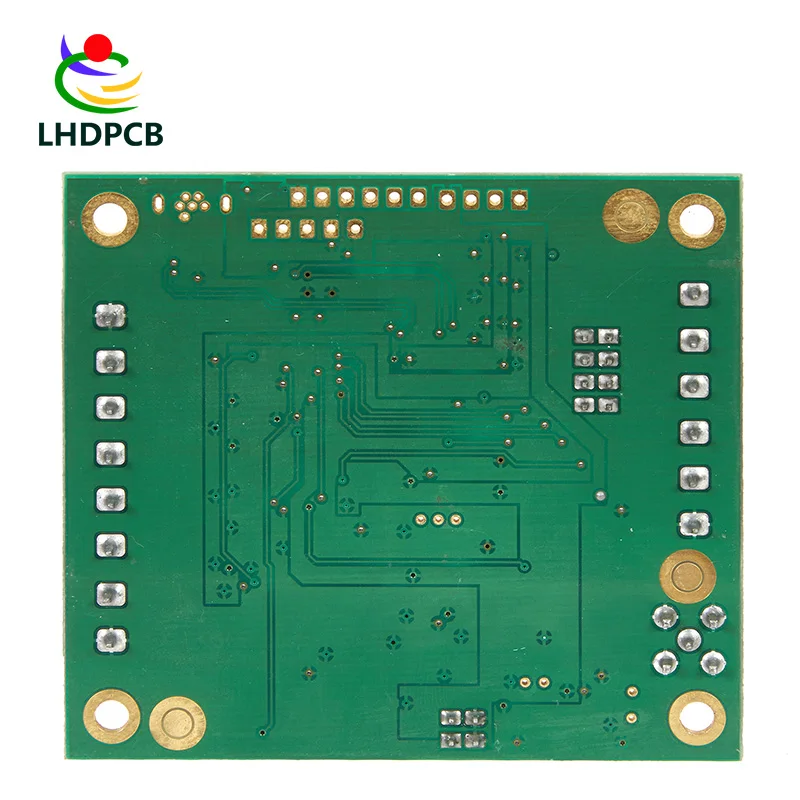

Китай электронные продукты Pcb/Pcba поставщик печатной платы Pcba Pcb производство печатных
0,10 $ - 10,00 $

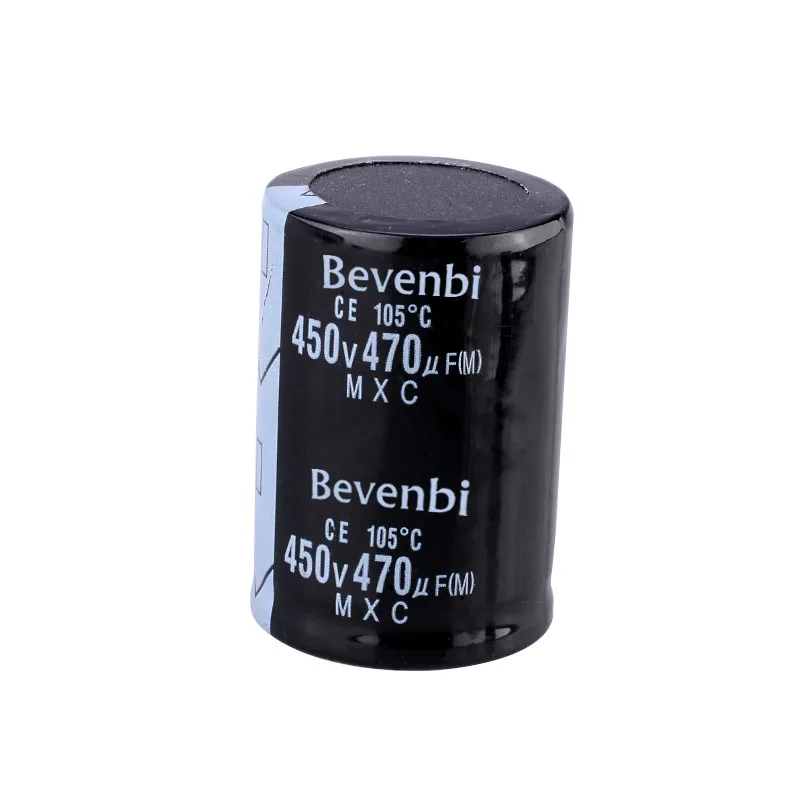

Алюминиевый электролитический конденсатор 470 мкФ
Оснастки в алюминиевом электролитическом конденсаторе 15000 мкФ
1,80 $ - 2,00 $
Длительный срок службы хорошее качество конденсатор 450 в переменного тока
0,15 $ - 0,20 $

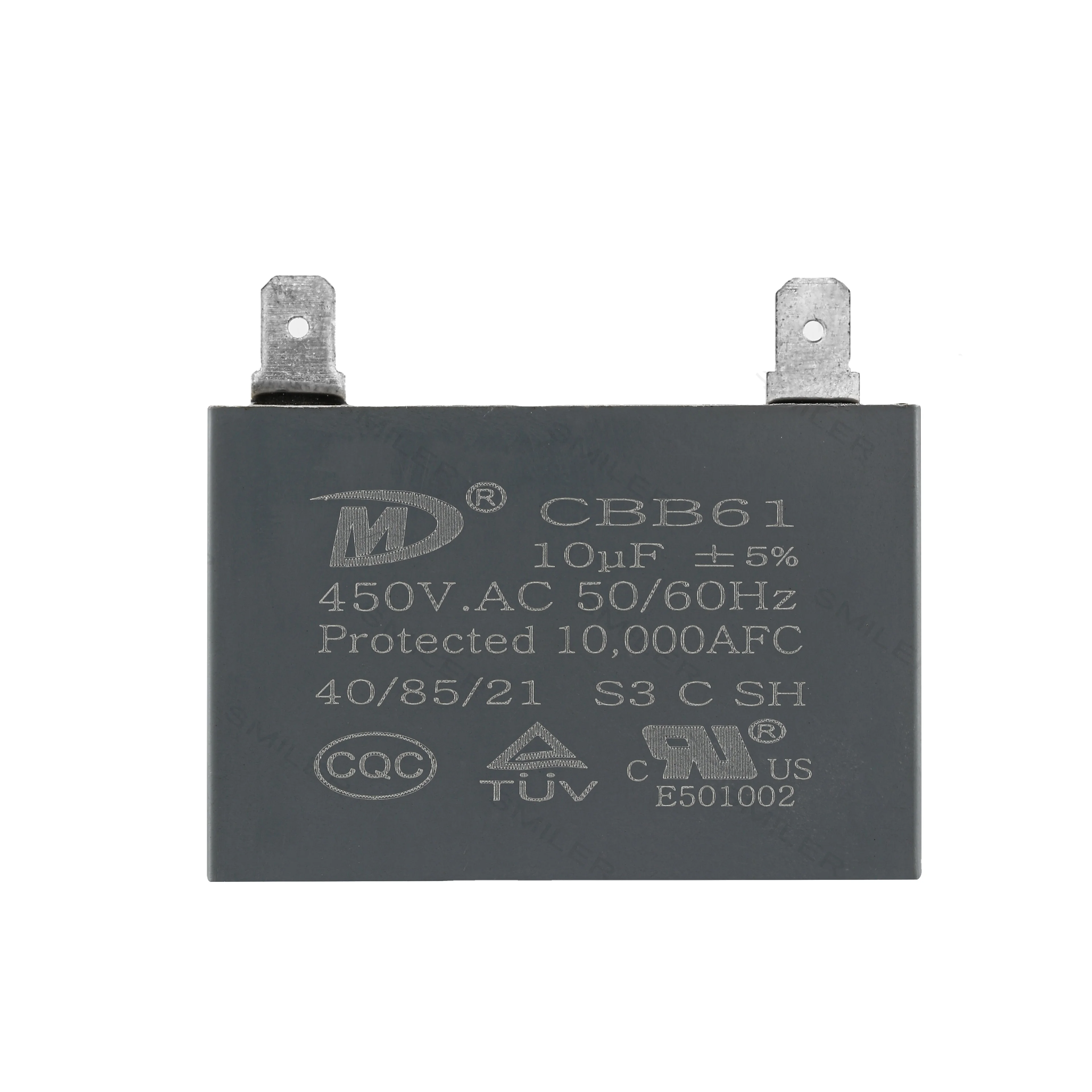

Поставка вентилятора кондиционера CBB61 1-120 мкФ 450vac
0,05 $ - 0,10 $

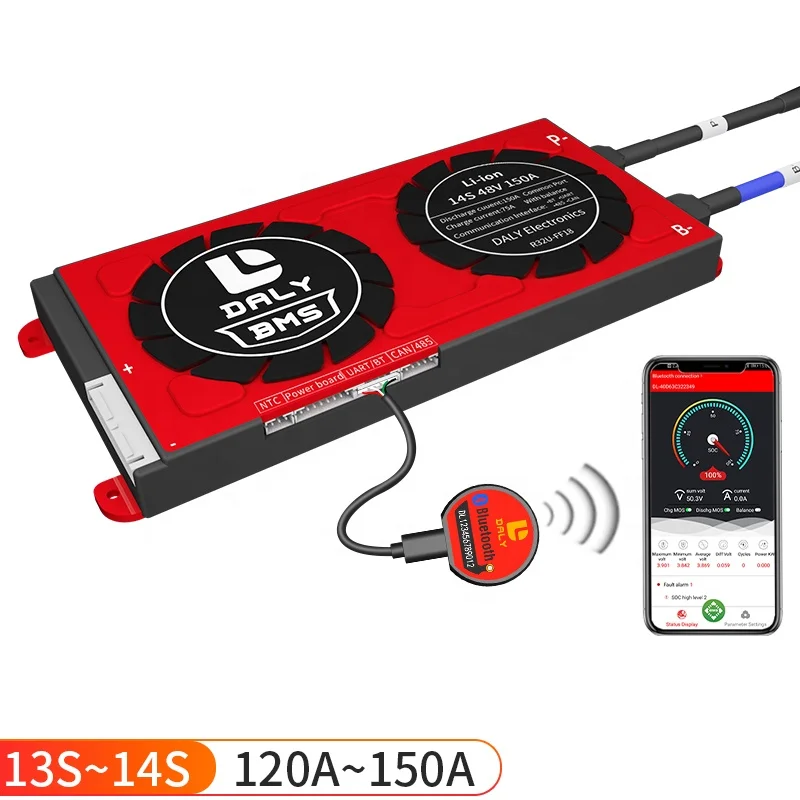

Дейли Смарт bms литий-ионный аккумулятор 13s 14s 120a 150a 48v bms с UART BT
