Сварное звено из сплава новейшее звеньев цепи оборудование для такелажа ведущего типа США
986,84 ₽ - 1 206,14 ₽
G80 оснастка из легированной стали кованый мастер звено в сборе для подъемных строп
- Категория: >>>
- Поставщик: Jiangsu Gostern Rigging Co. Ltd.
Сохранить в закладки 1600051832652:
Описание и отзывы
Характеристики
Product Description
G80 master link assembly
Material: high-quality alloy steel
The master link assembly is manufactured by forging and welding.
Special heat treatment.
Red painted finish
Minimum breaking load is 4 times the W.L.L
The master link assembly is manufactured by forging and welding.
Special heat treatment.
Red painted finish
Minimum breaking load is 4 times the W.L.L
WLL | DIMENSIONS (mm) | WEIGHT | ||||||||||
(T) | A | B | D | a | b | d | (KG) | |||||
2 | 127 | 63 | 13 | 85 | 40 | 12 | 1 | |||||
3 | 152 | 76 | 16 | 85 | 40 | 14 | 1.4 | |||||
4.7 | 140 | 70 | 20 | 60 | 35 | 14 | 1.55 | |||||
6.4 | 160 | 90 | 22 | 80 | 40 | 14 | 2.07 | |||||
8 | 178 | 89 | 22 | 85 | 40 | 18 | 2.7 | |||||
11 | 178 | 89 | 25 | 100 | 50 | 22 | 4.1 | |||||
16 | 222 | 111 | 32 | 100 | 50 | 25 | 6.9 | |||||
21.7 | 267 | 133 | 38 | 180 | 100 | 28 | 12.63 | |||||
28.4 | 305 | 152 | 45 | 147 | 75 | 32 | 17.1 | |||||
35 | 350 | 190 | 50 | 180 | 100 | 38 | 27.2 | |||||
45 | 400 | 200 | 56 | 180 | 103 | 40 | 35.14 | |||||
50 | 430 | 220 | 63 | 200 | 120 | 42 | 46.7 | |||||
60 | 450 | 250 | 70 | 350 | 190 | 50 | 75.62 | |||||
70 | 450 | 270 | 75 | 350 | 190 | 50 | 83.32 | |||||
80 | 480 | 250 | 80 | 350 | 190 | 50 | 88.5 | |||||

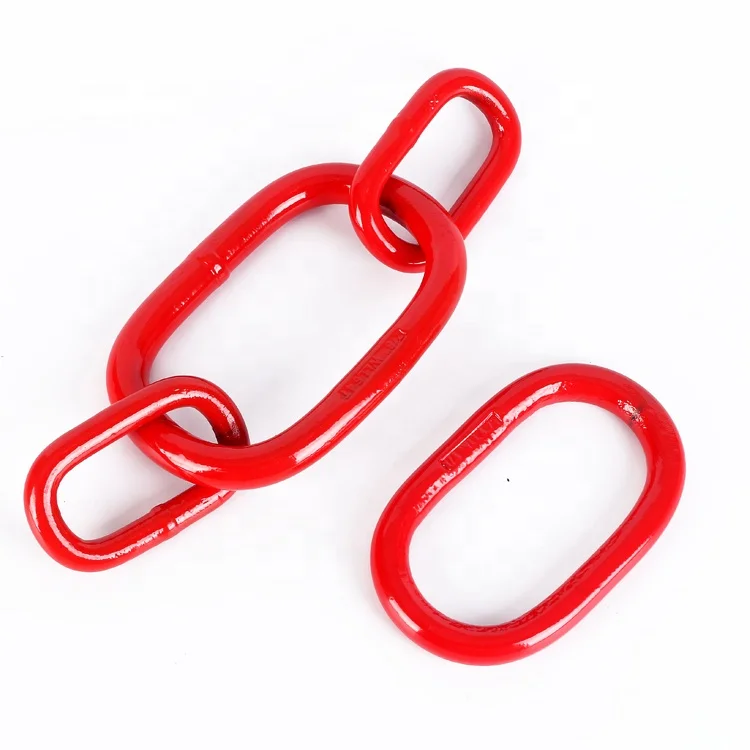

Detailed Images

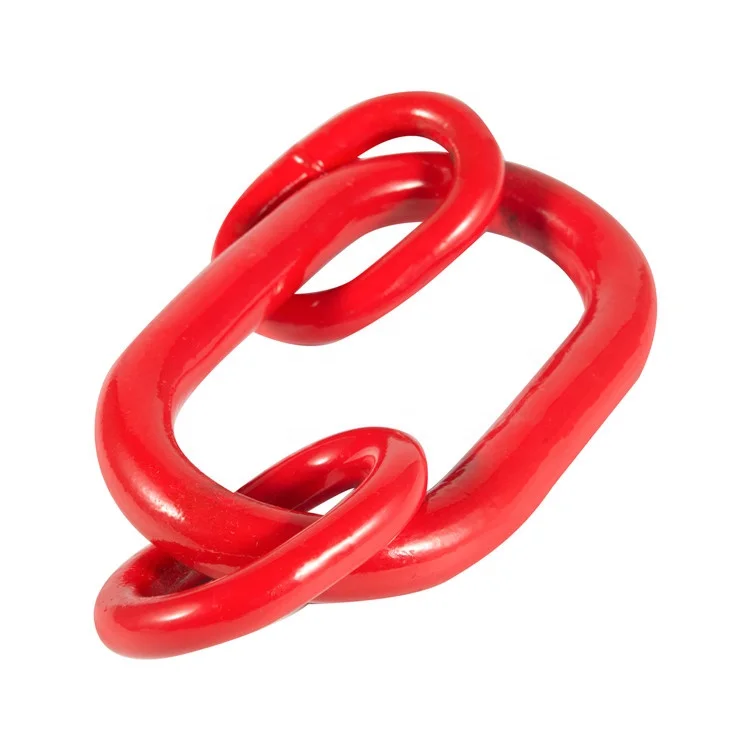

G80 master link assembly.
Adopt high-quality structural alloy steel as raw material.

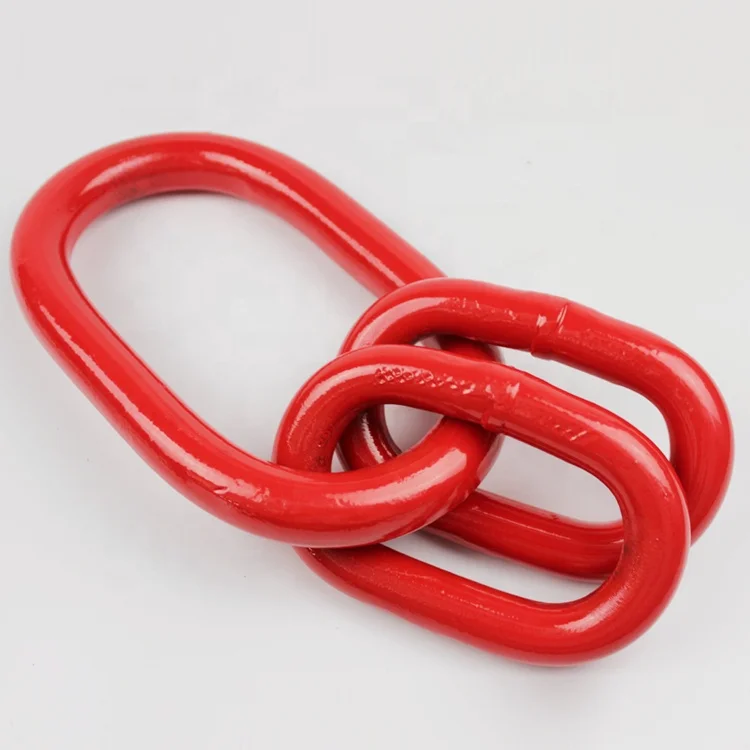

G80 master link assembly.
The master link assembly (Master link forged) is manufactured by forging and welding.

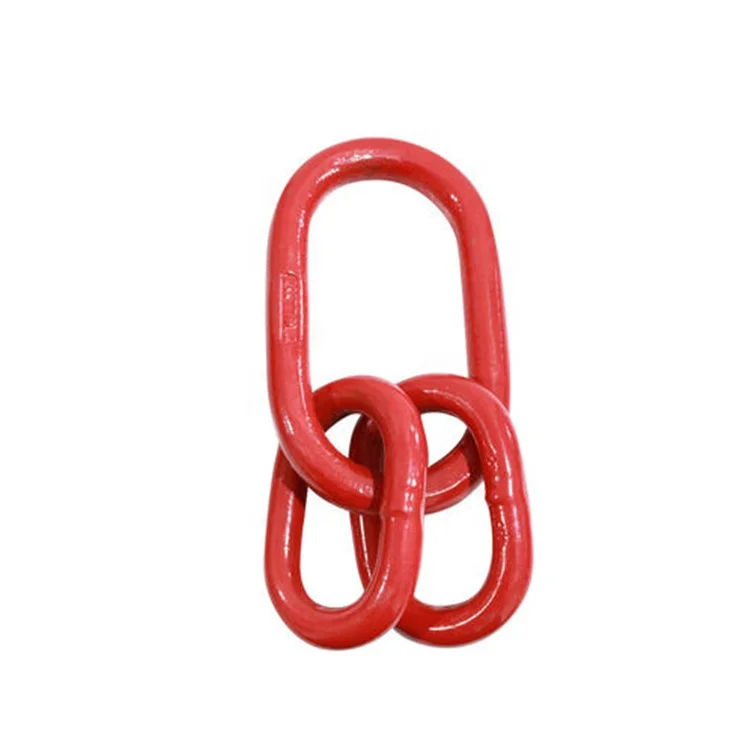

G80 master link assembly.
Minimum breaking load is 4 times the W.L.L

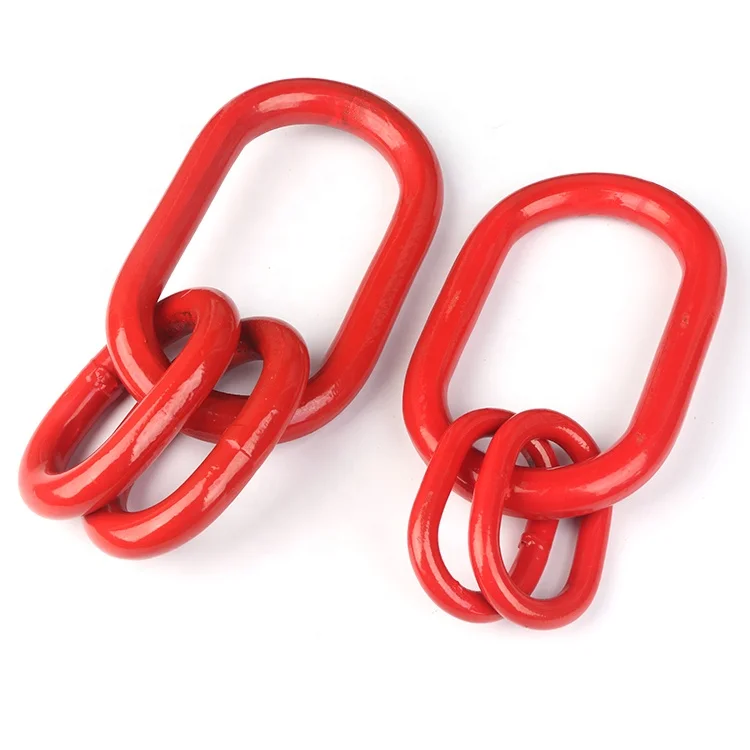

G80 master link assembly.
Process: forging, heat treatment
Safety ratio: 4 times
Recommend Products
Packing & Delivery
Package: Bags or Cartons or Customized
Port: Shanghai, Ningbo, Qingdao, Tianjin, etc.
Delivery Time: 7~15 Days After Order Confirmed
Company Profile
Jiangsu Gostern Rigging Co., Ltd. was established in the year of 2001 in China. The company covers an area of 33000 square meters, more than 600 employees. It is a specialized slings company that can design, manufacture and market. The company has a strong technical ability, scientific technology procedures, testing equipment, and a perfect quality system. The company has achieved the ISO9001-2000 quality system certification. The quality of the products has been insured by the Chinese people and property insurance companies.
Our main products are wire rope slings, webbing slings, braided ropes, ratchet straps, tow straps, chain slings, steel plate lifting clamps, hanging beams, rigging accessories. The products are widely used in machinery, metallurgy, petroleum, chemical industrial, ports, shipbuilding and other fields.
The mission of Gostern: Our goal is to keep our customers satisfied with the quality products and services. We will continue to uphold the "quality first, the credibility of the first, the price is reasonable" service concept.
Why Choose Us
Quality first, customer uppermost.
1. Any inquiries will be replied within 12 hours.
1. Any inquiries will be replied within 12 hours.
2. Our price is competitive because we are the original manufacturer.
3. OEM/ODM are acceptable.
3. OEM/ODM are acceptable.
4. We have strict test and QC system to guarantee the quality.
5. Your business relationship with us will be confidential to any third party.
6. Good after-sale service, all products have one year warranty.
FAQ
Jiangsu Gostern Rigging Co., Ltd.
Q: Are you trading company or manufacturer ?
A: We are a manufacturer with nearly 20 years of experience.
Q: Why choose us?
A: Jiangsu Gostern Rigging Co., Ltd. is a factory specializing in producing the lifting sling, lifting clamp and lifting beams. We have over 20 years of experience in producing the products, and the operator of us are all with operation certification. Besides, we purchase the material from the best suppliers in China.
Q: Do you accept the drawing we supply and OEM?
A: Yes, we can design the lifting beams and lifting clamps according to your requirements, and we can produce the product according to your drawing. We also supply OEM service.
Q: What are your advantages in all these manufacturers?
A: We have a target that we will supply you products and service of high quality and reasonable price.
Q: How long is your delivery time?
A: According to the quantity and products you order, normally 5~30days, Generally it is 5~10 days if the goods are in stock.
Q: What is your terms of payment ?
A: Payment≤1000USD, 100% T/T in advance. Payment＞1000USD, 30% T/T in advance ,balance before shipment. Irrepealably L/C at sight.
Q: Do you offer free samples?
A: We can provide you with free samples if the value is not too high, but you need to pay the freight charge.
Q: How can you guarantee the quality of the products we order?
A: We have matching test machines and can do the test for all of the products you order, and we can provide you with the quality certificate.
Q: Can we have a visit to your factory?
A: Welcome to our factory, and we will arrange the pick-up.
A: We are a manufacturer with nearly 20 years of experience.
Q: Why choose us?
A: Jiangsu Gostern Rigging Co., Ltd. is a factory specializing in producing the lifting sling, lifting clamp and lifting beams. We have over 20 years of experience in producing the products, and the operator of us are all with operation certification. Besides, we purchase the material from the best suppliers in China.
Q: Do you accept the drawing we supply and OEM?
A: Yes, we can design the lifting beams and lifting clamps according to your requirements, and we can produce the product according to your drawing. We also supply OEM service.
Q: What are your advantages in all these manufacturers?
A: We have a target that we will supply you products and service of high quality and reasonable price.
Q: How long is your delivery time?
A: According to the quantity and products you order, normally 5~30days, Generally it is 5~10 days if the goods are in stock.
Q: What is your terms of payment ?
A: Payment≤1000USD, 100% T/T in advance. Payment＞1000USD, 30% T/T in advance ,balance before shipment. Irrepealably L/C at sight.
Q: Do you offer free samples?
A: We can provide you with free samples if the value is not too high, but you need to pay the freight charge.
Q: How can you guarantee the quality of the products we order?
A: We have matching test machines and can do the test for all of the products you order, and we can provide you with the quality certificate.
Q: Can we have a visit to your factory?
A: Welcome to our factory, and we will arrange the pick-up.
Contact
Thanks for visiting our website, further questions please feel free to contact us. We will do our best to support you all the time.
Jiangsu Gostern Rigging Co., Ltd.
Winnie Jiang
Marketing DepartmentTel: 86-523-86055553
Fax: 86-523-86889855
WhatsApp&Wechat: +86-15062999269
E-mail: winnie@zssling.com
E-mail: winnie@zssling.com
Web: www.zssling.com
Add.: No.188, Longgang Road, Taizhou City, Jiangsu, China.
Add.: No.188, Longgang Road, Taizhou City, Jiangsu, China.
Похожие товары

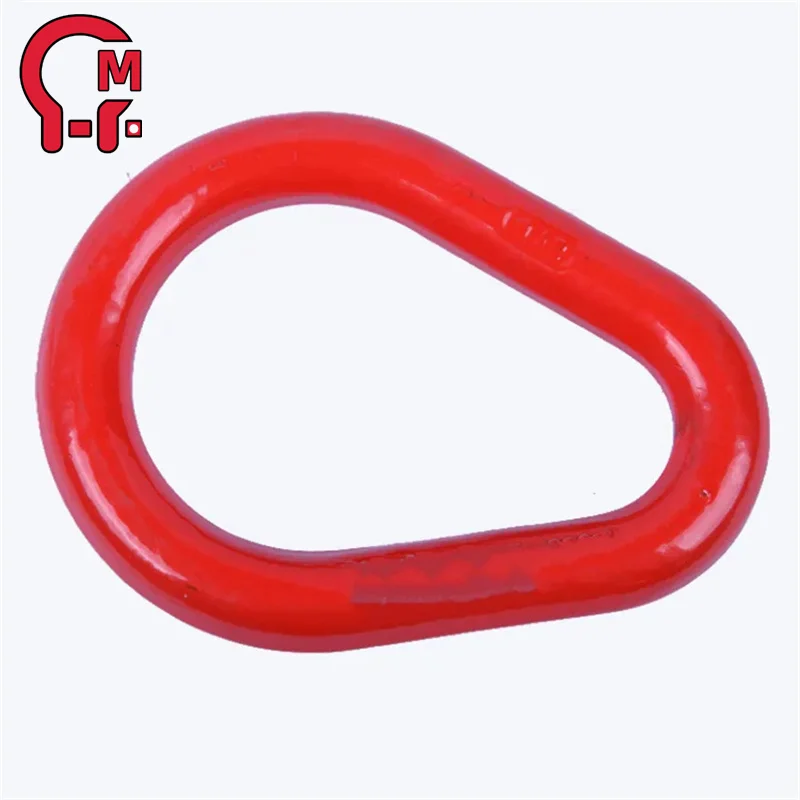

Высокое качество G70 легированная сталь груша мастер звено подъемная строп
975,88 ₽ - 1 095,39 ₽

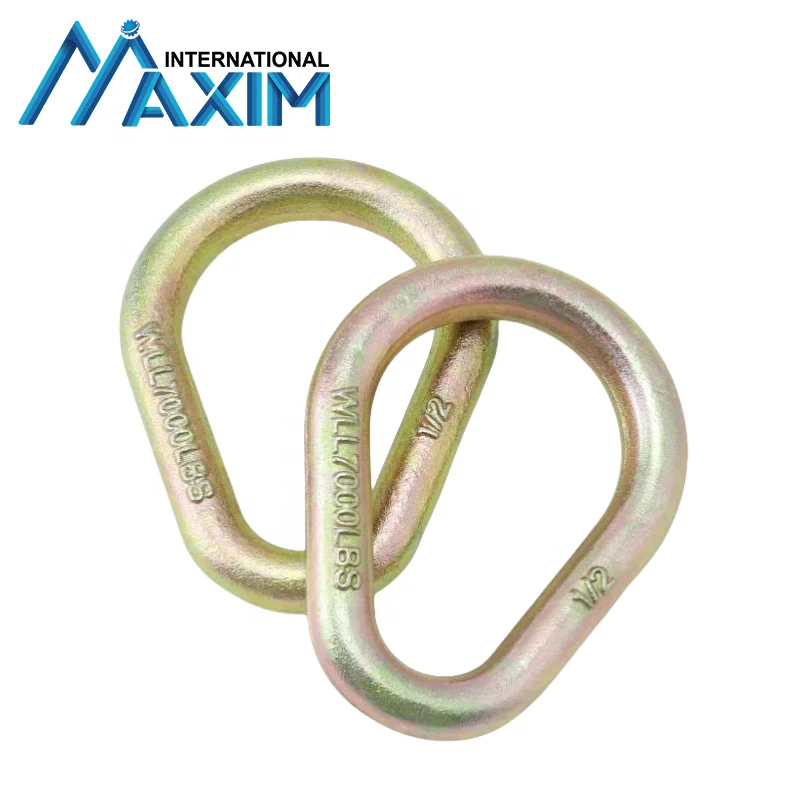

HLM бесплатный образец ISO Сертификация грушевидных звеньев якорная соединяющая скока
38,38 ₽ - 87,72 ₽

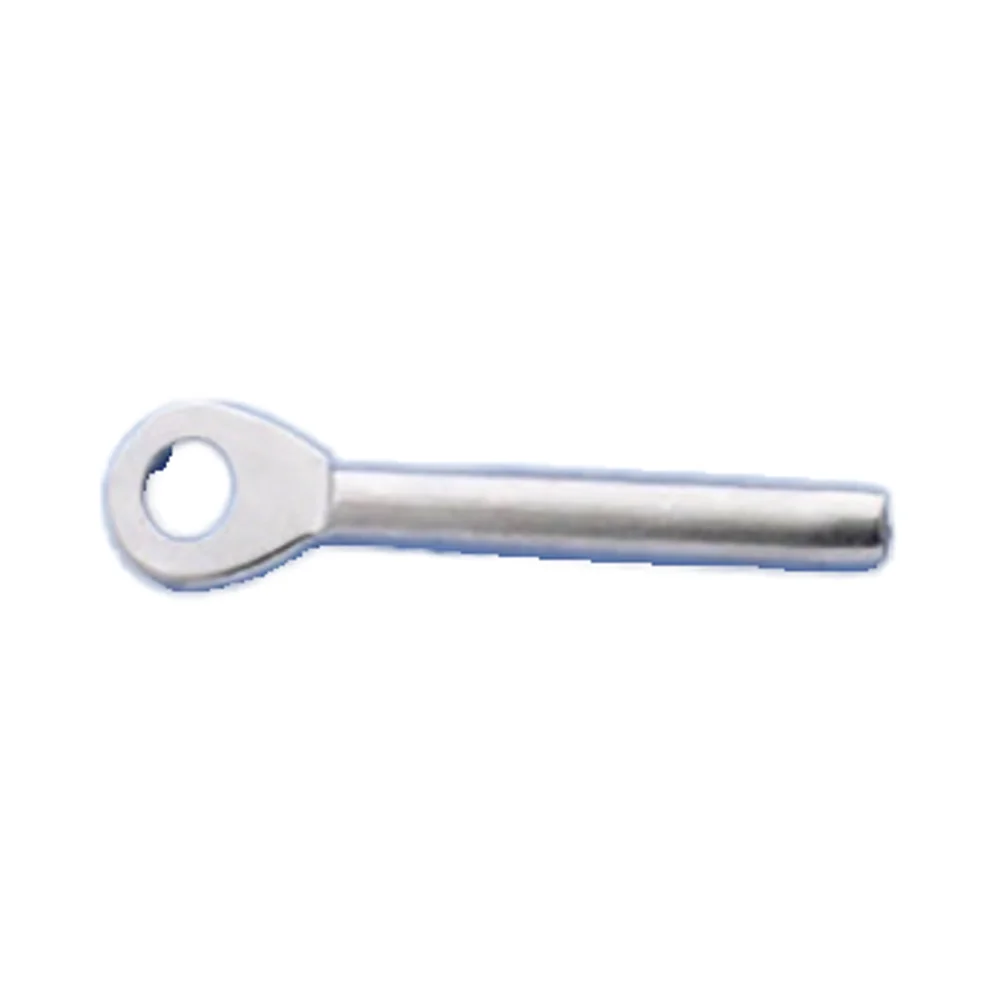

Европейский тип A = 6 из нержавеющей стали для Око-терминала
EW-1210-4 машина для резки проволоки с ЖК-экраном полностью автоматическая горячей холодной ткани
38 376,94 ₽
Трубка с прорезями из нержавеющей стали
1,10 ₽ - 8,78 ₽

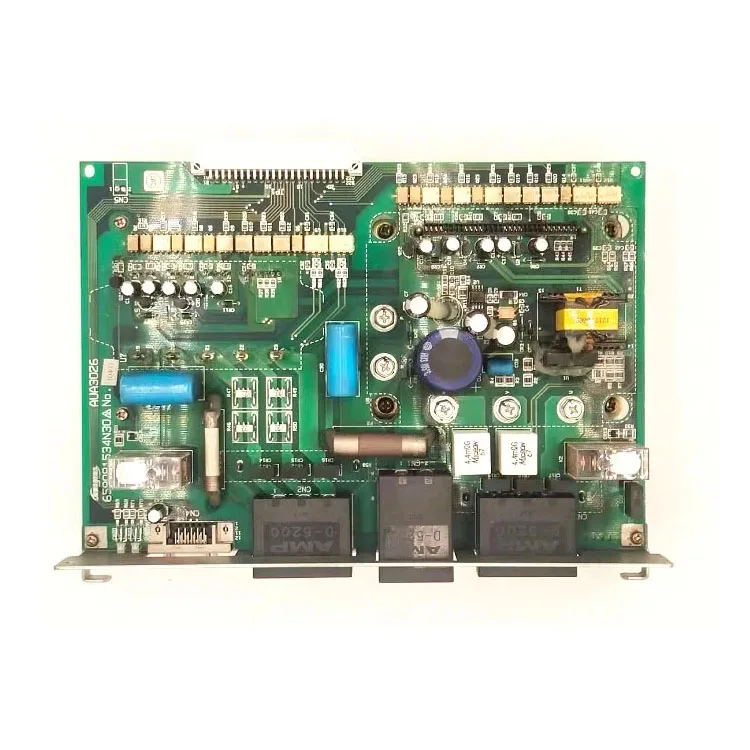

Усилитель для JUKI KE-2050 KE-2060 X Y 80% Новый SMT крепление аксессуары 40062552 AUA3026
26 205,97 ₽

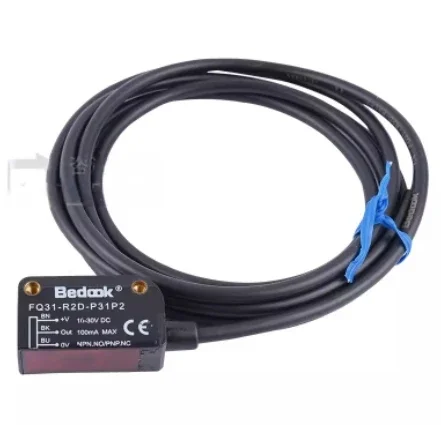

Датчик давления FQ31-H02N-P31P2-E NPN FQ31-T011N-P31P2 FQ31-H02P-P31P2 PNP FQ31-T08P-P31P2-3
