Product Description
Specification

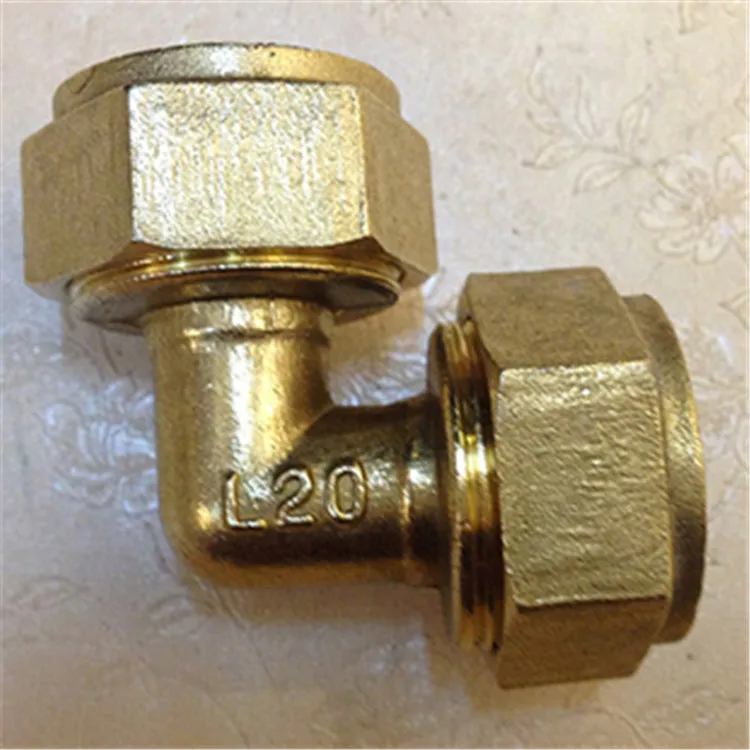

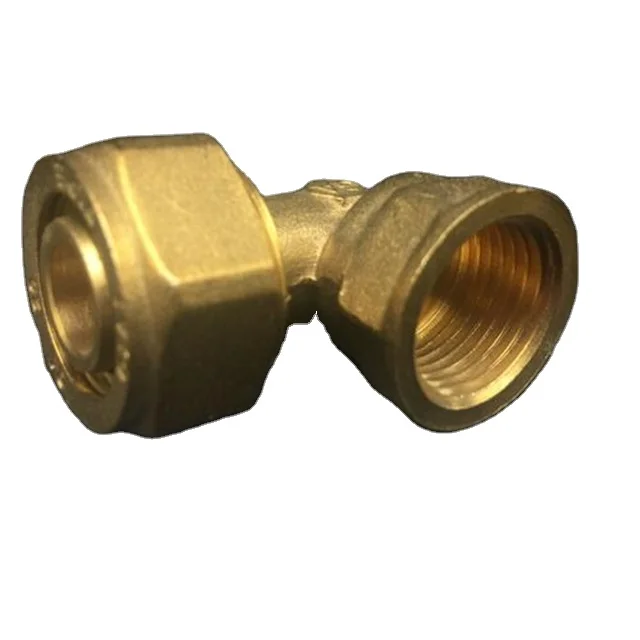

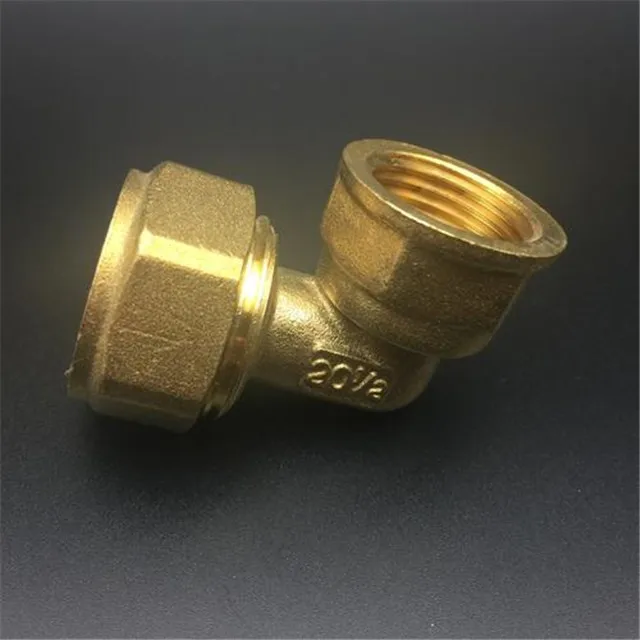

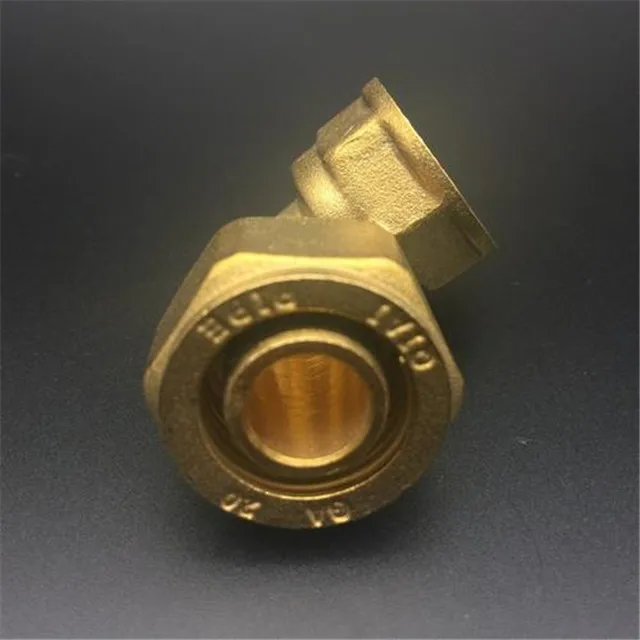

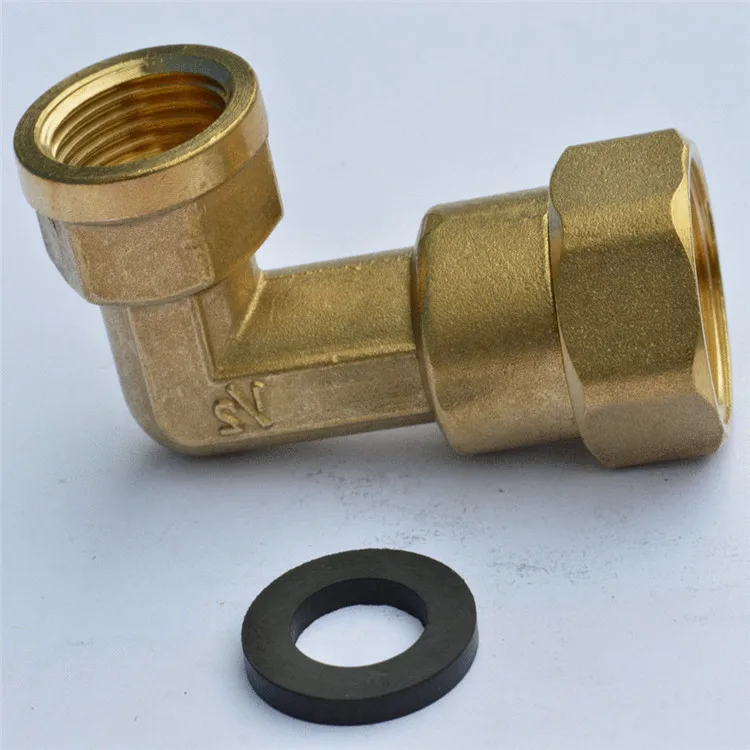

1.Product Name: | Brass Compression Fittings |
2.Main Material: | Brass |
3.Product Size: | 3/8",1/2",3/4",1",1 1/4",1 1/2",2" |
4.Surface Treatment: | Sand blasting,Nickel or Chrome plating |
5.Working pressure: | PN16(230PSI) |
6.Working Mediums: : | Water, oil, gas. etc. |
7.Working temperature: | -20-120°C(-65° to +250°F) |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profie
Application:
1.Instrumentation, hydraulic and pneumatic systems.
2.Used for aluminum, copper and plastic tubing, not recommended for steel tube.
3.Compression fittings are designed for medium pressure tubing where excessive vibration or tube movement is not involved.
4. Not recommended for application using gaseous media.
Instructions
1. Use a tube cutter on the tubing to cut to length and assure a clean straight cut.
2. Prepare the end of the tube with a deburring tool to assure a surface free of burrs.
3. Slide the nut and then the ferrule onto the tube. The thread end of the nut must face out.
4. Insert tubing into the fitting body, making sure the tube is bottomed out on the fitting shoulder.
5. Assemble the nut to the body, hand tight.
6. Tighten the nut to the body using a wrench to the number of turns indicated in the table to the right.
1.Instrumentation, hydraulic and pneumatic systems.
2.Used for aluminum, copper and plastic tubing, not recommended for steel tube.
3.Compression fittings are designed for medium pressure tubing where excessive vibration or tube movement is not involved.
4. Not recommended for application using gaseous media.
Instructions
1. Use a tube cutter on the tubing to cut to length and assure a clean straight cut.
2. Prepare the end of the tube with a deburring tool to assure a surface free of burrs.
3. Slide the nut and then the ferrule onto the tube. The thread end of the nut must face out.
4. Insert tubing into the fitting body, making sure the tube is bottomed out on the fitting shoulder.
5. Assemble the nut to the body, hand tight.
6. Tighten the nut to the body using a wrench to the number of turns indicated in the table to the right.
FAQ
Q: Are you a trading company or a manufacturer?
A: We are a factory.
Q: How to place an order?
A: You can contact us by email for more information about the order or order online.
Q: How do I pay you?
A: After confirming our PI, we will ask you for payment.
Q: What is the order procedure?
A:First, we discuss order details and production details via email or TM.
Then we will send you a PI for your confirmation.
Before we go into production, you need to pay the full cost or deposit in advance.
After receiving the deposit, we began to process the order.
If we don't have stock, we usually need 15 to 30 days.
We will contact you for details and balance payment before production is completed.
After payment, we will begin to prepare the goods for you.
Q: How do you take care of customers if they receive defective products?
A: If we have some defective products, we usually provide credit or change it at the next shipment.
Q: How to check all the goods on the production line?
A: We have on-site inspection and inspection of finished products.
Q: Do you supply samples? It's free. What's extra?
A: Yes, we can provide samples free of charge, but we don't pay freight.
Q: What are your payment terms?
A: Payment & lt; = $1,000, 100 % in advance. Payment & GT; = $1,000, 30 % in advance T / T, pre-shipment balance.
If you have any other questions,Please contact us.
A: We are a factory.
Q: How to place an order?
A: You can contact us by email for more information about the order or order online.
Q: How do I pay you?
A: After confirming our PI, we will ask you for payment.
Q: What is the order procedure?
A:First, we discuss order details and production details via email or TM.
Then we will send you a PI for your confirmation.
Before we go into production, you need to pay the full cost or deposit in advance.
After receiving the deposit, we began to process the order.
If we don't have stock, we usually need 15 to 30 days.
We will contact you for details and balance payment before production is completed.
After payment, we will begin to prepare the goods for you.
Q: How do you take care of customers if they receive defective products?
A: If we have some defective products, we usually provide credit or change it at the next shipment.
Q: How to check all the goods on the production line?
A: We have on-site inspection and inspection of finished products.
Q: Do you supply samples? It's free. What's extra?
A: Yes, we can provide samples free of charge, but we don't pay freight.
Q: What are your payment terms?
A: Payment & lt; = $1,000, 100 % in advance. Payment & GT; = $1,000, 30 % in advance T / T, pre-shipment balance.
If you have any other questions,Please contact us.
Похожие товары
Автомобильные латунные быстроразъемные фитинги для топливной линии
Моно-шаровое соединение трубопровода для поворотного уплотнения воды латунный поворотный фитинг
Высококачественные латунные фитинги OEM, быстроразъемные медные фитинги
37,81 ₽
Фитинги для трубопровода 90 градусов, латунные фитинги с внутренним углом
54,01 ₽ - 106,93 ₽
Профессиональный производитель, разъем панели, мужской металлический задний крепящаяся панель, водонепроницаемый разъем
108,01 ₽

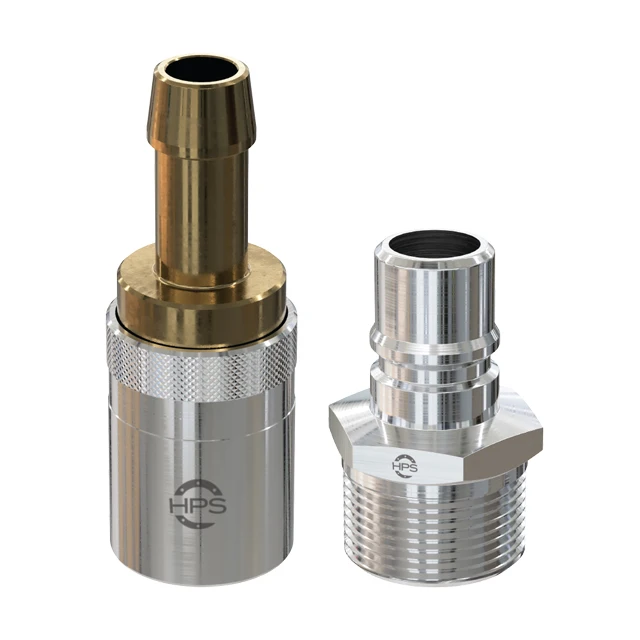

Водяные муфты HPS, розетки для шлангов Push-lock
