Китай машина для литья под давлением запасные части вентилятор с двигателем пластиковый бункер сушильный
46,00-60,00 $

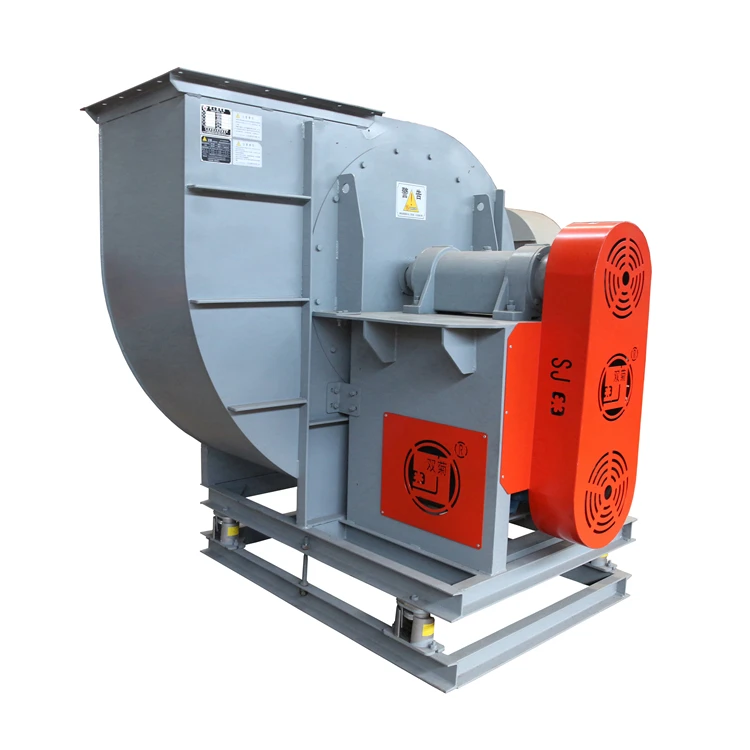

Промышленный центробежный вентилятор 4 72
- Категория: >>>
- Поставщик: Jiangsu Shuangju Fan Co. Ltd.Jiangsu Ltd.
Сохранить в закладки 1600053301674:
Описание и отзывы
Характеристики
> Product Description
[SHUANGJU 4-72 Series Indoor Ventilation Industrial Centrifugal Fan // 4-72 fast centrifugal fan industrial]
-CE, SGS, CCC, ISO9001, IEC, TS16949 certificate compliance
-Over 20 Years R&D Experience
-OEM/ODM Service, Customized Service (Custom Make To Order)
-Over 20 Years R&D Experience
-OEM/ODM Service, Customized Service (Custom Make To Order)
4-72 Series Indoor Ventilation Industrial Centrifugal Fan // 4-72 fast centrifugal fan industrial
4-72 Indoor Ventilation Industrial Centrifugal Fan can convey air and other non spontaneous, harmless and non corrosive gases to steel. No viscous substances are allowed in the gas, and the dust and hard particles contained in the gas are not more than 150mg / m3. The gas temperature shall not exceed 80 ° C. The fan is characterized by good aerodynamic performance, balanced operation, small vibration, high efficiency and long service life. Widely used in industrial and mining enterprises, large buildings, hotels, restaurants and other indoor ventilation.
> FEATURES:
> Model No.: 2.5~20
> Drive Mode: A, B, C, D
> Air Flow: 805~221730m³/h (1368~376941CFM)
> Pressure: 198~3998Pa
> Power: 0.75~220KW (1~295HP)
> Optional explosion-proof and veriable frequency function.
> AIR TYPE:
> Temperature≤80℃
> harmful flammable and volatile
> non corrosive
> non sticky
> dust & hard particles ≤150mg/m³

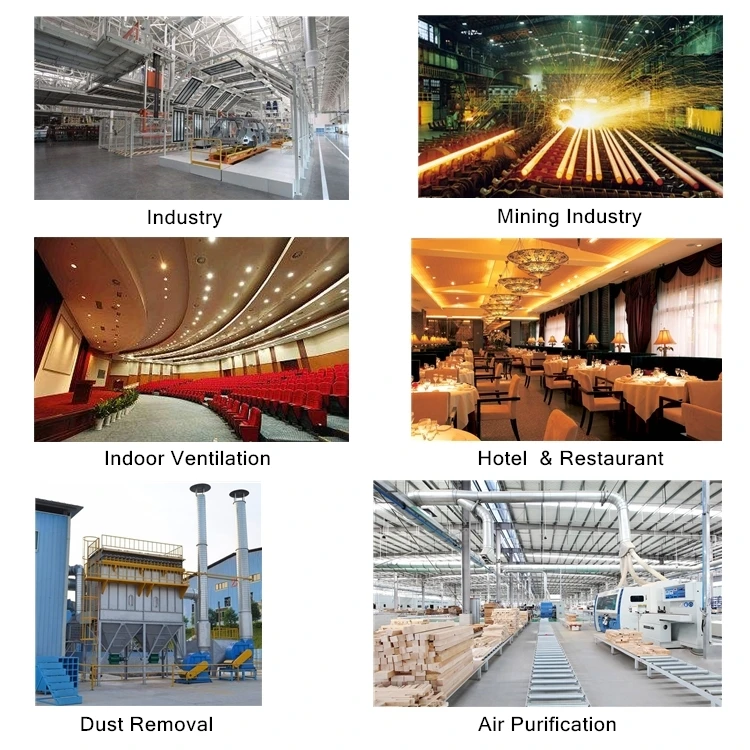

> APPLICATIONS:
> Industry
> Mining
> Large buildings
> Hotel
> Restaurant
> Other indoor ventilation
> Product Specification
Ventilation Centrifugal Fan | ||||||||
4-72 Series | ||||||||
Drive Mode A | ||||||||
Model | Power | Rotate Speed | Air Flow | Total Pressure | ||||
No. | (KW-P) | (r/min) | (m³/h) | (Pa) | ||||
2.8A | 1.5-2 | 2900 | 1130-2350 | 994-606 | ||||
3.2A | 2.2-2 | 2900 | 1680-3510 | 1300-792 | ||||
1.1-4 | 1450 | 840-1760 | 324-198 | |||||
3.6A | 3-2 | 2900 | 2660-5270 | 1578-989 | ||||
1.1-4 | 1450 | 1330-2630 | 393-247 | |||||
4A | 5.5-2 | 2900 | 4010-7420 | 2014-1320 | ||||
1.1-4 | 1450 | 2000-3710 | 501-329 | |||||
7.5-2 | 2900 | 5710-10560 | 2554-1673 | |||||
5A | 11-2 | 2900 | 8810-13950 | 2820-2245 | ||||
15-2 | 2900 | 7730-15450 | 3187-2019 | |||||
2.2-4 | 1450 | 3860-7730 | 790-502 | |||||
5.6A | 22-2 | 2900 | 10850-21710 | 3998-2533 | ||||
3-4 | 1450 | 5430-10850 | 999-633 | |||||
6A | 4-4 | 1450 | 6670-13350 | 1139-724 | ||||
6.3A | 5.5-4 | 1450 | 7730-15460 | 1265-801 | ||||
7.1A | 7.5-4 | 1450 | 11780-19800 | 1390-1015 | ||||
11-4 | 1450 | 11060-22120 | 1607-1018 | |||||
15-4 | 1450 | 12970-25940 | 2080-1318 | |||||
8A | 15-4 | 1450 | 15280-30560 | 1901-1205 | ||||
18.5-4 | 1450 | 15820-31650 | 2040-1292 | |||||
4-72 Series | ||||||||
Drive Mode C | ||||||||
Model | Power | Rotate Speed | Air Flow | Total Pressure | ||||
No. | (KW-P) | (r/min) | (m³/h) | (Pa) | ||||
6C | 5.5-4 | 1600 | 7360-14730 | 1389-881 | ||||
7.5-4 | 1800 | 8280-16570 | 1760-1116 | |||||
11-4 | 2000 | 9200-18410 | 2176-1380 | |||||
15-4 | 2240 | 10310-20620 | 2734-1733 | |||||
6.3C | 7.5-4 | 1800 | 8900-16850 | 2080-1240 | ||||
11-4 | 1800 | 9800-19520 | 2350-1520 | |||||
15-2 | 2000 | 10800-19000 | 2765-1660 | |||||
18.5-2 | 2240 | 12500-21500 | 3050-2050 | |||||
22-2 | 2240 | 12500-27500 | 3350-2250 | |||||
7.1C | 7.5-4 | 1250 | 9530-17680 | 1180-870 | ||||
11-4 | 1400 | 10680-19800 | 1485-1090 | |||||
15-2 | 1600 | 12200-22630 | 1940-1420 | |||||
18.5-2 | 1800 | 13730-25460 | 2650-1750 | |||||
22-2 | 1600 | 14490-26870 | 2950-1950 | |||||
8C | 15-4 | 1350 | 14730-27320 | 1920-1350 | ||||
18.5-2 | 1800 | 15280-28330 | 2300-1550 | |||||
22-2 | 1600 | 17460-22380 | 2560-1690 | |||||
30-4 | 1400 | 19640-32380 | 3150-2090 | |||||
37-2 | 1800 | 28100-36420 | 3450-2390 | |||||
9C | 18.5-4 | 1180 | 18330-34000 | 1700-1250 | ||||
22-4 | 1250 | 19420-36010 | 2150-1390 | |||||
30-4 | 1400 | 21750-40340 | 2650-1750 | |||||
37-2 | 1500 | 23310-43220 | 3100-2100 | |||||
45-2 | 1500 | 26250-45900 | 3550-2350 | |||||
10C | 15-4 | 900 | 25100-35130 | 1250-950 | ||||
18.5-4 | 1000 | 27890-39038 | 1590-1150 | |||||
22-4 | 1060 | 29150-43350 | 1870-1170 | |||||
30-4 | 1120 | 31230-43720 | 2250-1500 | |||||
37-4 | 1250 | 34860-48790 | 2690-1880 | |||||
45-4 | 1360 | 37930-53090 | 3150-2150 | |||||
55-4 | 1450 | 40440-56600 | 3520-2340 | |||||
11.2C | 30-4 | 990 | 29880-53400 | 2020-1350 | ||||
37-4 | 1110 | 32990-56580 | 2350-1550 | |||||
45-4 | 1200 | 34500-60500 | 2650-1750 | |||||
55-4 | 1270 | 37500-65500 | 3050-2050 | |||||
75-4 | 1320 | 40200-71500 | 3750-2500 | |||||
12C | 22-6 | 800 | 38550-53960 | 1395-1100 | ||||
30-4 | 800 | 42000-61500 | 1450-1050 | |||||
37-4 | 900 | 43370-60710 | 1770-1400 | |||||
45-4 | 1000 | 48190-67450 | 2390-1970 | |||||
55-4 | 1000 | 49850-69680 | 2850-1700 | |||||
75-4 | 1120 | 53970-75550 | 2750-2170 | |||||
4-72 Series | ||||||||
Drive Mode D | ||||||||
Model | Power | Rotate Speed | Air Flow | Total Pressure | ||||
No. | (KW-P) | (r/min) | (m³/h) | (Pa) | ||||
6D | 4-4 | 1450 | 6670-13350 | 1139-724 | ||||
1.5-6 | 960 | 4420-8840 | 498-317 | |||||
8D | 18.5-4 | 1450 | 15820-29340 | 2032-1490 | ||||
5.5-6 | 960 | 10470-19430 | 887-651 | |||||
3-8 | 730 | 7960-14770 | 512-376 | |||||
10D | 55-4 | 1450 | 40440-56600 | 3202-2532 | ||||
18.5-6 | 960 | 26770-37470 | 1395-1104 | |||||
7.5-8 | 730 | 20360-28490 | 805-637 | |||||
12D | 45-6 | 960 | 46260-64760 | 2013-1593 | ||||
18.5-8 | 730 | 35180-46680 | 1160-987 | |||||
4-72 Series | ||||||||
Drive Mode B | ||||||||
Model | Power | Rotate Speed | Air Flow | Total Pressure | ||||
No. | (KW-P) | (r/min) | (m³/h) | (Pa) | ||||
16B | 132-6 | 900 | 102810-111930 | 3157-3115 | ||||
160-6 | 900 | 121040-143910 | 2990-2497 | |||||
110-6 | 800 | 91392-127920 | 2489-1969 | |||||
75-6 | 710 | 81110-113520 | 1957-1549 | |||||
55-6 | 630 | 71970-100730 | 1538-1218 | |||||
37-6 | 560 | 63970-89540 | 1214-961 | |||||
30-6 | 500 | 57120-79950 | 967-766 | |||||
20B | 220-8 | 710 | 158410-221730 | 3069-2427 | ||||
160-8 | 630 | 140560-196750 | 2411-1908 | |||||
110-8 | 560 | 124950-174890 | 1902-1505 | |||||
75-8 | 500 | 111560-156150 | 1514-1199 | |||||
55-8 | 450 | 100400-140530 | 1225-970 | |||||

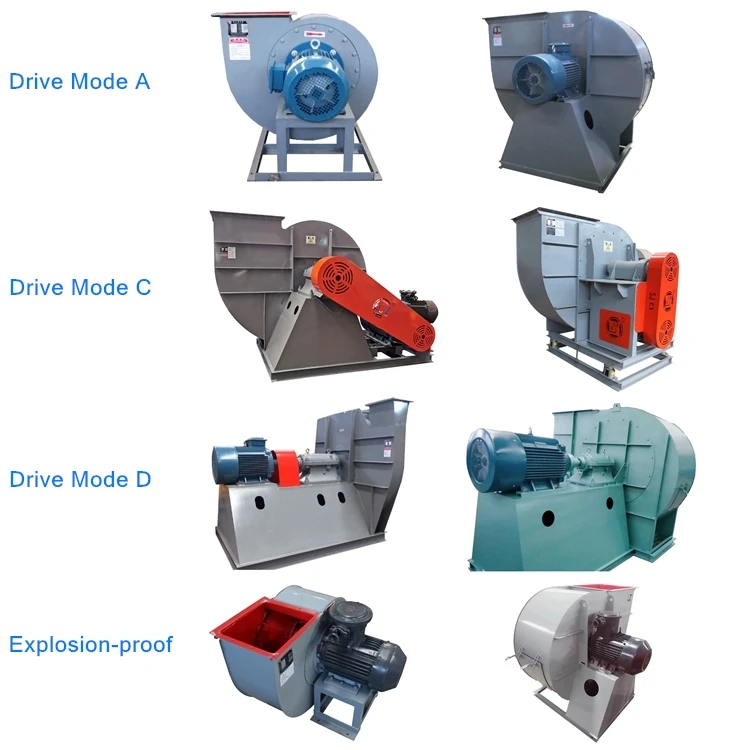

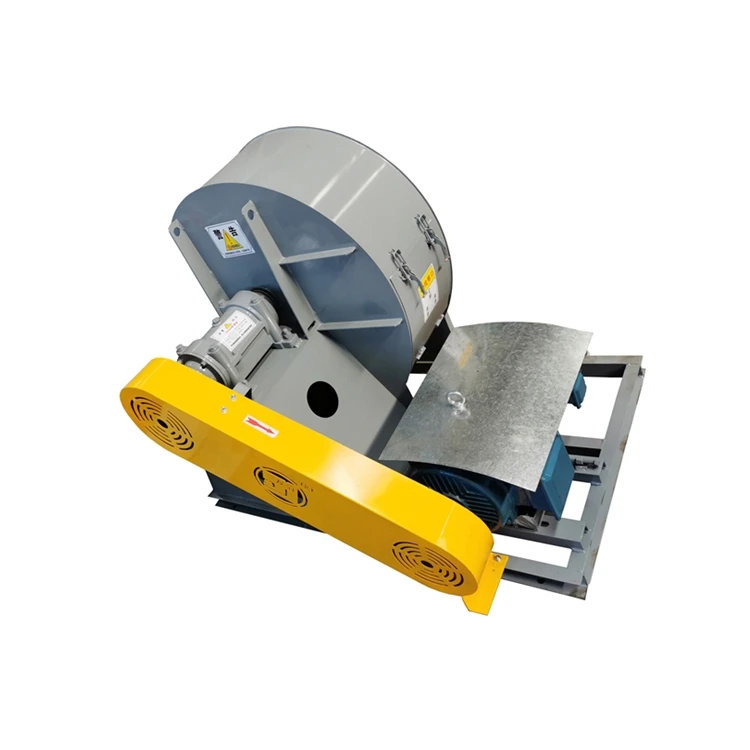

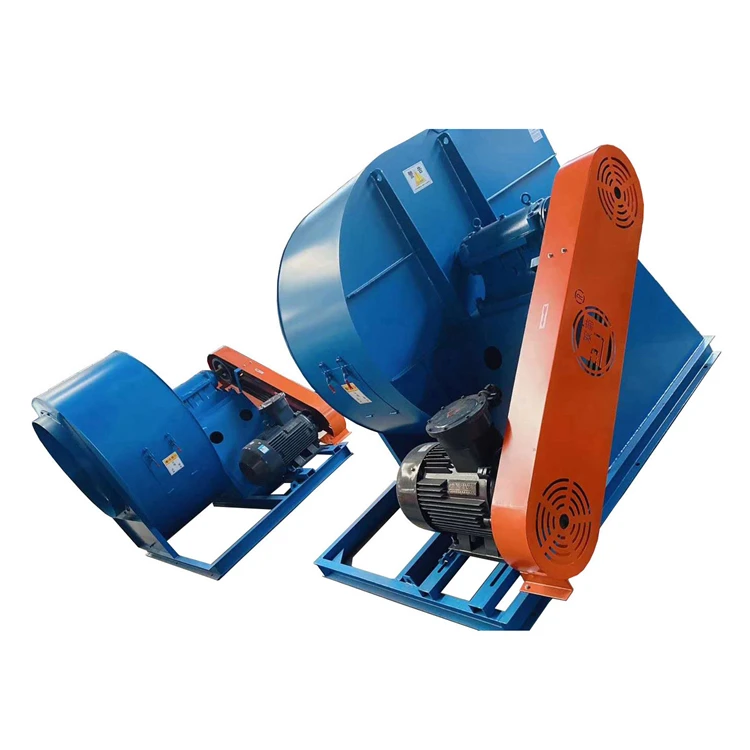

> Product Pictures
> MOQ, Payment, Delivery & Shipping
> MOQ:
> 5 sets, 1 sample is also available.
> Payment Terms:
> 30% deposit T/T in advance, 70% balance T/T before delivery for small orders, please consult us for bulk orders.
> Leading Date:
> Within 5 to 10 working days for small orders upon deposit received, pls consult us for bulk orders.
> Shipment:
> By sea or rail.
> Warranty & Service
> After-sales Service:
> We guarantee all our electrical and mechanical parts for one year from the delivery date the machine running smooth in customer's place.
> We guarantee that each product is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.
> We are responsible for the whole lifespan of our products, and whenever you have questions during use, just call us, we are glad to offer technical support timely.
> We guarantee that each product is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.
> We are responsible for the whole lifespan of our products, and whenever you have questions during use, just call us, we are glad to offer technical support timely.
> Life-long Maintenance Service:
> During the warranty period, we can repair or replace the defective parts for free.
> After the warranty time, we also repair the defective parts, but only charge part cost.
> After the warranty time, we also repair the defective parts, but only charge part cost.
> Why Choose Us?
OUR CERTIFICATE
Advantages:
> Professional: 20 years R&D experience, 206 workers, and a workshop of 19406m2, 58 technicians and 120 sets of advanced production and test equipment. OEM/ ODM, Customized service. Offer service of adding customer's logo.
> Excellent Quality: All our products have pasted the tests by CE, SGS, CCC, ISO9001, TS16949, CEL, CNEX, CQM, etc.
> Timely Delivery: All our goods can be delivered within 5-10 working days.
> Reasonable Price: We provide cost-effective products. Factory Direct price must be competitive.
> Thoughtful Service: one year long warranty time, free and timely technical support makes you use our products without any worry.
> Trustful Partner: We treat our workers and clients as respectful partners. We focus on long-term cooperation with our clients, and view customer satisfaction as our life.
> Excellent Quality: All our products have pasted the tests by CE, SGS, CCC, ISO9001, TS16949, CEL, CNEX, CQM, etc.
> Timely Delivery: All our goods can be delivered within 5-10 working days.
> Reasonable Price: We provide cost-effective products. Factory Direct price must be competitive.
> Thoughtful Service: one year long warranty time, free and timely technical support makes you use our products without any worry.
> Trustful Partner: We treat our workers and clients as respectful partners. We focus on long-term cooperation with our clients, and view customer satisfaction as our life.
To know more about us, please visit our website:
> //www.shuangjufj.com/
> FAQ
SHUANGJU sales team can provide detailed answers to your specific questions.
In order to understand us better, please kindly be noted:
In order to understand us better, please kindly be noted:
> Are you the manufacturer or trading company?
> We are the professional manufacturer, and have our own workshops which more than 19406m2 and 206 workers.
> How's the quality?
> The quality of our fan and motor is superior with good stability. We are professional manufacturer and R&D fan and motor by ourselves for over 20 years.
> Before place a order,how can i choose ?
> Pls inform us the applications & specific requirements, our engineers team will select the suitable models, and provide professional solutions.
> What's the MOQ?
> 5sets, one or two samples are available.
> Could you organize shipment for us?
> Yes, we will assist and guild you to work out the shipping and import process.
> How can we go to your factory?
> Please kindly inform us in advance, so we could pick you up at Yancheng airport or railway station. We sincerely welcome international customers contact and visit us for future business relationships and mutual success!
> We are the professional manufacturer, and have our own workshops which more than 19406m2 and 206 workers.
> How's the quality?
> The quality of our fan and motor is superior with good stability. We are professional manufacturer and R&D fan and motor by ourselves for over 20 years.
> Before place a order,how can i choose ?
> Pls inform us the applications & specific requirements, our engineers team will select the suitable models, and provide professional solutions.
> What's the MOQ?
> 5sets, one or two samples are available.
> Could you organize shipment for us?
> Yes, we will assist and guild you to work out the shipping and import process.
> How can we go to your factory?
> Please kindly inform us in advance, so we could pick you up at Yancheng airport or railway station. We sincerely welcome international customers contact and visit us for future business relationships and mutual success!
> Contact Us
> Any inquiry, please contact us by email or Trade Manager, emails will be responded within 24 working hours.
> We are looking for distributors abroad.
> If you are interested in our blower fan and motor, please feel free to contact us:
> We are looking for distributors abroad.
> If you are interested in our blower fan and motor, please feel free to contact us:
