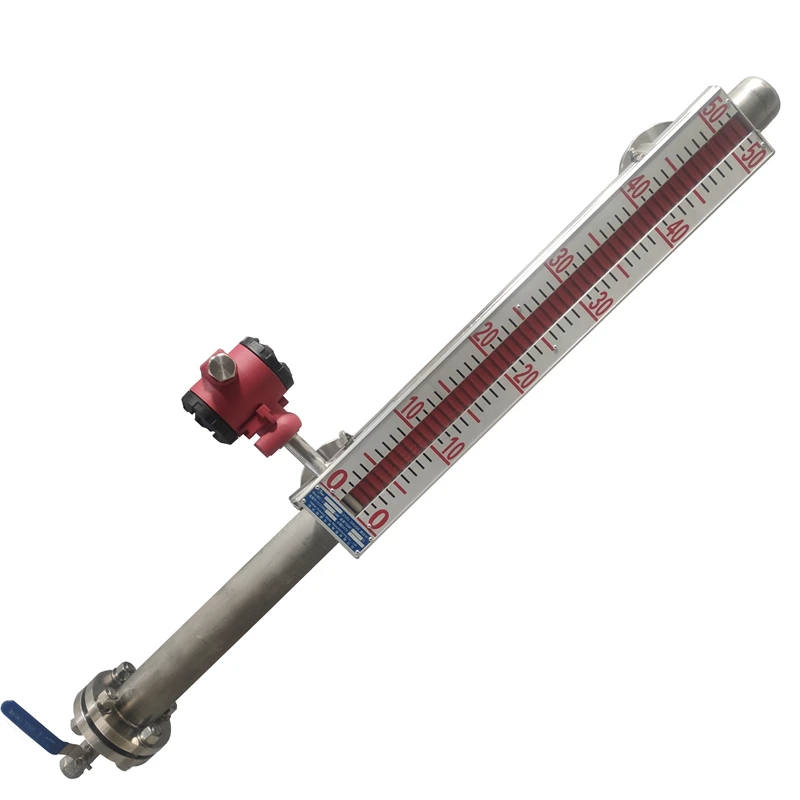

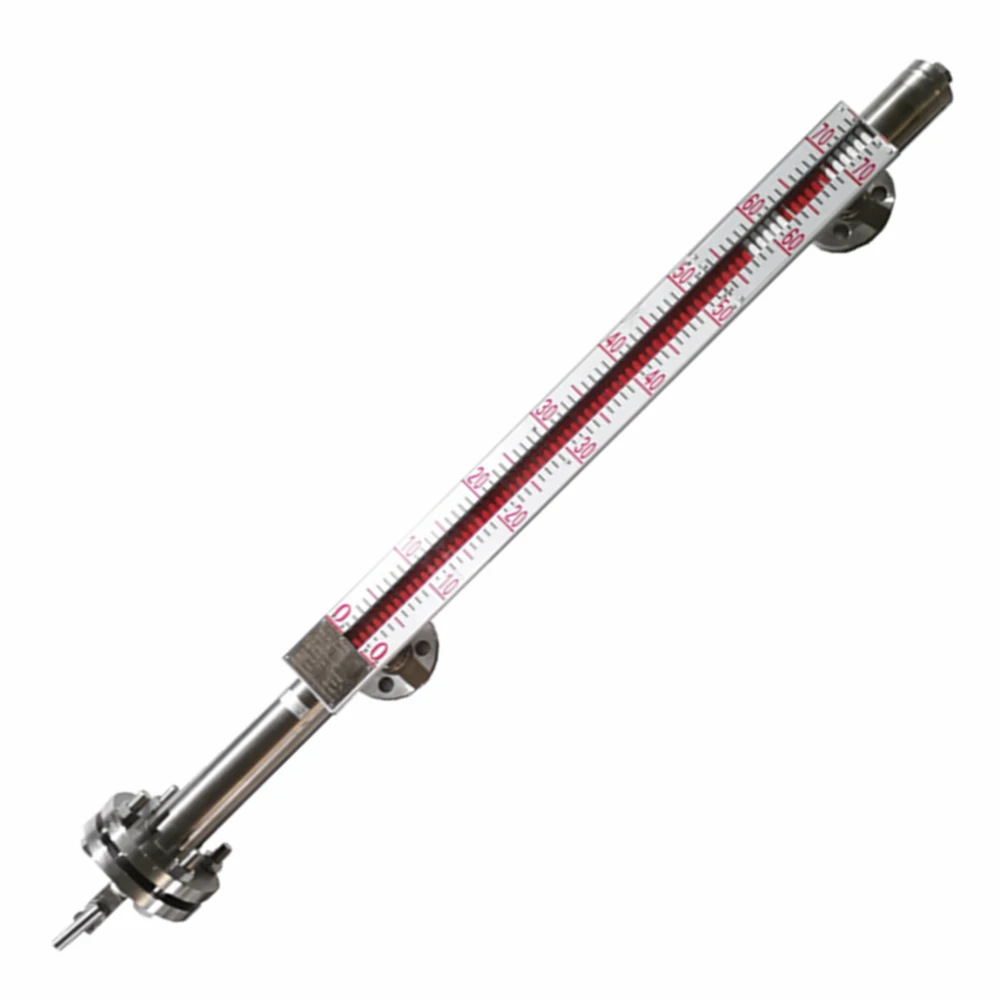

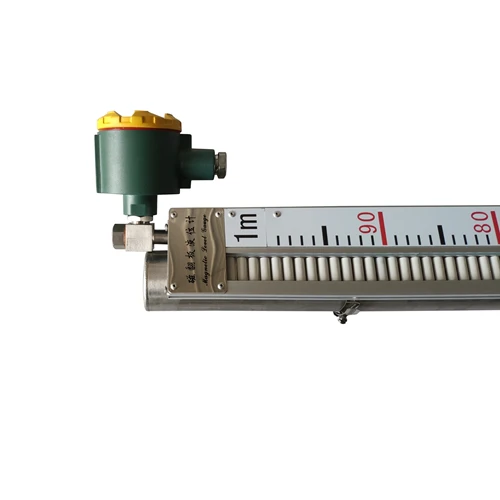

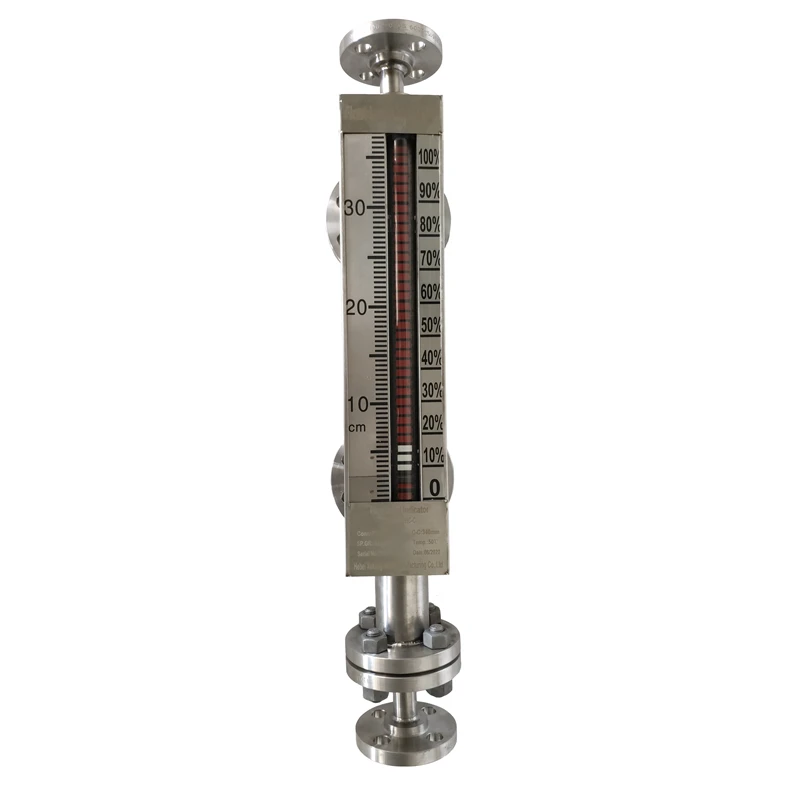

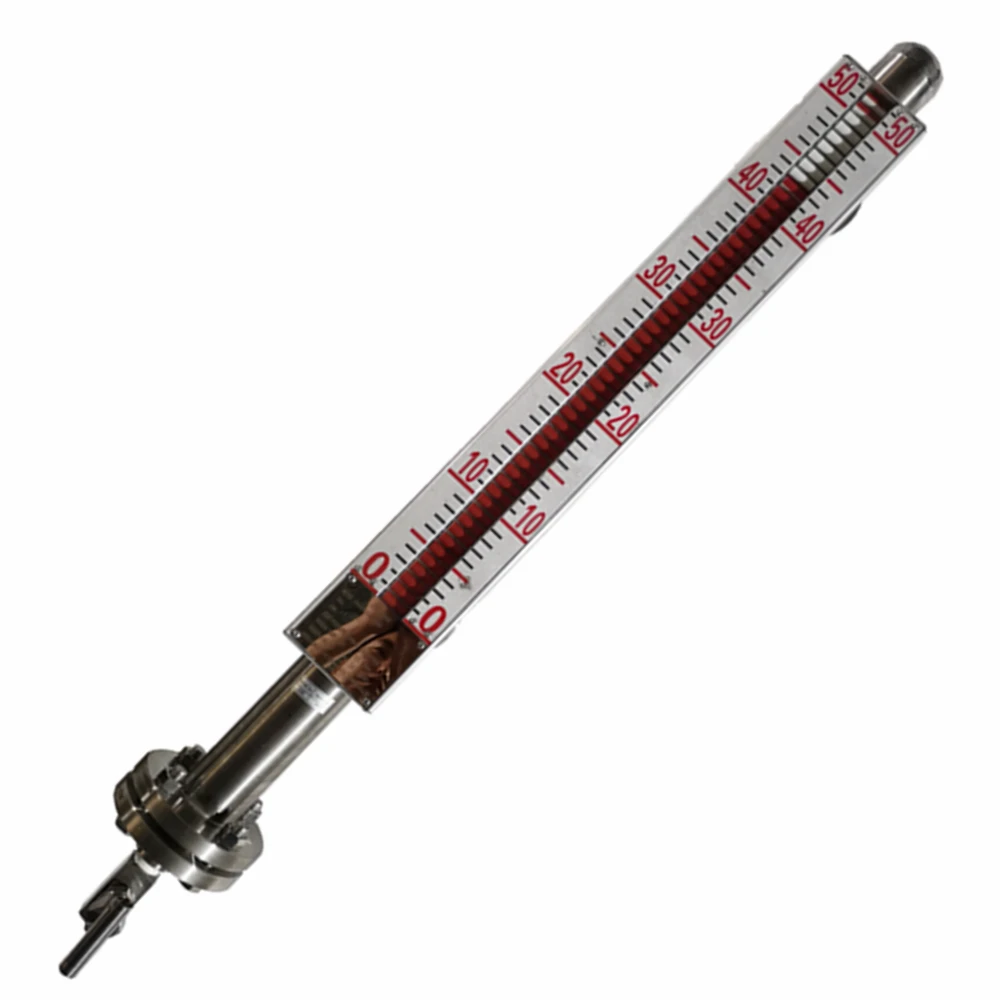

UHC Z вакуумной магнитной датчик уровня/вакуумной измерительный для снятия показаний давления уровня воды
- Категория: >>>
- Поставщик: Hebei Xukang Meter Manufacturing Co. Ltd.
Сохранить в закладки 1600053385125:
Описание и отзывы
Характеристики
Products Description

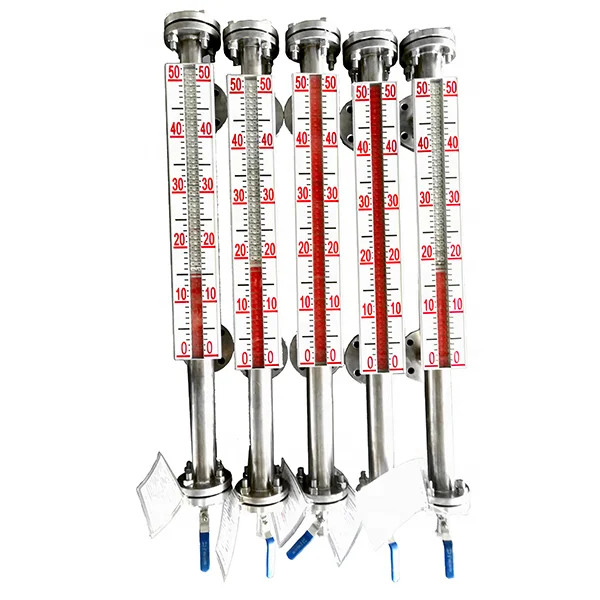

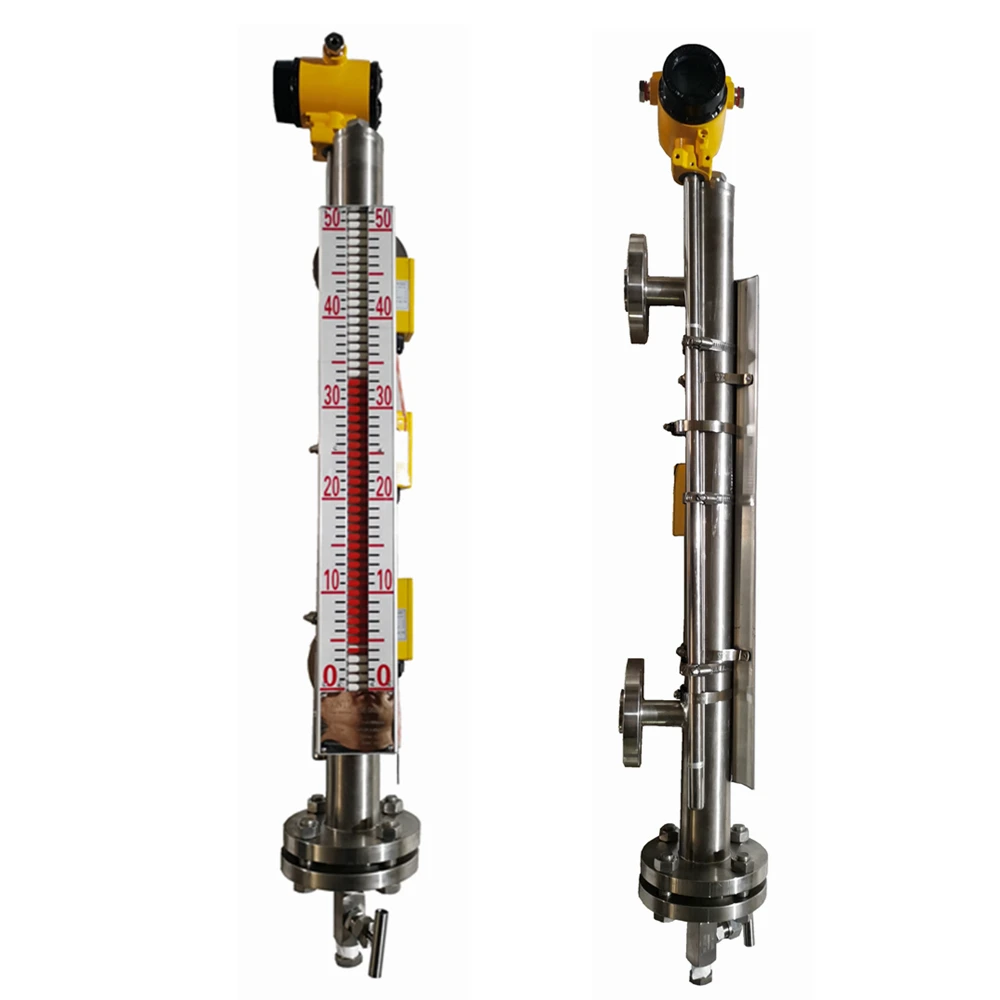

Stainless steel side mounted water level meter magnetic flip level meter
Magnetic Level Gauge provides clear, high clarity indication of liquid level. Magnetic Level Gauges are principally designed as an alternative to glass level gauges.XU KANG offers Magnetic Level Gauges in top-bottom, top and side mounted construction with two types of indicator system i.e. Capsule and Bi-colour Rollers. Magnetic Level Gauge is consists of three major components: Float Chamber, Float and Indicator System.
Magnetic Level Gauge operates on the principle of magnetic field coupling to provide fluid level information. Float chamber is typically constructed with non magnetic pipe having process connections that matches to the vessel connections. Float size and weight is determined by the process fluid, pressure, temperature and the specific gravity of the process fluid. Float contains magnets to provide 360o magnetic flux field.
1. Basic model:
Suitable for level measurement of liquid medium which working pressure less than 4.0MPa, and working temperature lower than 200℃.
2. Anti-corrosion model:
It’s suitable for acid, alkali and many organic solvents. It use PTFE lined stainless steel, PPR, PVC as body material.
3. Jacketed model:
Applied to antifreeze, insulation and heating level measurement occasions. Jacket type: steam jacket, water cycle jacket, vacuum jacket, electric heating jacket, and electric warming jacket.
4. High temperature high pressure model:
It’s suitable for high temperature and high pressure level measurement occasions. The maximum process temperature is 520℃. The maximum working pressure is 32MPa.
Feature and Application:
1. Highly visible level indication with no process fluid in contact with the glass.
2. All construction by code certified welders.
3. Float designed and weighted for maximum accuracy with 75 grams minimum upward buoyant force.
4. Transmitter and switch options which can be installed, adjusted and maintained with no process interruption.
5. Safe for corrosive, flammable, toxic, high-temperature and high-pressure applications.
6. Rugged design - low or no maintenance.
7. IP68 approved local indication.
Magnetic Level Gauge operates on the principle of magnetic field coupling to provide fluid level information. Float chamber is typically constructed with non magnetic pipe having process connections that matches to the vessel connections. Float size and weight is determined by the process fluid, pressure, temperature and the specific gravity of the process fluid. Float contains magnets to provide 360o magnetic flux field.
1. Basic model:
Suitable for level measurement of liquid medium which working pressure less than 4.0MPa, and working temperature lower than 200℃.
2. Anti-corrosion model:
It’s suitable for acid, alkali and many organic solvents. It use PTFE lined stainless steel, PPR, PVC as body material.
3. Jacketed model:
Applied to antifreeze, insulation and heating level measurement occasions. Jacket type: steam jacket, water cycle jacket, vacuum jacket, electric heating jacket, and electric warming jacket.
4. High temperature high pressure model:
It’s suitable for high temperature and high pressure level measurement occasions. The maximum process temperature is 520℃. The maximum working pressure is 32MPa.
Feature and Application:
1. Highly visible level indication with no process fluid in contact with the glass.
2. All construction by code certified welders.
3. Float designed and weighted for maximum accuracy with 75 grams minimum upward buoyant force.
4. Transmitter and switch options which can be installed, adjusted and maintained with no process interruption.
5. Safe for corrosive, flammable, toxic, high-temperature and high-pressure applications.
6. Rugged design - low or no maintenance.
7. IP68 approved local indication.
Production Pictures
Float Cage Material | SS304, SS316, PTFE, PP, PVC, PVDF |
Max. Centre to Centre Distance | 6000 mm, greater lengths on request |
Connecting Flanges | According to DIN or ANSI B16.5 |
Rated Pressure | <10.0 Mpa for SS & 0.3 Mpa for PP, PVC & PVDF Higher pressure rating can also be provided |
Temperature of Liquid | 450ºC (Max.) for SS, 80ºC (Max.) for PVDF 60ºC (Max.) for PVC, 50ºC (Max.) for PP |
Specific Gravity | Min. 0.40g/cm³ |
Scale | Graduated in cm, Aluminium or SS304 |
Measuring Accuracy | +/- 5 mm |
Explosion-proof mark | Exd II BT6 |
Protection Grade | IP65/IP67 |
Product installation diagram
Company Introduction
Company introduction
Hebei Xukang Meter Manufacturing and Tianjin U-ideal Instrument Co., Ltd as a group, have more than 20years products research and development experience. And have 16years export experience, 5000m2 factory, tens of new machines.Hebei Xukang Meter Manufaturing Co. Ltd adopts a combination marketing of domestic and foreign trade, having a marketing network across the country and abroad. We will try to provide customers the best quality and service through integrating the best resource and to become the excellence corporation. Our products strictly enforce the ISO9001 quality management system, and provide customer a safe product.
Our products range:
1. Flowmeter: Electromagnetic flowmeter, ultrasonic flowmeter, vortex flowmeter, gear flowmeter, rotor flowmeter, mass flowmeter, etc
2. Level gauge: Magnetic float level gauge, glass plate level gauge, glass tube level gauge, ultrasonic level gauge, oil level gauge, float switch, radar level gauge, etc.
3. Sight Glass: Straight sight glass, tube sight glass, flange sight glass, three way sight glass etc.
4. Strainers: Quick Open Basket Filter Strainer,Y Type,T Type,Basket Strainer,Self -Cleaning Strainer,Industrial Duplex Basket Strainer,Intelligent Control Self-Cleaning Piping Strainer,etc.
5. Valves: air valve, Strainer, gate valve, check valve, globe valve, ball valve, butterfly valve, pressure reducing valve, control valve, safety valve, angle valve, Titanium alloy valve, thermostatic valve, needle valve, plug valve, etc.
6. Flanges and Pipe fittings:all kinds of flanges, elbow, tee, caps, union,plug,coupling,reducer, pipes and steels etc.
Certifications
Company Profile
Packing
Carton
Wood cases
Transportation
For small order quantity,we can send them to you by express delivery,TNT,DHL,UPS OR EMS etc.
For big order quantity ,we will advise you to use Air Shipping or Sea Shipping through your nominated forwarder agent or our long-term cooperated agent.
For big order quantity ,we will advise you to use Air Shipping or Sea Shipping through your nominated forwarder agent or our long-term cooperated agent.
FAQ
1. who are we?
We are based in Hebei, China, start from 2017,sell to Domestic Market(15.00%),Mid East(12.00%),South America(10.00%),Southeast Asia(10.00%),Eastern Asia(10.00%),North America(9.00%),Northern Europe(8.00%),Africa(5.00%),South Asia(5.00%),Southern Europe(5.00%),Eastern Europe(5.00%),Central America(2.00%),Oceania(2.00%),Western Europe(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Level Indicator,Level sensor,Level Switch,Flow Meter,Pressure sensor
4. why should you buy from us not from other suppliers?
20 years export experience.
We are group company with Tianjin U-ideal Instrument Co., Ltd.
More than 20years for products Research and development.
5000m2 factory, high-precision machines.
Level gauge, flowmeter and pressure sensor have top quality
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Hebei, China, start from 2017,sell to Domestic Market(15.00%),Mid East(12.00%),South America(10.00%),Southeast Asia(10.00%),Eastern Asia(10.00%),North America(9.00%),Northern Europe(8.00%),Africa(5.00%),South Asia(5.00%),Southern Europe(5.00%),Eastern Europe(5.00%),Central America(2.00%),Oceania(2.00%),Western Europe(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Level Indicator,Level sensor,Level Switch,Flow Meter,Pressure sensor
4. why should you buy from us not from other suppliers?
20 years export experience.
We are group company with Tianjin U-ideal Instrument Co., Ltd.
More than 20years for products Research and development.
5000m2 factory, high-precision machines.
Level gauge, flowmeter and pressure sensor have top quality
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
Похожие товары
Китай, высококачественный материал обуви для середины подошвы Eva, бумажная стелька
Epsilon акриловая Светодиодная доска для записей, светящаяся доска для записей, творческая стираемая записная книжка для студентов, портативная мини-доска для записей
2,00 $ - 3,70 $
ZiXu электрические автозапчасти, портативная машина для гравировки номера VIN, маркировочная машина
2 550,00 $ - 3 000,00 $
Недорогие и высококачественные магнитные педали HC70FCA
Контроллер токарного станка 990TDC CNC для токарного станка с ЧПУ, 2 оси, 3 оси, 4 оси, карта управления движением с ATC и функцией макросъемки
290,00 $ - 370,00 $

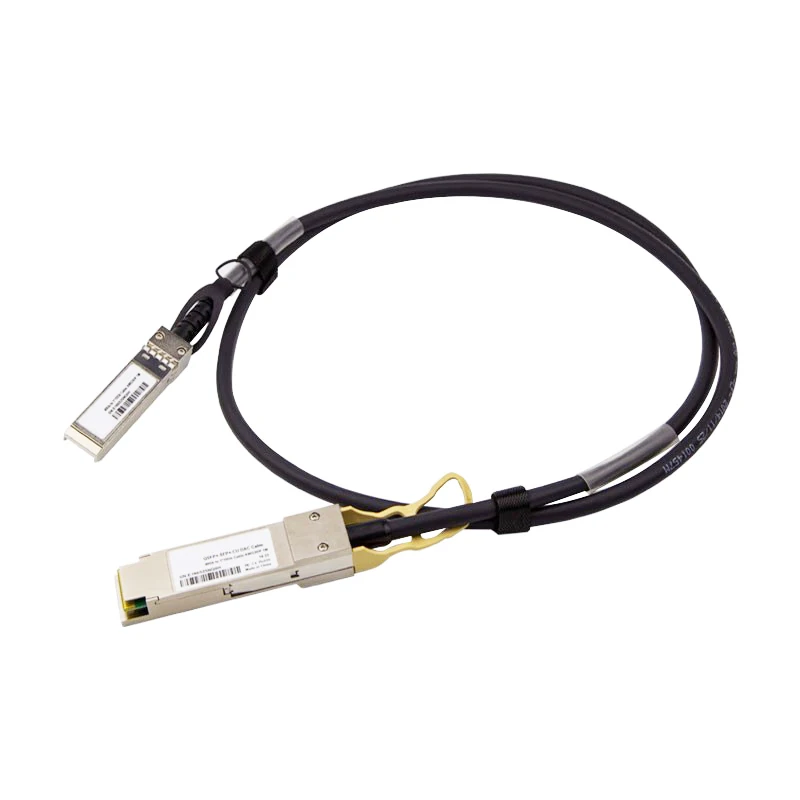

Модуль преобразователя DAC 30AWG, пассивное медное прямое прикрепление, кабель Twinax, 2 м 40 г QSFP + до 10 г SFP +
