Product Description





















EVS180S-HV

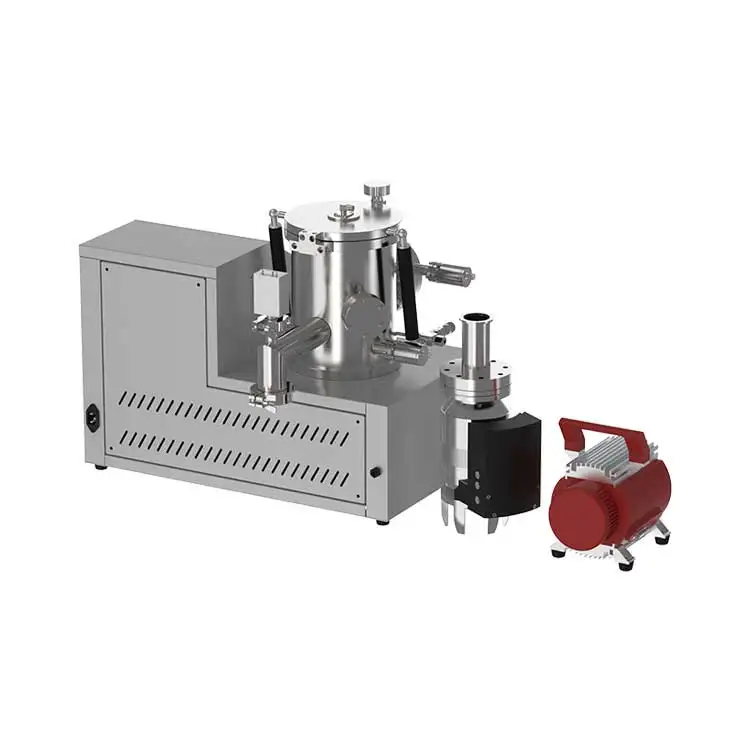

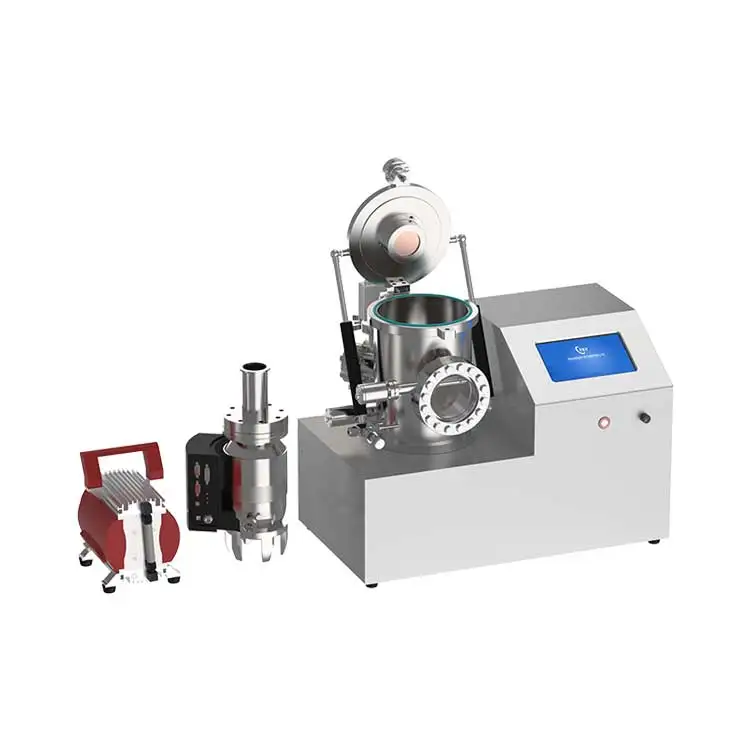

High vacuum plasma sputter & Thermal Evaporation two-in-one coating machine





plasma sputtering and evaporation two-in-one PVD coater hine is equipped with DC sputtering target and thermal evaporation assembly, which can not only be used for metal film plating by plasma sputtering, but also obtain carbon or other metal elemental films by evaporation.





Features

  • This pvd coater 304 stainless steel as vacuum chamber, and the coating process is completely visible.

  • The instrument is equipped with two stage rotary vane vacuum pump, which can quickly reach the vacuum degree of 1.0E-3pa, Ultimate vacuum 1.0E-5Pa, and can meet the vacuum environment required by most evaporation coating experiments and diode sputtering experiments.

  • This instrument has small size which can save space and can be used on the test bench. One machine has multiple purposes, which is cost-effective and very suitable for major universities and research institutions to choose.


ApplicationsScanning electron microscope sample surface gold spraying, gold steaming carbon spraying and other operations, as well as the production of non-conductor material test electrode.













Technical parameters


















































Supply voltage



AC220V,60Hz



Maximum power



1200W



Sample Stage



Diameter φ65mm;


Adjustable distance from evaporation source, adjustable range 60mm-100mm



Vacuum chamber



Material: 304 stainless steel O.Dφ168mm x I.Dφ160mm x 210mm



Maximum temperature



1700℃



Thermocouple



B type thermocouple



Vacuum gauge



Electronic vacuum gauge



Vacuum system



Foreline pump: Pufa MVP030 oil-free pump, pumping speed 30L / min


Secondary pump: Leybold TURBOVAC 90iX pumping speed 90L / s



Vacuum interface



KF40



Intake port



1/4 card sleeve connector



Overall size



500x350x400mm



 sputter evaporation coater.jpg








online service











Company Introduction



plasma cleaner

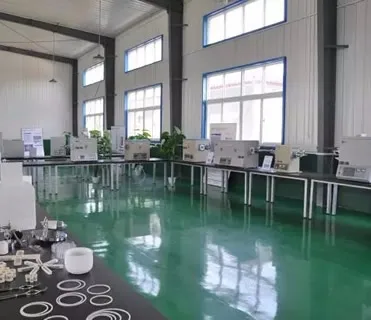

Founded in 2005, Zhengzhou Tainuo Film Materials Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.





We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.


plasma cleaner






Package



plasma cleaner






FAQ



plasma cleaner





Q. Are you a manufacturer or a trading company?


A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.





Q. How is your company's product after-sales service system?


A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.





Q. How long is your delivery time? If I want to customize the instrument, how long does it take?


A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.





Q. Our country's power supply and plug are different. How do you solve it?


A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.





Q. How to pay?


A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.





Q. How is the package of goods? Delivery methods?


A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.





More questions, please contact customer serviceplasma cleaner
