1 5 мм Летающий нож l образный выпрямитель для проводов станок выпрямления и резки с ЧПУ медных прямых стержней
- Категория: Машины для выпрямления металла >>>
- Поставщик: Shanghai Qipang Industrial Co. Ltd.
Сохранить в закладки 1600054214336:
Описание и отзывы
Характеристики
Product Description

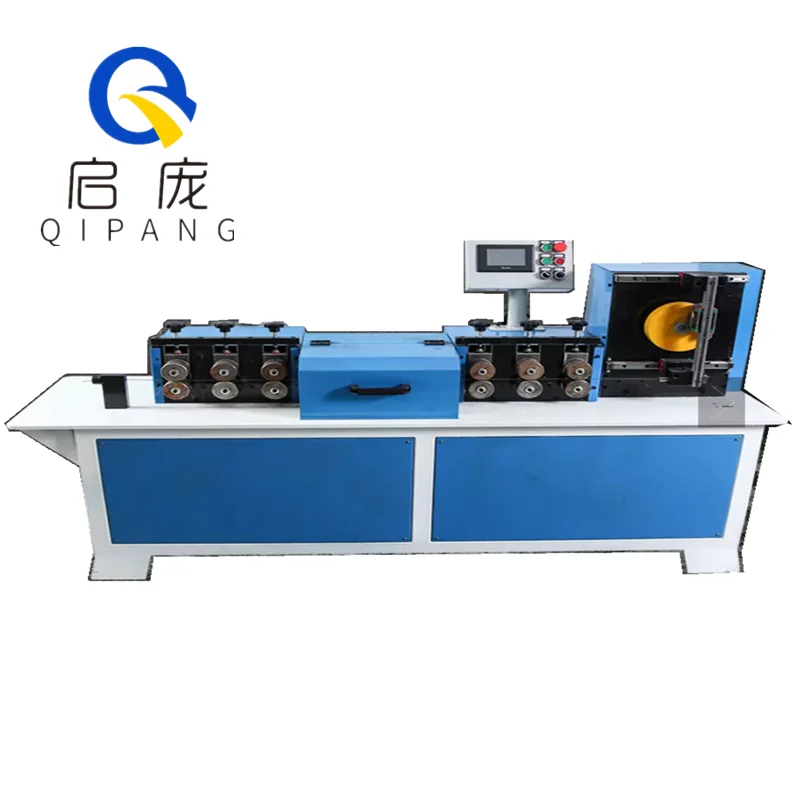

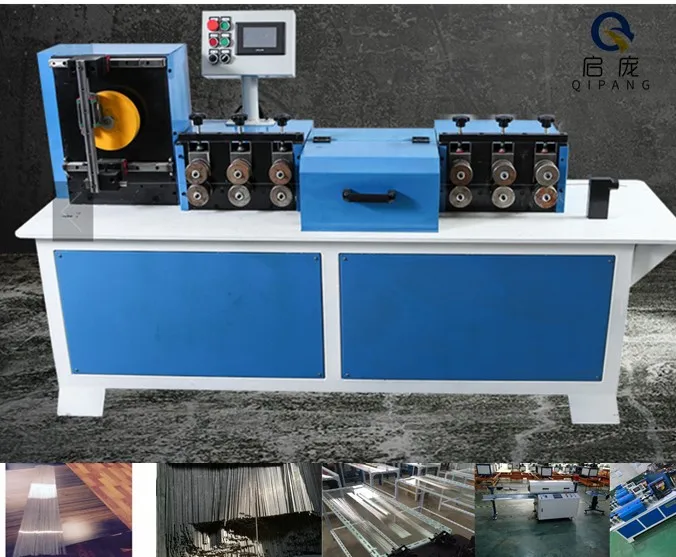

1-5mm flying shear l wire straightener, cnc wire straightening cutting forming machine, copper straight rod cutting machine
This device can be suitable for all kinds of metal wire straightening cutting, surface, no scratches, cutting length error of plus
or minus 0.5 mm, the cutting length range is 80mm to 6000mm. Human-machine incorporate touch screen control system, can save
manpower for the customer. Company's main range of wire 1 mm to 5 mm can be customized, fastest of up to 150 meters per minute,
available for copper, iron, aluminum, gold, silver, stainless steel, high carbon steel and plastic coated wire, metal wire.
Specifications
Configuration parameters of high speed straightener,
1 two servo motors, 1.5 kw traction and 1:10 planetary reducer, cut off 1.5 kw,
2 cut off the PLC touch screen electronic CAM system,
3 servo motor brand,
4 fuselage length 1850mm wide 780mm total height 1300mm.It weighs about 498 kilograms.
5 the total weight of the automatic spreader is 90kg.
6. The control mode includes inverter analog control system,
7. Minimum diameter: 250mm; maximum diameter: 500mm;
8 the weight of the spreader is about 90kg"
Configuration parameters of high speed straightener,
1 two servo motors, 1.5 kw traction and 1:10 planetary reducer, cut off 1.5 kw,
2 cut off the PLC touch screen electronic CAM system,
3 servo motor brand,
4 fuselage length 1850mm wide 780mm total height 1300mm.It weighs about 498 kilograms.
5 the total weight of the automatic spreader is 90kg.
6. The control mode includes inverter analog control system,
7. Minimum diameter: 250mm; maximum diameter: 500mm;
8 the weight of the spreader is about 90kg"
Type and wire diameter: | FJ-I-φ1.0-2.0mm | FJ-Ⅱ-φ2.0-4.0mm | Φ3.0-5.0mm | ||
Cutting range: | 80mm – 6000mm | ||||
Max cutting speed: | 400pcs/min 400 pcs/min | ||||
Wire feeding speed: | 150m/min | 120m/min | 120m/min | ||
Length error: | ±0.5mm ±0.5mm for uniform speed | ||||
Wire material: | Common carbon steel wire and stainless steel wire | ||||
Accessories: | Withdrawable wire rack, Movable receiving pocket, Recommended automatic wire rack for lines above 3.0 | ||||
Feeding stand: | 1000*300*150 | ||||
Feeding motor: | 2.0kw servo motor | ||||
Straightening motor | Custom adjustable speed motor 3KW/2880r | ||||
Cutting shear motor: | 2.8KW Cut off servo motor | ||||
Rail module: | Nextron | ||||
Number of feeding rollers: | 2 group (4 pairs rollers) | ||||
HMI: | 7 inch touch screen | ||||
Number of straightening rollers: | 8 pcs | ||||
Material of shear: | Cr12 Steel, partly made by Nextron | ||||
Electric box brand: | Relay—IDEC, contactor--CHINT switching power supply—DELTA, Motion Controller—Guangzhou shifu | ||||
Measurement(length*width*height) | 1700*700*1350（mm） | ||||
Specification

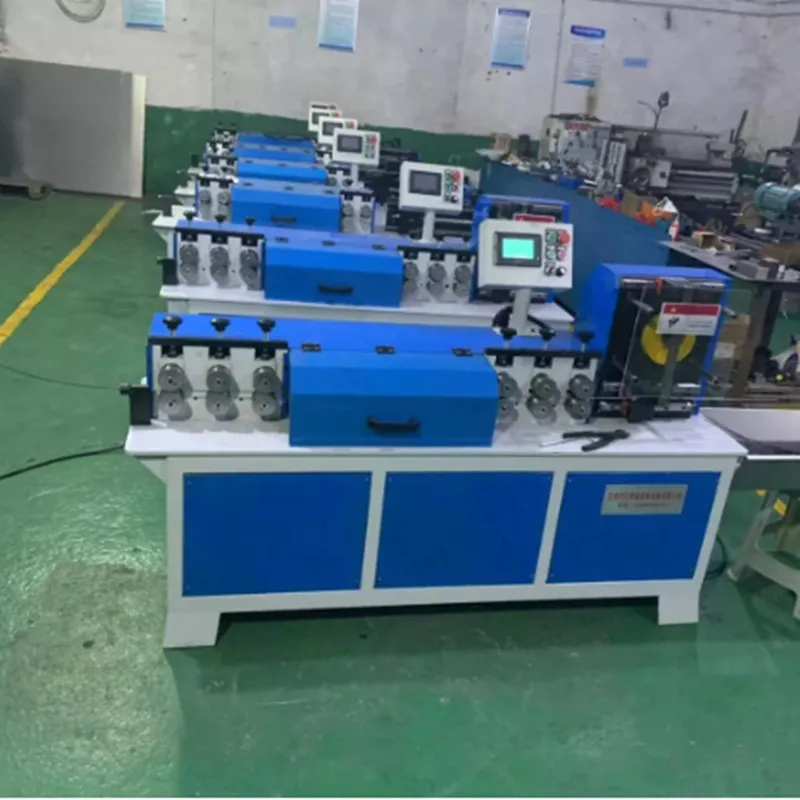

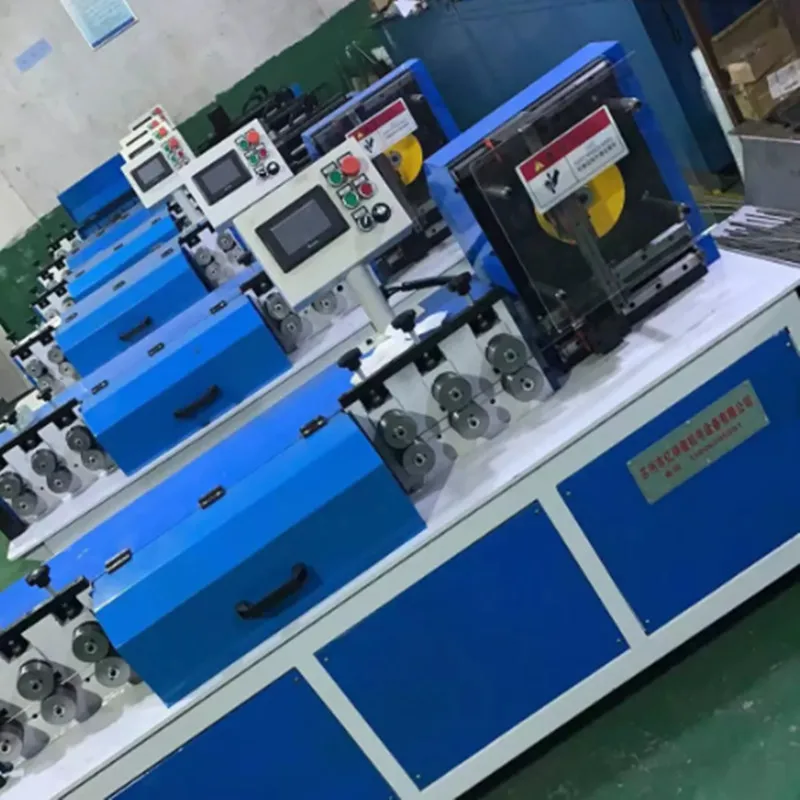

Factory Show
Other product
Package
Company Profie
Our company:
Shanghai Qipang Industrial Co.,LTD.are specialized in producing wire straighteners. We are two companies in qipang group, one is Shanghai Qipang Industrial Co.,LTD. which has a superior geographical location. Its head office is located in Shanghai, which is connected with Shanghai port.The factory is located in kunshan city, Kunshan Qipang Mechanical and Electrical Equipment Co.,LTD.which is the junction of jiangsu province and Shanghai city, with convenient transportation and advanced technology.The company has a wealth of enterprise resources, excellent corporate culture, strong corporate philosophy, to serve customers for the purpose, committed to creating a leading brand in the industry, and the domestic brand to the world, is one of the outstanding representatives of the rapid economic development of the 21st century.
We have been producing straighteners for ten years.We are the best in our field.We mainly have wire straightener roller,feeding
straightener, PLC control,straightener and cutting machine ，pipe bender , necking machine and so on. Straightener suitable for wire and pipe with diameters ranging from 0.05mm to 30MM.
The straightener can also be customized according to the buyer's requirements. Our products are of high quality and low price, and have good after-sale service.We will provide video teaching installation and adjustment, so you don't have to worry about buying it and not using it. Our partners include the United States, Canada, Russia, Vietnam, Thailand, Poland, and many other countries.Choose us you won't .
Shanghai Qipang Industrial Co.,LTD.are specialized in producing wire straighteners. We are two companies in qipang group, one is Shanghai Qipang Industrial Co.,LTD. which has a superior geographical location. Its head office is located in Shanghai, which is connected with Shanghai port.The factory is located in kunshan city, Kunshan Qipang Mechanical and Electrical Equipment Co.,LTD.which is the junction of jiangsu province and Shanghai city, with convenient transportation and advanced technology.The company has a wealth of enterprise resources, excellent corporate culture, strong corporate philosophy, to serve customers for the purpose, committed to creating a leading brand in the industry, and the domestic brand to the world, is one of the outstanding representatives of the rapid economic development of the 21st century.
We have been producing straighteners for ten years.We are the best in our field.We mainly have wire straightener roller,feeding
straightener, PLC control,straightener and cutting machine ，pipe bender , necking machine and so on. Straightener suitable for wire and pipe with diameters ranging from 0.05mm to 30MM.
The straightener can also be customized according to the buyer's requirements. Our products are of high quality and low price, and have good after-sale service.We will provide video teaching installation and adjustment, so you don't have to worry about buying it and not using it. Our partners include the United States, Canada, Russia, Vietnam, Thailand, Poland, and many other countries.Choose us you won't .
FAQ
Q1: Are you a factory or trading company?
We are a factory . We can promise you a short lead time and best price if you purchase our machine. We also have our own trading department.
Q2: How does the factory ensure products quality?
With Nearly 16 years experience in manufacturing winding machine, we have our own technology develop department and testing department. Quality is the first priority. We have strict purchasing system to ensure the quality of spare parts. We have experienced workers to assemble and test machine.
Q3:How about your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone,webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
Q4: What are your payment terms?
100%TT or prepaid 50% , balance 50% before shipping.
Q5: How can I get my order? How can I know you sent the goods?
We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods, we will give you the tracking number or other relative files for checking.
Q6 : Will you send the installed machine or machine parts?
We will install the machine and test the machine before delivery. And the machine can be used directly after receiving the machine.
Q7: Will you provide operation guidance for us?
We will send the instruction book with the machine and send you a video about how to operate the machine.
Q8 : How long is the warranty period?
12 months warranty, we will send you free spare parts by air within one week if there are any quality problems.
We are a factory . We can promise you a short lead time and best price if you purchase our machine. We also have our own trading department.
Q2: How does the factory ensure products quality?
With Nearly 16 years experience in manufacturing winding machine, we have our own technology develop department and testing department. Quality is the first priority. We have strict purchasing system to ensure the quality of spare parts. We have experienced workers to assemble and test machine.
Q3:How about your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone,webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
Q4: What are your payment terms?
100%TT or prepaid 50% , balance 50% before shipping.
Q5: How can I get my order? How can I know you sent the goods?
We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods, we will give you the tracking number or other relative files for checking.
Q6 : Will you send the installed machine or machine parts?
We will install the machine and test the machine before delivery. And the machine can be used directly after receiving the machine.
Q7: Will you provide operation guidance for us?
We will send the instruction book with the machine and send you a video about how to operate the machine.
Q8 : How long is the warranty period?
12 months warranty, we will send you free spare parts by air within one week if there are any quality problems.
Похожие товары
Выпрямительная машина для листового металла со стальной катушкой по хорошей
1 000,00 $
Стальная катушка машина для выпрямления листового листа стальная
9 000,00 $ - 10 000,00 $
380v 220v 415v 440 В изменененнные арматура выпрямление и автомат для резки YGT6-14 6-14 мм
400,00 $ - 1 500,00 $
Высокоскоростная машина для выпрямления и резки проволоки из нержавеющей стали с корпусом 2-4
5,7,10,15,20,25,30 тонн, гидравлический материал uncoiler,decoiler,uncoiler машина для линии обработки стальных катушек
Заводская цена выпрямитель для отходов арматуры железный стержень арматура

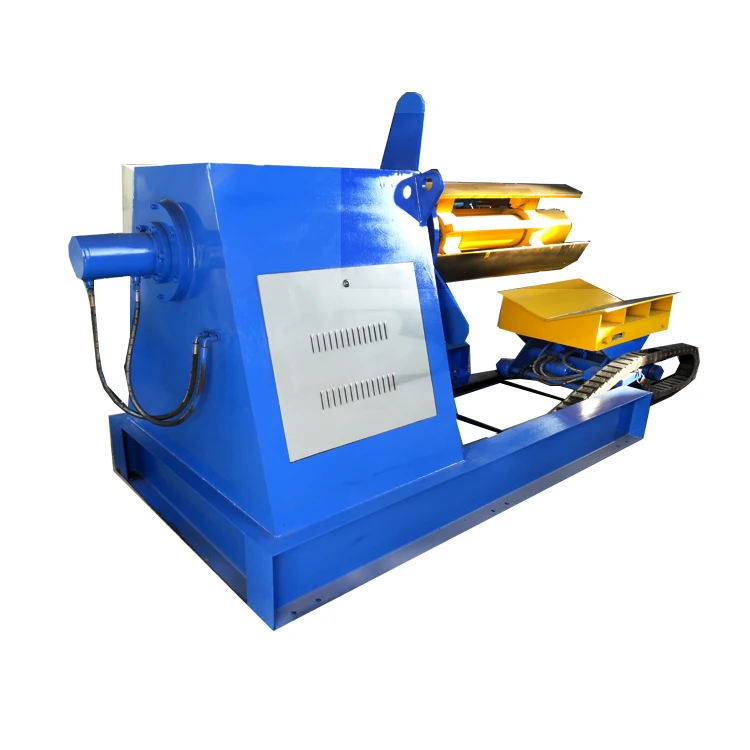

0 3-1 5 мм четырехголовочный автоматический гидравлический декойлер
