Product Description


Special Discount SDR21 315mm HDPE Pipes in Blue Color




Product Name
PE100 Water Supply HDPE Pipe
Color
Black with bule line
Standard
GB/T13663-2000,ISO 4427-1:2007
Specification
20-1200mm
Pressure
0.6MPa SDR26,0.8MPa SDR21,1MPa SDR17,1.25MPa SDR 13.6,1.6MPa SDR 11
Main application
Water Supplying and Draining
Guarantee
More than 50 years


Pressure
OD
(mm)
PN0.6MPa SDR 26
Thickness
(mm)
PN0.8MPa SDR 21
Thickness
(mm)
PN1.0MPa SDR 17
Thickness
(mm)
PN1.25MPa SDR 13.6
Thickness
(mm)
PN1.6MPa SDR 11
Thickness
(mm)
63


3.7
4.7
5.8
75


4.5
5.6
6.8
90

4.3
5.4
6.7
8.2
110
4.2
5.3
6.6
8.1
10.0
125
4.8
6.0
7.4
9.2
11.4
140
5.4
6.7
8.3
10.3
12.7
160
6.2
7.7
9.5
11.8
14.6
180
6.9
8.6
10.7
13.3
16.4
200
7.7
9.6
11.9
14.7
18.2
225
8.6
10.8
13.4
16.6
20.5
250
9.6
11.9
14.8
18.4
22.7
280
10.7
13.4
16.6
20.6
25.4
315
12.1
15.0
18.7
23.2
28.6
355
13.6
16.9
21.1
26.1
32.2
400
15.3
19.1
23.7
29.4
36.3
450
17.2
21.5
26.7
33.1
40.9
500
19.1
23.9
29.7
36.8
45.4
560
21.4
26.7
33.2
41.2
50.8
630
24.1
30.0
37.4
46.3
57.2
710
27.2
33.9
42.1
52.2

800
30.6
38.1
47.4
58.8

900
34.4
42.9
53.3


1000
38.2
47.7
59.3


1200
45.9
57.2





Products Show


Descriptions:
Meets GB/T13663-2000, ASTM D2239, ASTM D2737, ASTM D3035, ASTM F714.
Our high-density polyethylene water and sewer pipe is available in 1/2-inch to 48-inch diameters. The product's physical properties make it applicable to open-trench, horizontal directional drilling, pipe-bursting and slip-lining installations. It can be manufactured with the color striping to identify application, such as a blue stripe for potable water, a yellow stripe for gas applications and a red stripe for mining applications.





Benefits:

Our HDPE pipe for water and sewer is manufactured for excellent performance and a long life expectancy.
•\tIts butt-fused joints eliminate potential leak points, common at 10 to 20 feet with ductile iron pipe, for a zero leak rate.
•\tHighly resistant to corrosion and weather, recent studies conclude it will last at least 50 years.
•\tIts light weight and flexibility make it easy to install, eliminate the need for fittings required with directional changes, and make it highly suitable for use in earthquake prone areas.
•\tIts high-strength walls give it the highest PE pressure rating, outstanding resistance to SCG and increased resistance to rapid crack propagation.
•\tThe increased working stress rating of high-performance PE resin material makes it a superior choice over steel or ductile iron pipe, especially for the large diameter
pipe sizes.









HDPE equal coupling


HDPE plug


HDPE equal tee






Application:

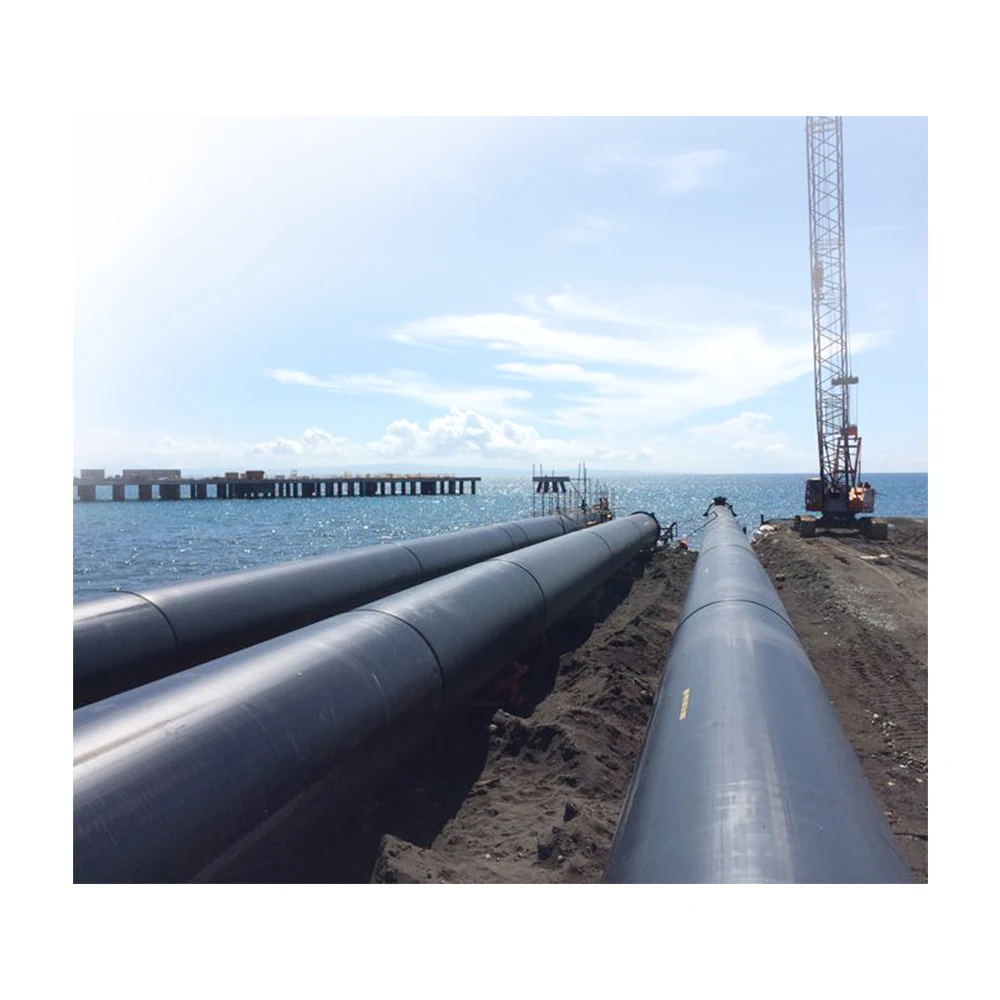

Hesu Pipe Industry's high-performance high-density polyethylene water pressure pipes are suitable for municipal and industrial transmission systems for potable water, sewer, drain, mining, irrigation, and reclaimed water.



Our Company






Our Exhibition




Our Certifications







Packing & Delivery


Packing Details : container or as customer required
Delivery Details : within 15 days after payment





Our Service




FAQ


Q: What is your MOQ?
A: As customer's request.

Q: Why choose us?
A: We are a professional and leader of HDPE pipe factory, we offer pipeline system one stop services with competitive price and fast delivery time, and we insure our quality is the second to none.

Q: How to buy the product?
A: Contact with us by email or by Trade Manager, and inform us which product and quantity that you need, we will contact

you immediately. More specify the information that you provided more faster and easier you will get the quotation.

Q: Can I make my own design and logo on the product?
A: Yes, we do OEM. Welcome partner from globally, we can make your product in China.

Q: What's the payment term?
A: Order amount <=1,000USD, 100% in advance.
     Order amount>=1,000USD, 30% T/T in advance, balance before shipment.
     Order amount>20,000USD, 30% T/T in advance, balance L/C at sight acceptable.
     Order amount>100,000USD, 100% L/C at sight acceptable.

Q: Still have more questions?
A: Please use the table below and send your questions to us. Thank you.
