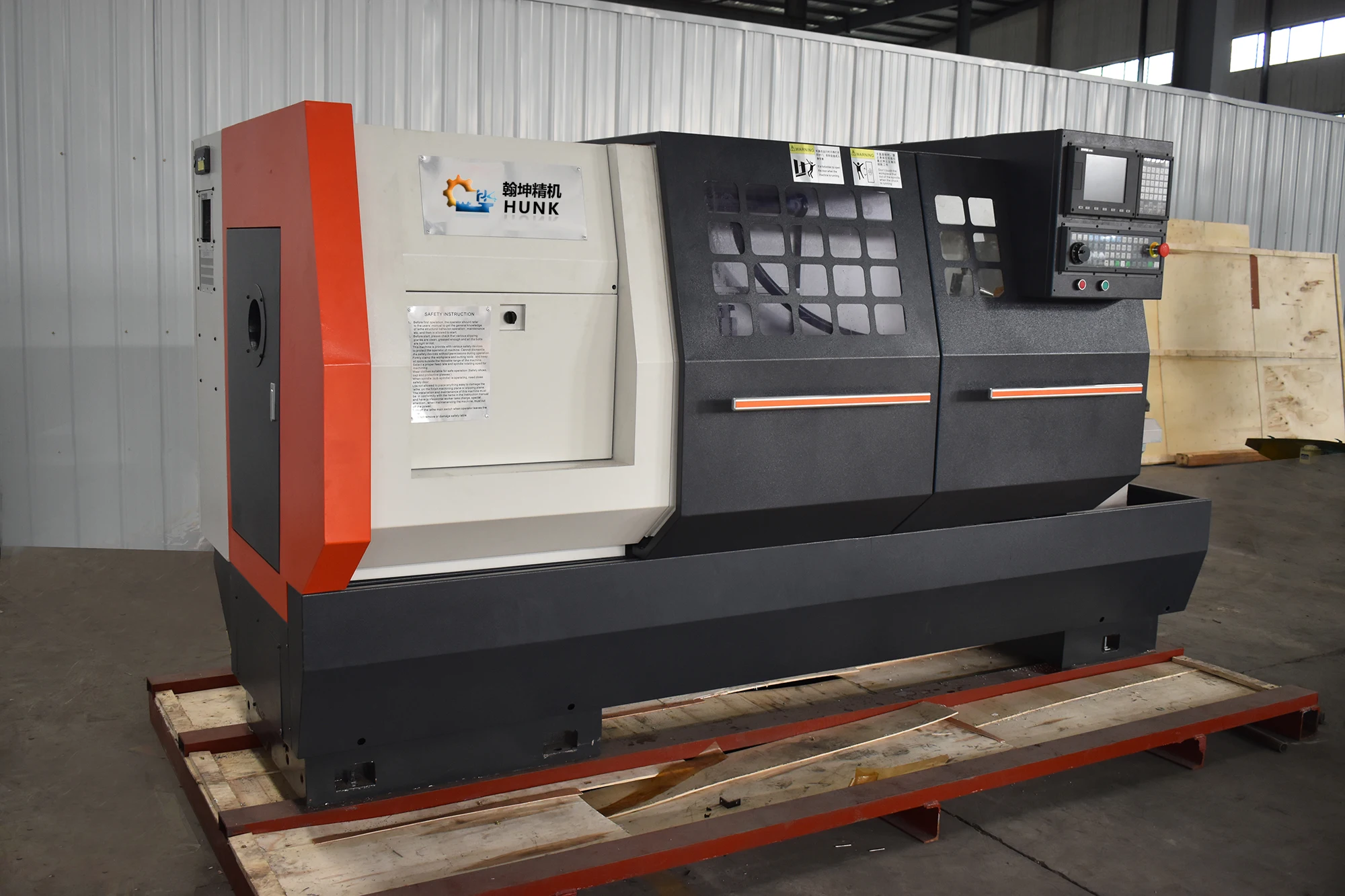

Автоматический токарный станок с ЧПУ Fanuc ручным
- Категория: >>>
- Поставщик: Jinan Hankui International Trade Co. Ltd.
Сохранить в закладки 1600054728776:
Описание и отзывы
Характеристики
Products description
Standard Configuration ck6136 | ||

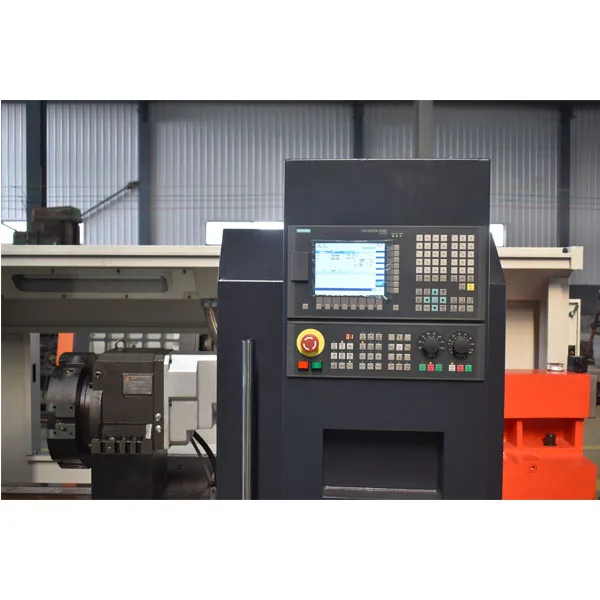

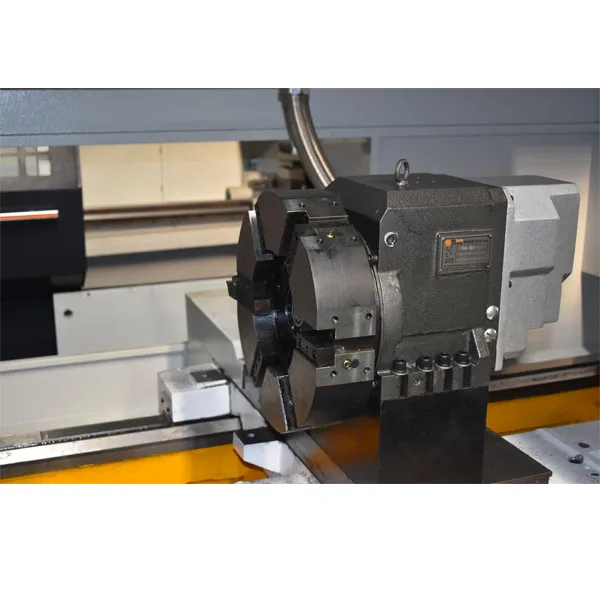

(1) Control system: Fanuc 0i-TF5 (2) Nozzle coolant,belt driven (3) Taiwan HIWIN Ball Screw & box guide way (4) Max spindle speed 2000rpm, stepless speed change (5) Spindle thru-hole dia. : 52mm (6) Spindle motor power: 5.5kw (7) Vertical 4 station turret & Manual 3-jaw Chuck 200mm (8) Max working length: 750mm (9) Schneider (France) electric parts (10) Automatic lubrication & Hear ex-changer (11) Full enclosed cover & Tri-color warming light | ||
Technical Parameter | ||
Max.swing over Bed | 360mm | |
Max.swing over Slide | 200mm | |
Max. Processing Length | 750mm | |
Guideway Width of Bed | 280mm | |
X axis Travel | 210mm | |
Z axis Travel | 750mm | |
X/Z axis Lead Screw | 2505/3206 | |
X/Z axis Rapid Speed | 6/8 | |
X/Z Positioning Precision | 0.02/0.03 | |
X/Z Repositioning Precision | 0.012/0.016 | |
Processing Precision | IT6-IT7 | |
Ellipticity | 0.01 | |
Surface Roughness | RA≦1.6 | |
Spindle Speed Range | 80-2000 | |
Spindle Head Type | A2-6 | |
Dia. Of Spindle Thru- hole | 46 | |
Spindle Hole Tapper | MT6 | |
Chuck | 200(8”) | |
Spindle Motor Power | 5.5kw | |
Tool Holder Type | Vertical 4 stations | |
N.W * Dimension | 2000kgs* 2.35*1.2*1.7m | |
Our Advantages
Packing and transportation
Company profile--Jinan Hankui International Trade Co.,Ltd
Jinan Hankui international trade co., ltd, which is the subsidiary corporation of Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.
The main products are horizontal / vertical/ gantry machining center, flat / slant bed CNC tuning lathe, CNC vertical turning lathe etc. With superior equipment, advanced technology, detection devices, the imported parts from Taiwan, Japan, Germany etc., we can manufacture the high quality machine tools. And we also take over the metal products and spare parts machining in good quality.
Now our products have a large market share and have a high popularity in domestic. Sales and services network have been established in many provinces and cities. Our products have been sold to America, South East Asia, Russia and Middle East countries with high reputation.
We have passed the ISO9001:2008 international quality management system authentication. “Honest and trust, Customer ahead, pursuit of excellent”, we devoted to provide high quality performance CNC products and metal products to you. Welcome to visit our factory.
FAQ
Q: Do you have after sales support?
A: Yes, our after-sales service is divided into three levels, one is 24-hour online question and answer, the other is to cooperate with customers to carry out remote testing of the machine, and the third is to provide overseas technician service. In addition, some parts are replaced free of charge during the validity period of the machine.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: Yes,our machines are available in world-standard sizes and meet the needs of most customers for metalworking. In years of research, engineers have achieved the best machining accuracy within the specified dimensions.
Q: Do you have a warranty on your machines?
A:13 months warranty excluding electrical components.
Q: What sales terms do you have?
A:T/T, L/C,West Union and the Trade assurance order by Alibaba.com
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support.
Q: What do I need to offload my machine from the container?
A: For forklifts and tower cranes, the machine can be removed from the container. If you need help, our engineers can guide you remotely.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
A: Yes, our after-sales service is divided into three levels, one is 24-hour online question and answer, the other is to cooperate with customers to carry out remote testing of the machine, and the third is to provide overseas technician service. In addition, some parts are replaced free of charge during the validity period of the machine.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: Yes,our machines are available in world-standard sizes and meet the needs of most customers for metalworking. In years of research, engineers have achieved the best machining accuracy within the specified dimensions.
Q: Do you have a warranty on your machines?
A:13 months warranty excluding electrical components.
Q: What sales terms do you have?
A:T/T, L/C,West Union and the Trade assurance order by Alibaba.com
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support.
Q: What do I need to offload my machine from the container?
A: For forklifts and tower cranes, the machine can be removed from the container. If you need help, our engineers can guide you remotely.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
Contact with me
Похожие товары
Тату-наклейка с красивыми цветами, Временные татуировки, боди-арт, макияж, кружевная тату-наклейка
0,12 $ - 0,15 $

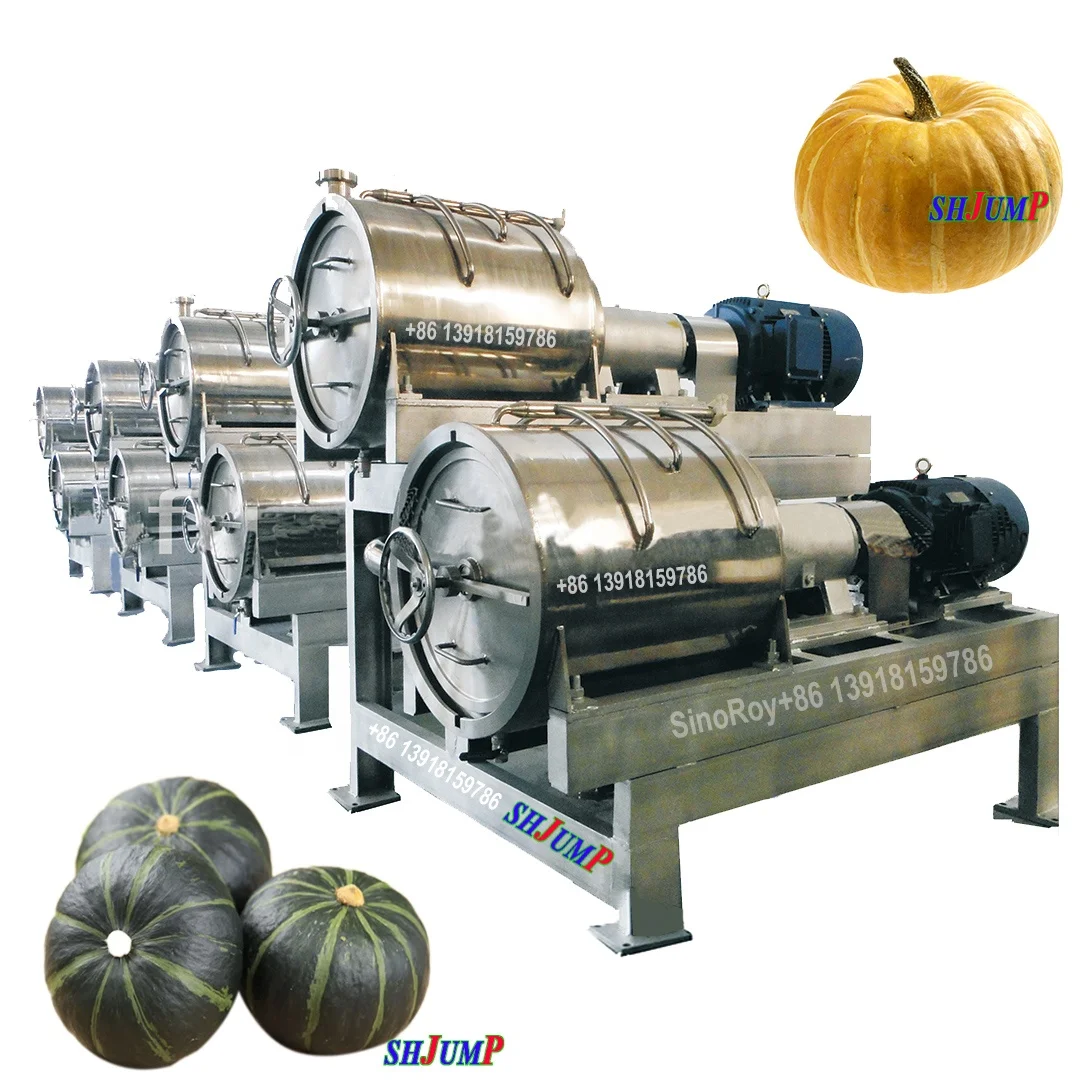

Линия по обработке тыквенного соуса/завод по обработке мгновенного порошка тыквы/линия по производству мгновенного порошка тыквы и машины
