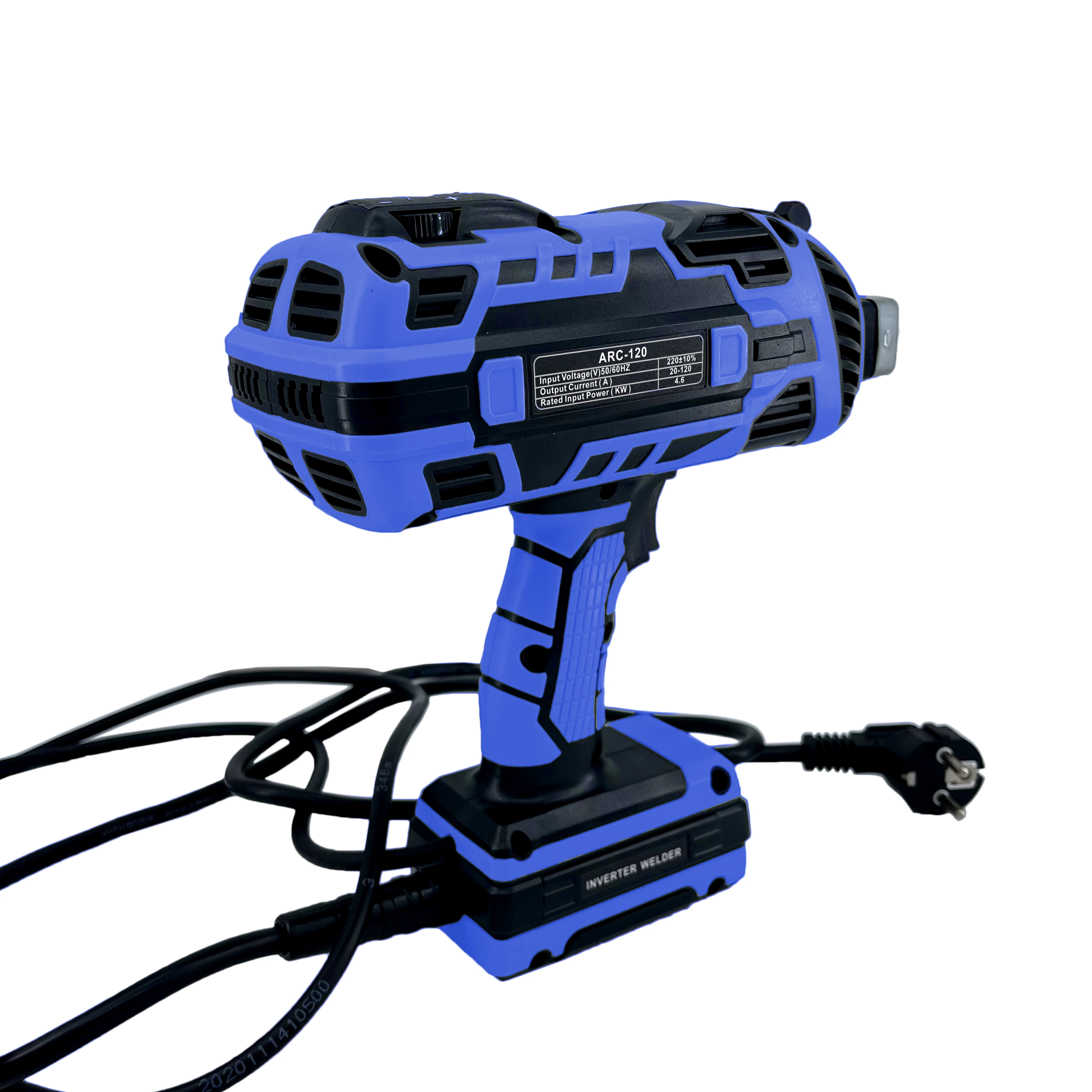

Ручной сварочный аппарат G-max ARC-120 120A
35,40 $ - 37,50 $
10 тонн фрикционный сварочный аппарат для сварки кабеля
- Категория: Welding Equipment >>>
- Поставщик: Jiangsu Kidea Industry Co. Ltd.
Сохранить в закладки 1600054770188:
Описание и отзывы
Характеристики
Product Paramenters

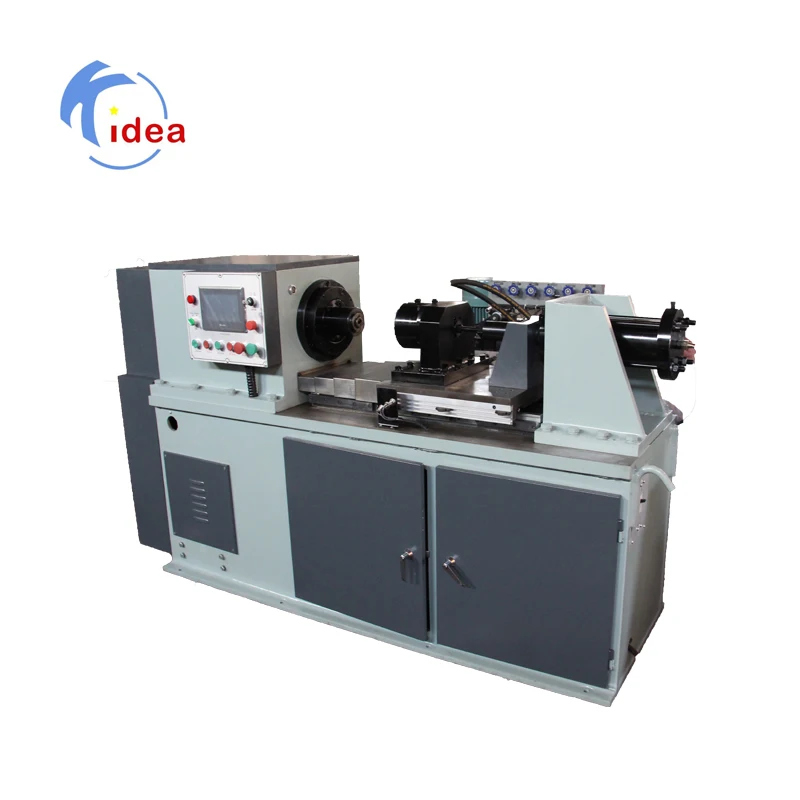

Product Name | KIDEA C-10 Friction Welding Machine |
Max upset force | 100 KN |
Welding diameter | 10-20 mm |
Clamping length of rotation fixture | 50-200 mm |
Clamping length of movement fixture | 80-450 mm or unlimited |
Max stroke of workable | 300 mm |
RPM | 1500 r/min |
Main motor | 18.5 KW |
Oil pump motor | 9.5 KW |
Mainframe dimension (L*W*H) | 3200*750*1350 mm |
Hydraulic station dimension (L*W*H) | 1500*1350*1600 mm |
Application areas | Aerospace, power, bearings, automobiles, motorcycles, metal cutting Cutting tools, textile machinery, petroleum geological drilling, construction and other high-tech and traditional industries, etc. |
* The figures above are just for reference only
We can manufacture as your request!!!
Products Description
What friction welding is
Friction welding is a solid-state joining process that produces coalescence in materials, using the heat developed between surfaces through a combination of mechanically induced rubbing motion and applied load. The resulting joint is of forged quality. Under normal conditions, the faying surfaces do not melt. Filler metal, flux and shielding gas are not required with this process.
Dissimilar Materials

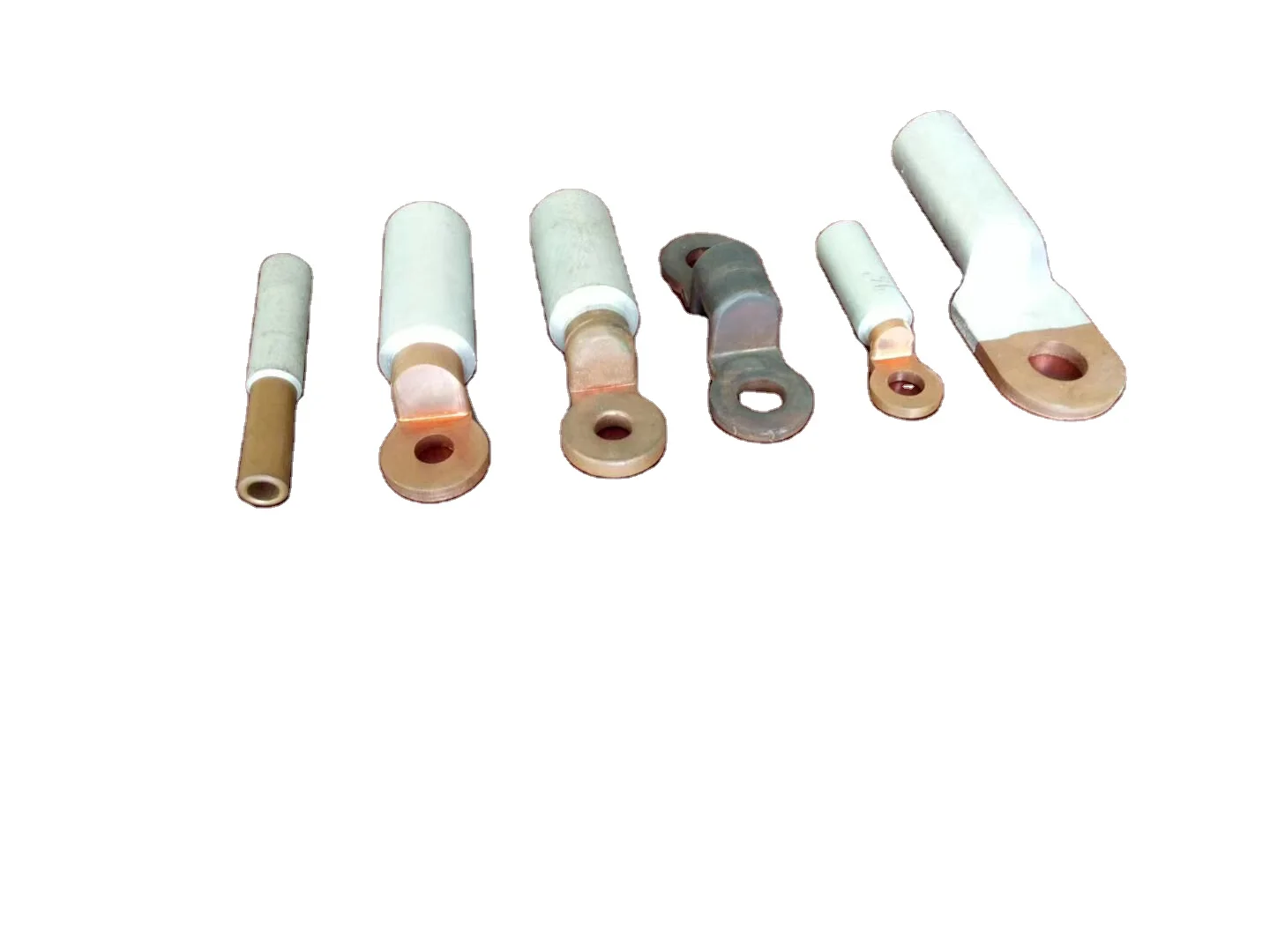

Even metal combinations not normally considered compatible can be joined by friction welding, such as aluminum to steel, copper to aluminum, titanium to copper and nickel alloys to steel. As a rule, all metallic engineering materials which are forgeable can be friction welded, including automotive valve alloys, maraging steel, tool steel, alloy steels and tantalum. In addition, many castings, powder metals and metal matrix composites are weldable.
Advantages
Savings—Cost, Time, Material
Since dissimilar materials can be joined, a significant cost savings is possible because engineers can design bimetallic parts that use expensive materials only where needed. Expensive forgings and castings can be replaced with less expensive forgings welded to bar stock, tubes, plates and the like.
Substantial time savings are realized since the process is significantly faster than more conventional methods of welding.

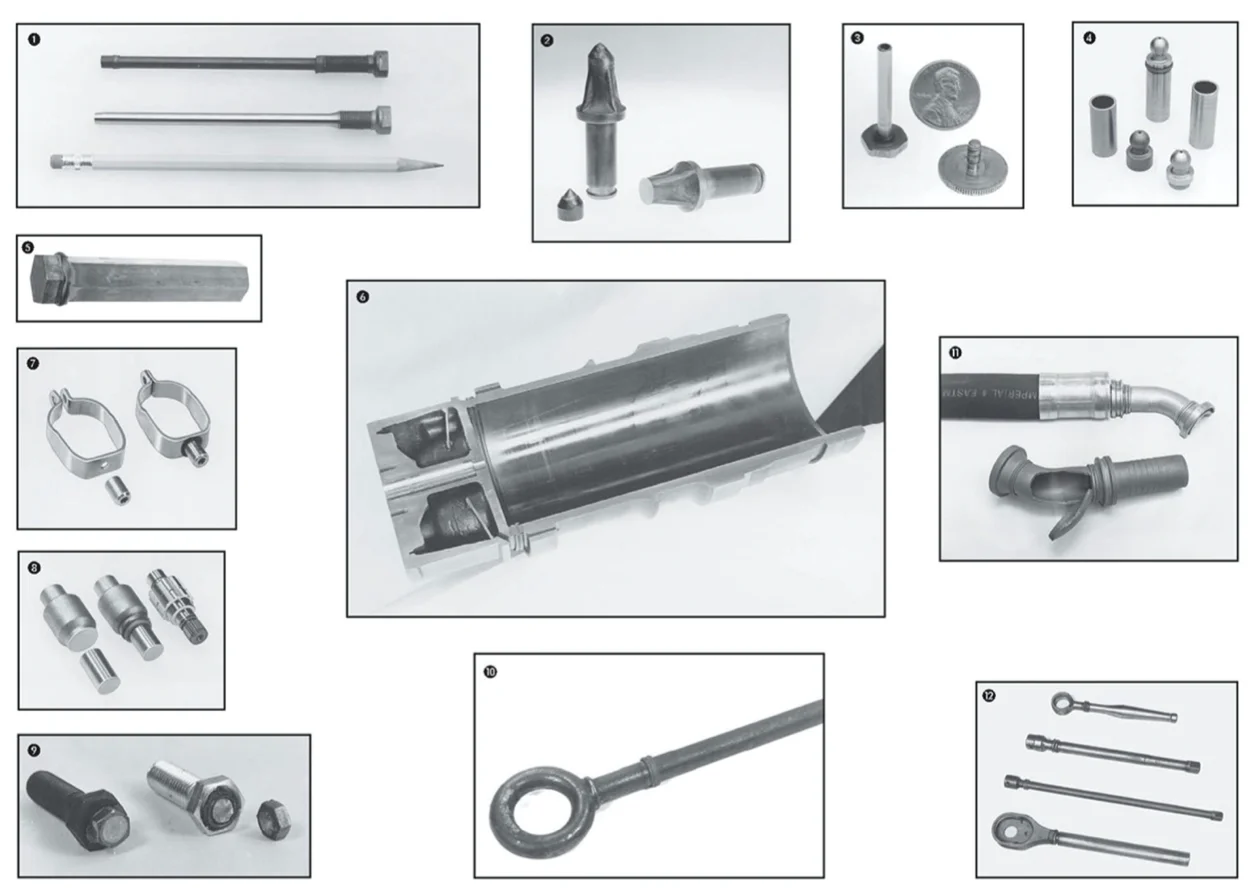

Friction welding produces forged quality joints, with a 100% butt joint weld through the contact area. This solid section shows the narrow heat-affected weld zone and resulting displaced material (flash).

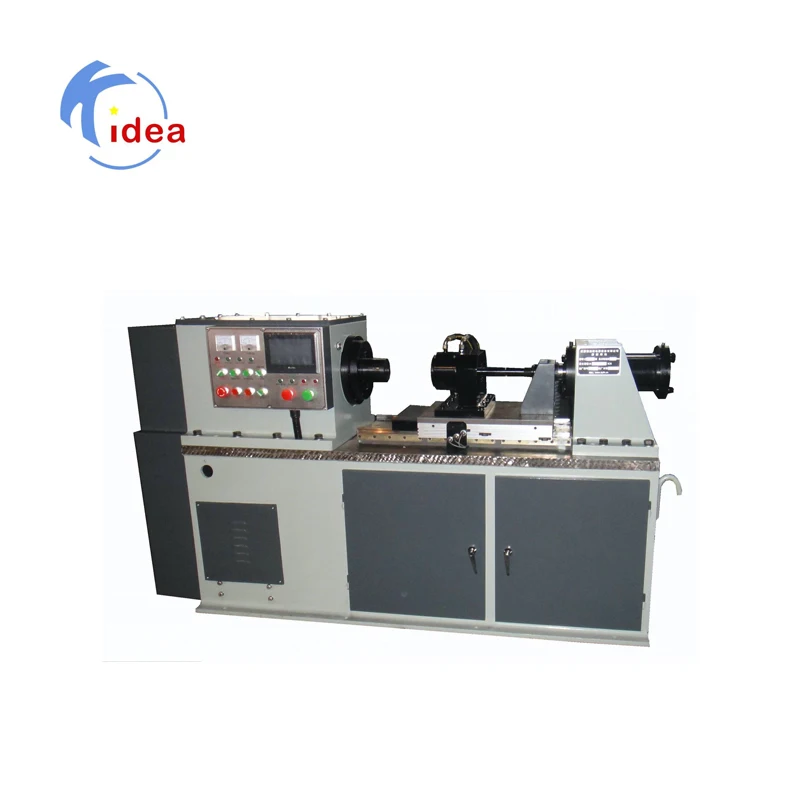

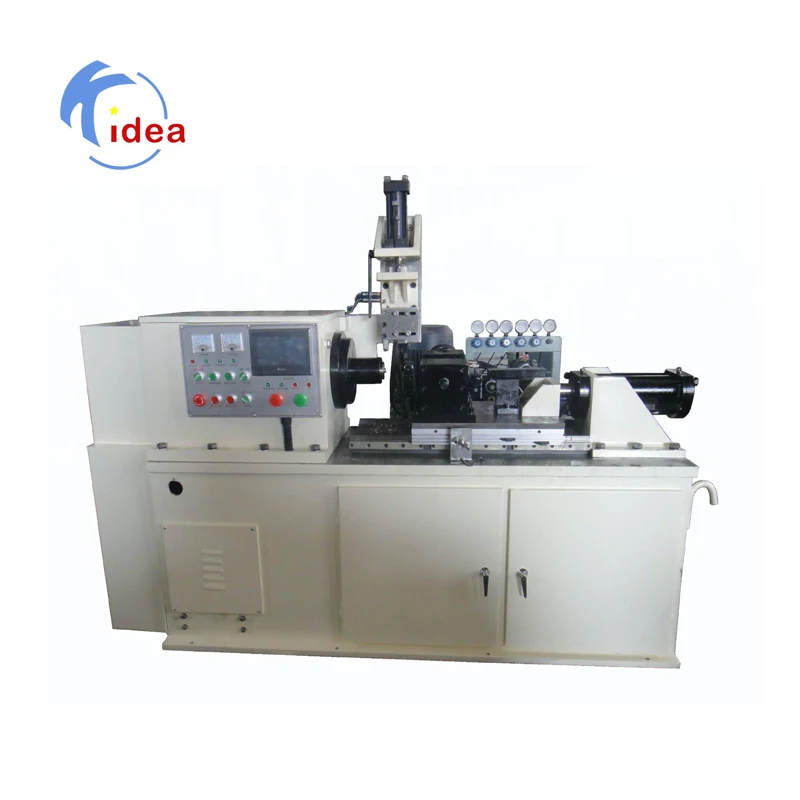

Models & Applications
Models & Capabilities | ||||||||||
Model | Max. Upset Force (KN) | Welding Diameter (mm) | Mobile Fixture Workpiece Length (mm) | Rotary Fixture Workpiece Length (mm) | RPM (Max.) Variable (r/min) | |||||
C-2.5 | 25 | 6-18 | 50-500 or unlimited | 15-300 | 2500 | |||||
C-4 | 40 | 6-18 | 50-450 or unlimited | 15-300 | 2500 | |||||
C-20 | 200 | 12-35 | 80-750 or unlimited | 50-200 | 2000 | |||||
C-20B | 200 | 14-35 | 80-750 or unlimited | 50-300 | 1800 | |||||
C-25 | 250 | 14-40 | 80-750 or unlimited | 50-300 | 1800 | |||||
C-32 | 320 | 18-50 | 80-850 or unlimited | 50-300 | 1500 | |||||
C-40 | 400 | 20-60 | 80-750 or unlimited | 50-300 | 1500 | |||||
C-50 | 500 | 18-70 | 80-750 or unlimited | 50-300 | 1350 | |||||
C-80 | 800 | 45-80 | 100-1100 or unlimited | 50-300 | 1350 | |||||
SFC-10 | 100 | 12-26 | 80-750 or unlimited | 50-200 | 0-1500 Adjustable | |||||
SFC-30 | 300 | 12-50 | 80-750 or unlimited | 50-300 | 0-1800 Adjustable | |||||
SFC-40 | 400 | 30-60 | 80-750 or unlimited | 50-300 | 0-1200 Adjustable | |||||
We customize friction welding machines as customers' requests. | ||||||||||
Product packaging
Export standard packing - Wrapping film with wooden box
Why Choose Us
Jiangsu Kidea Industry Co., Ltd is a professional friction welding machine manufacturer integrating development, research and production with strong design, development and manufacturing capabilities. Over the years, our company has been adhering to the "People- oriented, First-class" operation principle to provide domestic and foreign customers with a series of products with advanced technology, stable quality and reliable performance. They are widely used in aerospace, electric power, bearings, automobiles and motorcycles, metal cutting tools, textile machinery, petroleum geologic drilling, construction and other industries.
1. High quality with competitive price
2. More than 20 years professional experience
3. More than 5 years export experience
4. Powerful development and design team
4. Powerful development and design team
5. Strict quality assurance system
6. Customized service available
7. 24 HOURS’ ONLINE SERVICE FOR PROBLEM SHOOTING (WeChat, email, FB, WhatsApp)
6. Customized service available
7. 24 HOURS’ ONLINE SERVICE FOR PROBLEM SHOOTING (WeChat, email, FB, WhatsApp)
FAQ
Q: Are your professional manufacturer or trade company?
A: We are a professional manufacturer which is engaged in the development, research and production of friction welding machine, with strong design, development and manufacturing capability.
Q: How long is about the delivery time ?
A: It depends. Generally it is 35 days if the equipments are in stock. Or it is 2-3 months if the equipments are not in stock, it is according to quantity and the type of equipment.
Q: Is it possible to visit your factory for checking and testing the equipments ?
A: Yes, of course. You are welcome to our factory.
Q: What is your terms of payment ?
A: 30% T/T in advance, balance before shipment.
* If you have another question, pls feel free to contact us!
Contact Us
Address: Danyang, Jiangsu, China
Email: kaiwei.zhu@jskidea.com
Facebook: Kevin ZhuWhatsApp: +86 13236358258
WeChat: +86 13236358258
Похожие товары

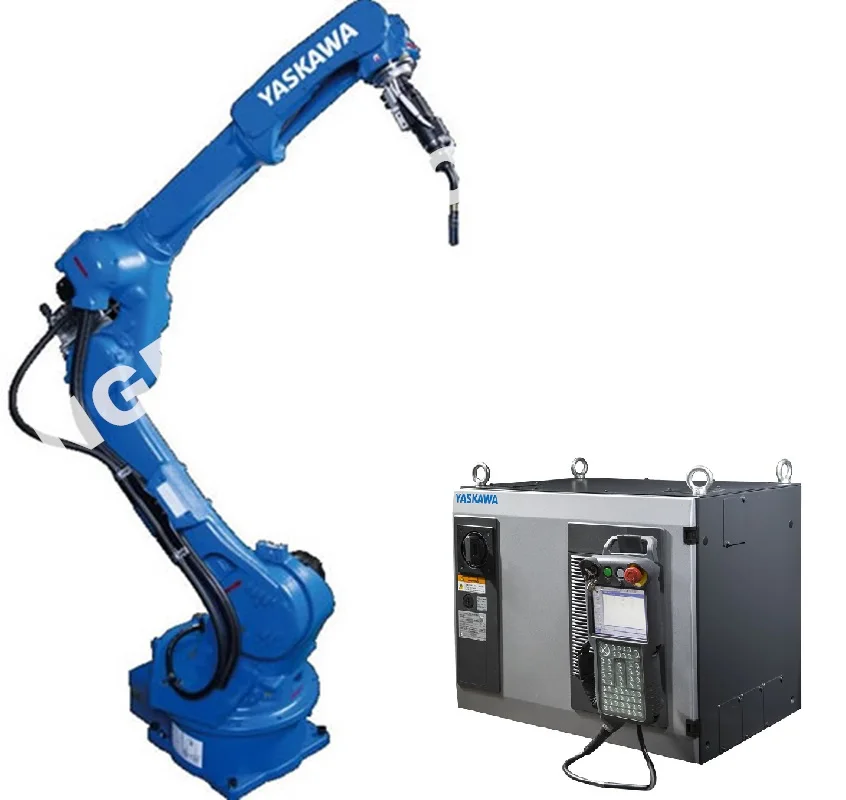

Yaskawa робот 6-осевой промышленный робот-манипулятор из AR2010 с RD350S аппарат для дуговой сварки и 2010 мм выступ Прочее сварочное
29 800,00 $

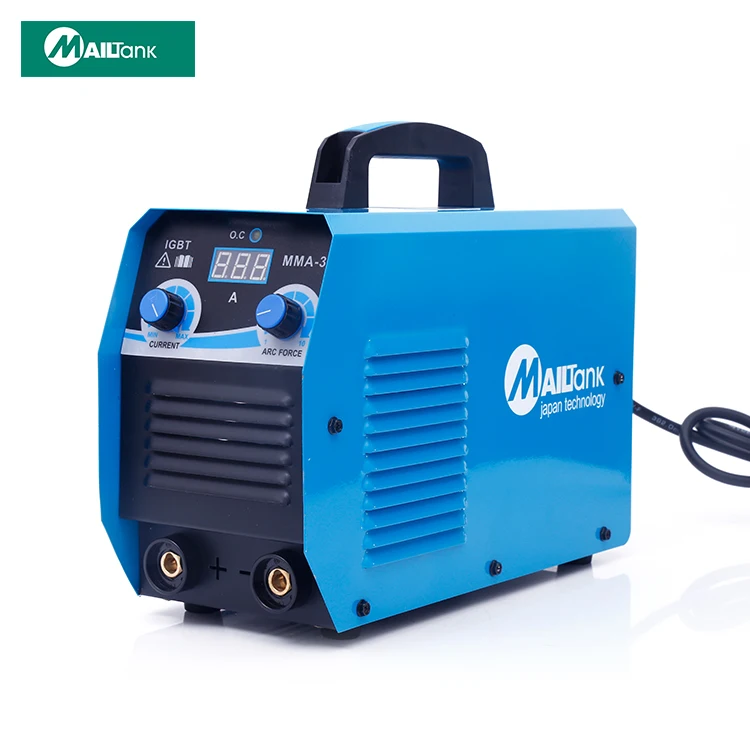

Оптовая продажа с китайского завода, полуавтоматический портативный Электрический сварочный аппарат Mailtank, цена на продажу
31,80 $ - 34,50 $

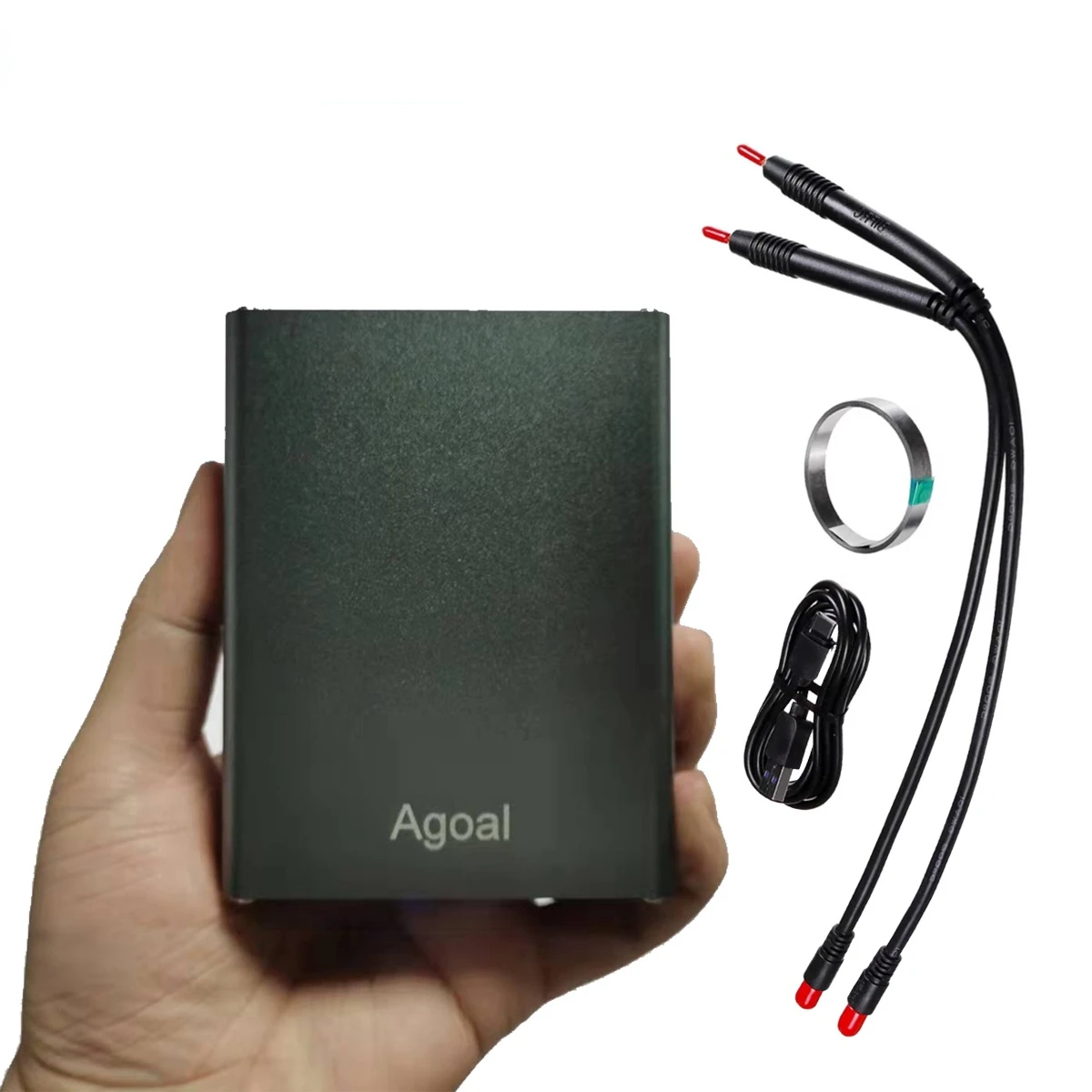

Мини-аппарат для точечной сварки Welderkit DD3.0 с никелевой пластиной быстрого крепления для аккумулятора 18650, точечный сварочный аппарат
MOSDAR MIG-120 3 в 1 стальной алюминиевый сварочный аппарат 120 Ампер газа и интегрированный MMA-TIG FCAW
65,00 $ - 71,00 $

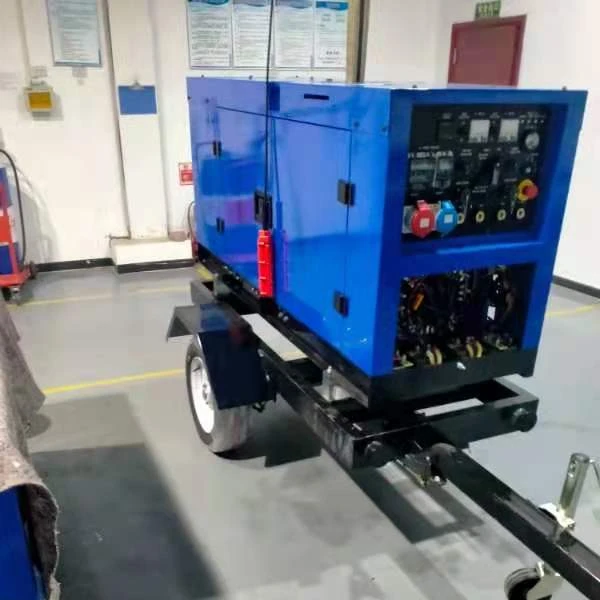

ДИЗЕЛЬНЫЙ СВАРОЧНЫЙ АППАРАТ KOVO китайский сварочный аппарат с приводом двигателя большой синий

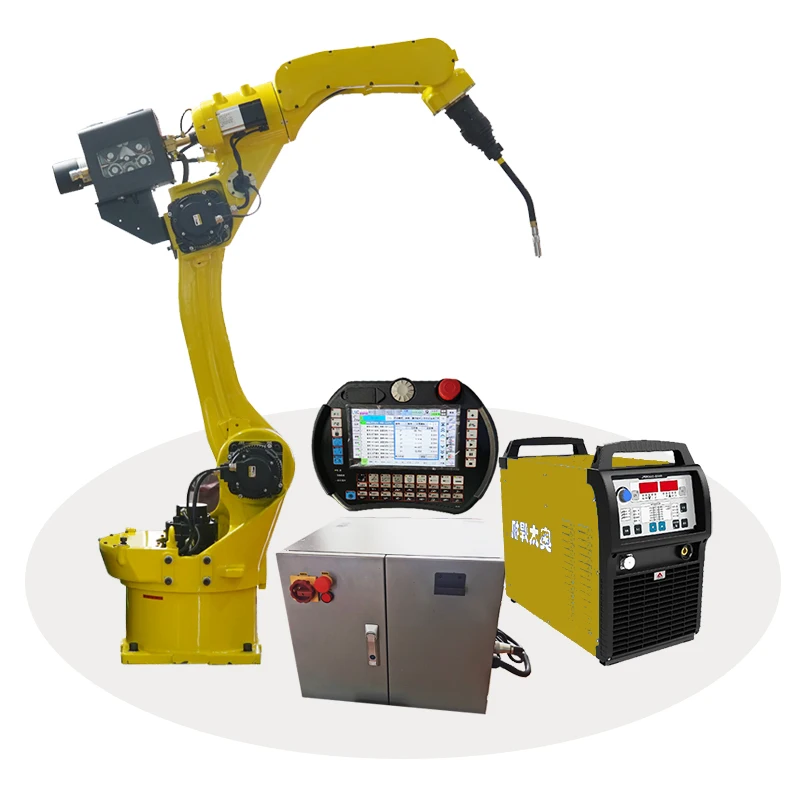

Тиг Миг промышленный робот-манипулятор 6 оси сварочный автоматический
3 722,00 $ - 12 500,00 $

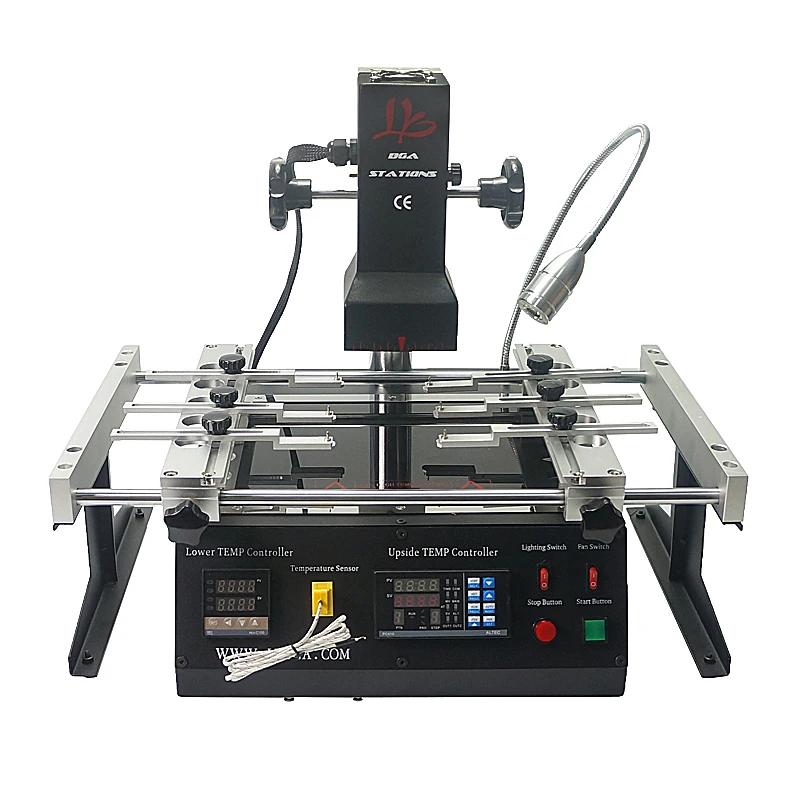

2300 Вт инфракрасная BGA наладочная станция LY IR6500 V.2 BGA сварочный аппарат 2 зоны с программным управлением PC410 для ремонта микросхем IC
