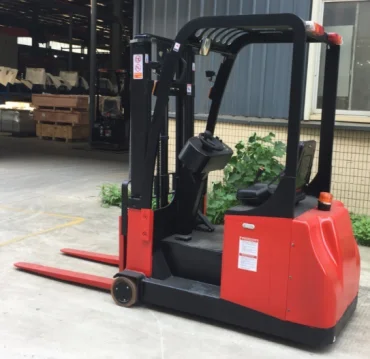

Все электрические грузовики, управляемые небольшими 0,5 тонными умными вилочными погрузчиками
1 300,00 $

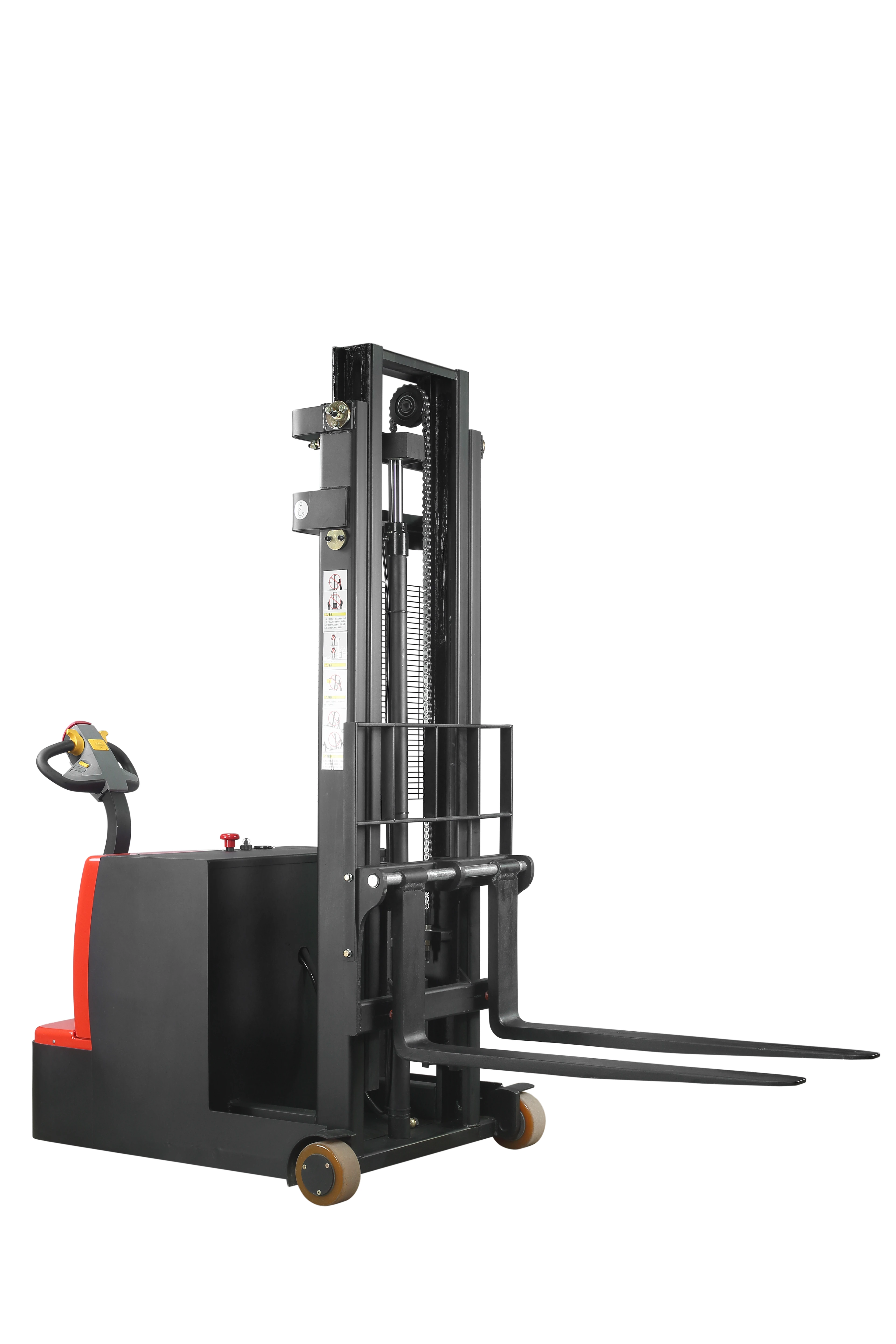

800 кг противовес безногий электрический штабелер Электрический для вилочных погрузчиков
- Категория: Forklifts >>>
- Поставщик: Ningbo Everlift Machinery Co. Ltd.
Сохранить в закладки 1600055384135:
Описание и отзывы
Характеристики
Details Images
Product advantages
1. Simple, flexible, light weight and small turning radius make the truck suitable use
in extremely narrow aisle.
in extremely narrow aisle.
2. Strong structure and open layout make the maintenance easy
3. Same hydraulic pump with the hand pallet, simple and reliable
4. Integrated handle integrates key and meter make the operation easy and confortable.
3. Same hydraulic pump with the hand pallet, simple and reliable
4. Integrated handle integrates key and meter make the operation easy and confortable.
- Capacity:800kg, DC motor/Curtis controller
- Lift height is 1.6m
- Legless stacker,fit for single/double-faced pallet
- Electric Power Steering is optional, Intelligent charger
- Curve automatic deceleration device, more safe
- 24v/120Ah maintenance-free quality battery
- Min. Turning Radius：1140mm
- Emergecy stop/hour meter/Battery level indicator
- Lift height is 1.6m
- Legless stacker,fit for single/double-faced pallet
- Electric Power Steering is optional, Intelligent charger
- Curve automatic deceleration device, more safe
- 24v/120Ah maintenance-free quality battery
- Min. Turning Radius：1140mm
- Emergecy stop/hour meter/Battery level indicator
Product Description
Model | Unit | ELES-08CE | |
Feature | Power | Battery | |
Loading Capacity | Q(kg) | 800 | |
Loading Center | C(mm) | 450 | |
Dimension | Max Fork Lift Height | H(mm) | 1600/2000/2500/3000 |
Min. Fork Height | H1(mm) | 65 | |
Overall Fork Width | E(mm) | Adjustable | |
Fork Length | L(mm) | 1070 | |
Fork Thickness | H3(mm) | 32 | |
Single Fork Width | B1(mm) | 100 | |
Overall Length | A(mm) | 2300 | |
Overall Width | B(mm) | 1065 | |
Mast Lowered Height | H4(mm) | 2075/1540/1790/2040 | |
Max extend height | H5(mm) | 2075/2495/2995/3495 | |
Min. Turning Radius | Wa(mm) | 1140 | |
Performance | Driving Speed | Km/h | 3~5 |
Lifting Speed | m/s | 0.07~0.13 | |
Lowing Speed | m/s | 0.1~0.13 | |
Gradeability | % | 4~6 | |
Wheels | Wheel Material | PU | |
Driving Wheel | mm | φ210*70 | |
Loading Wheel | mm | Φ160*70 | |
Motor | Driving | Kw | DC0.75 |
Lifting | Kw | DC2.2 | |
Battery | Voltage | V | 24 |
Capacity | ah | 120AH/12v(X2) | |
Brake | Electromagnetic | ||
Controller | CURTIS 1212P | ||
Self Weight | KG | 1230 |
Company Profile
Certifications
Customers Visiting
Packaging &Shipping
Related Products
F&Q
Q1: How long is the Warranty for EVERLIFT product?
A1: EverLIFT provides 12 months or 1000 hours for the whole machine from on board time.
Q2: How about the delivery time?
A2: Usually EverLIFT producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: How about the continuous working time for the electric series forklifts ? And How long time to charge the battery full ?
A3: EverLIFT battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 8 - 12 hours to charge the battery, EverLIFT's charger is automatic, after the battery is full, it will stop working automatically.
Q4: Can EverLIFT provide customized products? OEM products or ODM products?
A4: Yes, EverLIFT can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special reqeust.
Q5: What’s the specification of the chargers?
A5: Our chargers voltage could be 110V 220V 240 380V 415V ( 1 phase or 3 phases,50/60HZ). Power plug could be
USA/UK/AUSTRALIA/EUPROPEAN standard.
Q6: Could we request our own color for the products?
A6: Yes, of course, you just need to offer us the RAL code.
A1: EverLIFT provides 12 months or 1000 hours for the whole machine from on board time.
Q2: How about the delivery time?
A2: Usually EverLIFT producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: How about the continuous working time for the electric series forklifts ? And How long time to charge the battery full ?
A3: EverLIFT battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 8 - 12 hours to charge the battery, EverLIFT's charger is automatic, after the battery is full, it will stop working automatically.
Q4: Can EverLIFT provide customized products? OEM products or ODM products?
A4: Yes, EverLIFT can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special reqeust.
Q5: What’s the specification of the chargers?
A5: Our chargers voltage could be 110V 220V 240 380V 415V ( 1 phase or 3 phases,50/60HZ). Power plug could be
USA/UK/AUSTRALIA/EUPROPEAN standard.
Q6: Could we request our own color for the products?
A6: Yes, of course, you just need to offer us the RAL code.
Похожие товары

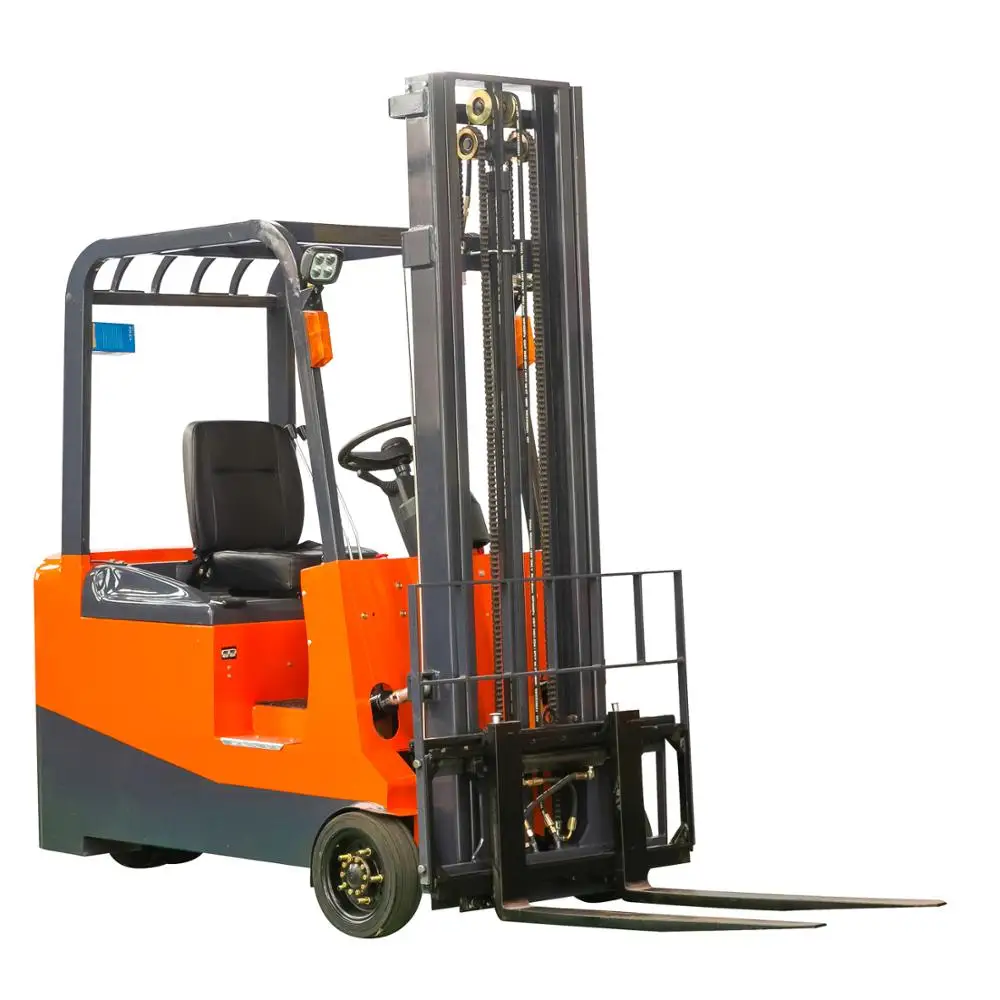

Размеры аккумуляторного электрического вилочного погрузчика с тремя колесами
3 000,00 $ - 4 000,00 $

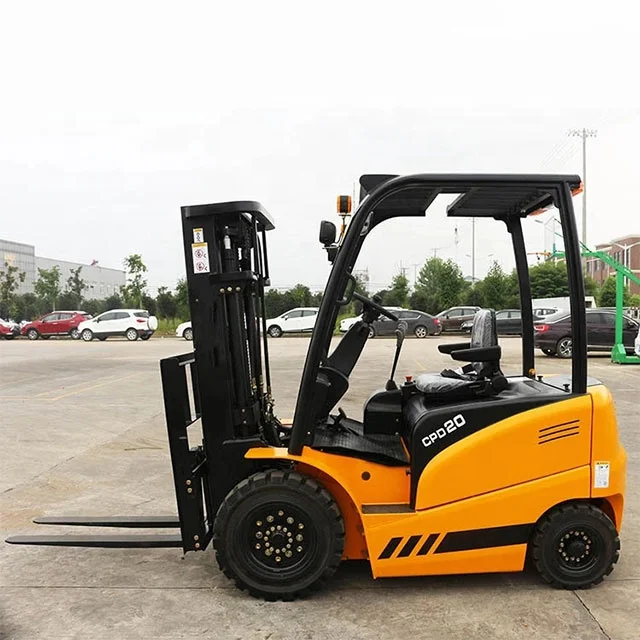

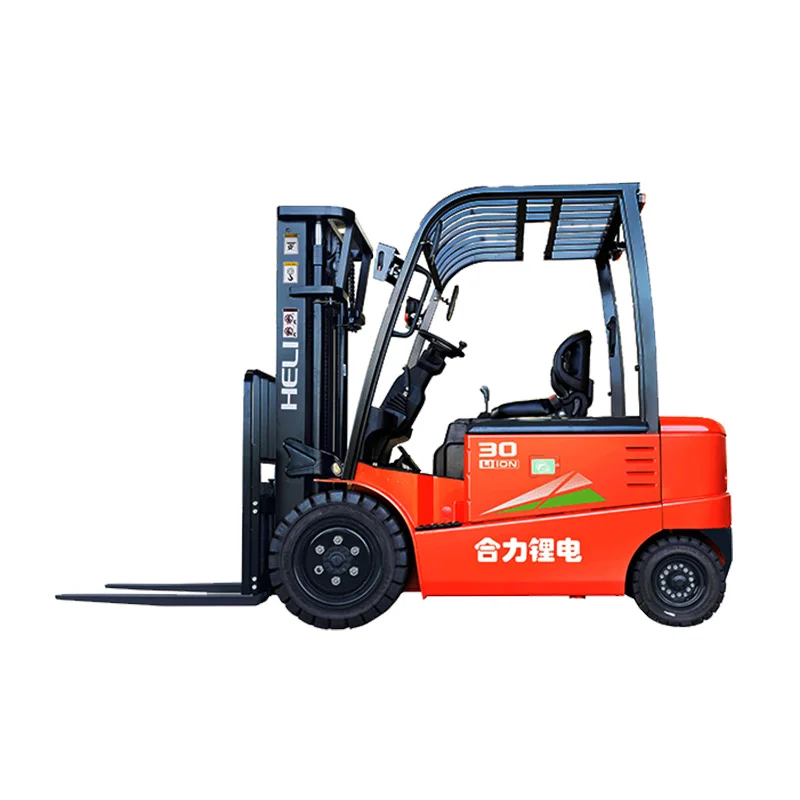

Heli CPD35 маленький аккумулятор 80 в Электрический вилочный погрузчик цена 3,5 тонны грузоподъемность
Китайский Электрический вилочный погрузчик 1 тонна 1,5 тонны 2 тонны новый вилочный погрузчик контейнер Мачтовый боковой переключатель
1 359,00 $ - 1 428,00 $
3,5 t вилочный Погрузчик Электрический мини вилочный погрузчик зарядное устройство 40v/80a вилочный погрузчик
5 400,00 $ - 6 800,00 $

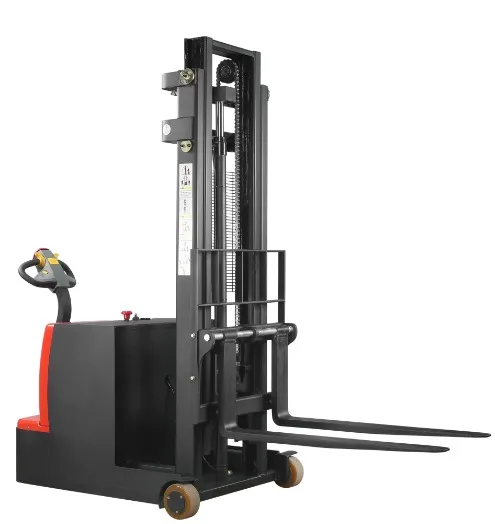

4 м подъемный Полу Электрический штабелер ходящий тип Электрический со штабелёром вилочный погрузчик
Высококачественный ручной гидравлический вилочный погрузчик для продажи в Дубае

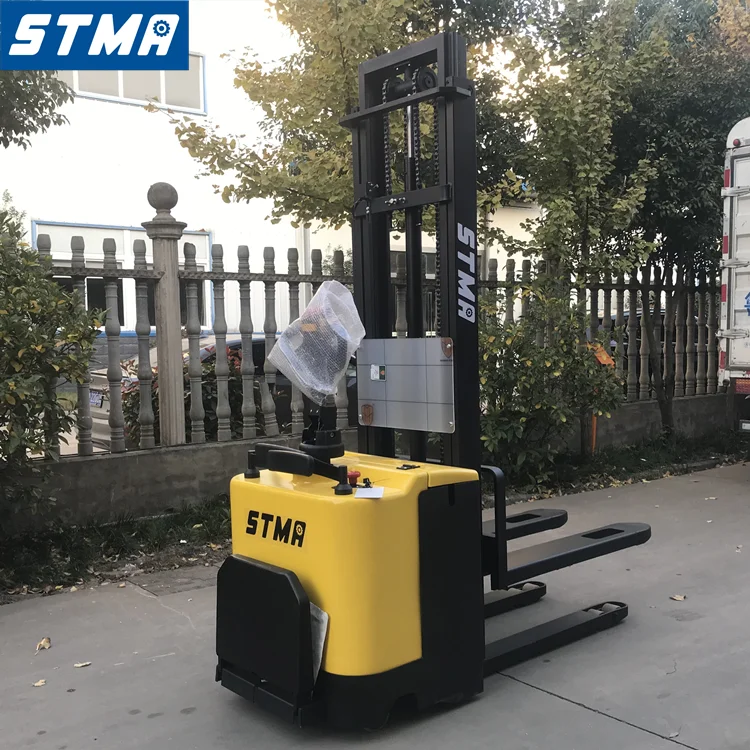

STMA 1,5 тонна 2 тонна 2,5 тонна стоячий полный электрический штабелер с дополнительным 3,5 м 4 М 4,5 м 5 м 5,5 м
