10 Ports Full Gigabit Managed Industrial PoE Switch
8*GE PoE+2*GF Managed Industrial PoE Switch
Product Description
* 8*10/100/1000M + 2*1000M SFP fiber Port Industrial PoE Switch,1-8 ports support IEEE 802.3af/at;
* PoE port support AF/AT intelligent recognition. Standard power is 15.4W/port, Maximum power: 30W/port;
* Only support 1,2(+)/3,6(-);
* Support L2+ full network management, PoE network management and configuration;
* PoE port support AF/AT intelligent recognition. Standard power is 15.4W/port, Maximum power: 30W/port;
* Only support 1,2(+)/3,6(-);
* Support L2+ full network management, PoE network management and configuration;
* Switching capacity:192Gbps, MAC table:8K;
* Input voltage: DC48-57V, Redundant dual power 5-bit industrial terminals;
* Input voltage: DC48-57V, Redundant dual power 5-bit industrial terminals;

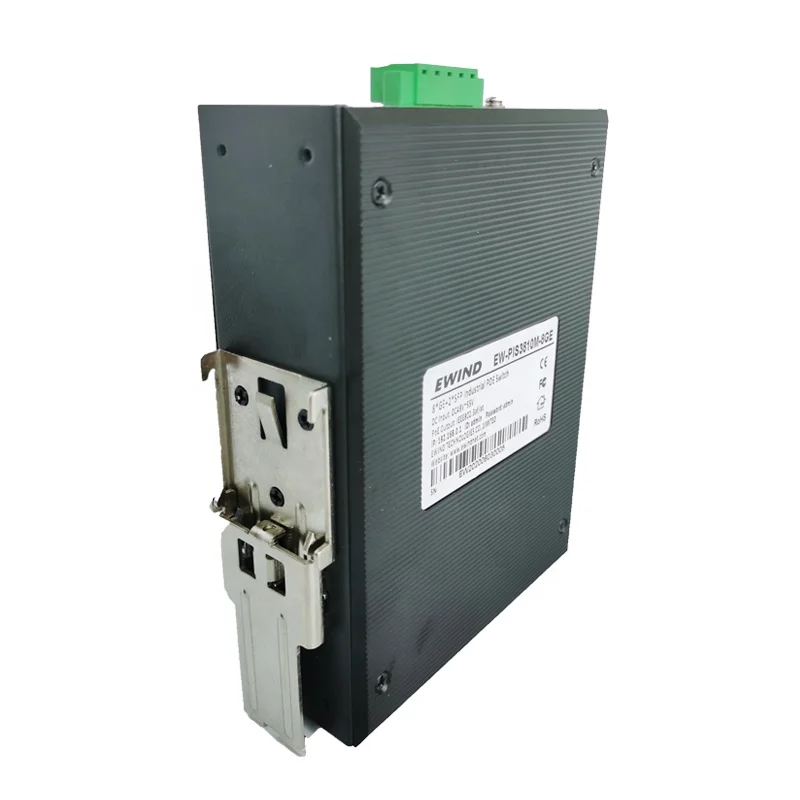

* IP protection level: IP40; Rail-type installation;
* 5 years warranty.
Introduction

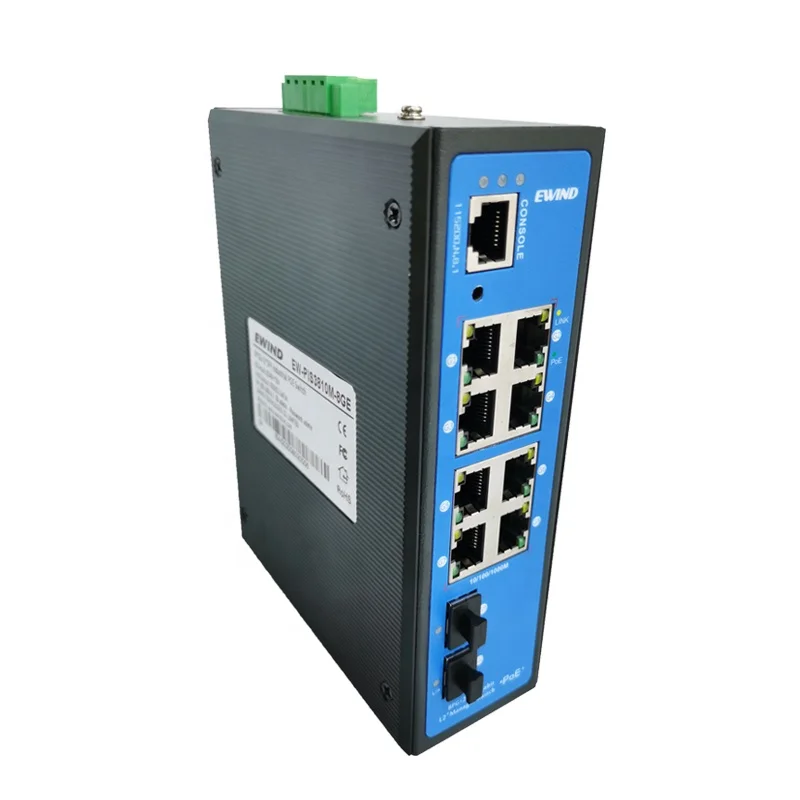

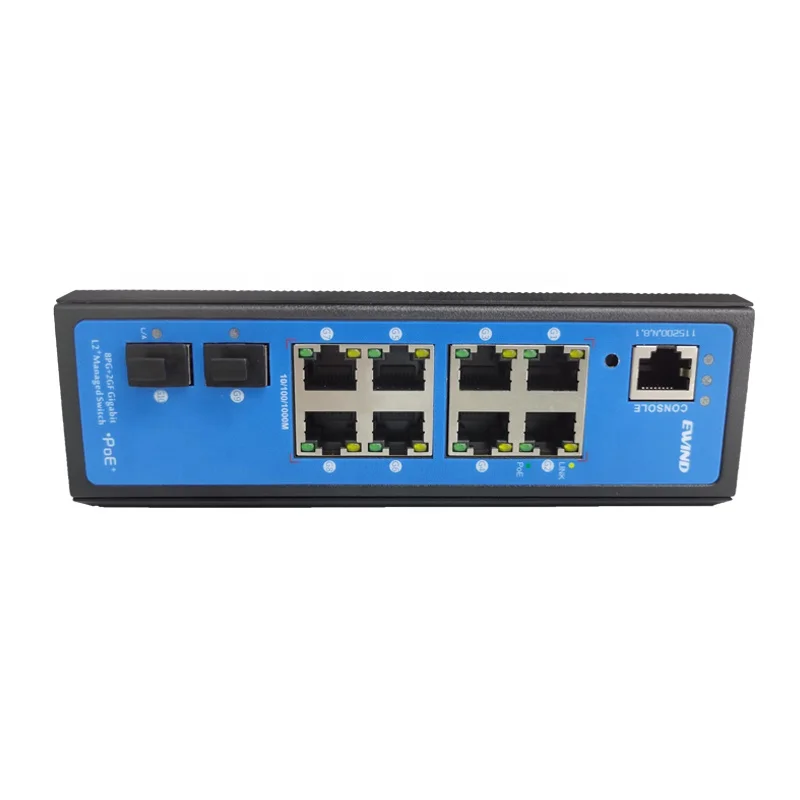

The EW-PIS3810M-8GE is a full Gigabit managed industrial PoE switch. it has 8*10/100/1000M PoE ports and 2*100/1000 SFP fiber slot ports, port 1-8 can support IEEE 802.3af/at standard POE power supply, single port POE power up to 30W, and the maximum POE output power is 120W (at-240W). As a POE power supply device, it can automatically detect and identify the electrical equipment that meets the standard and supply power through the cable. It can supply the POE terminal equipment, such as wireless AP, network camera, network telephone, industrial sensor and so on, to meet the demand for high density PoE power supply network environment. It is suitable for intelligent transportation, rail transportation, electric power industry, mining, metallurgy and green energy construction and so on. A reliable communication networks.
Managed model supports a variety of network redundancy protocol STP/RSTP/MSTP (<50ms). When one-way network fails, communication can be recovered quickly to ensure uninterrupted communication of important applications. EW-PIS3810M-8GE industrial series products fully follow industrial product design and material. The shell adopts aluminum alloy to enhance heat dissipation efficiency, IP40 protection grade, and ensures the stable operation of the equipment in bad environment. According to the actual application needs, through Web, CLI, SNMP network management, POE power supply management, port flow control, VLAN division, STP, RSTP and other functions of the application service configuration.
Managed model supports a variety of network redundancy protocol STP/RSTP/MSTP (<50ms). When one-way network fails, communication can be recovered quickly to ensure uninterrupted communication of important applications. EW-PIS3810M-8GE industrial series products fully follow industrial product design and material. The shell adopts aluminum alloy to enhance heat dissipation efficiency, IP40 protection grade, and ensures the stable operation of the equipment in bad environment. According to the actual application needs, through Web, CLI, SNMP network management, POE power supply management, port flow control, VLAN division, STP, RSTP and other functions of the application service configuration.
TECHNICAL SPECIFICATION
Model | EW-PIS3810M-8GE |
Interface | 8*10/100/1000Base-TX PoE ports (Data/Power) 2*10/100/1000M RJ45 ports (Data) 1 * RS232 console port (115200, N,8,1) 2 set of V+, V- redundant DC power interface (5 Pin Phoenix terminal) |
PoE Port | Port 1-8 supports POE @ IEEE802.3af/at |
Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x |
PoE Standard | IEEE802.3af/at |
Ethernet Port Feature | 10/100/1000BaseT (X) automatic detection, full / half duplex MDI/MDI-X adaptive |
SFP Port Characteristic | Gigabit SFP optical fiber interface, default matching optical modules, need to buy separately, (optional order mode / multi-mode, single fiber / double fiber optical module. |
Forwarding Mode | Store and Forward (Full Wire Speed) |
Switching Capacity | 192bps (Non-blocking) |
Forwarding Rate@64byte | 14.88Mpps |
MAC | 8K |
Buffer Memory | 4M |
Jumbo Frame | 10K |
Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP (≤100 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5e or later UTP (≤100 meter) |
Optical Cable | Multimode: 850nm 0 ~ 500M; Single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM. |
Power Supply Pin | Only support 1/2 (+), 3/6 (-) 4-core power supply |

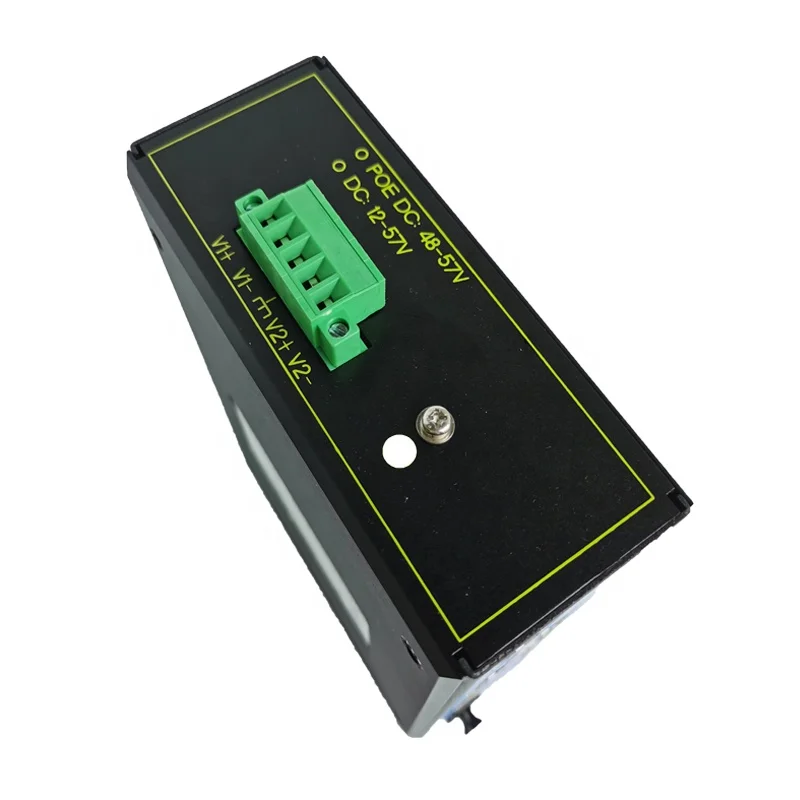

Working Voltage | 48-57VDC; 5 Pin industrial Phoenix terminal, support anti-reverse protection. |
Max Power Per Port | 30W; IEEE802.3af/at |
Total PWR / Input Voltage | 240W (48-57VDC) |
Power Consumption | Standby:<10W; Full load:<240W |
LED Indicator | System indicator: SYS (green); Network Indicator: Link (yellow); SFP Indicator: L/A (green); PoE Indicator: PoE (green) |
Power Supply | No, optional 48V/120W or 48V/240W industrial power supply |
Operation TEMP / Humidity | -40~+75°C;5%~90% RH Non condensing |
Storage TEMP / Humidity | -40~+85°C;5%~95% RH Non condensing |
Dimension | 165*120*52mm |
Net /Gross Weight | <0.8kg / <1.2kg |
Lightning protection / protection level | Lightning protection: 6KV 8/20us; Protection level: IP40 IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable: ±4kV; data cable: ±2kV IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV; data cable: ±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV, DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022): Class B IEC61000-6-2(Common Industrial Standard) |
Mechanical Properties | IEC60068-2-6 (anti vibration) IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall) |
Certification | CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS; |
Warranty | 5 years, lifelong maintenance. |
DIMENSION
APPLICATION
PACKING LIST
CONTENT | QTY | UNIT |
10 Ports Full Gigabit Managed Industrial PoE Switch (EW-PIS3810M-8GE) | 1 | SET |
User Guide | 1 | PC |
Warranty Card | 1 | PC |
Related Products
Company Profile
Our Advantages
Package & Shipment
FAQ
Похожие товары
35126375 DELPHI оригинальный 4p разъем Вилки аксессуары клеммы штекеры
0,01 $ - 3,80 $

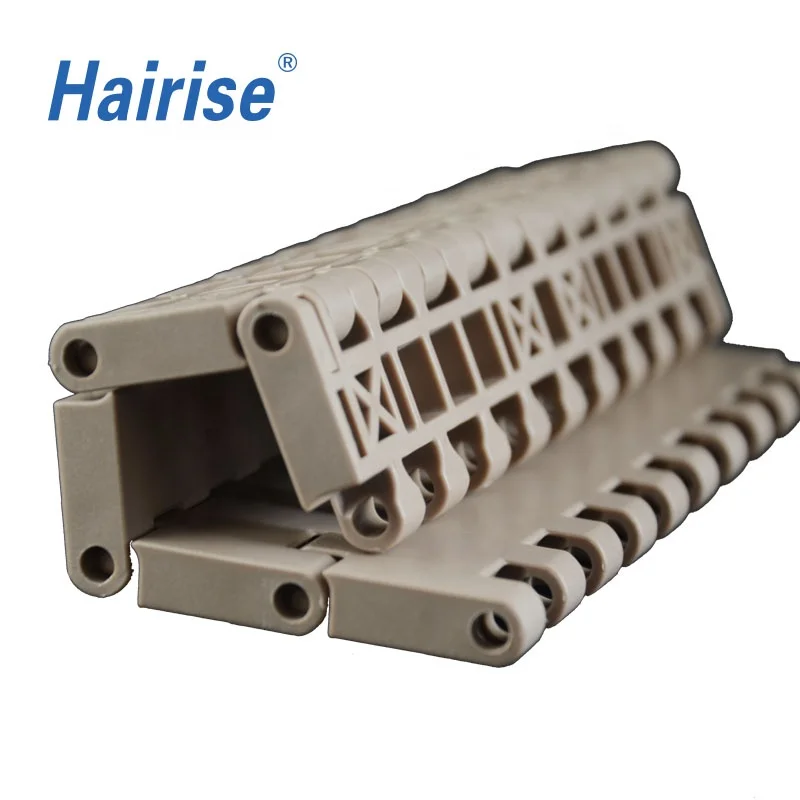

Высококачественная пищевая серия Har1600T, плоская верхняя модульная пластиковая конвейерная лента
Автозапчасти PCV клапан OE 0361,58 для PSA Citroen BX Peugeot 205
14,00 $ - 16,00 $

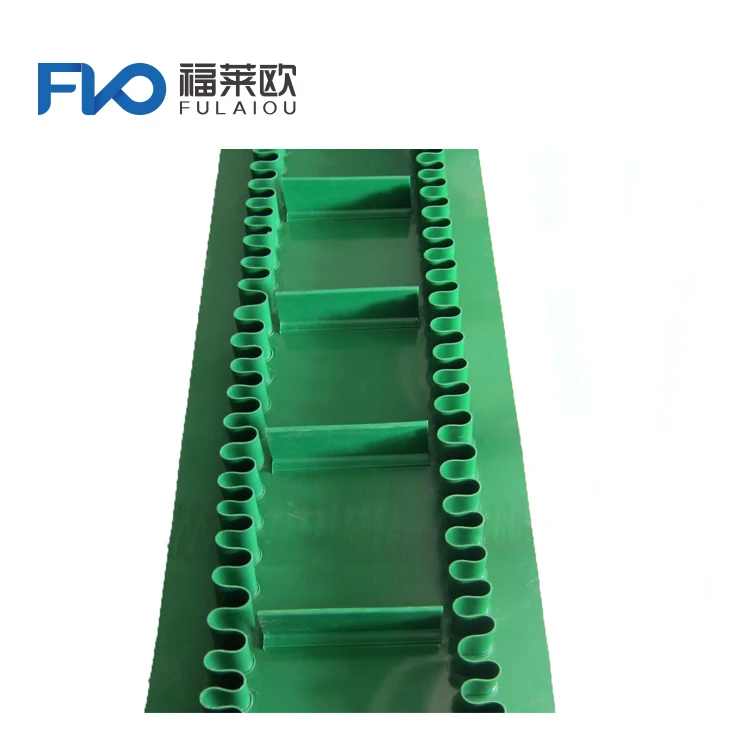

Индивидуальный цвет, наклонная боковая стенка, ПВХ конвейерная лента с шипами, подъемная конвейерная лента
20,62 $ - 20,96 $

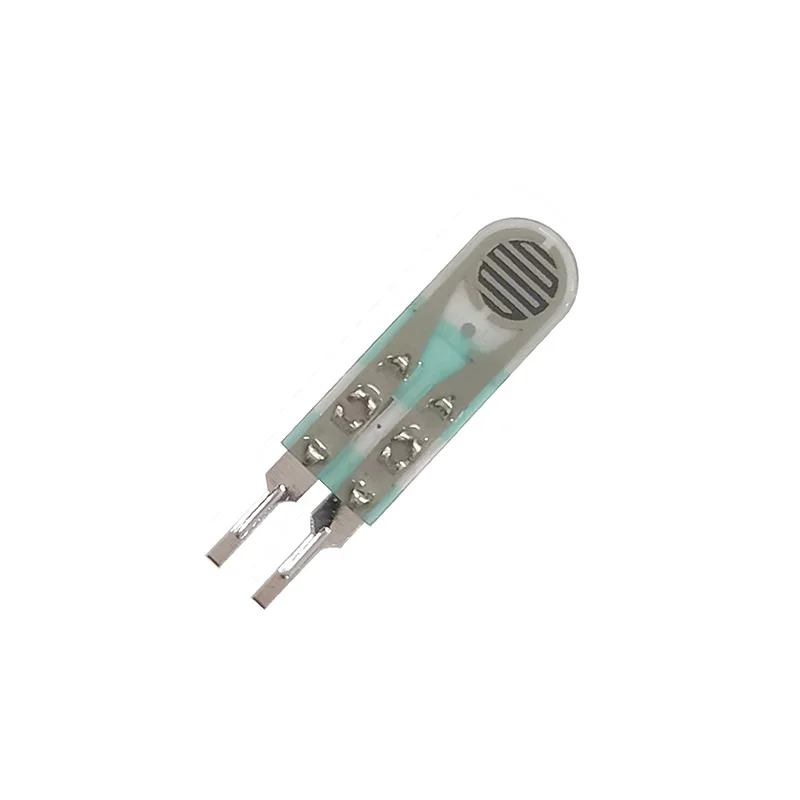

RP-C5-ST FSR гибкий датчик давления датчика давления пера медицинский прибор крошечное пространство
0,92 $ - 1,58 $

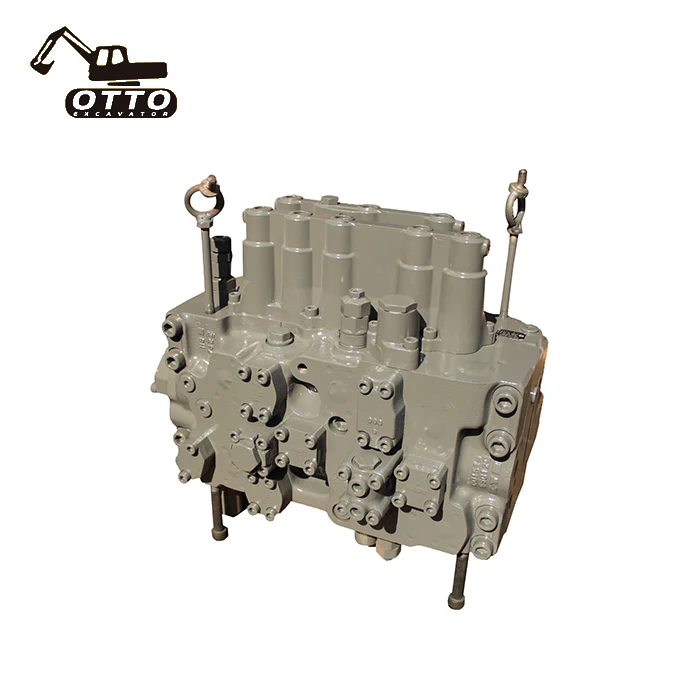

Гидравлический регулирующий клапан Hitachi ZX330-3 ZX350-3 главный гидравлический распределительный клапан 4625137
8 000,00 $

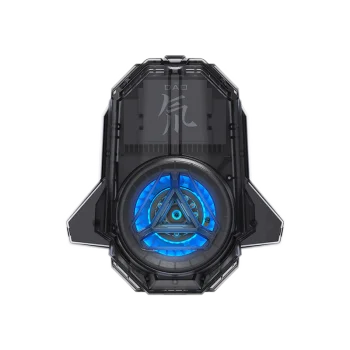

Кулер для телефона Nubia Red Magic 7 7 Pro, турбо вентилятор, совместимый с Redmagic 6, 6 Pro, 6R, универсальный радиатор для игрового телефона на Android/IOS
