Hot Selling Perfume Filling Machine With Low Price
[product model]

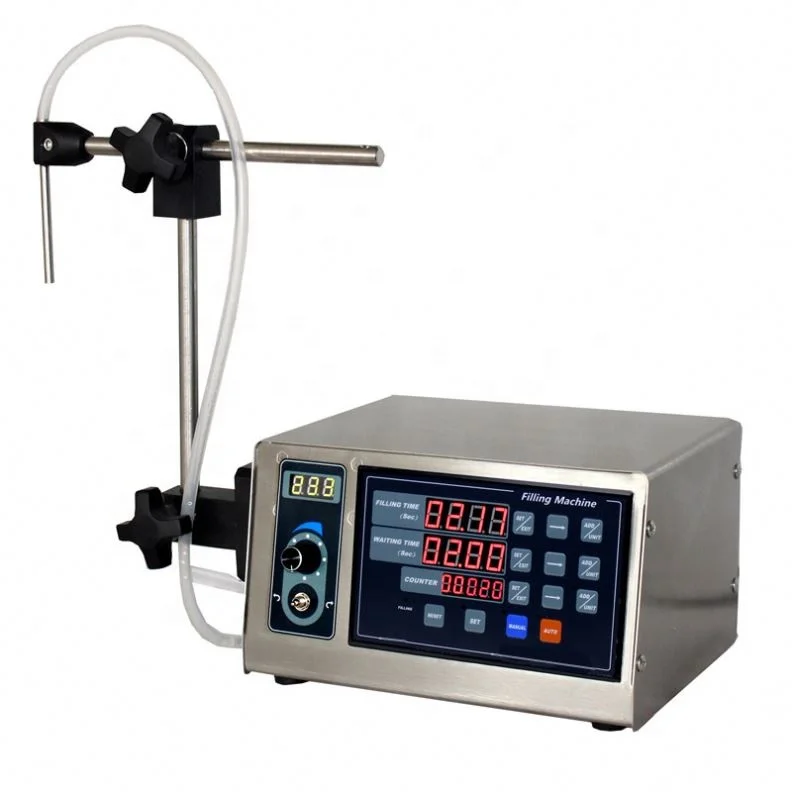

DC1-6B plus Peristaltic Pump filling machine
| Features |
Speed display function, LED display speed, speed range 1-300rpm, speed resolution 1rpm
Liquid reflux function, right and left button switch to adjust the direction of liquid flow, convenient for liquid recovery.
Flow range: 0-500ml/min
Filling range: 0.1-8000mL
Adopt DITRON-LED-DISPENSER-1 intelligent operation technology,imported chip STM32
control,With timing quantitative filling,high precision, Flow accuracy±1%
Peristaltic pump filling, 42 stepper motor drive, 128 Times segmentation, low vibration, high
precision; the liquid only through the tube, don't touch pump body, to avoid secondary
pollution.
The tube is the import long-life Pharmed soft tube, anti-corrosion
To Fill beverage, wine, petroleum, chemical, oil, pharmaceutical, pesticide and other viscosity or
impurity liquid.
To fill nutrient medium, medical reagent
Imported potentiometer knob to adjust the flow
Support running time preset, interval time preset, filling time memory and preset
Manual, auto, preset 3 filling modes for choice

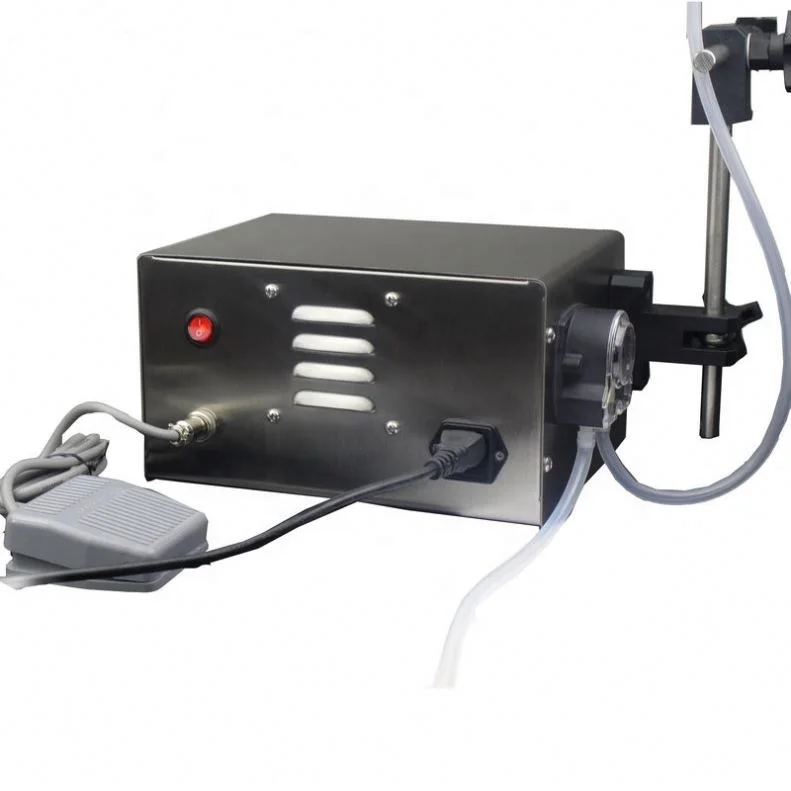

Foot switch control
304 stainless steel nozzle
Excellent industrial design, 304 stainless steel shell
Widely power range, AC 90-260V, 50Hz/60Hz
| Technical Parameter |
Model | DC1-6B plus Peristaltic Pump filling machine |
Filling pump | S300-JZ15 peristaltic pump |
CPU | ARM Cortex-0 Core, STM32 Chip |
Motor drive chip | THB6128 SANYO driver chip |
Filling tube | Import 17# long-life peristaltic pump tube (with the import food grade silicone connection tube ) |
Filling range | 0.1-8000mL, |
Flow range | 0-500mL/min |
Speed display range | 1-300rpm |
Flow adjust | Rotary coding switch to adjust the speed, speed resolution 1rpm |
Flow adjust | potentiometer knob to adjust the flow |
Filling nozzle | Single |
Filling mode | Manual,auto, preset three filing modes for choice |
Display | LED screen display the running data |
Filling time preset | 0.01s-999.9s |
Interval time preset | 0.01s-999.9s |
Filling times | Maximum 59999 times |
Filling time preset | Accumulate filling times, preset the filling time for choice |
Operation mode | Membrane keypad operate, convenient, quick and reliable ;Import potentiometer knob to adjust the flow |
Power-down memory function | After power on, running as before |
Foot switch control | Foot switch control more convenient |
Filling stand | Both height and length of the Stand are adjustable |
Filling nozzle | 304 stainless steel nozzle |
Power consumption | <40W |
Power supply | Wide voltage AC90-260V,50Hz/60Hz |
Operation conditions | Temperature 0 to 40 °C, Relative humidity < 80% |
Dimensions | 250mmX180mm×140mm (doesn’t including the filling stand) |
Weight | 3.5KG |
IP rating | IP31 |
| Selection Guide |
Filling volume target(ml) | Filling time(Sec) | Actual filling volume(ml) | Actual filling volume(ml) | Actual filling volume(ml) | Actual filling volume(ml) | Actual filling volume(ml) |
5ml | 0.7 | 4.99 | 4.90 | 4.96 | 4.90 | 4.90 |
10ml | 1.4 | 10.16 | 10.01 | 10.04 | 10.33 | 9.99 |
20ml | 2.87 | 19.99 | 19.86 | 19.93 | 20.11 | 19.86 |
50ml | 7.10 | 50.05 | 50.34 | 50.13 | 50.27 | 50.06 |
100ml | 15 | 99.86 | 99.68 | 99.56 | 100.15 | 99.90 |
1 Above data are actual testing result of 5 times, at highest filling speed 2 Test media is water, the data is influenced by testing media 3 Flow volume decrease when media viscosity increases, or filling time increases | ||||||
| Peristaltic pump advantages |
Peristaltic Pump also called peristaltic hose pump, the actual pumping principle is peristalsis.It is based on squeezing and releasing the hose or tube alternately , then tube forming negative pressure to transfer the liquid. The liquid doesn’t touch Pump body, to avoid cross infection; also transfer with high accuracy, so it is widely used in many industries, such as Scientific research, pharmacy, Chemical, Food, Printing etc. Along with the improvement of the tube, the pump also used to transport some special liquid (strong acid, alkali, organic solvent etc.)
| Product Application |
It is suitable for filling most liquids (including high viscosity liquid). The main industries are pharmaceutical machinery, filling machine, medicine, cosmetics, food, beverage and oral liquid.
| Company Profile |
Baoding Landto Electronic Technology Co., Ltd is a professional high-tech enterprise which headquarter is located in Hebei province, China. We are specialized in developing and producing various precision pump and related products, including Filling machine, Peristaltic Pump, syringe Pump and Piston Pumps. The products are exported to more than 50 Eurasia and American countries, Such as USA, Germany, Turkey, Brazil, South Korea, Singapore, Malaysia etc. We sincerely look forward to your cooperation.
| Certification |
| FAQ |
Q: How long is your delivery time?
A: Generally it is 3-5 days; It is according to quantity.
Q: What is your term of payment?
A: Payment: T/T, western union, Paypal or credit card.
Q: How can I get the machine if I place an order.
A: We usually ship by express including DHL, FedEx, and also ship by air freight.
