Why Choose Us
About HuaNianNeng
Hualianneng is a high-tech company for R&D, producing ,selling lithium battery PACK machine, providing smart manufacturing solution for lithium battery PACK assembly over 12 years. Our experienced engineers effectively ensure the advanced and practical products.
Products Description
Item | Battery Sorting Machine |
Model | HLN-18FX-2D |
Operation Voltage | AC220V ± 10% 50Hz |
Rated Power | <100W |
Application Battery | 18650 |
Sorting Channel | 2 Channels |
Sorting Parameter | AC Internal Resistance & DC Voltage |
Productivity | 2000 PCS/H |
Internal Resistance Test Tolerance | 0.1 mΩ |
Voltage Test Tolerance | 0.001 V |
Feeding | Hopper feeding, 500 PCS per time. |
Pneumatic Pressure | 0.3-0.5 Mpa |
Actuate Ratio | 99% |
Net Weight | 25 Kg |
Dimension | 400(L)×395(W)×650(H) mm |
HLN-18FX-2D cylindrical battery sorter is the test sorting device for parameters such as internal resistance and voltage of cylindrical battery. According to the battery internal resistance and voltage value, the device can accurately sort the battery to the corresponding channel, and the system can perform the GO Channel and NG Channel sorting. This model with its compact structure design is the smallest size and most cost-effective sorter in the market.

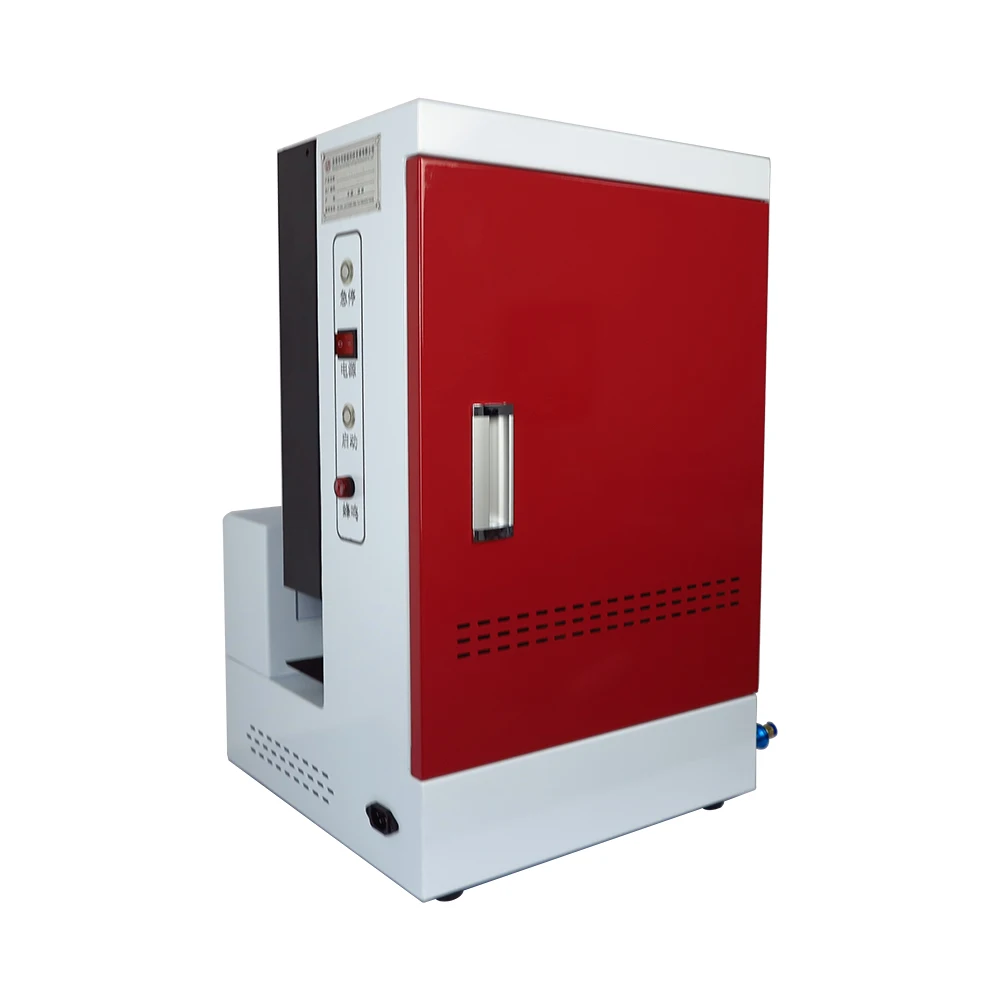

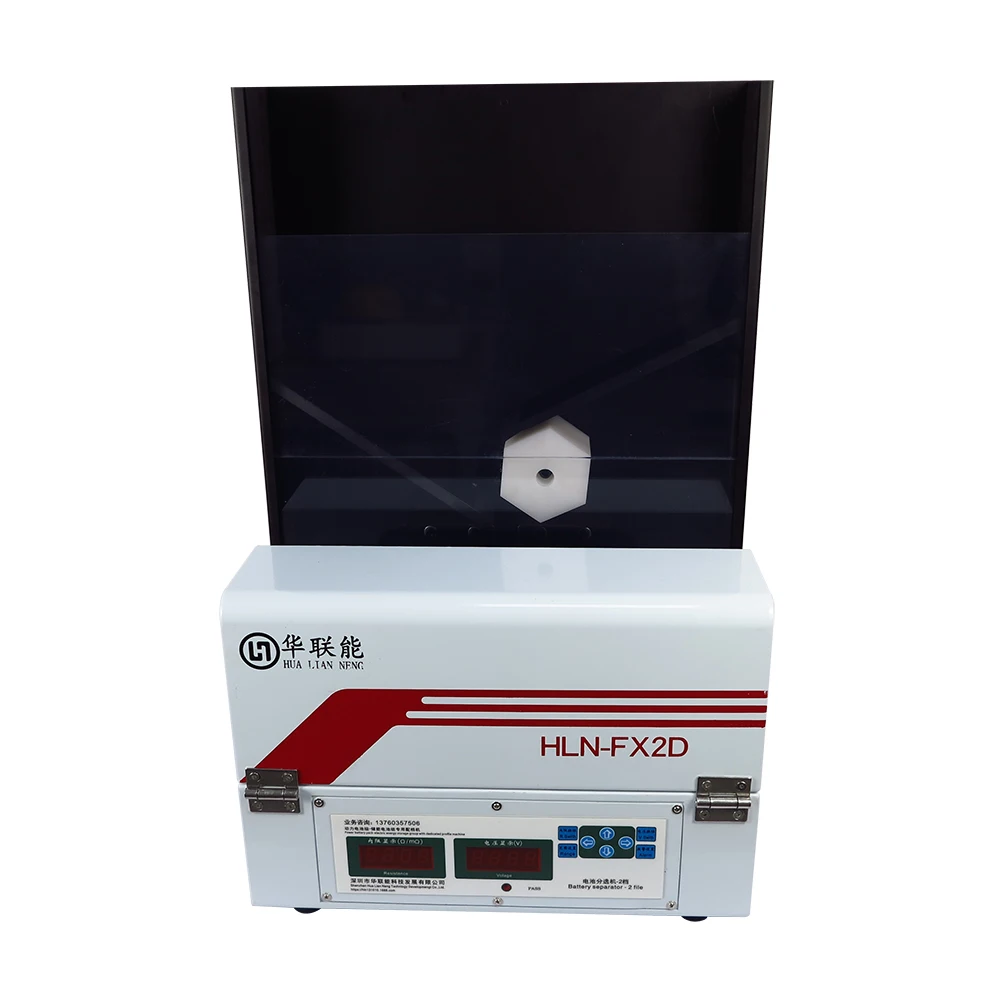

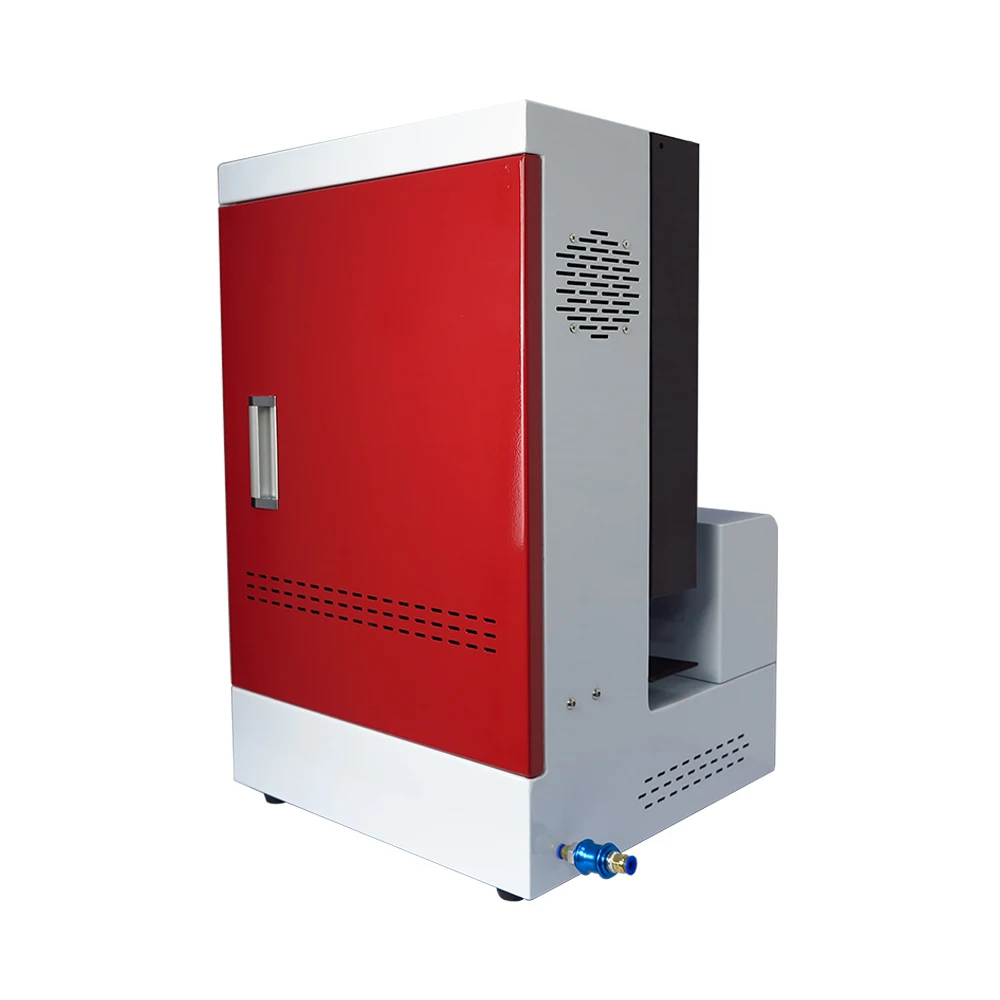

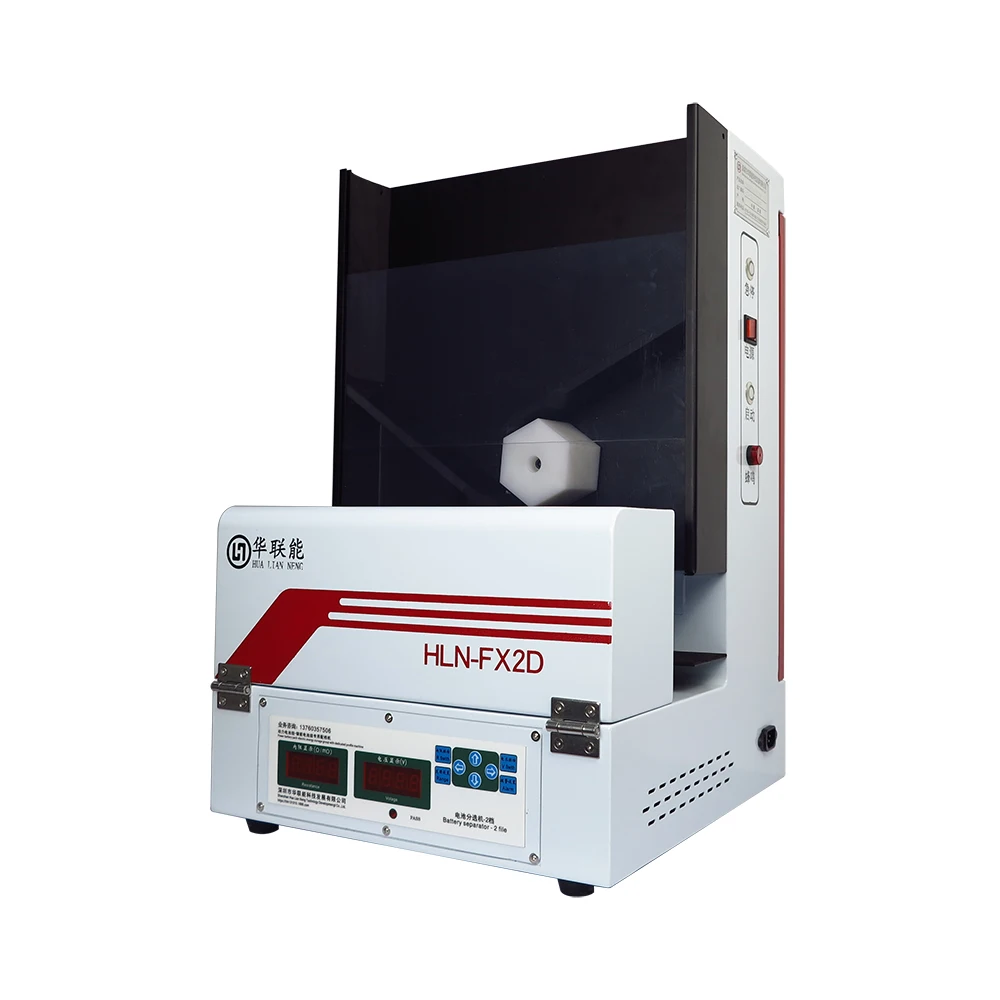

Details Images
Product Specification

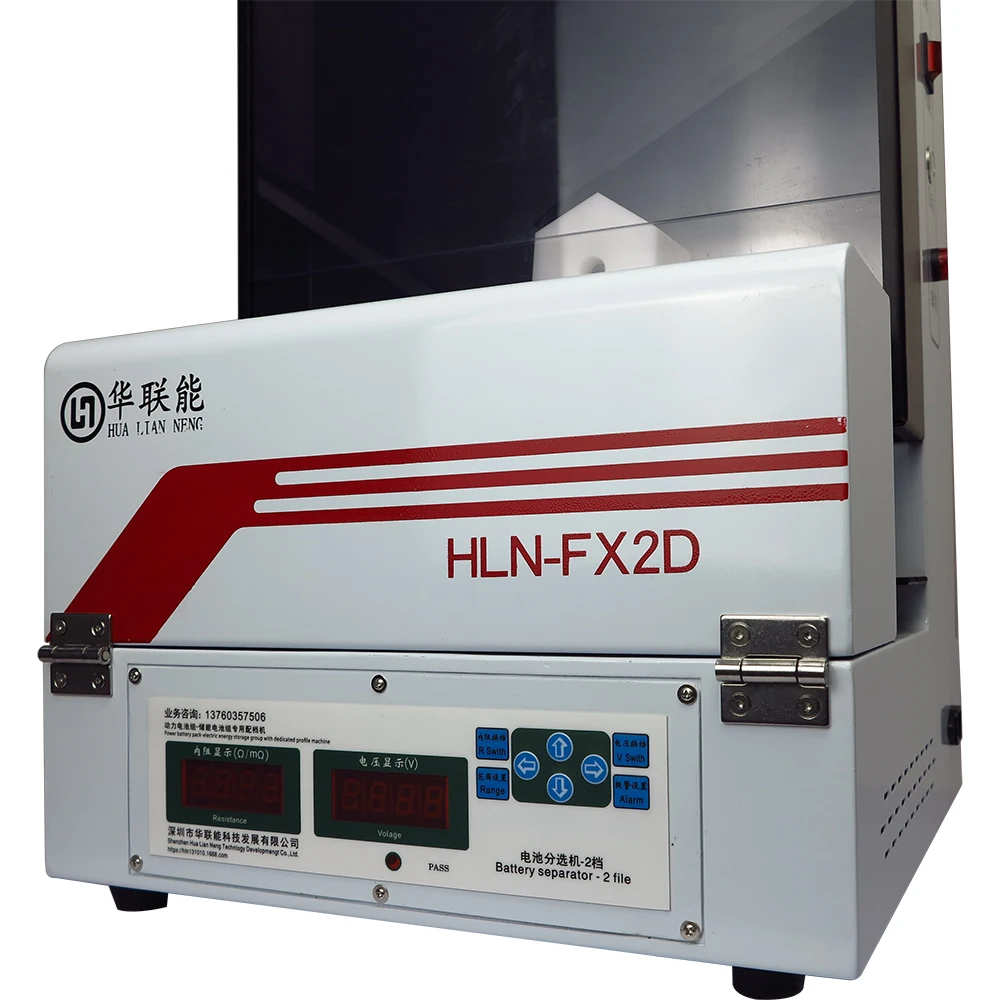

1. Display Screen: LED digital display screen, real-time display the voltage and internal resistance value.
2. Testing Mechanism: Adopt special probe 4-line measure method, u-shape slot positioning, high efficient sorting without distinguishing between positive and negative pole.
3. Feeding System: Hopper feeding, high speed and stable feeding, avoid crashing and scratching on the battery, suitable for feeding the whole box battery manually.
4. One-click operation, simple structure and easy maintenance.
5. Small size, light weight and small space occupation.
6. Power less than 100W, energy saving.
2. Testing Mechanism: Adopt special probe 4-line measure method, u-shape slot positioning, high efficient sorting without distinguishing between positive and negative pole.
3. Feeding System: Hopper feeding, high speed and stable feeding, avoid crashing and scratching on the battery, suitable for feeding the whole box battery manually.
4. One-click operation, simple structure and easy maintenance.
5. Small size, light weight and small space occupation.
6. Power less than 100W, energy saving.
Production Capacity
Exhibition
Payment and Shipping
FAQ
1. Which procedure to secure your Quality?
Our company has own factory with R &D , the products have been inspected 3 times by our QC before delivery, ensure the accuracy of test results and authority.
2. How about your company product after-sales service system?
Warranty is 12 months, and we can provide a lifetime repair guarantee. Our professional after-sales department can reply you within 24 hours for any technical problems.
3. Products standards?
Our instruments adopt ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE and other international testing standards.
4. Our country's power supply and plug are different, how do you solve it?
We can according to different countries and the power plug, equipped with a transformer and plug that in accordance with your local requirement.
5.Packing method?
Standard export wooden case
6. How to ensure the customer use the equipment?
We can provide each product-related video showing how to install and operate. If you have specific needs, we also can arrange the engineer to the customer's company for equipment operation training.
Our company has own factory with R &D , the products have been inspected 3 times by our QC before delivery, ensure the accuracy of test results and authority.
2. How about your company product after-sales service system?
Warranty is 12 months, and we can provide a lifetime repair guarantee. Our professional after-sales department can reply you within 24 hours for any technical problems.
3. Products standards?
Our instruments adopt ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE and other international testing standards.
4. Our country's power supply and plug are different, how do you solve it?
We can according to different countries and the power plug, equipped with a transformer and plug that in accordance with your local requirement.
5.Packing method?
Standard export wooden case
6. How to ensure the customer use the equipment?
We can provide each product-related video showing how to install and operate. If you have specific needs, we also can arrange the engineer to the customer's company for equipment operation training.
