FORERUN FJK 01 12S Подключите контактор 138*138 по выгодной цене с автоматической компенсации реактивной мощности контроллер

FORERUN FJK 01 12S Подключите контактор 138*138 по выгодной цене с автоматической компенсации реактивной мощности контроллер

Категория: >>>
Поставщик: Shijiazhuang Furun Zhongcheng Trading Co. Ltd.

Цена:26,00 $ - 28,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

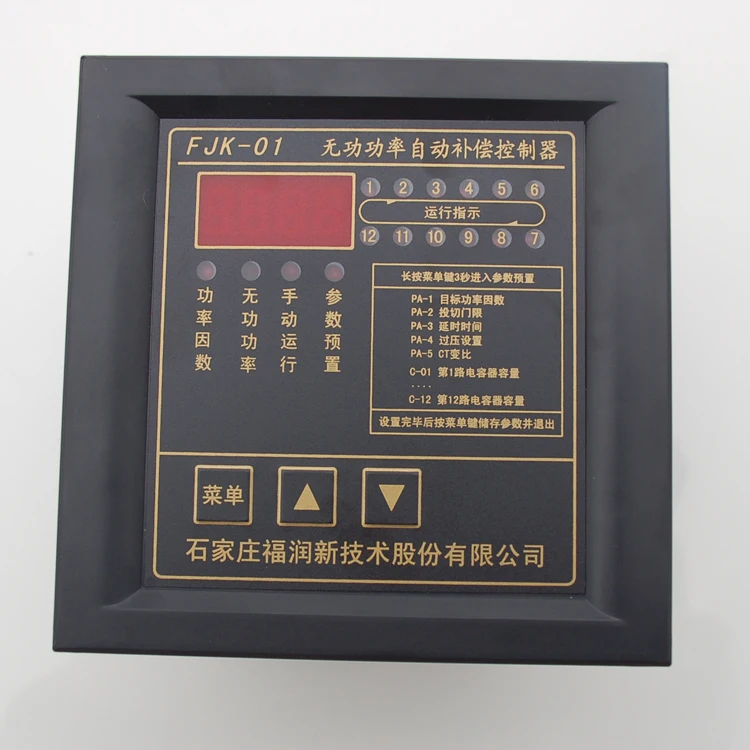

Product name	Reactive power automatic compensation controller
Product model	FJK-01-12S
Product introduction	FJK-01 series reactive power automatic compensation controller is suitable for automatic adjustment of capacitor compensation device in low-voltage distribution system (controller for short). It enables power factor to reach user preset state, improves utilization efficiency of power transformer, reduces line loss and improves power supply quality, thus improving economic benefit and social benefit.
Functional characteristics	1.The reactive power is used to calculate the switching capacitor capacity with high compensation accuracy. 2.The power factor measurement accuracy is high and the display range is wide. 3.The man-machine interface is friendly and easy to operate. 4. All kinds of control parameters can be adjusted digitally to make it convenient. 5.It has two working modes of automatic operation and manual operation. 6.It has overvoltage and undervoltage protection functions. 、 7. Data with power failure protection function will not be lost. 8. Low input impedance of current signal ≤0.01Ω
Conditionsof use	1. The altitude is not higher than 2500 meters 2. ambient temperature-35°C +50°C. 3. Air temperature shall not exceed 50% at 40°C and 90% at 20 °C. 4. The surrounding environment is free of corrosive gas, conductive dust and inflammable and explosive media. 5. There is no severe vibration at the installation site.
technical data	1. Rated working voltage: AC380V 50Hz 2. rated working current: AC0-5A 50Hz 3. Output contact capacity: DC12V/40mA or 220V/5A 4. Display power factor: lag 0.001- lead 0.001 5. Measuring reactive power: 0-9999Kvar 6. undervoltage protection value: AC 300V 7.Control.mode.automatic.optimization/cyclic.switching 8. Sensitivity: 50mA 9. Protection grade: enclosure IP40

Product name	Automatic reactive power compensation controller
model	FJK-01-12S
Control the number of switching paths	12
Compensation type	Three phase compensation
Opening size	opening 138 * 138

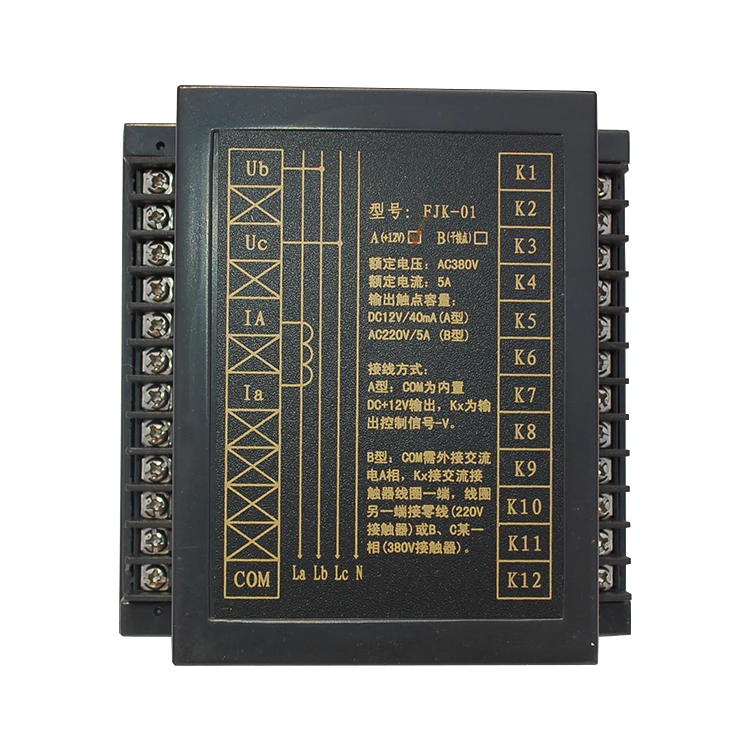

Product description	Digital tube display, 1-12 channel output, control composite switch
