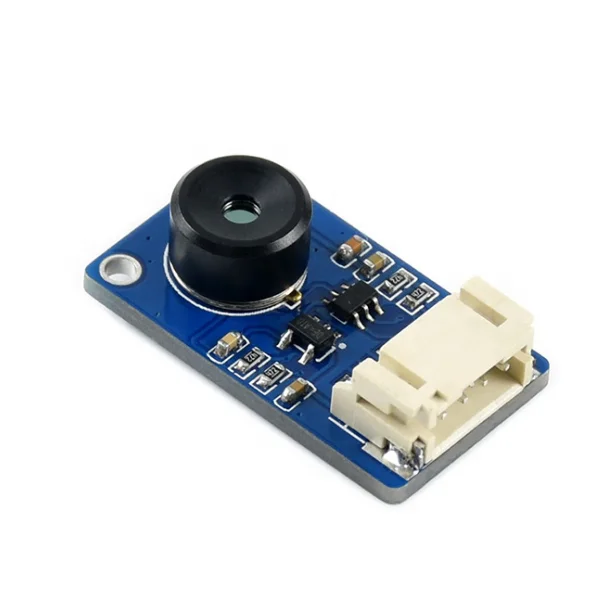

original MLX90640-D55 Infrared camera module Array temperature sensor 32*24 pixels I2C interface

MLX90640-D55
Infrared camera module, 32*24 pixels, 55 degree field of view, 12C interface communication, compatible with 3.3V/5V level, support RaspberryPi/ Ar (ESP32)/STM32 and other main control boards.
Using MLX90640 far infrared thermal sensor array, it can detect the infrared radiation ability distribution of the object in the field of view of the lens. After quantization, the surface temperature distribution of the object in the field of view can be obtained, and the thermal imaging map is generated. The compact size is convenient for integration into various industries or only Can control applications.
Features
Using MLX90640 remote thermal sensor array, 32*24 pixels
Support 12C interface communication, can be set to fast mode (rate up to 1MHz)
Noise equivalent temperature difference (NETD) is only 0.1K RMS@1Hz refresh rate, good noise performance
Onboard level conversion circuit. Compatible with 3.3V/5V working level
parameter
Working voltage: 3.3V/5V
Working current<23mA
Communication interface: 12C (address is 0*33)
Field angle (horizontal viewing angle)
MLX90640-D55 Thermal Camera: 55℃*35℃ (small angle, suitable for long distance measurement)
MLX90640-D110 Thermal Camera: 110℃*75℃ (large angle, suitable for close range measurement)
Working temperature: -40℃~85℃
Target temperature: -40℃~300℃
Detection accuracy: ± 1℃
Refresh rate: 0.5Hz~64Hz (programmable setting)
Product size: 28mm*16mm
Fixing hole size: 2.0mm
use
High-precision non-contact object temperature detection
Infrared camera, infrared thermometer
Only home, only buildings, only lighting
Industrial temperature control, security, intrusion/movement detection

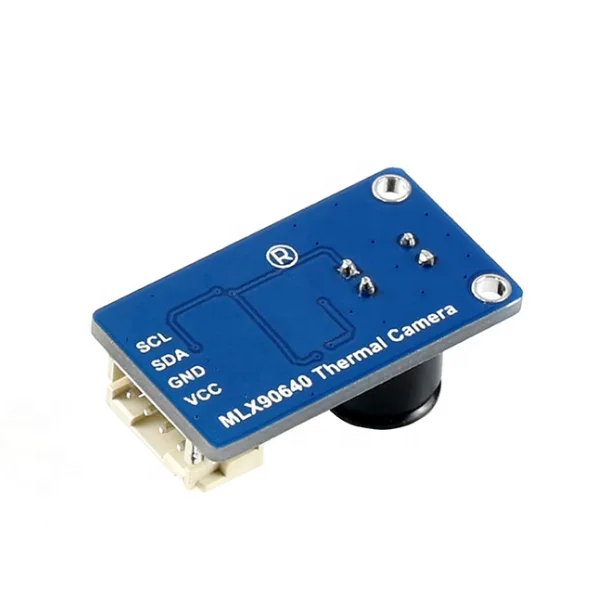

Interface description (take access MCU as a column)
VCC: Connect to 3.3V
GND: Connect to GND
SDA: Connect to MCU.12C data cable
SCL connects to MCU.12C clock line

configuration list

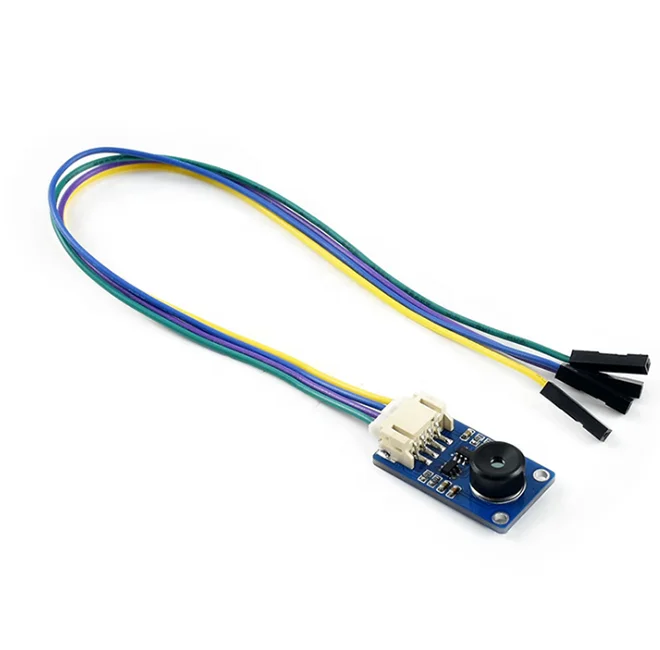

MLX90640-D55 Thermal Camera*1
PH2.0 4PIN cable *1
