Product Description


The garbage compcator truck usually called compressed waste truck, compression garbage truck, waste compactor truck,compactor garbage truck,etc.


The compression garbage truck usually compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pressure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.


Product Description



Introduction of compactor garbage truck
The collection garbage truck usually called garbage compactor truck, compression garbage truck, waste compactor truck,compactor garbage truck,etc.

The compactor garbage trucks usually compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pressure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.

The garbage compactor truck we maufacture is an ideal compactor for large clean up operations. It is simple to operate and highly effective with excellent compaction ratio. It is ideally suited to
municipal applications where large amounts of mixed industrial and domestic refuse is to be collected.

Our garbage compactor truck for sale is consisted of four main parts, sealed garbage compartment, hydraulic system, operating system and lifting cylinder.fully sealed. It can compact and dump the
garbage automotically. The sewage will flow in the compartment completely to aviod re-pollute during transportation.

As a professional special vehicle manufacturer in China, the garbage compression truck we produce is from 4cbm to 18cbm

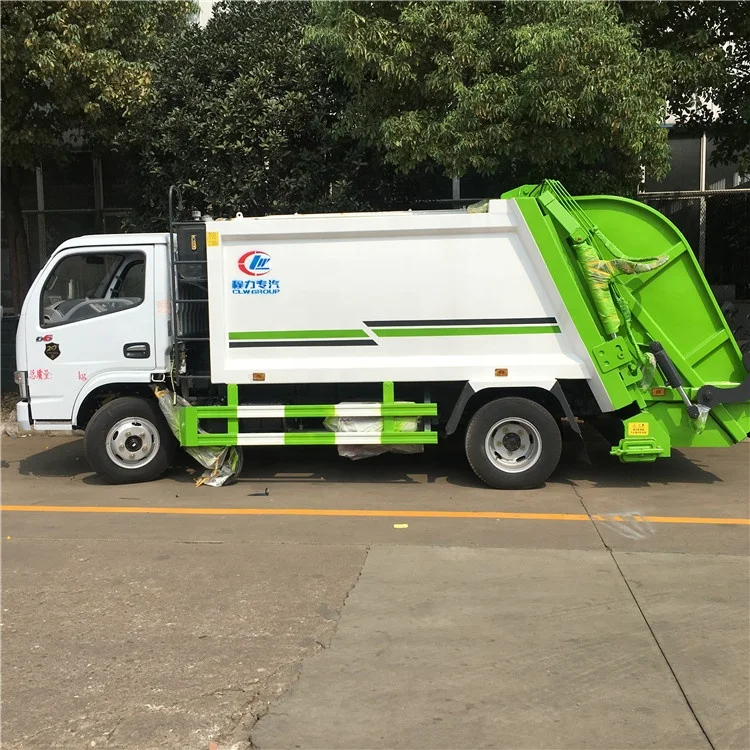

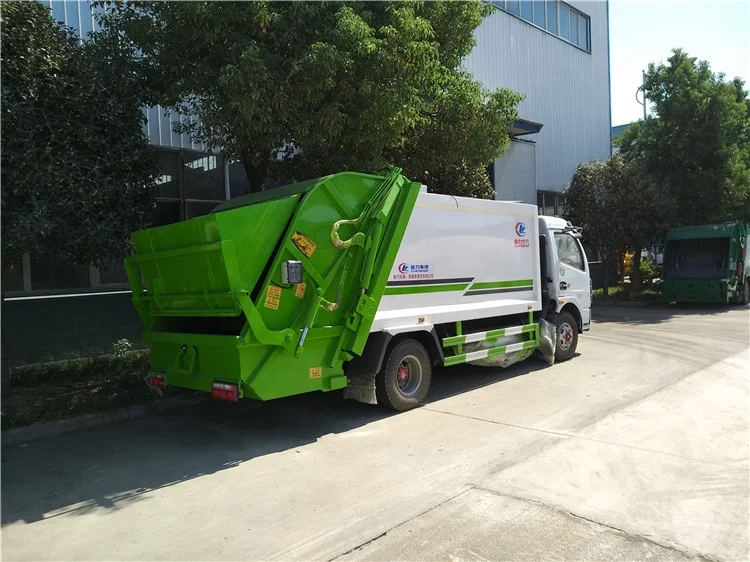

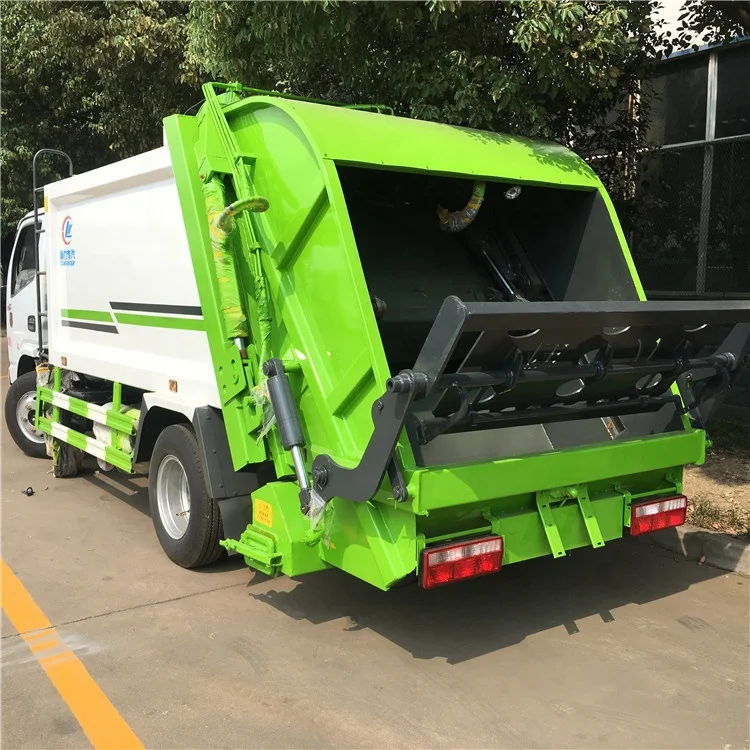

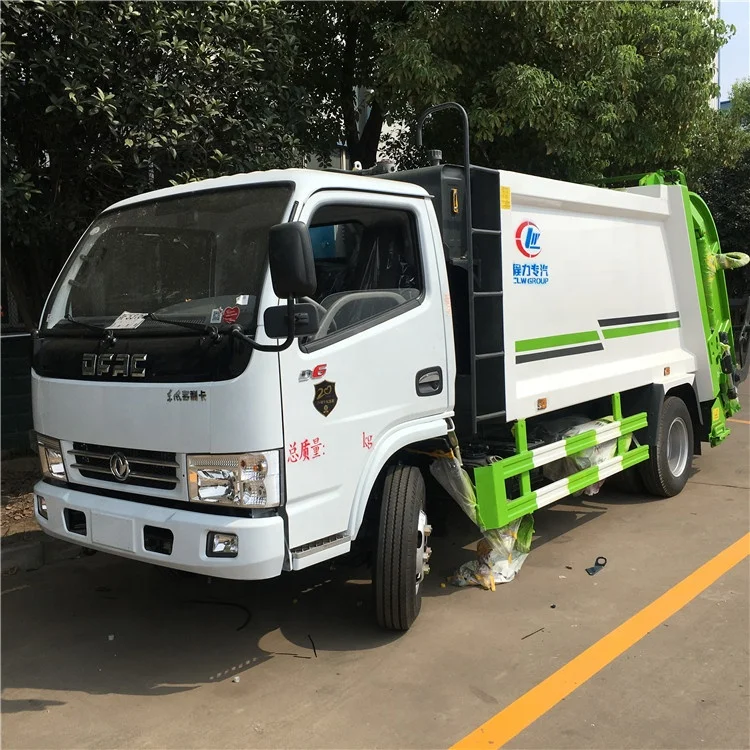

- 5m3 compactor garbage truck for sale


garbage truck (7).jpggarbage truck (8).jpggarbage truck (9).jpggarbage truck (4).jpggarbage truck (5).jpggarbage truck (6).jpg


The specification of  5-7 ton garbage compactor truck for sale in saudi arabia






































































Main parameters



Product name



Dongfeng garbage compactor truck 5-7Tons



Drive system



Left hand drive



Drive wheel



4x2



Fuel



Diesel



Transmission type



Manual



Condition



New



Emission standard



Euro Ⅱ



Overall dimensions



7800*2500*3250mm



Tank loading



4cbm-5cbm



Truck body material



Carbon steel



GVW



8000kgs



Curb weight



4100kgs



Cabin



2 passengers



Number of axles



3



Wheelbase (mm)



3800



Tire specification



7.50R16



Tire number (pcs)



6+1



Max. speed



90,102km/h



Truck head and body color /logo



customized



Dongfeng garbage compactor truck engine / gearbox :














































Transmission parameters



Model



TM5S



Transmission type



manual operation



Gear Position



5-speed gearbox, forward gear 5, reverse gear 1



Engine parameters



Engine model



CY4102



Engine manufacture



Dongfeng Chaoyang Chaochai Engine Co.,Ltd



Displacement /Power



3856ml / 130HP



Emission standard



Euro



Truck body specification



New style plane arc -shaped box body, box material is high quality carbon steel.


Loading capacity is 4-6cbm


Compression ratio : 3:1


Compression density : 0.8-0.9T/m3


Filling time: ≤15s


winding cycle: ≤15


unloading time: ≤15s


water tank volume : 2300L


compress mode: Bidirectional compression


PLC one-key operation control


Manual electric integrated operation mode.


Double electronic control on both sides, with driving room operation.


The support of the bottom plate is strengthened, the two-way compression is bidirectional, and the sewage tank is open and easy to clean.


The compression garbage truck adopts mechatronics and liquid integration technology, borrows the machine, the electric, the liquid joint automatic control system, the computer control, the manual operating system, through the filling device and the push shovel and other special devices, realizes the garbage dump, the crushing or flattening, the strong filling, the garbage is squeezed into the box and compacts and unloads, the sewage all enters the sewage collection box, has solved the garbage transportation process the secondary pollution problem.


Compressed garbage truck has the advantages of high compression ratio, good sealing, large loading capacity, convenient operation, good environmental protection and high power utilization.


Automatic operation, simple and efficient garbage collection.

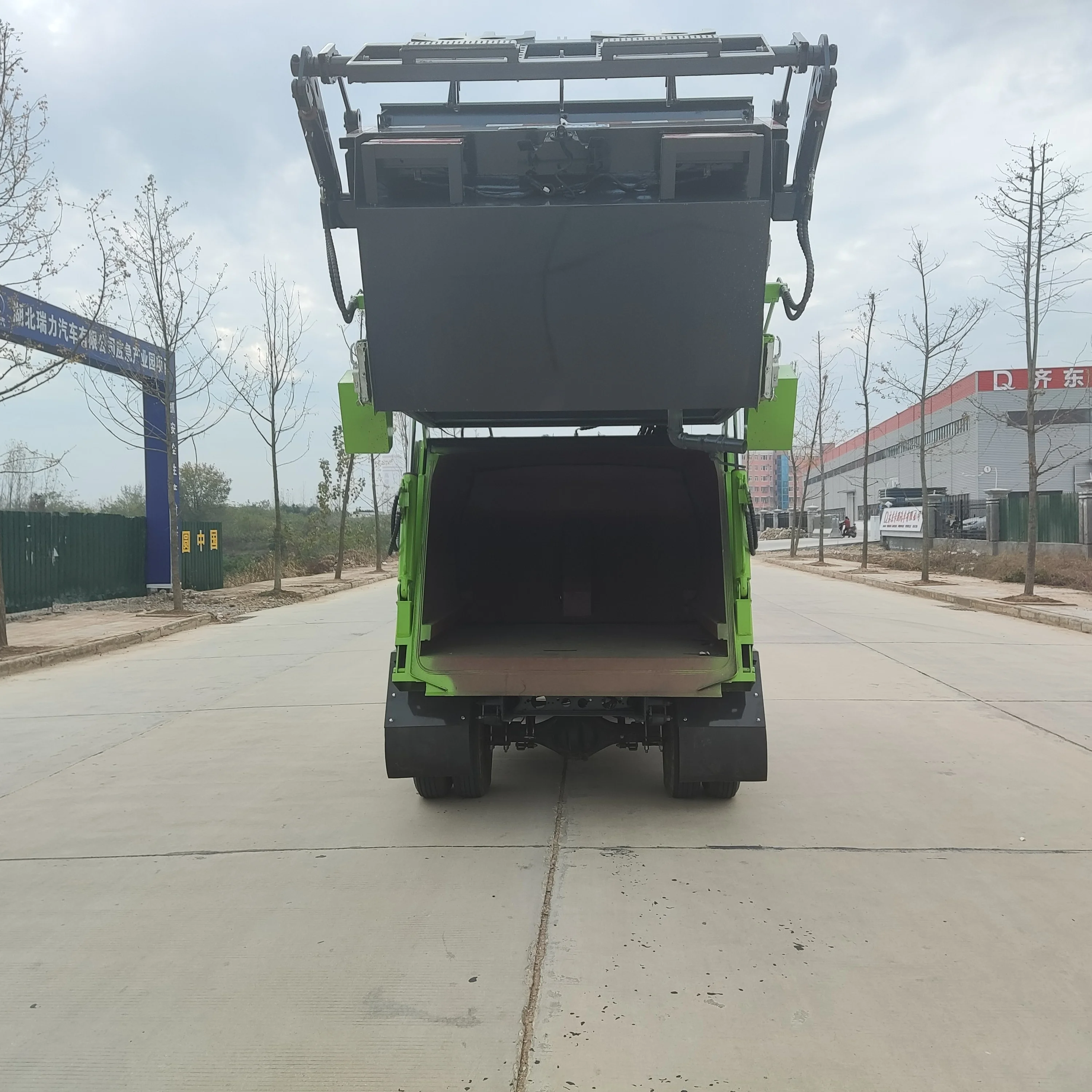

Rear flip mechanism option :


1. Plastic bucket flip mechanism


2. Hanging bucket flip mechanism


3. Swing arm flip mechanism


4. Dustpan type flip mechanism.






More garbage trucks


 CLW more garbage trucks , Ms.Joyce  Mobile/Whatsapp: +8613545915671


5-7 ton garbage compactor truck for sale in saudi arabia5-7 ton garbage compactor truck for sale in saudi arabia5-7 ton garbage compactor truck for sale in saudi arabia5-7 ton garbage compactor truck for sale in saudi arabia

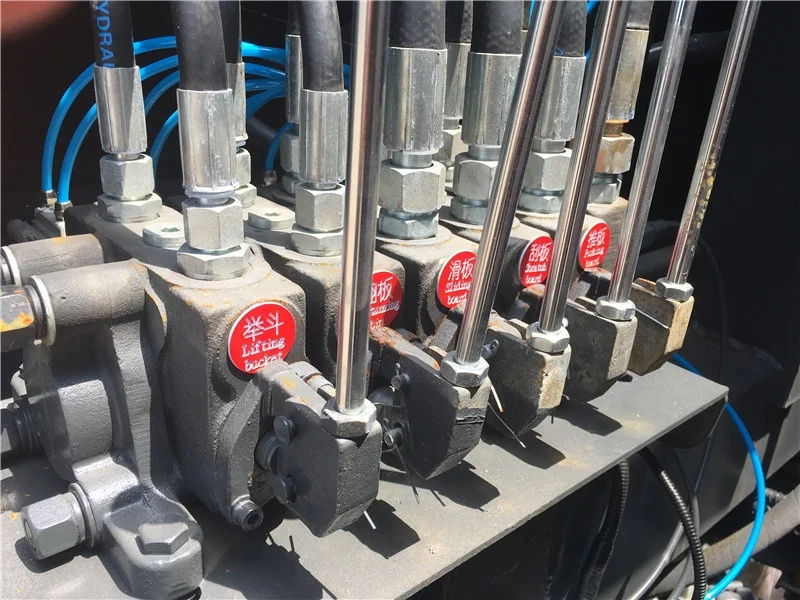

Detailed Images


5-7 ton garbage compactor truck for sale in saudi arabia


Garbage truck





Packaging & Shipping


5-7 ton garbage compactor truck for sale in saudi arabia


Packing :  naked,waxing of garbage truck, compactor garbage truck


Ship : Garbage truck/ garbage compactor trucks by bulk,ro ro or container ship.


aluminum fuel trailer





Company Information


Hubei Dali Special Automobile Manufacturing Co., Ltd.  is appointed by the Ministry of Industry and Information Technology of China, She is a big manufacturer producing all kinds of special trucks. Our trucks have popular in more than 30countries. And has many years of manufacturing experience and passed the CCC, ISO and BV factory audit.

With high quality, wonderful package, perfect service and fame. Our products has been exported to Russia, Kazakhstan, Uzbekistan, Myanmar, Vietnam, Laos, Thailand, Pakistan, Sir Lanka, Philippine, Indonesia, , Argentina, Chili, Paraguay, Egypt, Morocco, Botswana, Algeria, South Africa, Kenya, Tunisia, Mozambique, Yemen, Ethiopia, Nigeria, Ghana, etc, more than thirty countries. Our company has established good and long term relationships with many foreign customers in Africa, Asia, South America, Middle East, Etc!

Also, we are willing to provide the high quality reasonable price and perfect service to you.
So, we hope to hear good news from you soon. if you have any comments for my quotation, please don't hesitate contact to me. That will be my honor to assist you in future.

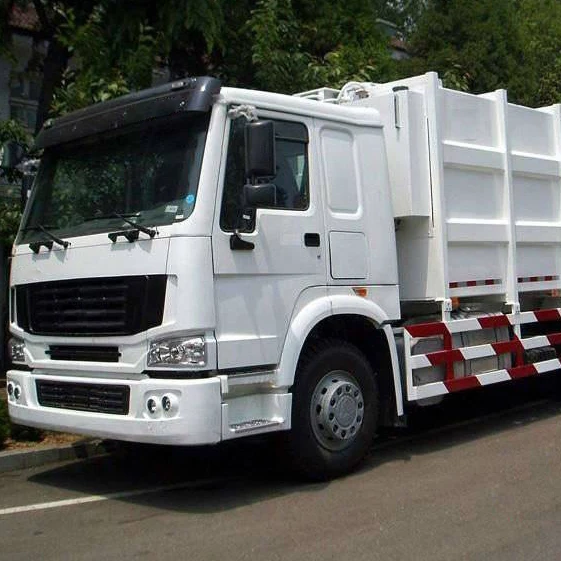

12Tons compactor garbage truck waste management trucks sale


aluminum alloy fuel trailer





aluminum alloy fuel tank trailer





Our Services


5m3 compactor garbage truck for sale


1. Warranty :  3 years


2.  Delivery :  30 days after the deposit


3.  Payment terms :  TT,LC , etc


4.  We are directly manufacture and export garbage truck, garbage compactor truck more than 15 years,


with rich experience.


5.  We have a big and professional team  to do after-sales service for you .





Buy 5m3 compactor garbage truck for sale


Ms.Joyce (Trade manager)


HUBEI DALI SPECIAL AUTOMOBILE MANUFACTURING CO.,LTD


Cell: 0086-13545915671 Fax : 0086-27-83856230
Whatsapp: +8613545915671
Wechat: 13545915671, QQ : 97637161
Address : No.1 Dali Liangshui Industry Area Suizhou City Hubei Province China





Welcome to visit our factory !
