Складная склеивающая машина для картонных коробок с 4 и 6 углами
- Категория: >>>
- Поставщик: Zhejiang New Luolan Machinery Co. Ltd.
Сохранить в закладки 1600060979346:
Описание и отзывы
Характеристики

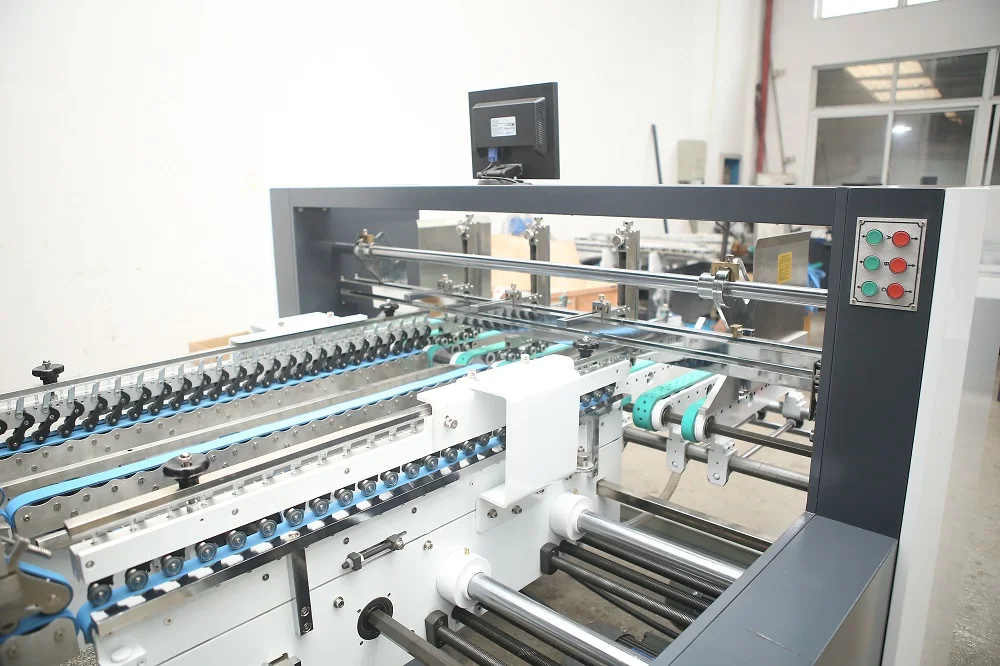

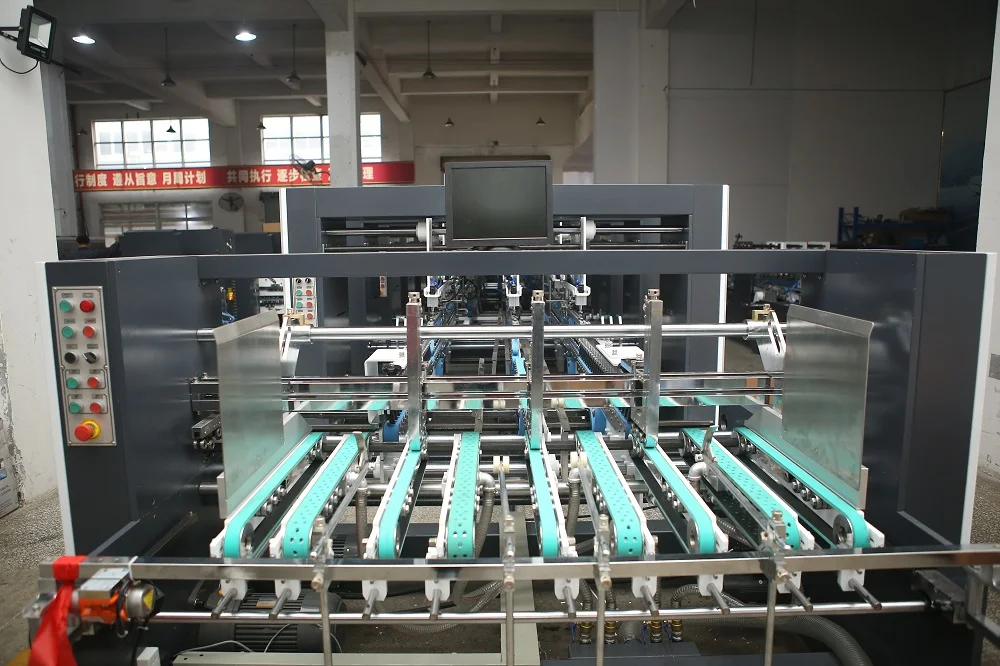

Automatic Corrugated Cardboard Paper Folding Carton Box Gluing Machine(GK-1200PC/1450PC)
PCS Series folding gluing machine with 4/6 corner function, each set is controlled by independent motor, adopts electrical regulating board, PLC,imported electronic components, three plates track mode device, Aluminum plates are all Chute structure, which is easy to add spare parts, The machine is especially designed for all kinds of 4/6 corner cardboard or corrugated packaging boxes, which can meet to all kinds of requirements of automatic packaging area.
1.Upper and lower belt widened and strengthened, suitable for corrugated paper carton and with stronger transmission.
2.Height of upper belt board adjusted immediately by pulling rod, to easily eliminate jammed pa per.
3.All guide plates except feeding and releasing guide adopt double electronic and manual system, in case electronic plate failed, manual plate can be used.
4.Aluminum assembling board with Tshaped slot, easy to assemble and unassemble supporting b ar.
5.Pressure system of the paper receiving controlled by a cylinder
6.Touch controlling panel.
7.Remote controller for operator to easily start up and stop the machine within operation area.
Main Parameters
Name | GK-PCS four six corner gluing folding machine | |
model | GK-1200PCS | GK-1450PCS |
Paper Material | Cardboaed210-800g, A/B/E Corrugated | |
Max. Liner speed | Max.280 meter/minute | |
Feeding way | Automatically and continuously feeding | |
Way of folding | Fold 1 and fold 3 are 130 degrees and 180 degrees | |
Power Supply | 3P380V50HZ | |
Main motor power | 18.4kw | |
Total power | 30kw | |
Weight | 9.5T | 11T |
Over dimension | 15.7x1.65x1.84m | 15.7x1.65x2.14m |
Production Conponent
 |  |

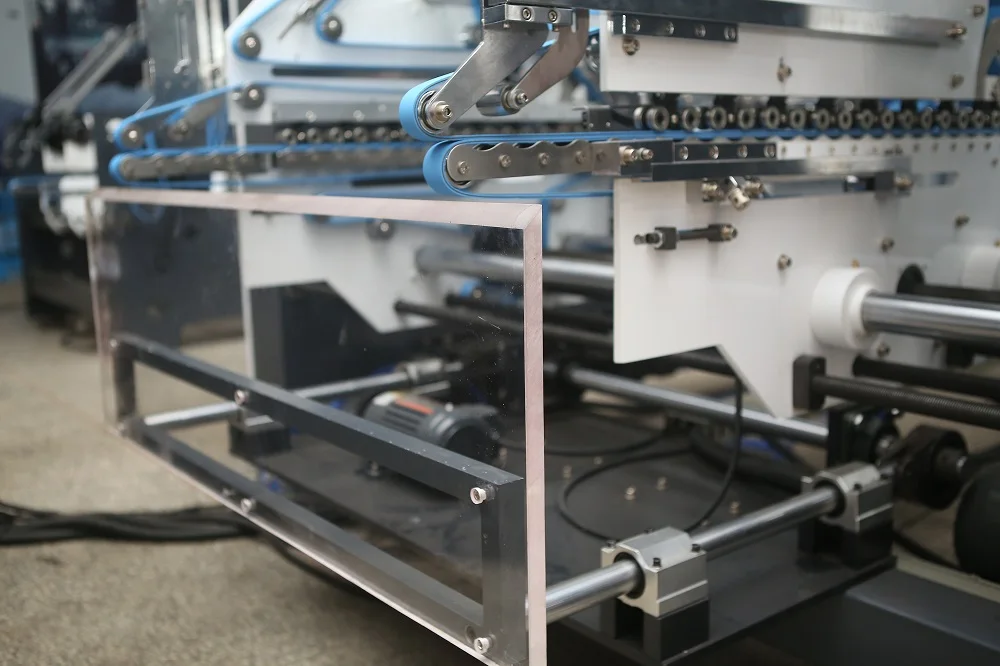

Feeding Section Driven by independent motor, feeding belt has a function of air suction. | Aligner Section Equipped with auto-correction device to correct the obliquity and ensure the correct feeding. |
 |  |
Bottom-lock Equipped with the upper and lower gluing tank. | Gluing Section Equipped with the lower gluing tank.
|
 |  |

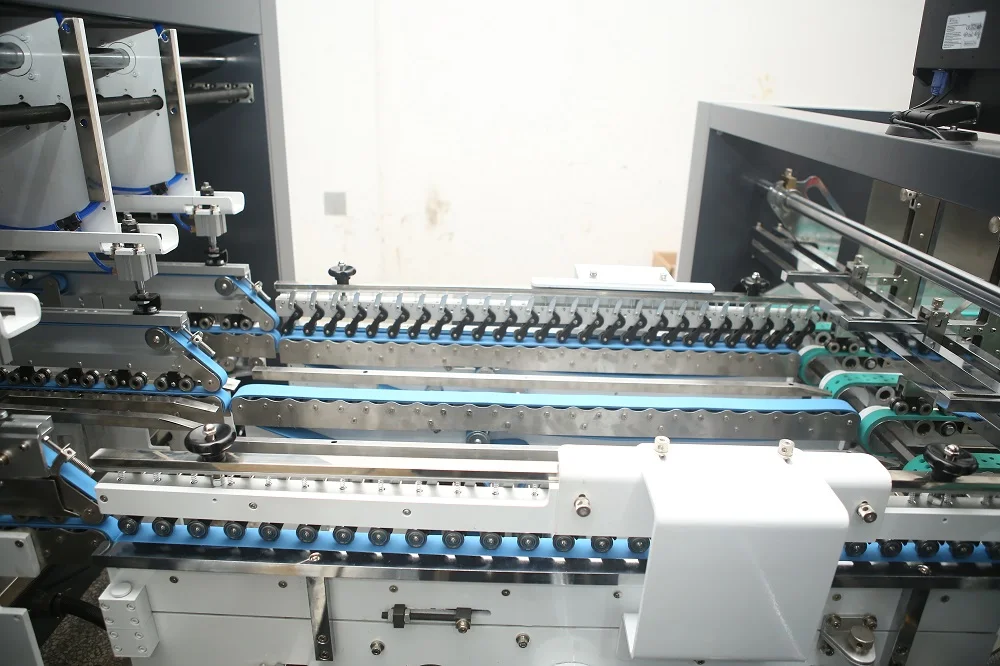

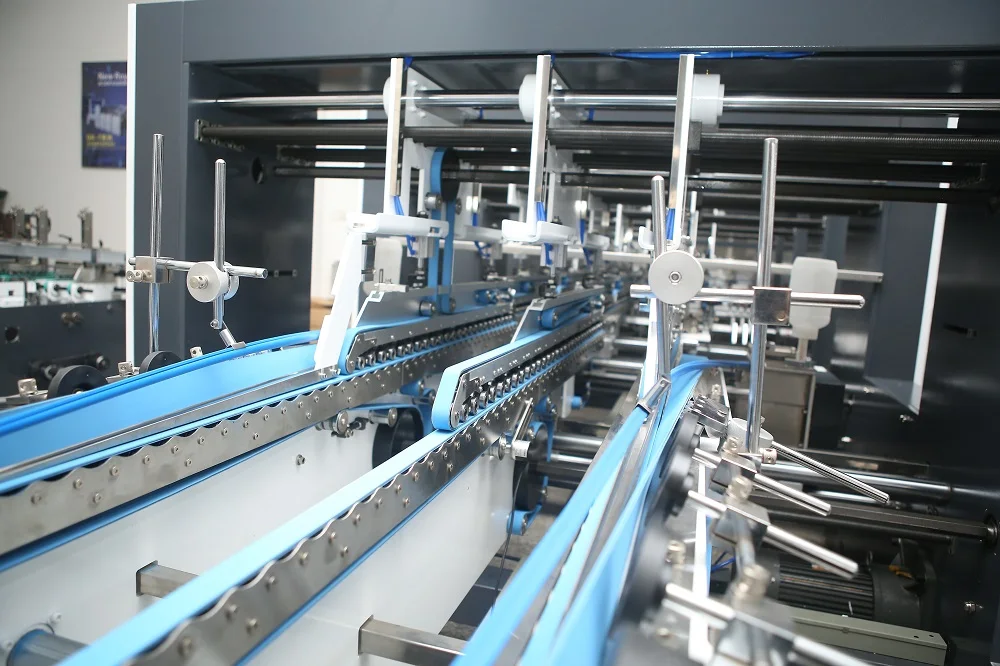

Folding Section Folding section equipped with cone pulley in left and right to adjust belt speed. | Trombone Fully press section continuous and automatic box collection mechanism that ensures a neat transfer to the press section guaranteeing a well aligned flow. |
|
|
| Servo-motor | Special Device |
FAQ
1. What is the machine warranty?
one year.
2. Does your machine with CE certificate?
Yes, it does
3. What is the production time while placing order?
About 30 days
4. What is the delivery time?
Within 30 days after get the payment.
5. Can your company handle shipping for customers?
Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
6. Does the packing strong?
Yes, of course! All of our export packing is with strong wooden pallets, all are confirmed to export packing standard.
7. How about after-sales service process?
When your machine has problem, contact your sales and we will solve your problem as soon as possible.
8. Are you manufacturer?
Yes, we are manufacturer with 10-year experience and profession.
9. Do you have stock product to sell?
Actually our machine need 20-30 days to manufacture, and there are many orders from China and foreign countries, so we need custom one for you, and your order will be highly attention to manufacture.
10. Do you inspect the finished products?
Yes, we have QC department, they will inspection the machine before shipping to ensure there is nothing problem of the machine .
11. What's the payment term?
T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.
Похожие товары

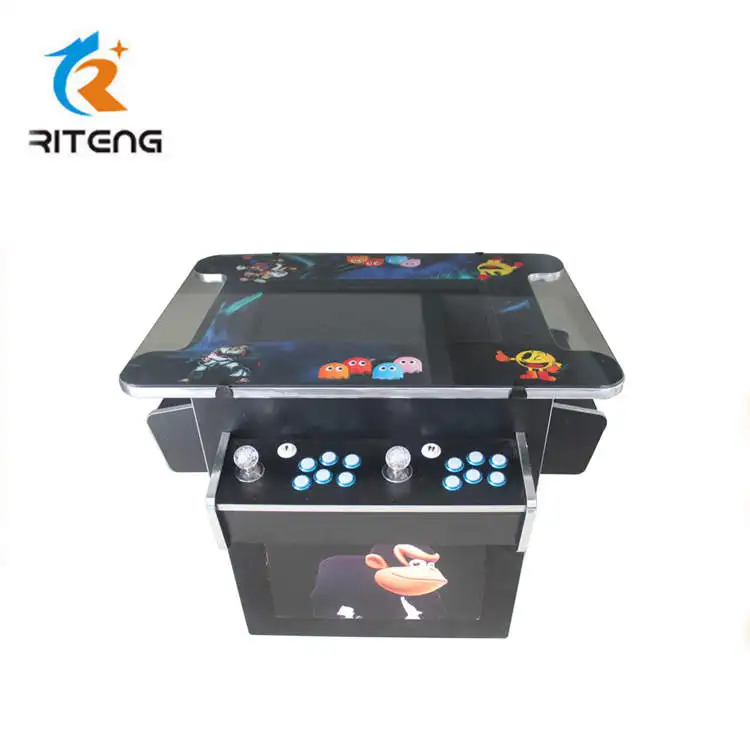

Оптовая продажа ретро-Аркада коктейльный машина настольные игры/Классические видео игры машина with1033 игры в одном

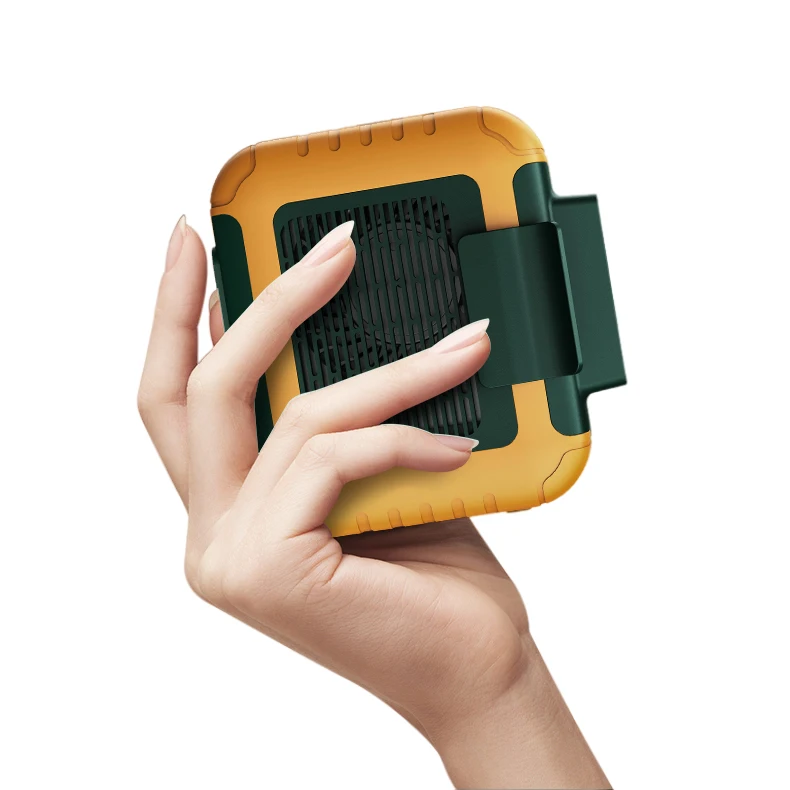

Вентилятор на ремень с логотипом завода под заказ, охлаждающий вентилятор на 6000 мА/ч, выход Type-C, Usb Подвесной Электрический мини-вентилятор на шею и талию с зажимом, охлаждение воздушным охлаждением

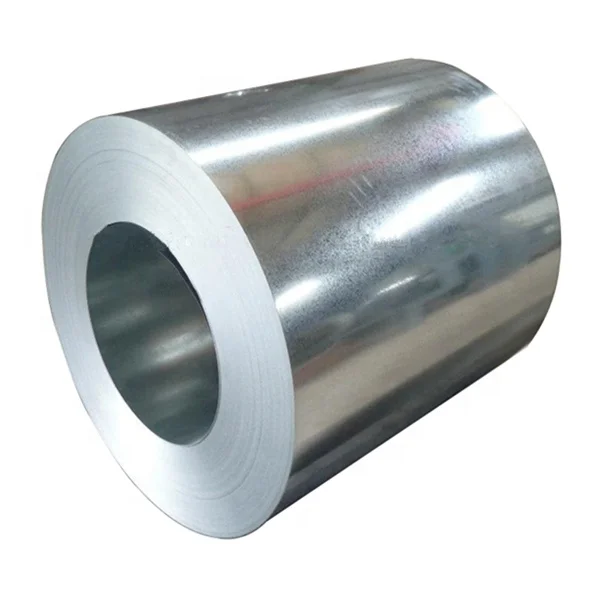

Прямая поставка с завода, Оцинкованная железная стальная пластина, оцинкованная спиральная сталь 08ps, Оцинкованная железная катушка

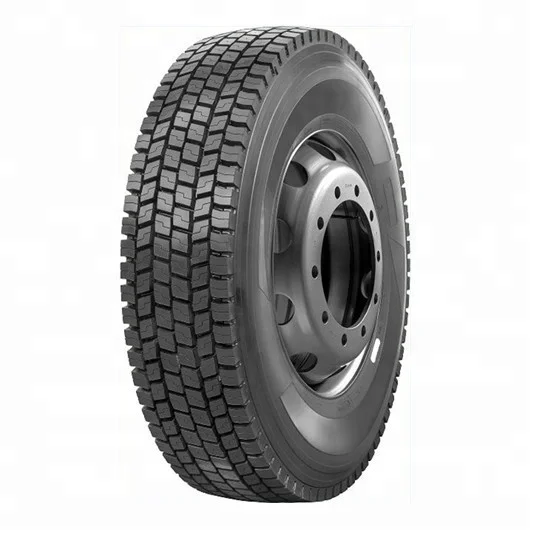

Новая дешевая 385 65 22,5 грузовых шин в парагвай, топ-10 шины от китайских производителей

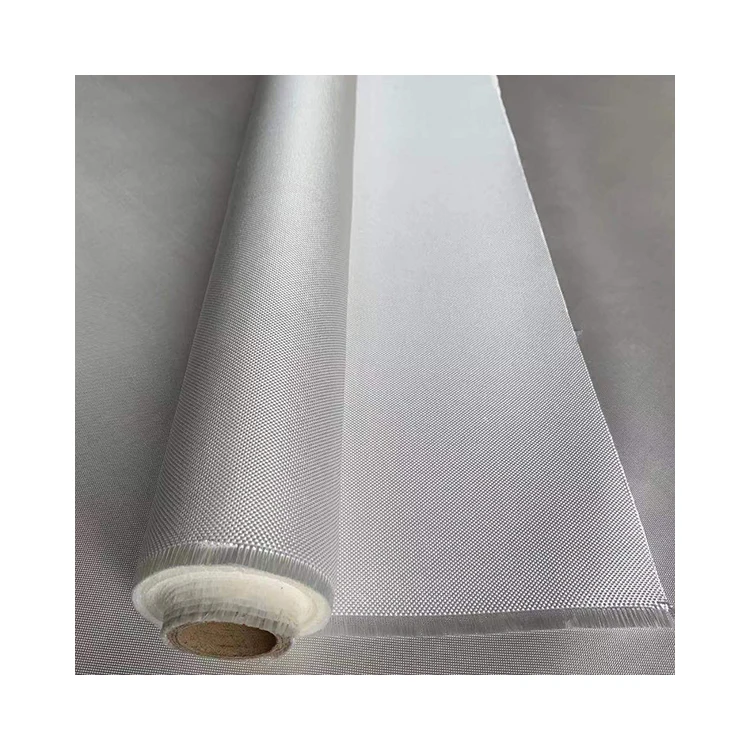

Огнестойкая ультрамикро-ткань с силиконовым покрытием, стекловолоконная ткань с высоким содержанием силикона
7,20 $ - 8,00 $

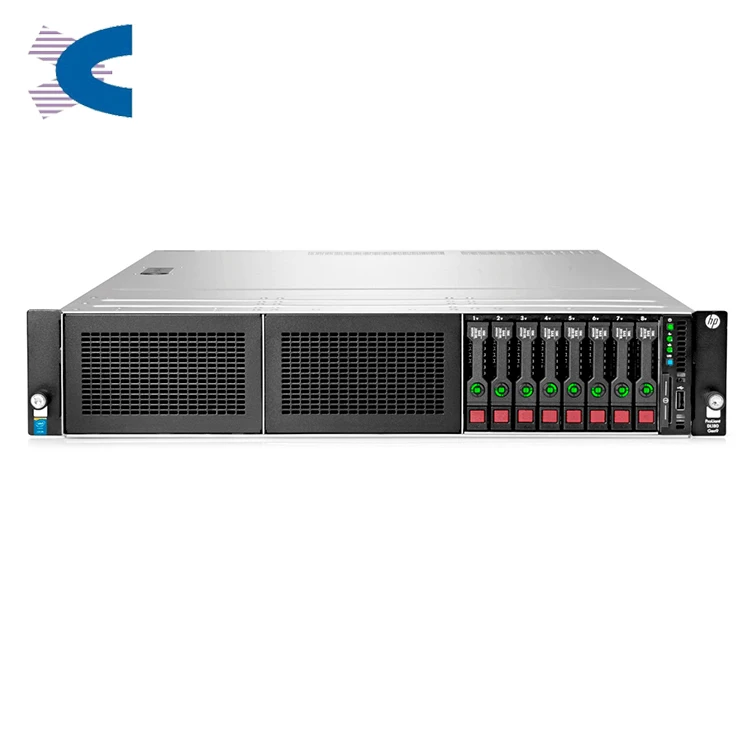

Б/у вечная Серверная Экспресс-камера, Dl380gen9, процессор, компьютер, кофейное облако, корпус для хранения Hpe Dimm
410,00 $

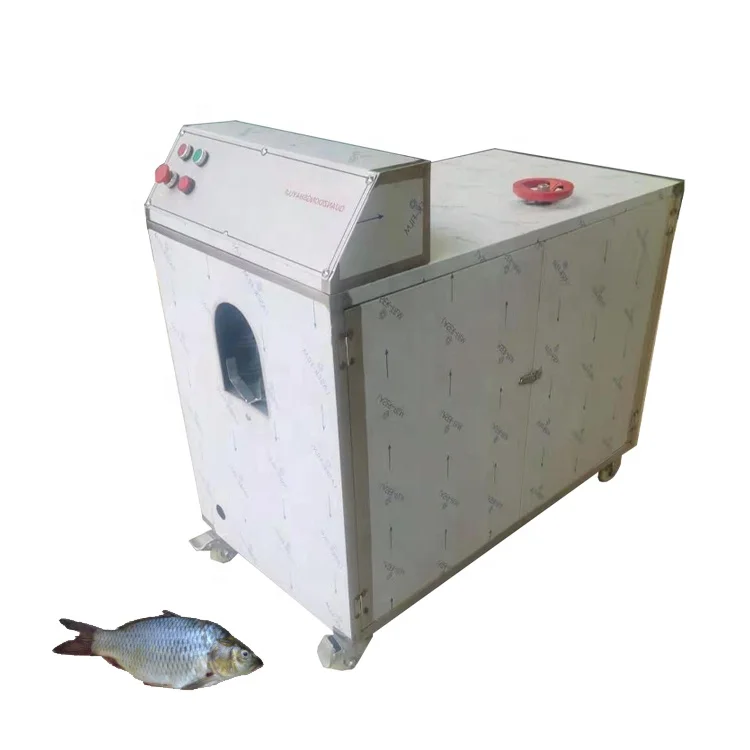

Где купить сардины, сома, рыбы, машина для удаления чешуи
