Подвижная грузовая платформа/грузовая рампа 2 0 тонны сертификат CE ISO9001

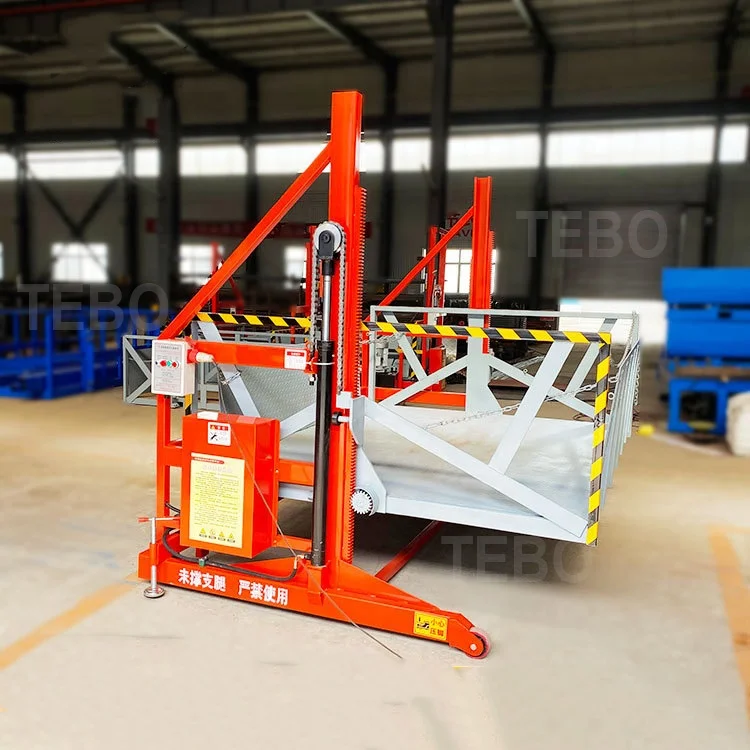

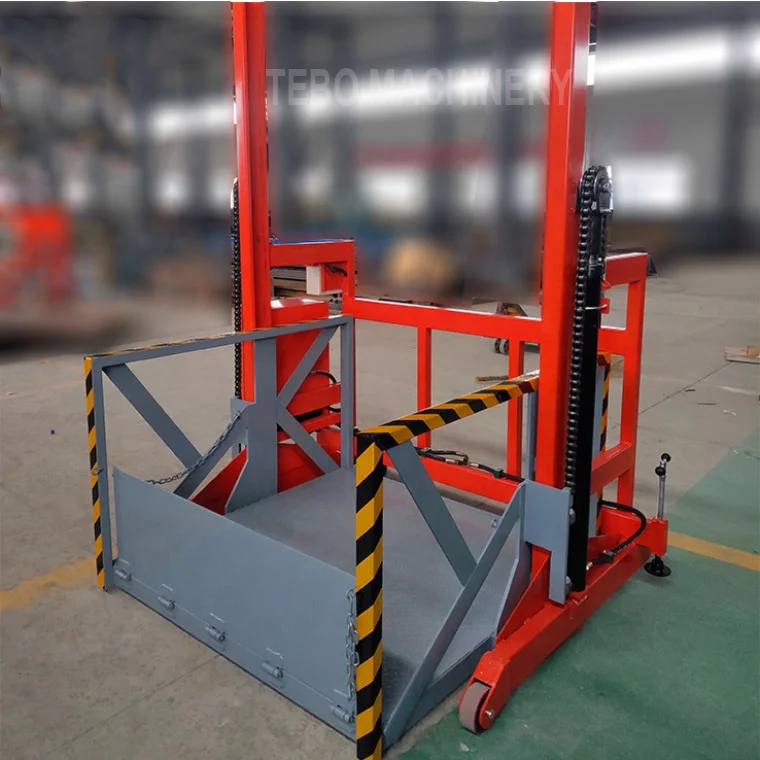

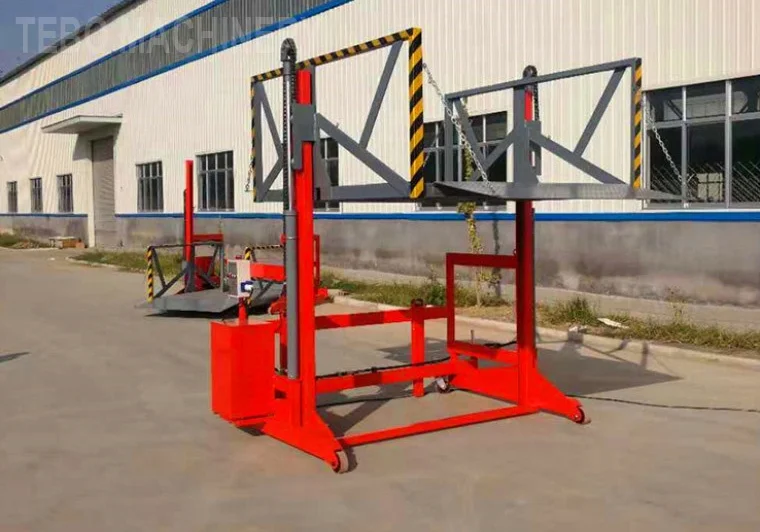

Hydraulic goods loading and unloading platform also called mobile goods loading platform, it have been designed 2 standard model, which include 2.0 Ton model and 3.0 Ton model, and it can be customized according to customer's special requirement.

The best advantage of the goods loading and unloading platform is occupying smaller space when loading to container or unloading goods from container. It is widely loved by logistics company and other filed users.

The capacity, table size and traveling height all can be customized refer to users' real requirement.

Basic parameter

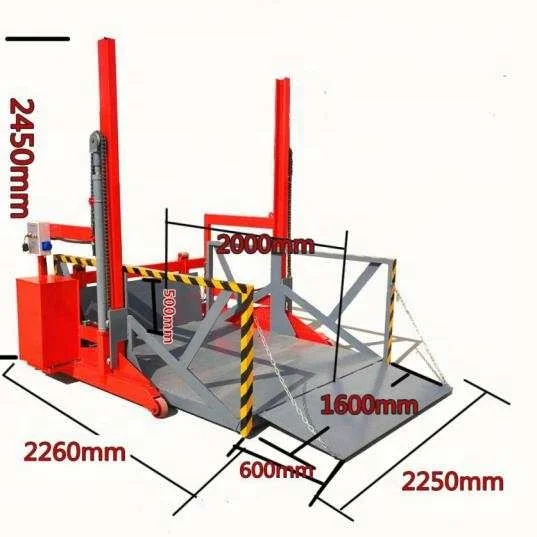

1.Platform size: L2000*W1600;
2.Capacity: 2000KG or 3000KG;
3.Net weight: 800KG;
4.Pump station: AC220V or AC380V or customized refer to your local inputting power;
5.Motor power: 2.2KW;
6.Rail:Stamping steel board finishes;
7.Cylinder: 63/45mm, 2 sets;
8.Platform net thickness: 150mm;
9.Traveling height: 1700mm (max 1850mm);

If you only need one set of two set of this kind of goods loading lift platform we can make the equipment as seperated parts refer to your requirment, and the lift's transportation cost will lower, we will support assemble and installation video after you received the goods.

If you need more than 3 sets of goods loading and unloading lift platform we will suggest the full container loading for you, the package will more simple than LCL shipping, becasue we dont need to disassmble the whole equipment into small pieces parts, when you received the lifts, they will not be installation by your self again, so we suggest full container loading for you when shipping.

How to installation?

The goods loading and unloading lift platform don't need too much installation,  it can be directly used when you receive the equipment.

When will finish the production?

Normally, we can finish your main structure and main spare parts in 10~15 working days, and in the following 2~3 days, we will commissioning the products and test the electric parts for you.

If we meet trouble when using, how shall we do?

We will send you manual of the lifts, which noted the maintenance item and some common troubleshooting methods, if you meet some problem which difficult for you, you can call Tebo's after sales phone at any time.

How many minimum pieces can you order?

Even if you only order one piece product from Tebo, Tebo will try all best finish the production and complete service for you on time.

What kind of input power are the lifts suitable ?

The goods loading and unloading lift platform can be designed and customized referring to your local nation industrial power or community civil power.
