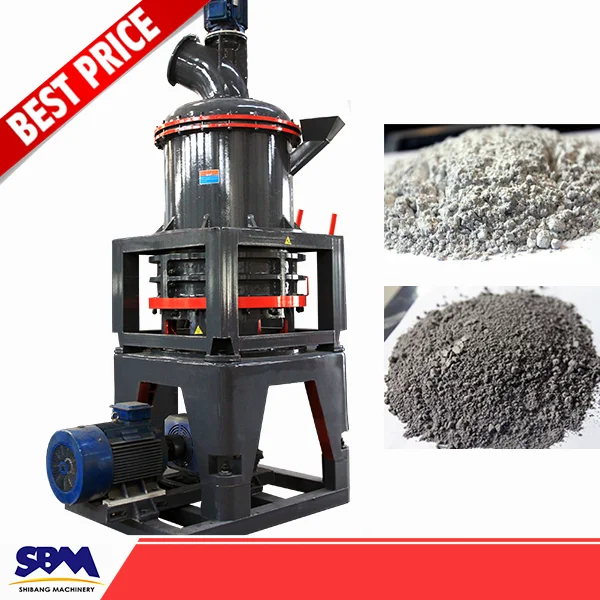

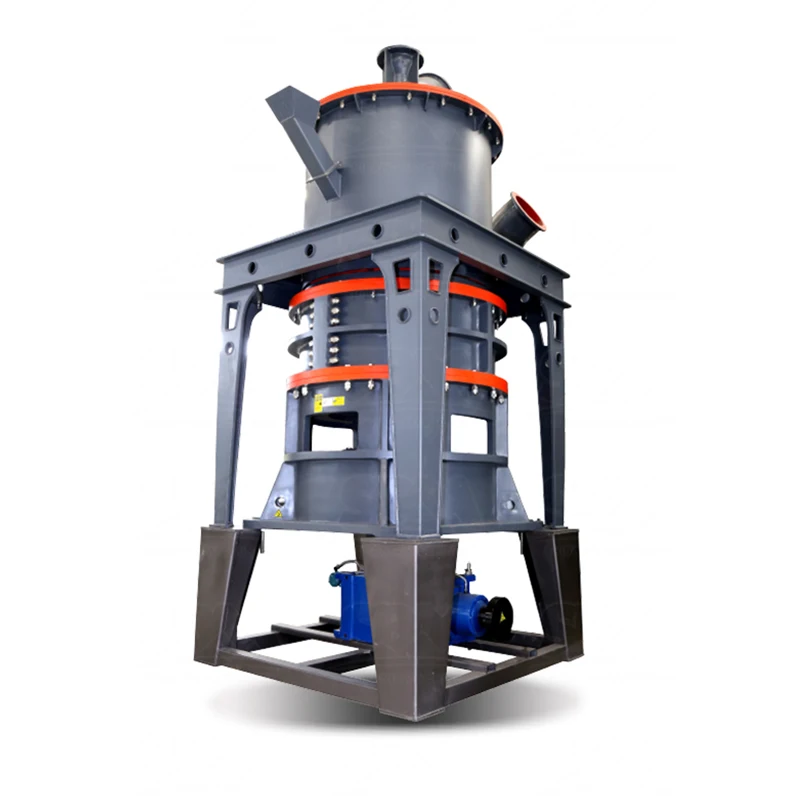

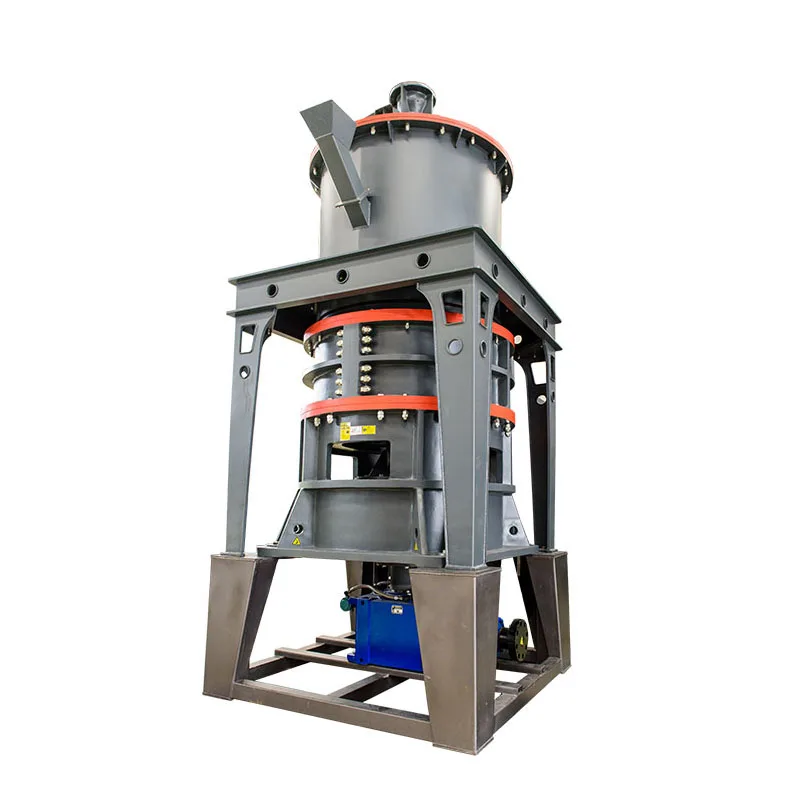

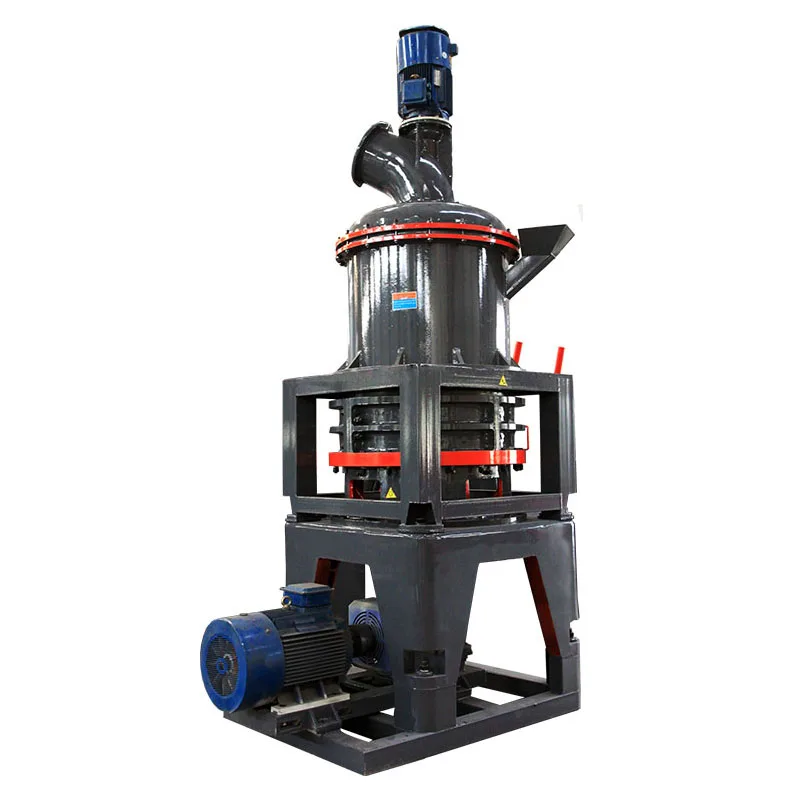

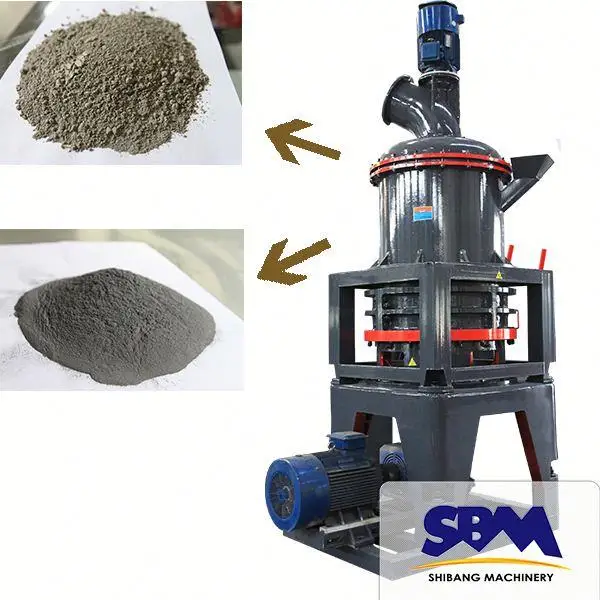

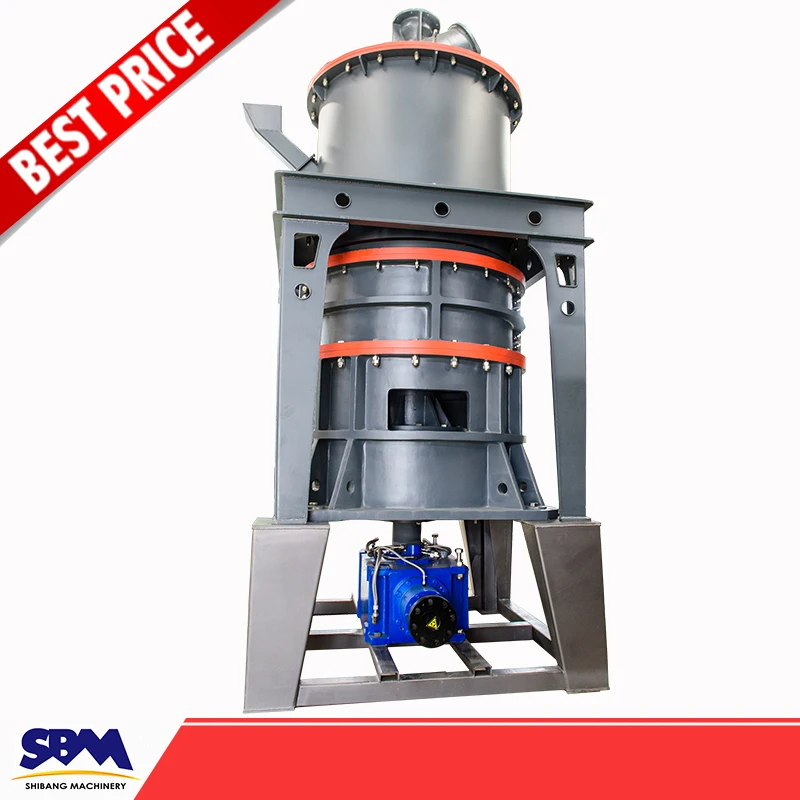

Ультратонкая керамическая мельница SCM для удобрений прокатки
- Категория: >>>
- Поставщик: Shanghai Shibang Machinery Sales Co. Ltd.
Сохранить в закладки 1600061062050:
Описание и отзывы
Характеристики
SCM ultrafine mill type ceramic grinder , fertilizer grinder mill , copper rolling mill
Product Description
Name |
SCM ultrafine mill type ceramic grinder , fertilizer grinder mill , copper rolling mill |
Applicable material |
Ultrafine grinder is the equipment specializing in producing fine and superfine powder of non-inflammable, non-explosive and brittle materials with Moh's hardness under six, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rock phosphate, Kalium ore, pumice, etc., totally more than 100 kinds of materials. . |
Capacity(t/h) |
0.5-2.5TPH |
Max Feeding |
20mm |
Final size |
325-2500 mesh |
Model Number |
SCM8021 SCM9024 SCM10036 SCM12544 |
Motor Type |
AC Motor |
Main unit motor powder |
55KW 37*2KW 110KW 160KW |
Color |
Iron Grey and can be changed upon customers' requirements |
Brand Name |
SBM |
Place of Origin |
Shanghai, China |
Design |
Independent patent design |
Certification |
ISO9001:2000, CE |
Warranty |
12 Months |
After Sales Service |
The whole time |
Production Lead time |
60-90 days |
Packaging |
Standard Exporting Packing, nude packing, container, or upon customers' requirement |
Other details |
If you need other details, please contact us |
SCM ultrafine mill type ceramic grinder , fertilizer grinder mill , copper rolling mill working principle:
Raw material which has been crushed to the size specified is elevated into a hopper from which the stuff is loaded. And then through the vibrating feeder ,the materials will transferred evenly and continuously into the cement tube mill for powder-processing. After this, the ground stuff is carried by the air from the blower into the classifer for regrinding.The set's airflow system is closely sealed up and circulated under the condition of negative and positive pressure. As the high-speed revolving air current mixed with ground stuff is flown into the cyclone-collector ,the ground stuff is separated from the air-current.
SCM ultrafine mill type ceramic grinder , fertilizer grinder mill , copper rolling mill best feature:
1)Under the same finished final size and the same motor power, the capacity of micro powder grinding mill is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.
2)The ring and roller are forged by special material with high utilization. Under the same grinding material and finish special size, the lifecycle of spare parts is about one year, which is 2-3 times longer than impact mill or turbo mill. Furthermore, the lifetime can reach 2-5 years for grinding calcite carbonate.
3)As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.
4) High fineness, flexible adjustment
The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.
5)The application of pulse bag filter and muffler greatly alleviates dust pollution and noise.
| Name & Model | SCM8021 | SCM9024 | SCM10036 | SCM12544 | |
| Ring roll number (pcs) | 21 | 24 | 36 | 44 | |
| Working diameter (mm) | Φ800 | Φ900 | Φ1000 | Φ1300 | |
| Grinding rill and roller path number (pcs) | 1X3 | 2x4 | 1x4 | 2x4 | |
| Revolving Speed (rmin) | 230-240 | 200-220 | 180-200 | 135-155 | |
| Max feed size (mm) | ≤10 | ≤20 | ≤20 | ≤20 | |
| Final size (mesh) | 325-2500 | 325-2500 | 325-2500 | 325-2500 | |
| Output (kgh) | 400-4500 | 600-5500 | 400-7500 | 1200-12000 | |
| contour dimension (mm) | 13000x3000x5800 | 14700x4800x8600 | 18000x4600x8600 | 14000x9000x10250 | |
| Whole machine capacity (kw) | 144-165 | 185-204 | 263-290 | 380-430 | |
| Main motor | Model | YB2-250M-4 | YB2-280M-8 | YB2-315L1-6 | YB2-315L2-6 |
| Power (kw) | 55 | 45x2 | 110 | 160 | |
| Rotate speed (rmin) | 1440 | 980 | 990 | 990 | |
| Analytical engine (FM motor) | Model | Y180M-4 | Y180L-4 | Y100L1-4 | YB2-225S-4 |
| Power (kw) | 18.5 | 22 | 30 | 37 | |
| Rotate speed (rmin) | 1440 | 1440 | 1440 | 1440 | |
| Blower motor | Model | Y225M-2 | Y250M-2 | Y280M-2 | YB2-250M-2 |
| Power (kw) | 45 | 55 | 75 | 55x2 | |
| Rotate speed (rmin) | 2940 | 2940 | 2940 | 2940 | |
| Elevator | Bucket model | TH-200 | TH-200 | TH-300 | TH-300 |
| Motor model | Y100L-4 | YB2-100L2-4 | YB2-112M-4 | YB2-112M-4 | |
| Motor power (kw) | 3 | 3 | 4 | 4 | |
| Rotate speed (rmin) | 1440 | 1440 | 1440 | 1440 | |
| Hammer Crusher | Hammer Crusher model | PC300x400 | PC400x600 | PC400x600 | PC600x800 |
| Motor model | YB2-160M-4 | YB2-180M-4 | YB2-180M-4 | YB2-280S-6 | |
| Power (kw) | 11 | 18.5 | 18.5 | 45 | |
| Rotate speed (rmin) | 1440 | 1440 | 1440 | 990 | |
| Magnetic vibrating feeder | Model | GZ1F | GZ1F | ||
| Power (kw) | 0.06 | 0.06 | |||
| Electrical machine | Model | LS159x1050 | LS159x2000 | ||
| Power (kw) | 2.2 | 3 | |||
| Discharge valve | Discharge valve model | ZJD-200 | ZJD-200 | ZJD-200 | ZJD-250 |
| Motor model | YB2-80M2-4 | YB2-80M2-4 | YB2-80M2-4 | YB2-90S-4 | |
| Power (kw) | 0.75x2 | 0.75x2 | 0.75x3 | 1.1 | |
| Rotate speed (rmin) | 1440 | 1440 | 1440 | 1440 | |
| Pulse dust collectors | Model | DMC120-II model | DMC144-II model | DMC184-II model | DMC160-II model*2 |
| Air compressor | Air compressor Model | KSH100D-7.5KW | KSH240D-15KW | KSH240D-15KW | KSH240D-15KWx2/td> |
| Motor model | YB2-132M-4 | YB2-160L-4 | YB2-160L-4 | YB2-160L-4 | |
| Power (kw) | 7.5 | 15 | 15 | 15 | |
| Rotate speed (rmin) | 1440 | 1440 | 1440 | 1440 | |
SCM PULVERIZING LINE
SCM8021 PULVERIZING LINE
Customer profile
Certain micropowder Co.,Ltd Zhejiang
Mr. Sun, general manager of the company, is engaged in micropowder industry for more than 10 years, with finished product fed to more than 160 manufactures.
It purchases SCM8021 superfine micropowder grinder from our company
Production Line Condition
Site: Zhejiang
Daily running: 11 hours
Feedstock: calcite, limestone, particle size 200-400mm, particle size into grinder<25mm
Finished product: 600 screen mesh-1250 screen mesh micropowder, finished product used in paint, coating, plastic additive, ect
Configuration: SCM8021 superfine micropowder grinder complete equipmeny
Main Specifications
| Model | Max.feed size(mm) | Size of Finished Product(mesh) | capacity(kg/h) |
| SCM8021 | 10 | 325-2500 | 400-5500 |
Customer’s comment
Shibang’s superfine micro powder grinder not only can attain our strict requipments on product quality of screen mesh and fineness very well, but also is relatively low in dissipation of energy. What is the most relieved is Shibang’s after-service, which is very timely and highly efficient. Furthermore, technician would ask use status of equipment over the telephone or personally come here for return visit.
---Mr. Sun, general manager of this company
Company Information
1. More than 20 years professional experience
2. All products achieved ISO9001:2000, CE certificate
3. Have the most powerful and most professional team
4. Have professional technical staff
5. Modernized production workshop
6. Good after-sales service
Our Services
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the good goods trading services, until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc. Technological support SBM has been largely adopting new technologies, new techniques and high-tech equipments. And SBM also has strict and effective quality control system.
Packaging & Shipping
Ways of Packing:
1.Sand blasting, coat with high quality paint;
2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival
FAQ
Q: Why we believe in Shanghai shibang company?
A:
1. More than 20 years experience.
2. SBM is the leading professional supplier of solution, equipments and service for crushing and grinding industry.
3. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q: Delivery time
A: The lead time is 10-30 days, Delivery time will vary depending on the type of the machine, shipping method selected and
part availability.
Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash
After sign the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q: what will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when
the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q: What should i do if I want to get a best quotation?
A: If you want a suitable type for you ,please let us know your material and capacity.
Related Products
Похожие товары

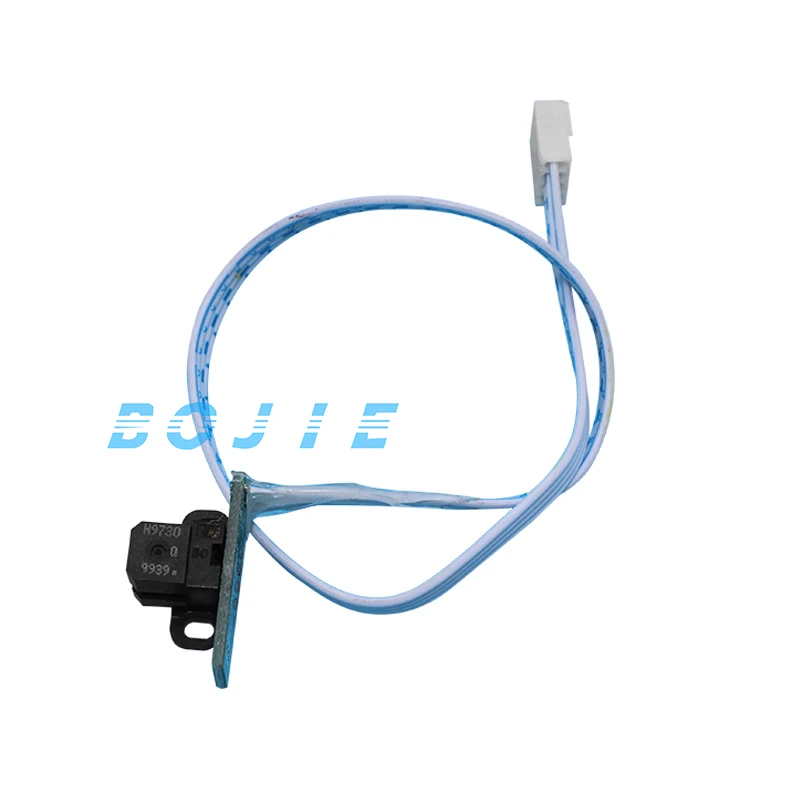

Датчик кодировщика принтера Infiniti для головки seiko
7,70 $

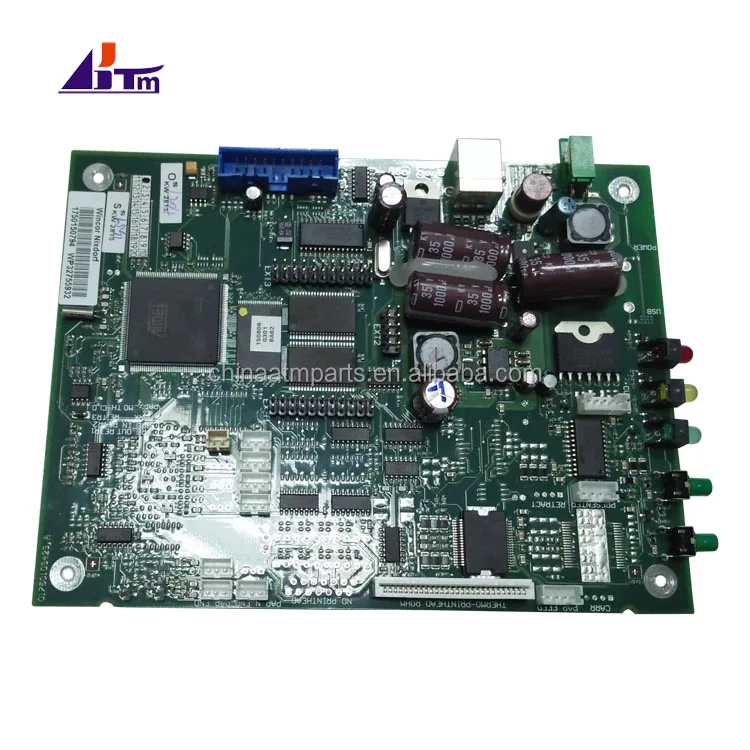

Запчасти для банкомата Wincor Nixdorf TP07A, панель управления 01750150794 1750150794
Дышащие детские подгузники kao merries от японской компании на

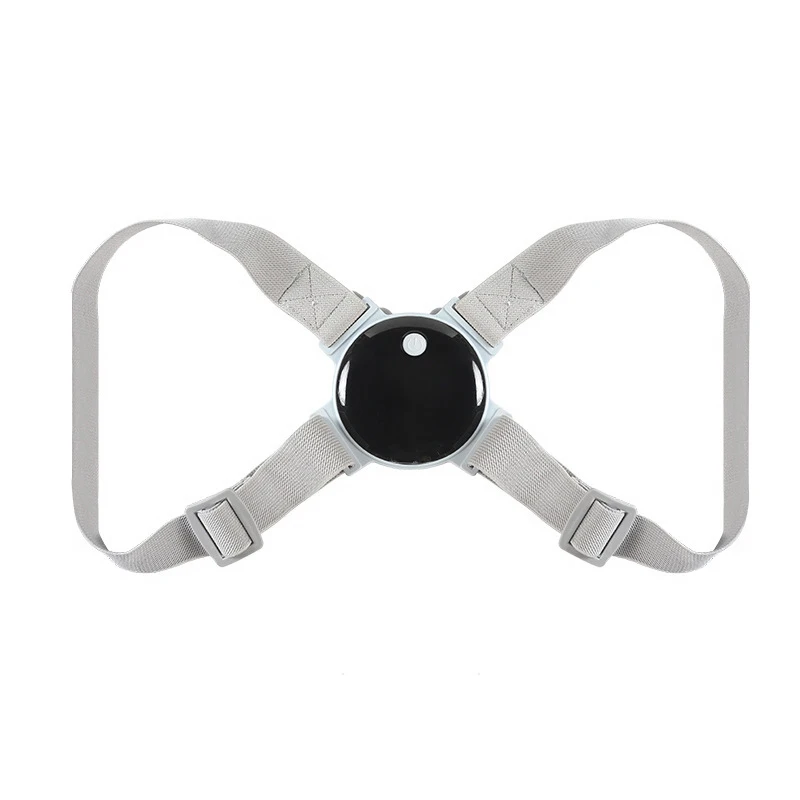

Лидер продаж, Корректор осанки, поддержка спины, плечевой ремень, выпрямитель, умный датчик, Корректор осанки, ремень
