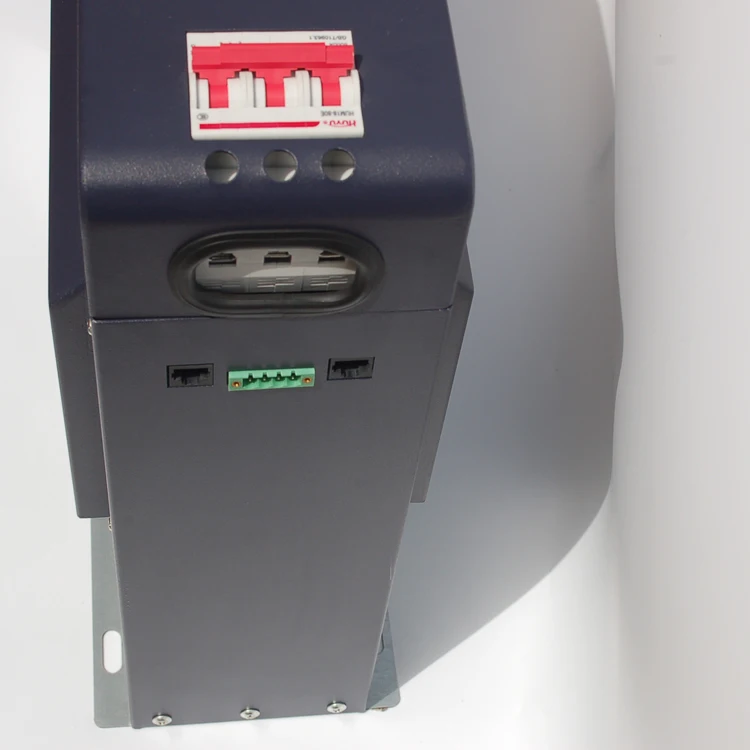

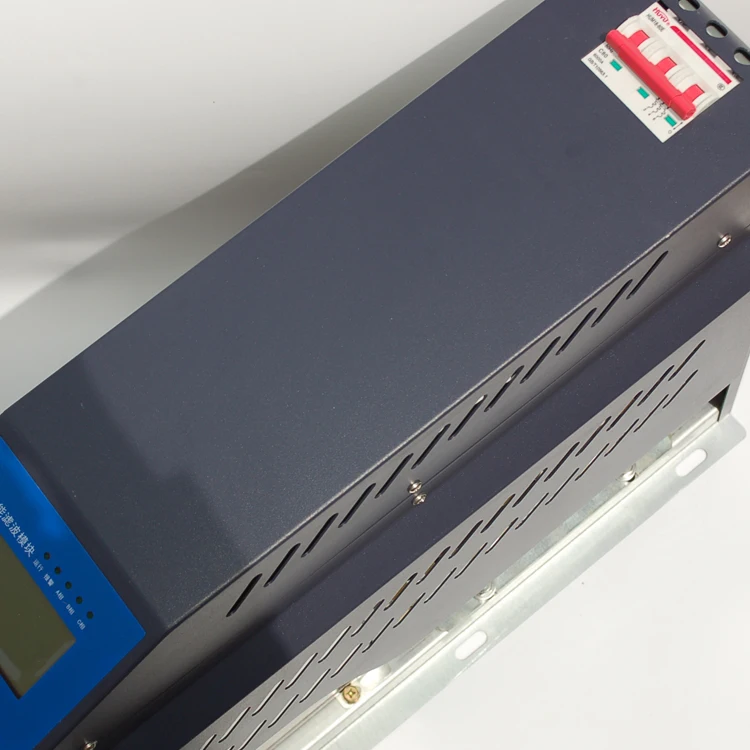

FORERUN FR ZCXS480 15 7 реактивное K линия защиты интеллигентая (ый) конденсатор с алюминиевой крышкой синхронный переключатель
- Категория: >>>
- Поставщик: Shijiazhuang Furun Zhongcheng Trading Co. Ltd.
Сохранить в закладки 1600061089631:
Описание и отзывы
Характеристики
Product Description
Functional characteristics | Function description |
Zero crossing switching | The voltage zero crossing input, the current zero crossing cut-off and the switching inrush current are very small, which greatly improves the voltage resistance, the current impact and the power consumption of the equipment, and reduces 80% of the energy consumption in the conventional capacitor cabinet |
Temperature protection (matching) | The built-in temperature sensor of the self-healing low-voltage power capacitor can reflect the internal heating of the capacitor under the conditions of over-voltage, over harmonic, large leakage current and high ambient temperature, so as to realize over temperature protection. After exceeding the set temperature, the capacitor will be automatically cut off, and the capacitor will be out of operation, so as to achieve the purpose of protecting the equipment |
intelligent network | When multiple capacitors are connected to the network for use, one becomes the main control capacitor and the other is the auxiliary control capacitor without setting, which forms the automatic control system of low-voltage reactive power. If some slave machine fails, no switching action will be taken, which will not affect the other work. If the main machine fails, the other capacitors will automatically generate a new main control capacitor through the time sequence competition, forming a new main control capacitor New system; capacitors with the same capacity are switched according to the principle of cycle switching, and capacitors with different capacities are switched according to the principle of adaptation; 485 communication interface can be connected to the background computer for integrated distribution management |
Block structure | The products are standardized and modularized, replacing the traditional controllers, air switches, AC contactors, thyristors, thermal relays and capacitors, and integrating them into a whole, with small heat output. When the panel is installed, the building block stacking method is used. When the capacitors are damaged, the simple single unit is only needed for quick replacement |
Wiring is simple. | With the installation of multiple capacitor panels, the production time is reduced by more than 60% compared with the traditional mode, while the connection line is reduced by 80%, and the nodes are reduced by 80%. The cabinet is simple and can be assembled quickly in the use site, which greatly improves the production efficiency of the complete plant |
Easy expansion | The product is small in size and simple in wiring. With the increase of the power load of the consumers, the number of capacitors can be increased at any time, which changes the conventional mode. Due to the complex wiring and unchangeable limitations, it can meet the needs of the development of the enterprise and can be invested by stages |
Convenient maintenance | LCD Chinese display protection action type, including over-voltage, under voltage, small current, over temperature, voltage harmonic, current harmonic and other protection; intelligent capacitor has self diagnosis function, which can reflect the above faults on the LCD, which is conducive to on-site fault finding. The product has an overall warranty of one year. When the capacitor is damaged, it only needs simple and rapid replacement of the single unit to realize maintenance free |
Remarkable effect | Ensure that the system voltage is stable and qualified; improve the power factor and predict the input capacitor. If the input capacitor is over compensated, it will not be input to avoid fines due to over reactive power; control the reliability by 100%, improve the active output of distribution transformer, reduce the capacity increase investment, reduce losses and save energy |
Wiring is simple. | With the installation of multiple capacitor panels, the production time is reduced by more than 60% compared with the traditional mode, and at the same time, the connection line is reduced by 80%, and the nodes are reduced by 80%. The cabinet is simple and can be assembled quickly on site, which greatly improves the production efficiency of the complete set of plants |
Easy expansion | The product is small in size and simple in wiring. With the increase of power load of the consumers, the number of capacitors can be increased at any time, which changes the conventional mode. Due to the complex wiring and unchangeable limitations, it can adapt to the needs of enterprise development and can be invested by stages |
Convenient maintenance | LCD Chinese display protection action type, including over-voltage, under voltage, small current, over temperature, voltage harmonic, current harmonic and other protection; intelligent capacitor has self diagnosis function, which can reflect the above faults on the LCD, which is conducive to on-site fault finding. The product has an overall warranty of one year. When the capacitor is damaged, it only needs simple and rapid replacement of the single unit to realize maintenance free |
Remarkable effect | Ensure that the system voltage is stable and qualified; improve the power factor and predict the input capacitor. If the input capacitor is over compensated, it will not be input to avoid fines due to over reactive power; control the reliability by 100%, improve the active output of distribution transformer, reduce the capacity increase investment, reduce losses and save energy |

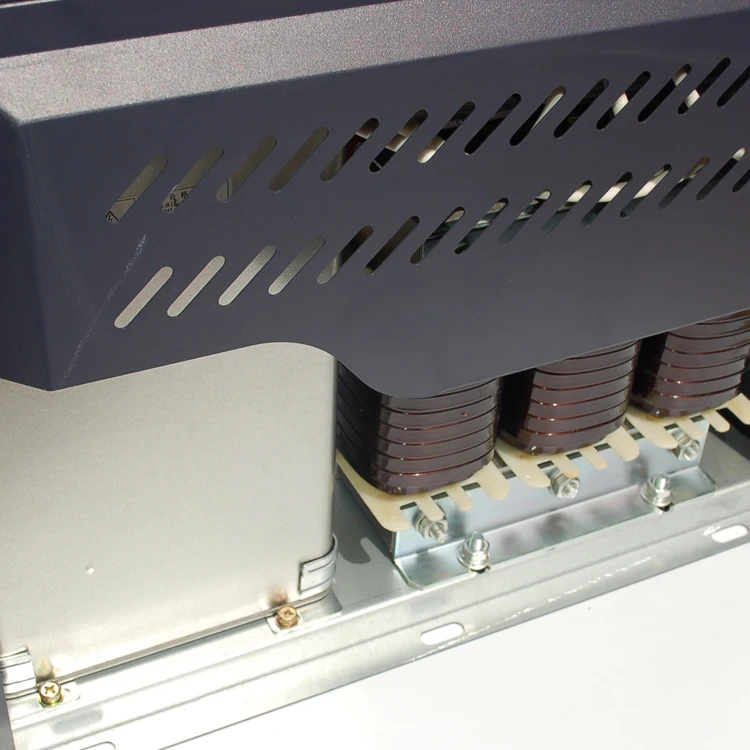

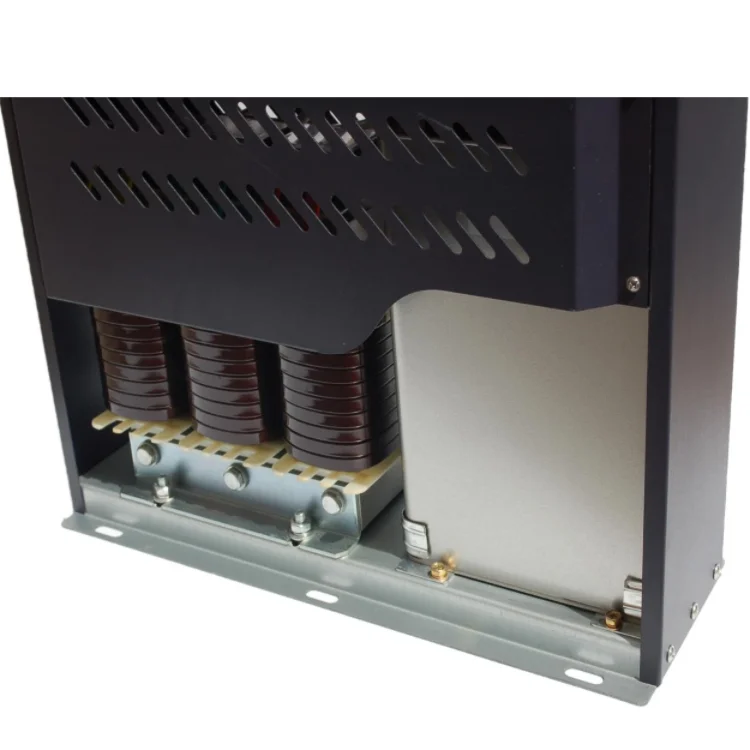

Product name | Harmonic suppression intelligent capacitor |
model | FR-ZCXS480-40-7 |
Compensation type | Three phase compensation |
Compensation capacity | 40 Kvar |
Product description | Dry |
Occasion of use | Applicable to 5 times and Above harmonic situations |
Related Products
Certifications
Packing&Shipping
Company Introduction
Shijiazhuang Furun Zhongcheng Trading Co., Ltd. was founded in October 2005, located in Hebei Province, China. Is a diversified electronic product sales enterprise, with a professional management team, a wide range of industry background, professional financing institutions, in the national range has a perfect marketing and service network. The sales service area covers 20 provinces and cities in China and has established close cooperation with them. In the development of the company, we do not forget to optimize customer service. With strong economic and technological strength, high-quality professionals and high-quality and efficient services, we have established a good corporate image in the society, which has been widely trusted and praised by all walks of life and customers. We have won the highest evaluation of new and old customers with the same enthusiasm!
Похожие товары
SY408C-8( VI )-LQ( K ) 12Ton Автобетоносмеситель 8m3 тележка конкретного насоса Бетономешалка машина с запасными частями
35 000,00 $ - 35 800,00 $
K медная трубка для блинов № 22 1/4 дюйма 15 м
8,29 $ - 11,89 $
Белое золото 18 карат, бриллиантовые кольца 0,5 карат H/SI настоящим бриллиантом женские обручальные кольца, кольца с бриллиантами для женщин
910,00 $ - 930,00 $

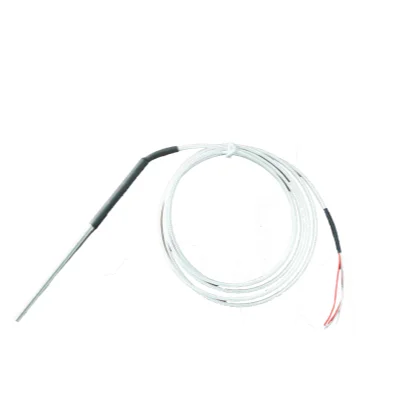

Дешевый датчик уровня воды Liguid K Гидростатический Датчик уровня бака
