Product Description

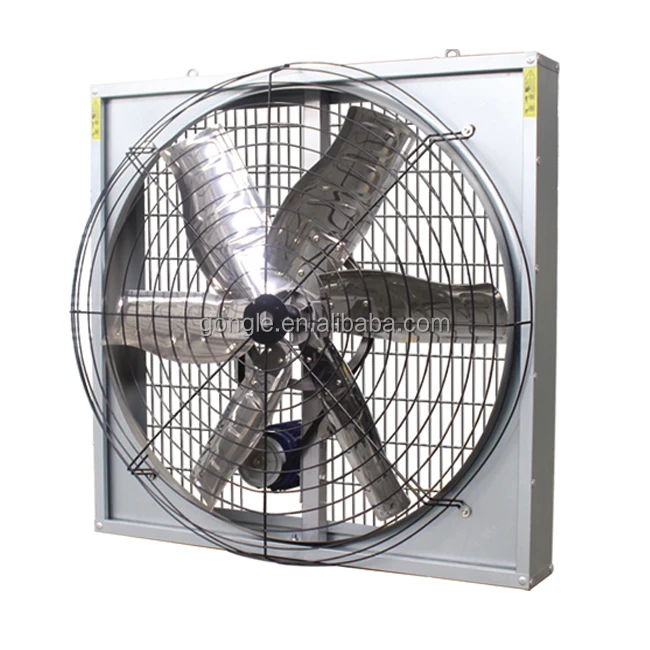

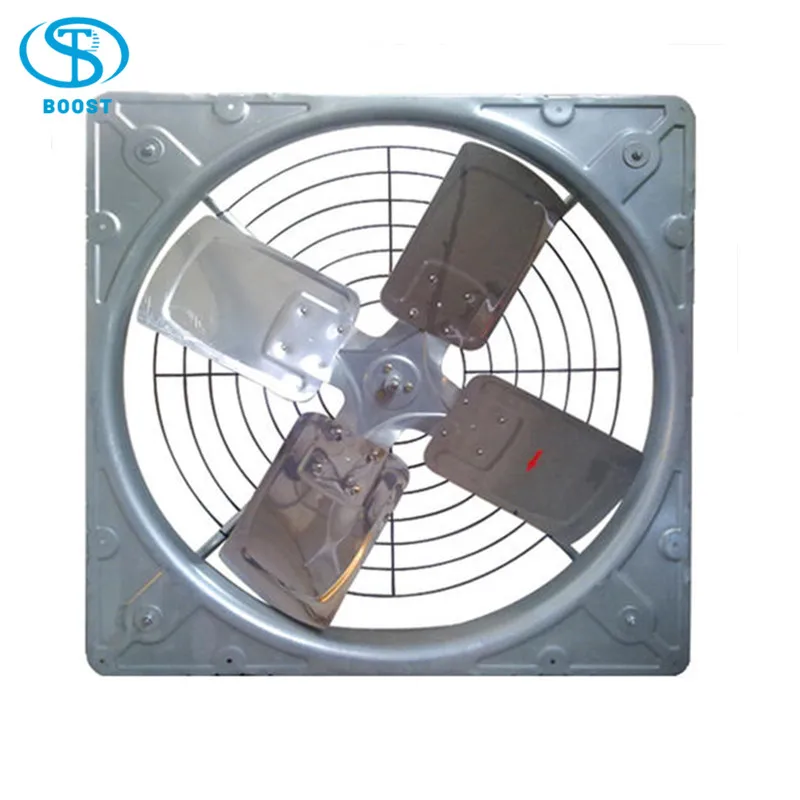

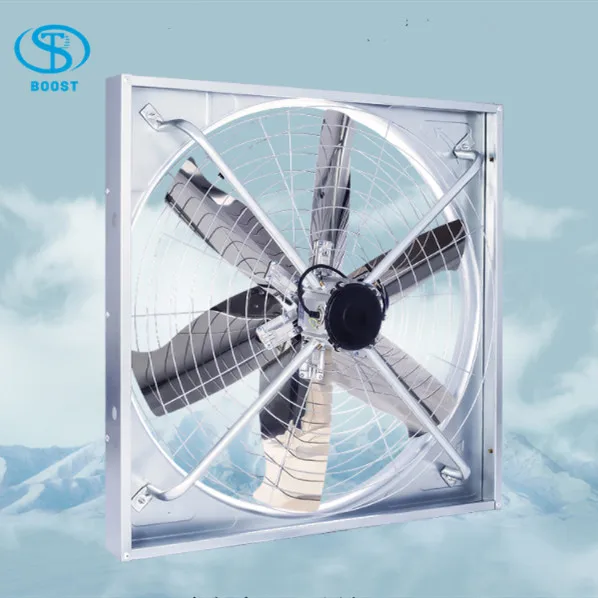

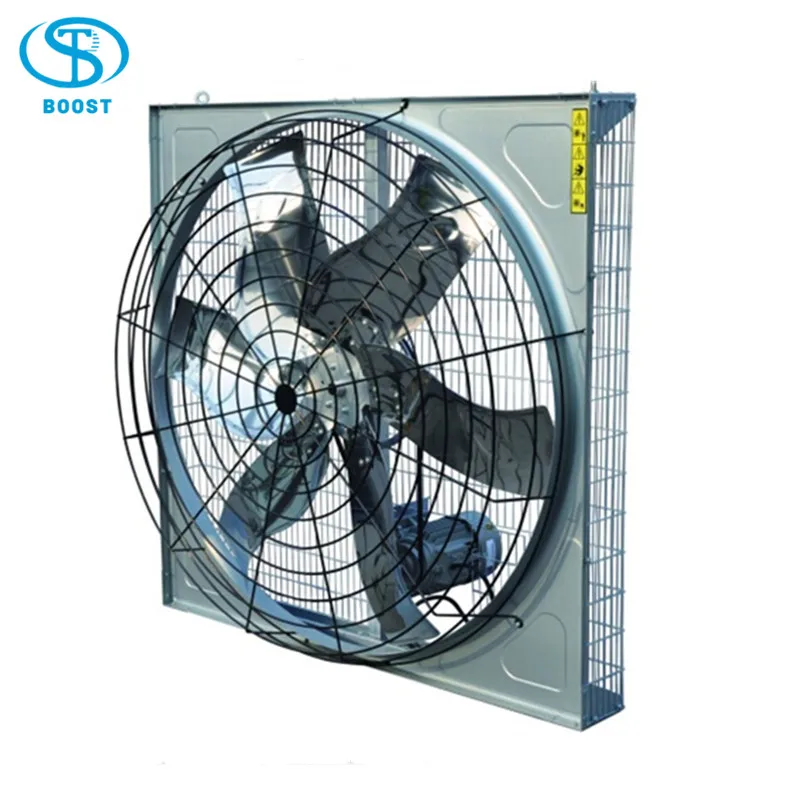

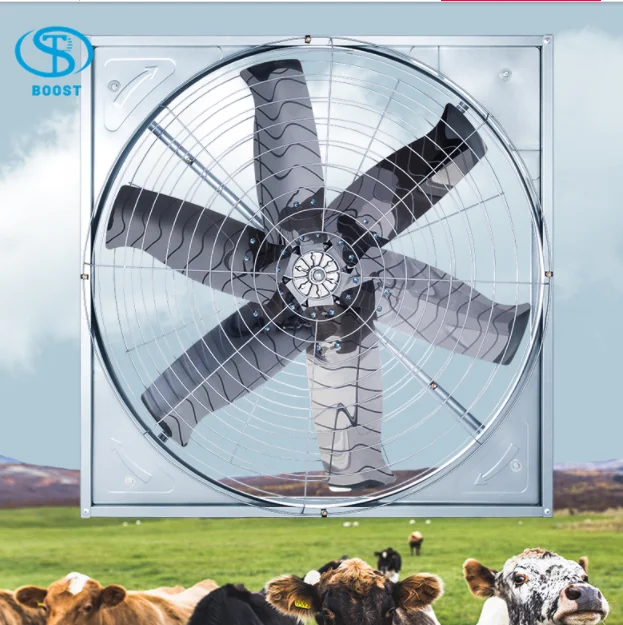

Dairy farm ventilation fan for cattle farm/centrifugal dairy fan/48inch fan for dairy farm
BOOST Exhaust fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.
BOOST Exhaust fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.
Model | Blade Diameter | Blade RPM | Motor RPM | Air Flow m³/hr | Input Power | Dimensions | |
BST-CF900 | 750mm-30inch | 630 | 1400 | 28000 | 370w | 900*900*350mm | |
BST-CF1000 | 900mm-36inch | 610 | 1400 | 30000 | 750w | 1000*1000*350mm | |
BST-CF1100 | 1000mm-40inch | 600 | 1400 | 32500 | 750w | 1100*1100*350mm | |
BST-CF1220 | 1100mm-44inch | 460 | 1400 | 38000 | 750w | 1220*1220*350mm | |
BST-CF1380 | 1270mm-50inch | 439 | 1400 | 44000 | 1100w | 1380*1380*350mm | |
BST-CF1530 | 1400mm-56inch | 325 | 1400 | 55800 | 1500w | 1530*1530*350mm |
Detailed Images
Motor
Dairy farm ventilation fan for cattle farm/centrifugal dairy fan/48inch fan for dairy farm
Dairy farm ventilation fan for cattle farm/centrifugal dairy fan/48inch fan for dairy farm
Brand: Chinese motor and Siemens motor Certificate: CCC Protection class: IP55 grade
Insulation class: F grade
Volt and frequency:Customized Production:With phase failure protective device to ensure motor working well
Advantage:
Pure copper wire,High-efficiency,Energy-saving.
Insulation class: F grade
Volt and frequency:Customized Production:With phase failure protective device to ensure motor working well
Advantage:
Pure copper wire,High-efficiency,Energy-saving.

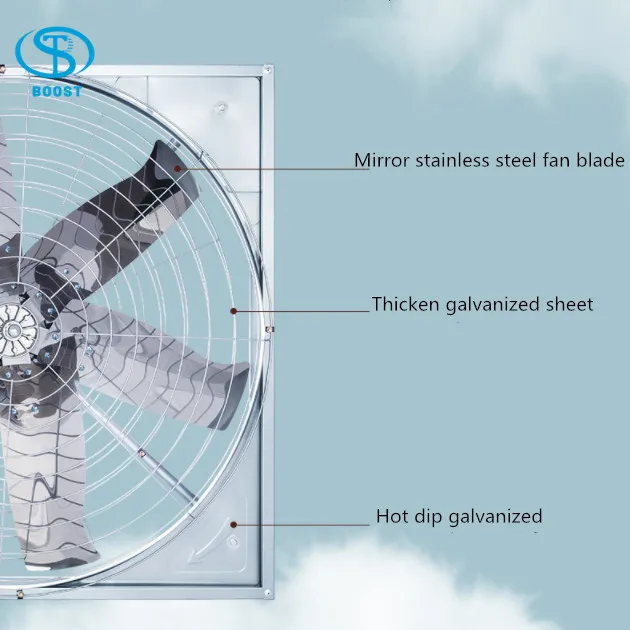

Fan blade which punching formed
Dairy farm ventilation fan for cattle farm/centrifugal dairy fan/48inch fan for dairy farm
Dairy farm ventilation fan for cattle farm/centrifugal dairy fan/48inch fan for dairy farm
1. Material : Krupp 430 stainless steel, thickness 1.2mm
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option
Belt pulley
Dairy farm ventilation fan for cattle farm/centrifugal dairy fan/48inch fan for dairy farm
Dairy farm ventilation fan for cattle farm/centrifugal dairy fan/48inch fan for dairy farm
Fan belt pulley and flange are made of aluminum-magnesium alloy by pressure casting.Good outlook with lightweight. Especially to reinforcing rib to increased strength. No broken . Long service life.
Fan Blade Hub
Dairy farm ventilation fan for cattle farm/centrifugal dairy fan/48inch fan for dairy farm
Dairy farm ventilation fan for cattle farm/centrifugal dairy fan/48inch fan for dairy farm
Fan blade hub is made of aluminum-magnesium alloy by pressure casting.Especially to reinforcing rib to increased strength. No broken . Long service life.The angle of blade hub is designed after double tested which can be fix with blade exactly.
Advantage:
Small wind resistance,Large air flow, attractive and durable.
Advantage:
Small wind resistance,Large air flow, attractive and durable.
Belt
Dairy farm ventilation fan for cattle farm/centrifugal dairy fan/48inch fan for dairy farm
Dairy farm ventilation fan for cattle farm/centrifugal dairy fan/48inch fan for dairy farm
We have Chinese belt and Japanese Mitsuboshi brand belt for customer choice. Long service life and no repair
Modified B type belt,so that service life increase 3times than Type A
Modified B type belt,so that service life increase 3times than Type A
Frame
Dairy farm ventilation fan for cattle farm/centrifugal dairy fan/48inch fan for dairy farm
Dairy farm ventilation fan for cattle farm/centrifugal dairy fan/48inch fan for dairy farm
Reverse flow design of turning out edge, Increase fan stability, Reduce fan vibration and Low noise
More Details
Dairy farm ventilation fan for cattle farm/centrifugal dairy fan/48inch fan for dairy farm
Dairy farm ventilation fan for cattle farm/centrifugal dairy fan/48inch fan for dairy farm
Production Images
How to install Exhaust Fan
Company Introduction
WHY choose BOOST?
BOOST factory is equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry, in order to reduce the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.
Packing&Shipping
After Sales Service
Pre-sales service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
* Sample testing support.
* Visit our Factory.
After-sales service
* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.
* Engineers are available to service machinery overseas.
FAQ
Q:Is your company a manufacture or Trading company?A:We are professional manufacture of Ventilation equipment,Cooling equipment
and Heating equipment for poultry,workshop and greenhouse in China
Q:Can you open our own brand?
A:Yes,we can offer OEM/ODM service,put your logo for the produce.
Q:What is your minimum oreder quantity?
A:We accept small order quantity, but the freight cost will be very high
Q:Voltage your can offer?
A:Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q:How about the quality of your product?
A:All the products are produced strictly according to the international standard,which has been passed CE certification,CCC
certificated and ISO9001:2008 international quality management system.
Q:Can you accept an inspection of a Third-party detection instituation?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before.and have got
perfect inspection report.
and Heating equipment for poultry,workshop and greenhouse in China
Q:Can you open our own brand?
A:Yes,we can offer OEM/ODM service,put your logo for the produce.
Q:What is your minimum oreder quantity?
A:We accept small order quantity, but the freight cost will be very high
Q:Voltage your can offer?
A:Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q:How about the quality of your product?
A:All the products are produced strictly according to the international standard,which has been passed CE certification,CCC
certificated and ISO9001:2008 international quality management system.
Q:Can you accept an inspection of a Third-party detection instituation?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before.and have got
perfect inspection report.
