GFG glatt tea salt powder fluid fluidized bed dryer
GFG
Main Application
GFG stock stainless steel aeromatic cacao shrimp sugar granule fluid bed drying equipment dryer granulator is the granule high-efficient drying equipment which is matched with YK Type Swing Granulator or GHL Type High-speed Mixing Granulator. It has more fluidized range than traditional horizontal XF fluidized drier and can be easily cleaned. When fluidized, the material is stirred slowly avoiding the block. So it has special advantages for the high wet and sticky material. It's widely used in: a. the granule for troche, capsule and instant medicine; b. big granule and micro-powder in foodstuff, chemical industry, etc; c. wet and sticky granule or powder with different sizes.
Working Principle
Put the material (granule or powder) into the charging hopper. Meanwhile filter the dust in the air by the filter and heat the material to the demanded temperature by the heater. When the air gets through the Dutch sieve, the material is fluidized and dried. The steam is drawn by the fan through the dedust bags. The superfine powder will be collected by the filter bags and can be shaken back to the container after fluidizing by the upper shaking cylinder.
Characteristics
(1) The charging hopper is cylindraceous with no dead angle, even drying and easy cleaning. (2) The filter pocket, adopting the antistatic fiber, has well ventilation and excellent dedust effect. So it is safe and reliable. (3) It is equipped with stirring set in the bed avoiding the block of the material. It features the great fluidized range and quick drying speed.
TECHNOLOGY DATA:
Model | GFG-60 | GFG-100 | GFG-120 | GFG-150 | GFG-200 | GFG-300 | GFG-500 | ||||||
Batch charging(kg) | 60 | 100 | 120 | 150 | 200 | 300 | 500 | ||||||
Blower | Air flow(m3/h) | 2361 | 3488 | 3488 | 4901 | 6032 | 7800 | 10800 | |||||
Air pressure(mm)(H2O) | 494 | 533 | 533 | 679 | 787 | 950 | 950 | ||||||
Power(kw) | 7.5 | 11 | 11 | 15 | 22 | 30 | 45 | ||||||
Agitating power(kw) | 0.4 | 0.55 | 0.55 | 1.1 | 1.1 | 1.1 | 1.5 | ||||||
Agitating speed(rpm) | 11 | ||||||||||||
Steam consumption(kg/h) | 141 | 170 | 170 | 240 | 282 | 366 | 451 | ||||||
Operating time(min) | ~15-30 (According to the material) | ||||||||||||
Height(mm) | Square | 2750 | 2850 | 2850 | 2900 | 3100 | 3300 | 3650 | |||||
Round | 2700 | 2900 | 2900 | 2900 | 3100 | 3600 | 3850 | ||||||
The above is our technical data. We can also design and manufacture different varieties upon customer's request.

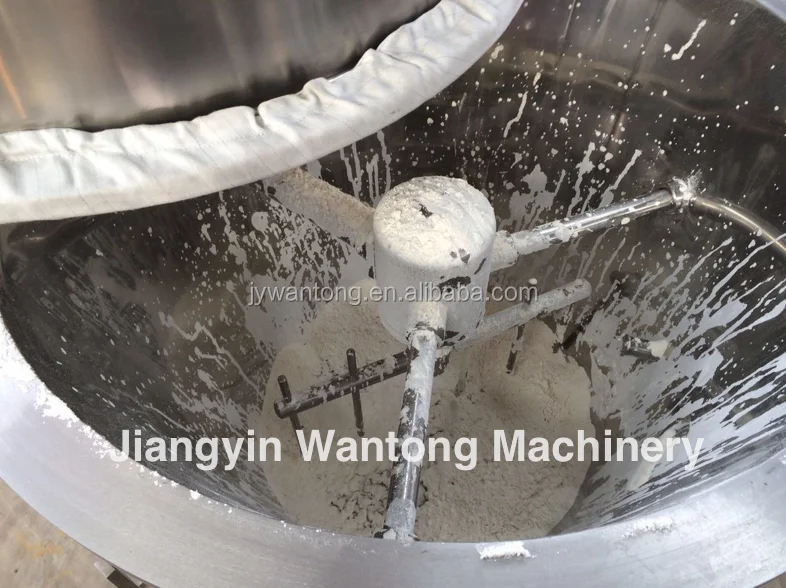

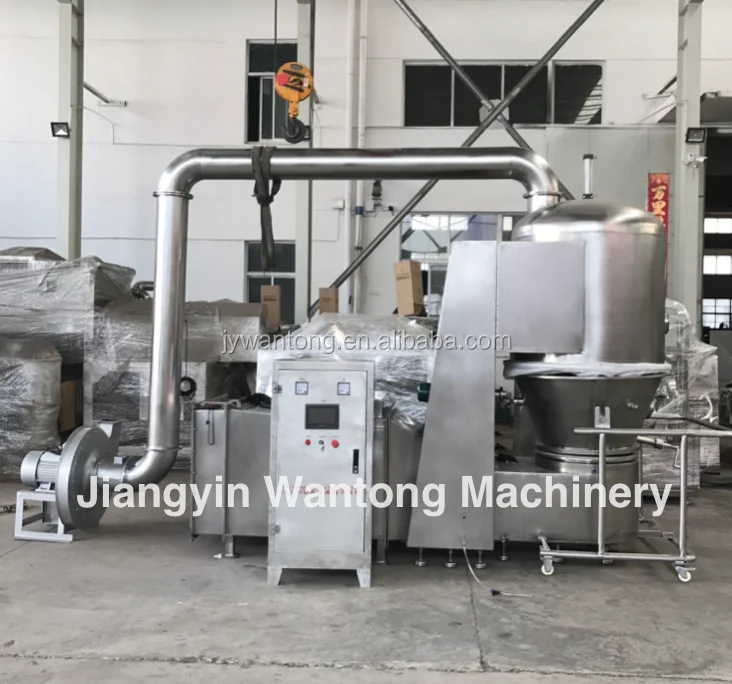

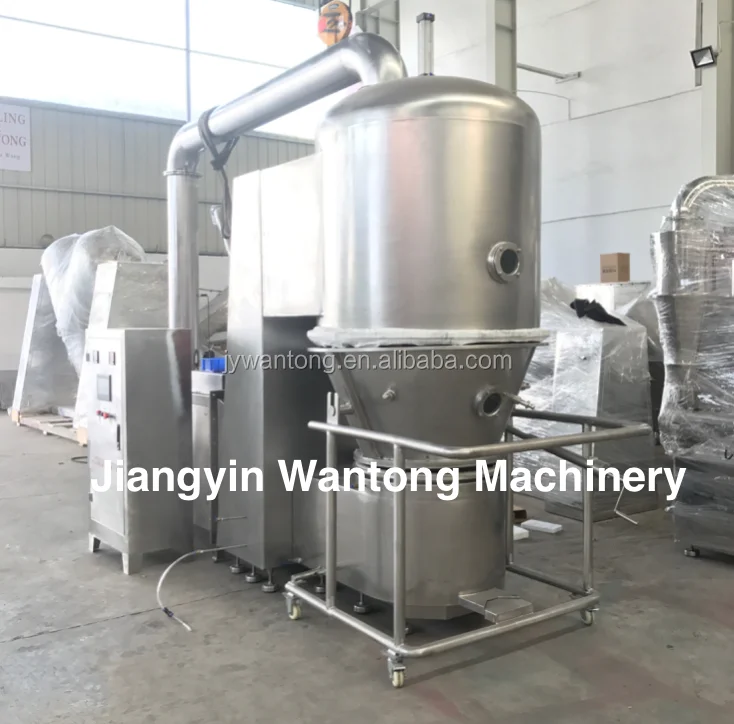

MACHINE REAL VIEW:

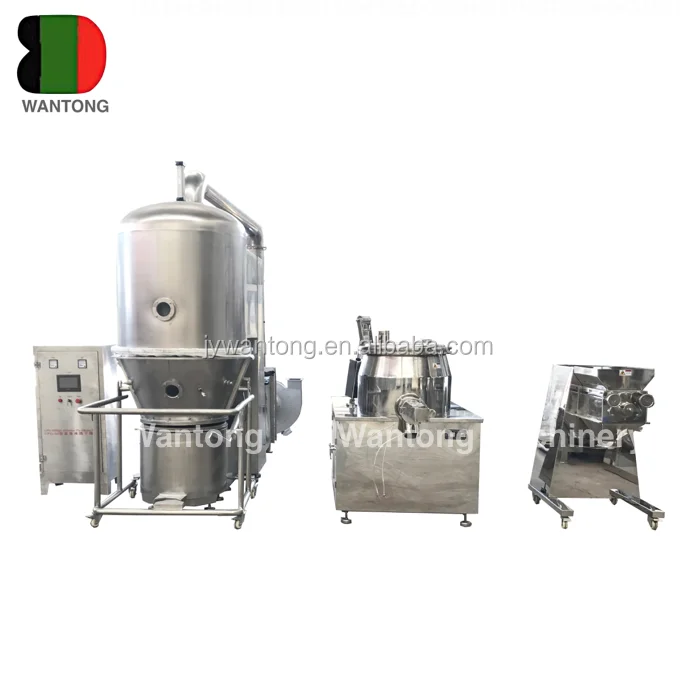

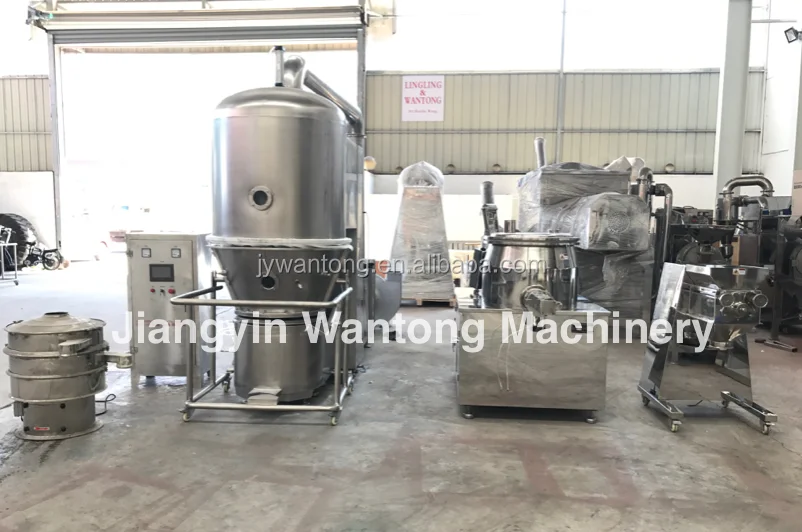

OTHER MACHINE
Company Information
MORE MACHINE TYPE, INTO OUR WEBSITE: https://jywantong.en.alibaba.com
- More than 20 years old
- The big factory with rich experience and technology in Jiangyin
- Have many branches through the whole china.
- Own many honors, awards and certificates.
- Contact me by WHATSAPP or WECHAT, provide video/photos ALIVE.
- Our machine itself and our big factory will be our strongest and best explanations.
- We have many machines in the stock, we will be glad if you can visit us to get more real and effective information about the machine.
FOR MORE INFORMATION, PLEASE Click into Our Company
NOTE: All machine photos are all true belong to us, without permission shall not be used without authorization !
FAQ
ARE YOU REAL FACTORY OR TRADING COMPANY?
YES ! We are real and most reliable factory here. Welcome you visit us anytime! After compare , you will know we are most expert and big factory in this !!
WHAT MACHINE YOUR COMPANY HAVE? CAN CUSTOMIZED MACHINE UPON MY NEEDS?
Yes, we also produce CRUSHER, GRINDER, MIXER, DRYER, GRANULATOR, VIBRATING SIFTER, CONVEYOR, etc.
We absolutely can customized machine upon your side, just freely tell me your needs or design request, i will check and give you quote.
CAN YOU GIVE ME GUIDE ON OTHER MACHINE ? TO FULL MY PRODUCTION LINE
YES ! Our company have build more than 20years now, we also can recommend you other machine supplier which we don't sale , like packing machine, filling machine, etc !!
HOW TO VISIT YOUR COMPANY?
Our company is in WUXI city, near shanghai cisty, only 20mins away from WUXI EAST TRAIN STATION. Or you can call me +86 13921209007 anytime you arrive Wuxi, i will go to pick you.
WHAT'S YOUR BEFORE & AFTER SERVICE ?
1) Professional advice and rich experience help to choose machine.
2) Longtime maintainance and considerate technical support
3) Technicians can be sent to abroad to install.
5)ONE year guarantee. WHOLE life service. Within1 year, any problem part can send to us, we can give provide free new part(only damaged by machine itself).
4) Any problem before or after delivery, you could find and talk with us anytime. We will free supply technical support.
5) Video / CD of test running and installation, Maunal book, tool box sent with machine if client request.
WHAT'S YOUR SHIPPING ITEM PROCESS?
We have long-term working shipping forwarder. We can do our best to send machine to your port safe and sound .
If your need , we can help you do custom clearance .
Packaging Details: 1. Outside package: Standard export wooden cases.
2. Inner package: Stretch film.
Delivery Details: Machine will be finished in about 25 workdays after payment.
HOW ABOUT YOUR PAYMENT TERM?
1. Normally we can work on T/T or L/C.
2. On T/T term, 30% down payment is required in advanced. And 70% balance shall be settled before shipment.
3. On L/C term, a 100% irrevocable L/C without soft clause can be accepted.Please seek the advice from the individual sales manager whom you work with.
5) Video / CD of test running and installation, Maunal book, tool box sent with machine
