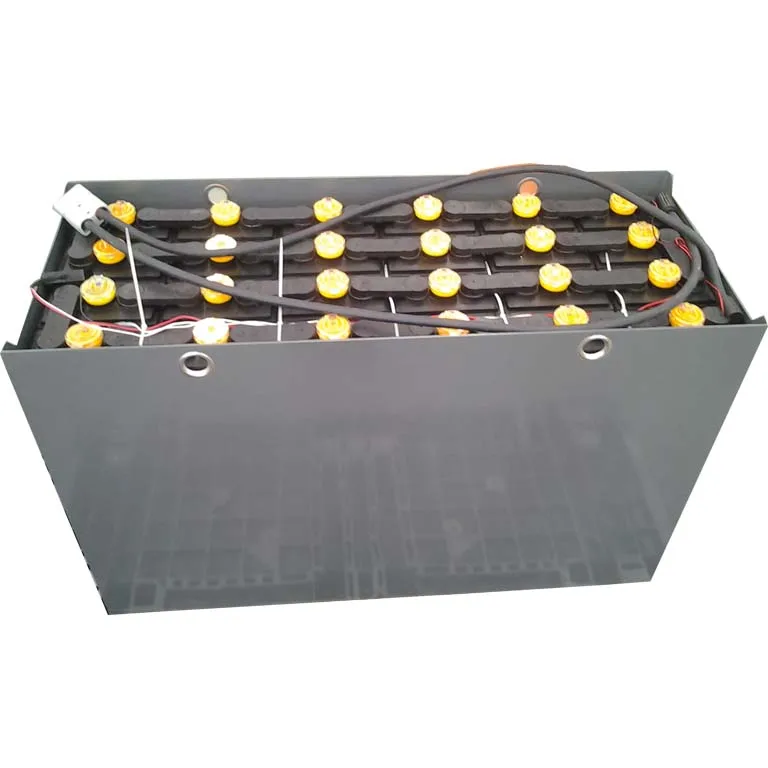

Батарейный блок 9VBS450/48V450Ah для тягового вилочного погрузчика серия 158 VBS с поворотной трубкой или системой автозаполнения

Батарейный блок 9VBS450/48V450Ah для тягового вилочного погрузчика серия 158 VBS с поворотной трубкой или системой автозаполнения

Категория: Battery Packs >>>
Поставщик: Guangzhou CBB Battery Technology Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

CBB Battery Technology Co., Ltd

CBB Battery offers complete battery solutions for all of the motive power applications found below. Each battery line is designed for the unique demands of each application.

Product Description

LIFT TRUCK / FORKLIFT BATTERIES

Keep your material moving – with industrial lift truck/forklift solutions from CBB Battery. Our comprehensive product line of
motive power batteries delivers uninterrupted performance for lift truck operators, and big cost savings for your business.

--------------------

Specification:

Heavy duty power Products name: forklift battery

Capacity:450ah

Nominal Voltage:48V

type: VBS type

Steel box size: 1000*700*500mm

Single cell size: 157*158*385*420mm

Connector: Flexible connector/soft connector

Weight: 18kgs dry weight, 25kgs wet weight for each cell

Specail design: with autofilling system/ with diversion tube

OEMavailable

No.of.terminal:2

Material of container: PP
Certificate: ISO,CE, SGS,UL

material:lead acidcompany

located in: Guangdong

Application:

Electric forklift;

Electric trasporting cars;

Electric stacker cars;

Electric pallet trucks;

Tunnel/metro locomotives;

Road vehicles and other deep cycle DC power supply equipment;

Product Features:
1.158 series and 188 series cells.
2.Robust,flooded tubular technology.
3.Highest standards of design,materials and workmanship.
4.Outstanding deep cycling capacity & reliability.
5.Spines of antimonial lead filled with lead oxide and less maintenance.

Advantage:

1. Tubular positive plates and pasted negative plates

2. Low Self-discharge and Low Energy Cost

3. Avoidance of insufficient discharging and over charging

4. Deep Cycle Performance

5. Long Service Life

After-sales service:

Note:

1), Please kindly use the forklift battery according to Seawill operation manual, do not over charge or over discharge the
battery, or not charge the forklift battery enough, please charge the battery in constant current every month, otherwise it would
reduce the battery's capacity and shorter battery's cycle life.

2), Please check battery's level every week, the professional engineer or worker is needed in the checking. Please make sure the
battery's electrolyte is not lower than the Minimum level, otherwise it would cause the battery's over heat and burn out.

3), Filling water must use the proper forklift battery water, if mix the impurity,it would cause battery's self discharge, over
heat or even poison gas, please not do not fill the water too excessive, and please keep battery's surface to be clean and dry,
otherwise, it would cause battery's electrolyte lead out and short circuit and etc problem.

24V3PZS240

24V3VBS210

48V750Ah

5VBS500-48V500AH

5VBS300-24V300Ah

3VBS210-24V200Ah

----forlift/traction Batteries Technical Specifications:

8VBS470-48V470AH

9PZS630-48V630AH

--------------------

2. TUBULAR DEEP-CYCLE FLOODED BATTERIES

CBB’s Tubular deep-cycle flooded batteries (Trojan Batteries) are the traditional batteries for motive power, engineered to provide rugged durability, outstanding performance and long life, CBB ’s deep-cycle flooded batteries are perfectly suited for use in a variety of golf and electric vehicles. These powerful deep-cycle flooded batteries feature CBB’s historically-proven engineering and tubular plate technology, an advanced battery technology for maximum sustained performance, longer life and increased total energy.

T-105-6V225AH

T-890-8-8V190AH

T-1275-12V150AH

----TUBULAR DEEP-CYCLE FLOODED BATTERIES Technical Specifications:

--------------------

3. ELECTRIC VEHICLES BATTERIES

CBB DZM & EVF Series VRLA Gel Battery is specially designed for motive power applications, i.e. electric bikes/scooters, electric tricycles, electric motorcycles and others device require DC power source. The DZM Series adopts international leading technologies to ensure the batteries with features of long cycle life, large current discharge capability, high reliability and safety, and environmental-friendly.

CONTACT:

If you need more details or recommendations on the deep cycle batteries, please kindly feel free to contact

Judy Huang by mobile / Whats-App: + 86 186 2057 8581 wechat: judyhuang2014
or email: export1@cbb-battery.com

Model No	Volts	Capacity	Length	Width	Height	Total Height	Weight	Terminal
Model No		V	Ah	mm	mm	mm	mm	kg	Type
DZM SERIES ELECTRIC VEHICLE BATTERY
6-DZM-12	12	12/5HR	152	99	98	101	4.4	F2
8-DZM-14	16	14/5HR	201	113	99	102	6.5	F4
6-DZM-20	12	20/5HR	181	77	170	171	7	T1
6-DZM-24	12	24/5HR	175	165	126	126	9	T2
6-DZM-28	12	28/5HR	318	80	126	126	9.6	T3
6-DZM-30	12	30/5HR	224	95	175	175	10.1	T3
6-DZM-35	12	35/5HR	225	107	175	175	12	T3
6-DZM-42	12	42/5HR	224	120	175	175	12.5	T3
6-DZM-50	12	50/5HR	224	120	175	175	13.5	T3
EVF SERIES ELECTRIC VEHICLE BATTERY
3-EVF-200	6	200/3HR	260	180	265	272	35	T5
4-EVF-150	6	150/3HR	260	180	280	280	36.5	T5
6-EVF-40	12	40/3HR	198	166	174	174	14.5	T3
6-EVF-80	12	80/3HR	260	169	211	215	26.5	T3
6-EVF-100	12	100/3HR	327	172	216	224	34.5	T4
6-EVF-120	12	120/3HR	407	173	210	233	42	T5
6-EVF-135	12	135/3HR	341	173	283	288	47	T5
6-EVF-150	12	150/3HR	484	171	241	241	51	T4
6-EVF-200	12	200/3HR	521	238	217	222	64	T4

Model No	Volts	Capacity	Max. Outer Dimension (mm)				Width	Height	Total Height	Max. Weight (KGS)
Model No		V	AH/5HR	Length	Width	Height	Total Height	Dry	With Acid
TUBULAR DEEP-CYCLE FLOODED VEHICLE BATTERY
3-DG-300	6	240	365	175	275	285	27.5	37
6-DG-200	12	120	365	175	275	285	27.5	37
6-DG-185	12	110	365	175	275	285	26	35
6-DG-175	12	100	365	175	255	275	24.5	33
6-DG-165	12	90	365	175	235	255	22	31
6-DG-155	12	80	365	175	235	255	19	29
6-DG-145	12	70	365	175	235	255	18	28
6-DG-60	12	60	260	215	225	240	14.5	21
6-DG-210	12	167	518	277	222	245	42	61
6-DG-220	12	175	518	277	222	245	44	63
6-DG-240	12	190	518	277	222	245	46.5	65.5

6-EVF-200-12V200AH

6-EVF-120-12V120AH

6-EVF-75-12V75AH

For any detailed information, services or rates, please feel free contact us any time while visiting www.cbb-battery.com

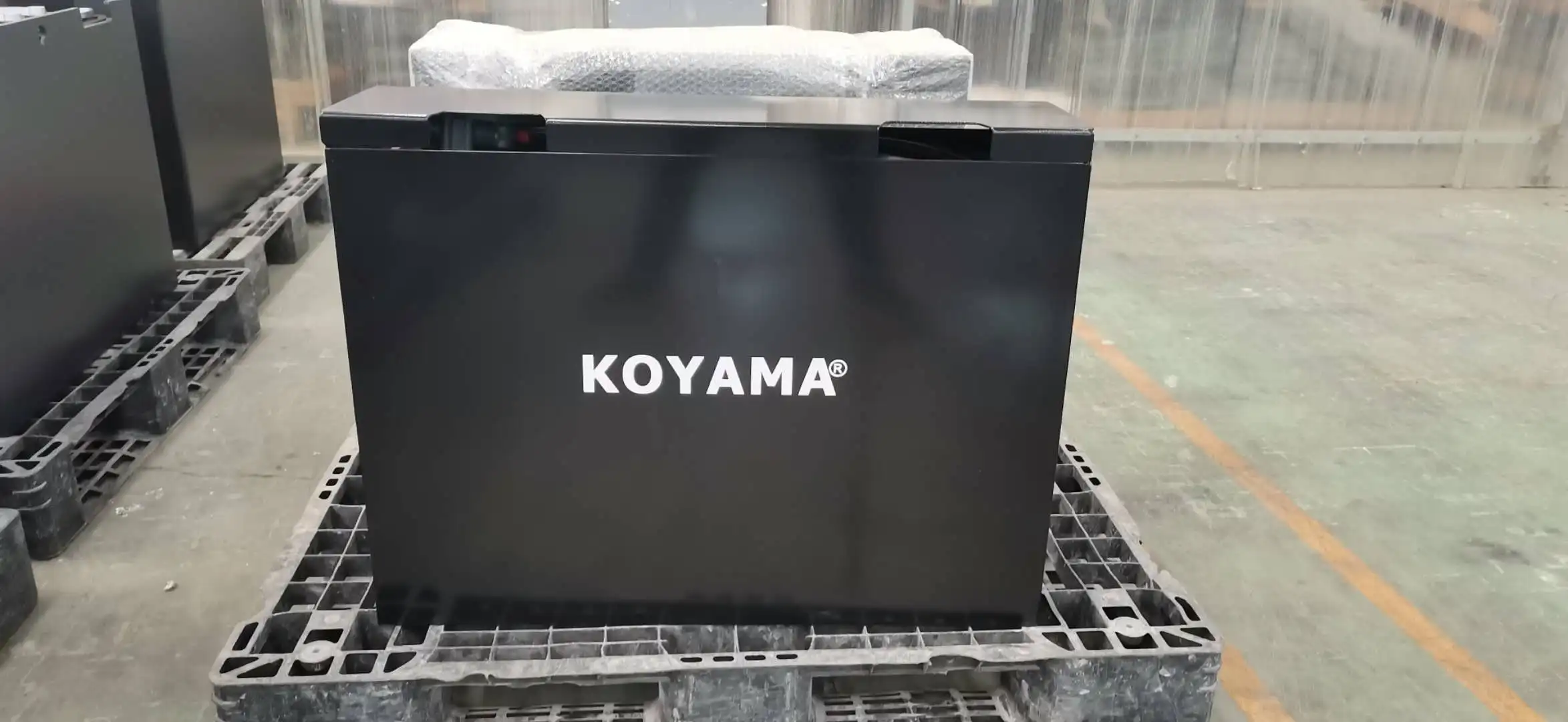

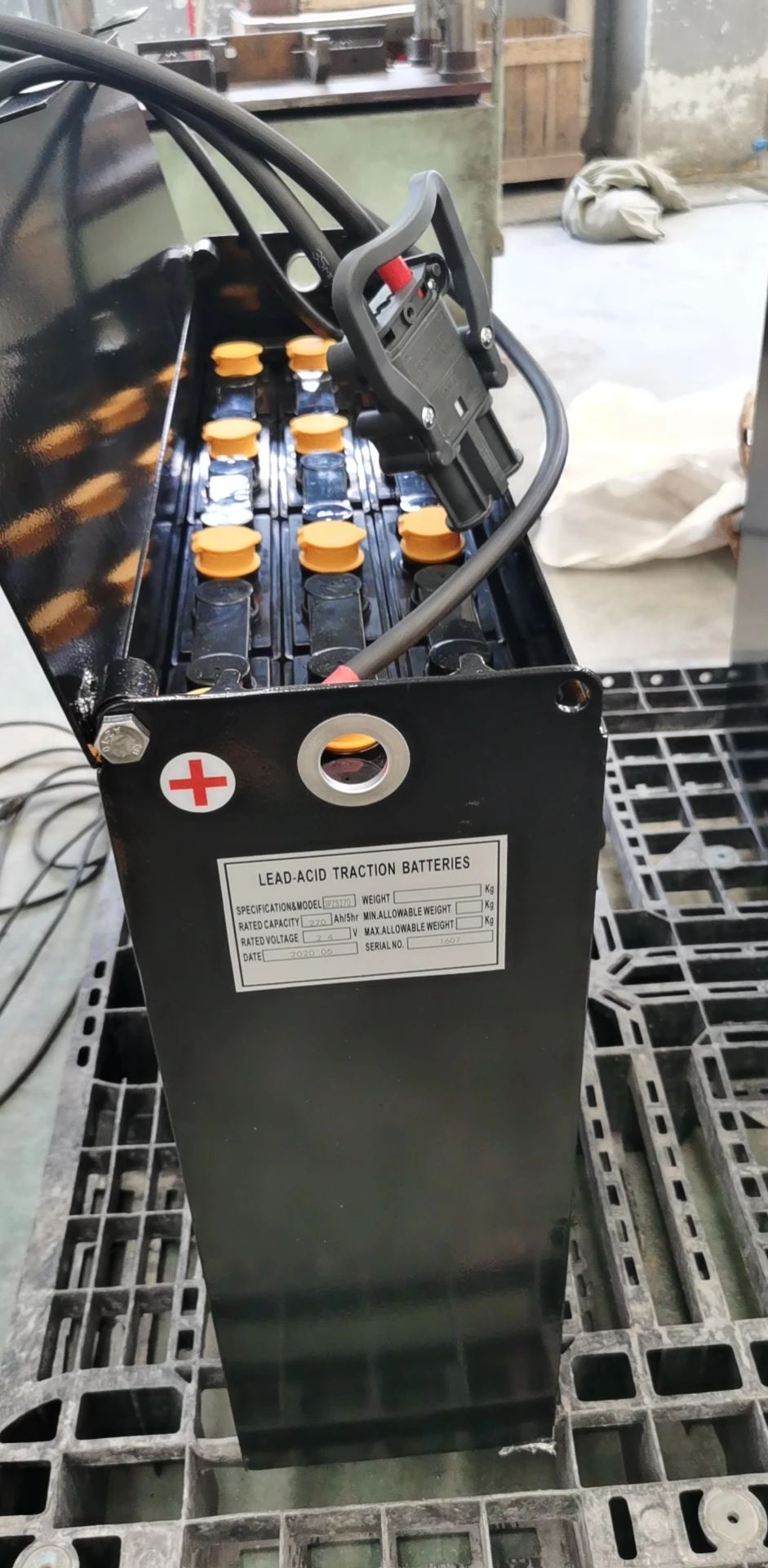

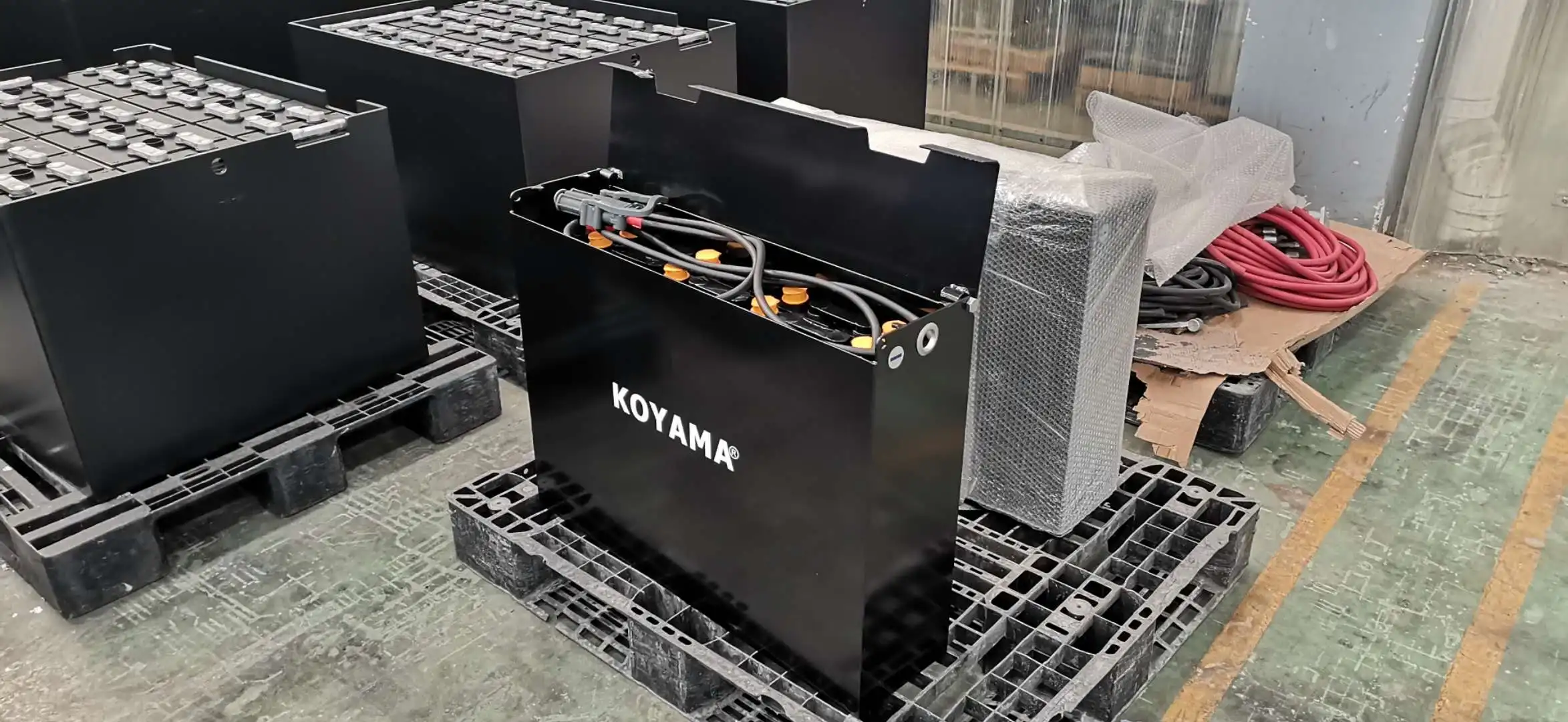

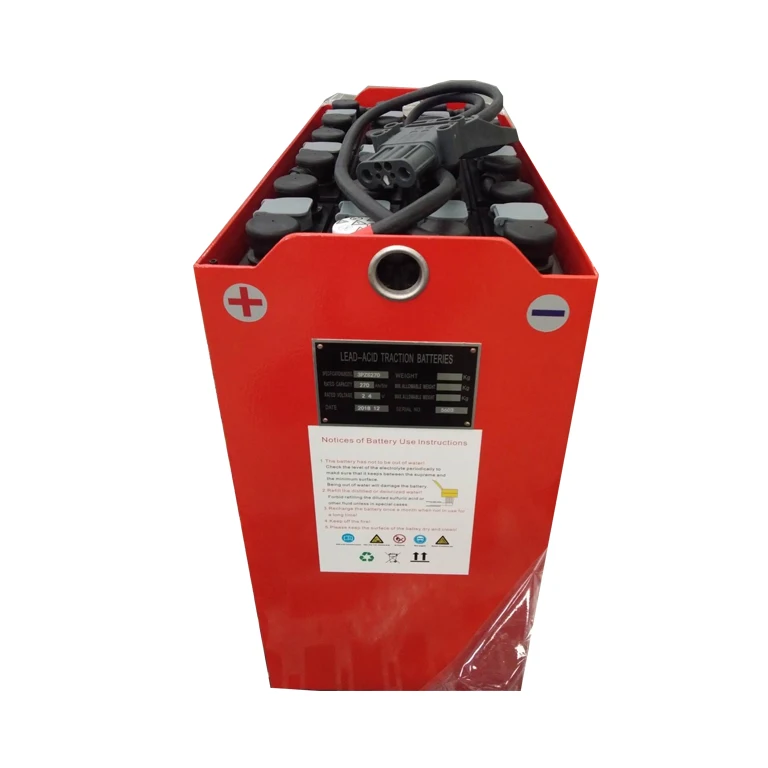

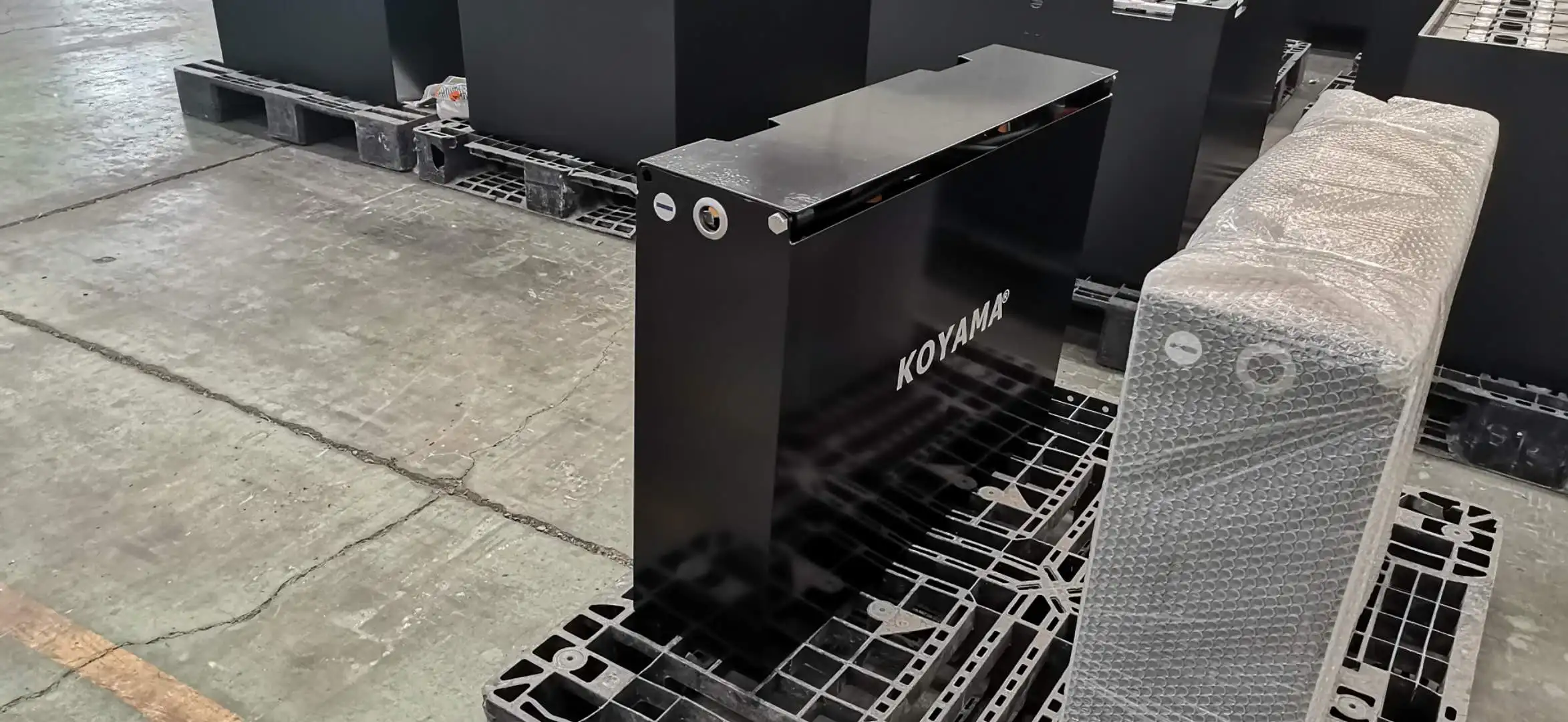

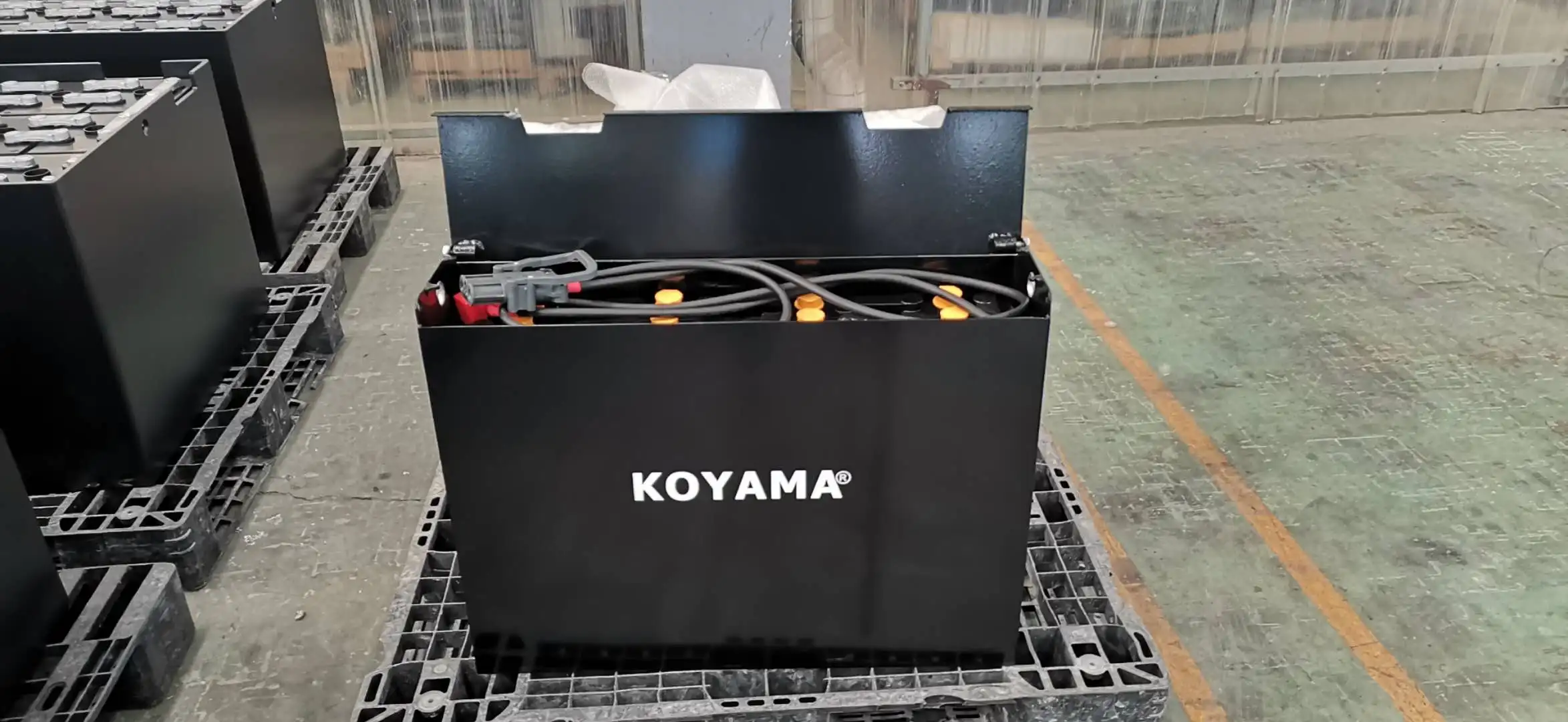

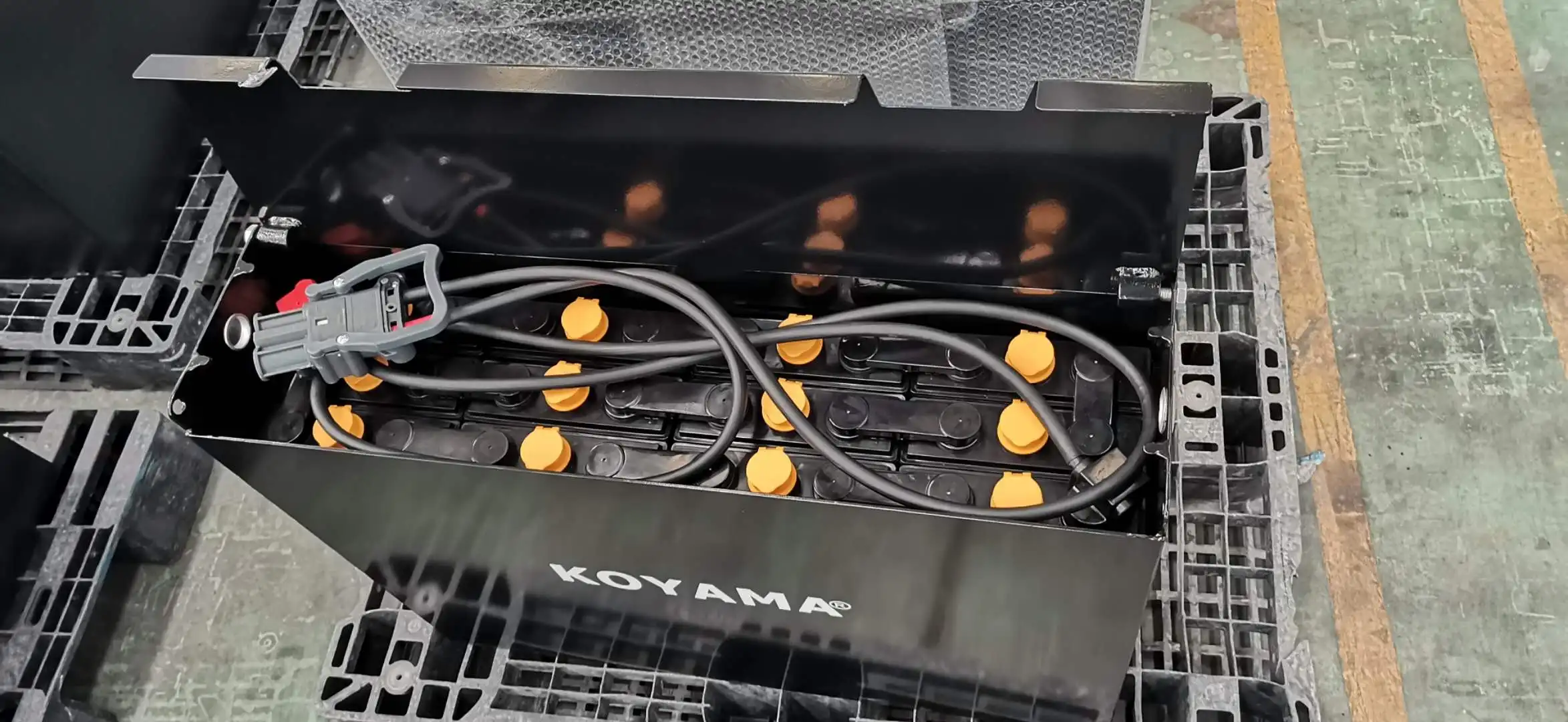

Details Images

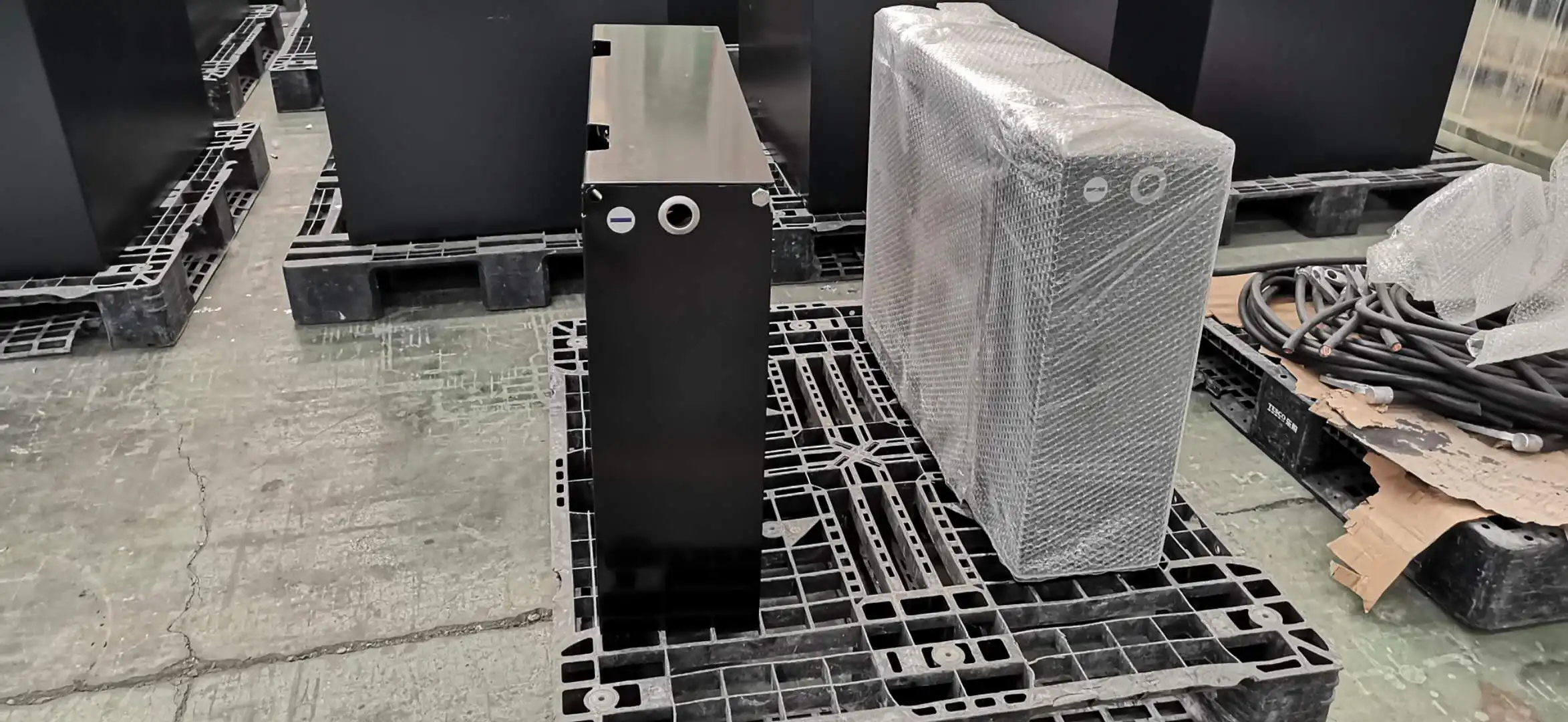

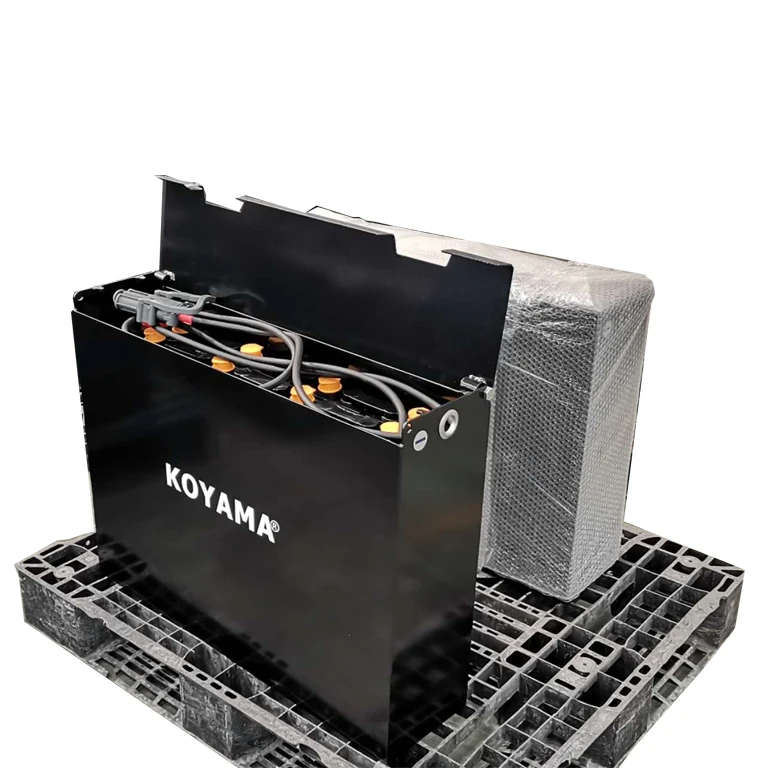

Packing & Delivery

Certifications

Company Profile

CBB Battery Technology Co., Ltd. is a large modern comprehensive power enterprise, specializing in proudction, R&D and sales of the full line of lead acid battery, with a factory area of 65 mu and production area more than 30000m2.

We mainly produce VRLA battery, automotive battery, motorcycle battery, motive power battery, tricycle battery, electric vehicle battery and various plates thereof. All batteries are widely used in UPS, Power station, solar power system, telecommunication, vehicles, boats, motorcycle and other applications.
