Products Description

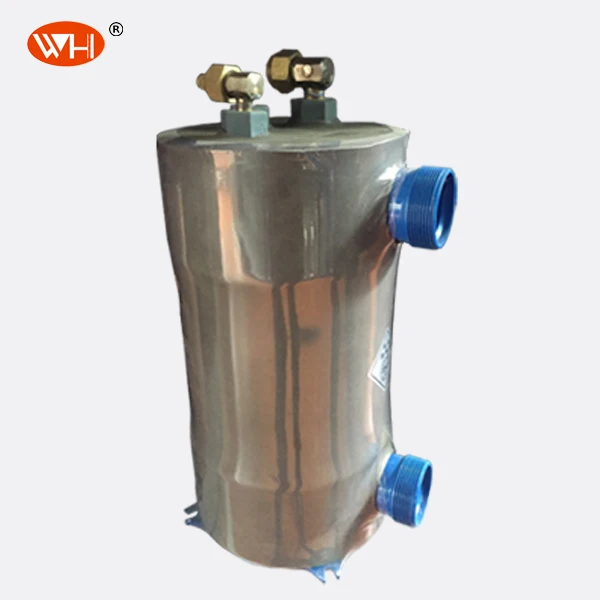

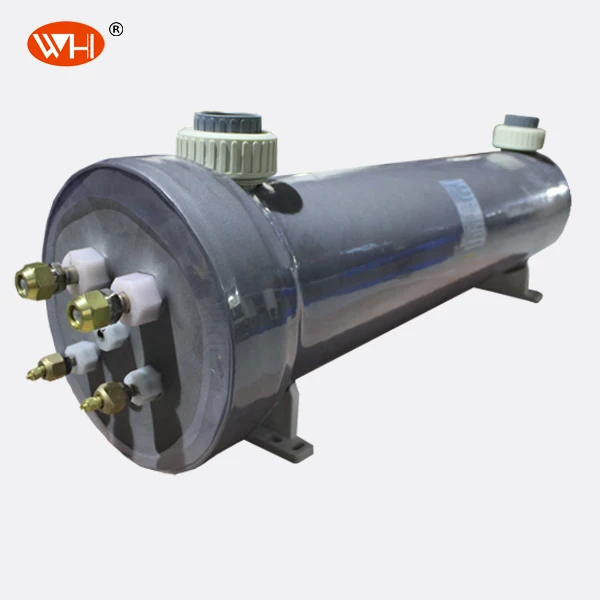

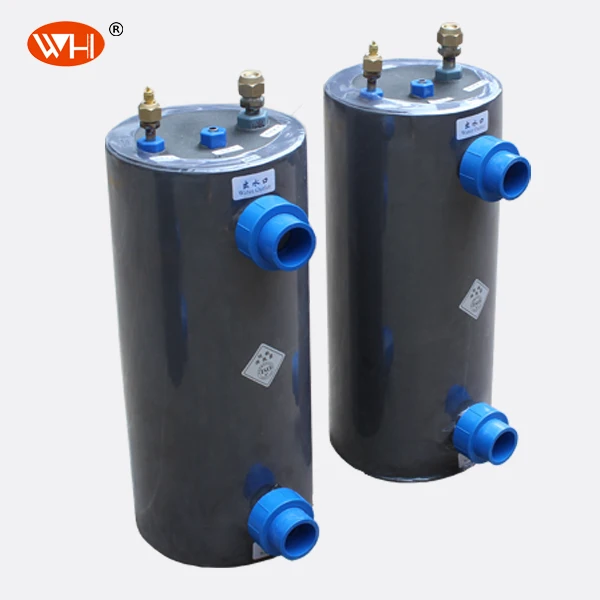

Aquarium Heat Exchanger
Product features:
The internal heat exchanger is made of pure titanium, has a good corrosion resistance effect and
high heat exchanging efficiency. It is non-magnetic, non-toxic and can resist heating well. The outer barreladopts injection molding with high strength plastics, press solvents into shape. It has a good chemical stabilityand would not be influenced by environmental factors and medium composition of the pipeline. Also it has a good corrosion resistance,low efficiency of thermal conductivity, insulation, energy-saving effect through a professional welding.
Working pressure:
Normal pressure is 0.2Mpa: The equipment has a light weight, compact structure and high power with small size.
Presently, the generally accepted PVC-U plastics have working temperature limit.
Our factory can choose other materials according to the customers' requirements.
The internal heat exchanger is made of pure titanium, has a good corrosion resistance effect and
high heat exchanging efficiency. It is non-magnetic, non-toxic and can resist heating well. The outer barreladopts injection molding with high strength plastics, press solvents into shape. It has a good chemical stabilityand would not be influenced by environmental factors and medium composition of the pipeline. Also it has a good corrosion resistance,low efficiency of thermal conductivity, insulation, energy-saving effect through a professional welding.
Working pressure:
Normal pressure is 0.2Mpa: The equipment has a light weight, compact structure and high power with small size.
Presently, the generally accepted PVC-U plastics have working temperature limit.
Our factory can choose other materials according to the customers' requirements.
Product Feature
Heat transfer tube:
1) Pure seamless titanium tube . Thickness 0.8 mm. The Grade is TA1.
2) The titanium coil pressure loading capacity was designed base R410a high pressure work condition, The max. working pressure is
52 bar. and the extreme pressure was 360bar in our test.
3) 100,000 times alternating pressure (Low pressure 0 bar, high pressure 52bar) test shows it can be used more than 20 years.
Never corrosion.
2) The titanium coil pressure loading capacity was designed base R410a high pressure work condition, The max. working pressure is
52 bar. and the extreme pressure was 360bar in our test.
3) 100,000 times alternating pressure (Low pressure 0 bar, high pressure 52bar) test shows it can be used more than 20 years.
Never corrosion.
1) The cups molding by high quality PVC material . All the parts RoHS conformance .
2) Due to its perfect structure design, the PVC shell can stand high working pressure. The max working pressure can be 1.2 Mpa,
and the bursting pressure can be 2.3Mpa.
Good appearance, more safe in using, high efficient of heat transfer, easy for installation.
It must be your best choice.
2) Due to its perfect structure design, the PVC shell can stand high working pressure. The max working pressure can be 1.2 Mpa,
and the bursting pressure can be 2.3Mpa.
Good appearance, more safe in using, high efficient of heat transfer, easy for installation.
It must be your best choice.
Product Display
Our products are mainly used in seafood breeding, chemical plating, pool heat pump and other fields, to provide customers with high-quality products and services, products can provide customized services
Hot Products
Our Service
About Us
Wuxi New Wuhuan Engery Saving Technology Co.,Ltd.designs and manufactures a wide range of heat exchangers for refrigeration, industrial and special applications .Our evaporators and condensers can be manufactured with different materials and can work with all types of fluids and with duty up to 6000 kW. We are prepared for the solution of different heat exchange problems, thanks to the widest experience of technical departments able to suggest technical solutions best suited to each customer's need.
FAQ
1.Are you factory?
Yes,we are one of the largest corrosion resistant heat exchanger manufactory in China.
2.Are there any discount for the heat exchangers?
Yes. Bigger quantity will enjoy lower discount!
3.What information needed if I want a quotation?
Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out ,Refrigrant Freon Type, Quantity, or any requirements in size.
4.What is the MOQ?
We accept loose quantity order,mixed order,any trial orders.
5.When can I get the price?
We usually quote within 8 hours after we get your inquiry.
Yes,we are one of the largest corrosion resistant heat exchanger manufactory in China.
2.Are there any discount for the heat exchangers?
Yes. Bigger quantity will enjoy lower discount!
3.What information needed if I want a quotation?
Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out ,Refrigrant Freon Type, Quantity, or any requirements in size.
4.What is the MOQ?
We accept loose quantity order,mixed order,any trial orders.
5.When can I get the price?
We usually quote within 8 hours after we get your inquiry.
