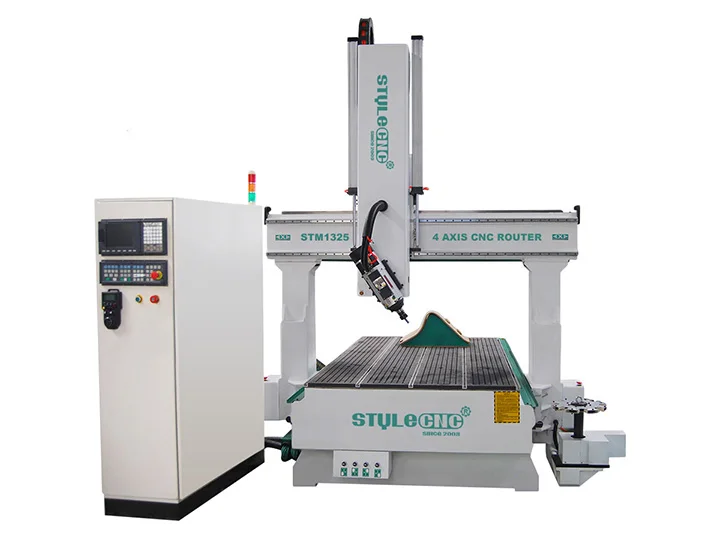

4 оси фрезерный станок с ЧПУ для продажи по доступной
- Категория: >>>
- Поставщик: Jinan Style Machinery Co. Ltd.
Сохранить в закладки 1600064987910:
Описание и отзывы
Характеристики
Advantages
4 axis CNC router is also called as 4 axis CNC machine, 4 axis CNC router machine, 4 axis router, 4 axis machine. A 4 axis CNC router is also equipped with X, Y and Z axis, 4 axis is refer to X-Y-Z-A, X-Y-Z-B or X-Y-Z-C, 4 axis are linked, the four axis can work at the same time. 4 axis CNC router machine will make working possible on both sides, which is not on 3 axis CNC router.
Someone may call a 4th axis CNC router as a 4 axis CNC router. Actually, a 3 axis CNC router is equipped with a rotary axis, also called A axis, that is a 4th axis CNC router or rotary axis CNC router, not a real 4 axis CNC router.
1. The 4 axis CNC machine is especially designed for processing on different 3D curved surface carving.
2. The HSD ATC spindle (B axis) can rotate ±90 degree, which is suitable for side milling, drilling, cutting, lock slot and so on.
3. The machine’s body is strong, high-precision, reliable and durable.
4. Imported high-precision ball screw, which moving smoothly, to ensure the machine's high precision.
5. Well-known Colombo automatic tool changer spindle, strong cutting ability, low noise, to ensure the machine working for long time.
6. High-performance driven motor to ensure the machine’s high speed and accuracy.
7. Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.
8. Auto lubrication system and separated control system, easy to operate.
9. Perfect design, top quality accessories, to minimize the machine's failure rate.
10. A 4 axis CNC machine machine can do all a 3 axis CNC machine can do.
Someone may call a 4th axis CNC router as a 4 axis CNC router. Actually, a 3 axis CNC router is equipped with a rotary axis, also called A axis, that is a 4th axis CNC router or rotary axis CNC router, not a real 4 axis CNC router.
1. The 4 axis CNC machine is especially designed for processing on different 3D curved surface carving.
2. The HSD ATC spindle (B axis) can rotate ±90 degree, which is suitable for side milling, drilling, cutting, lock slot and so on.
3. The machine’s body is strong, high-precision, reliable and durable.
4. Imported high-precision ball screw, which moving smoothly, to ensure the machine's high precision.
5. Well-known Colombo automatic tool changer spindle, strong cutting ability, low noise, to ensure the machine working for long time.
6. High-performance driven motor to ensure the machine’s high speed and accuracy.
7. Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.
8. Auto lubrication system and separated control system, easy to operate.
9. Perfect design, top quality accessories, to minimize the machine's failure rate.
10. A 4 axis CNC machine machine can do all a 3 axis CNC machine can do.
Technical Parameters
Brand | STYLECNC |
Model | STM1325-4A |
Working Area | 1300x2500x400mm±90degree |
Table Size | 1450×2940mm |
Traveling Positioning Accuracy | ±0.03/300mm |
Repositioning Accuracy | ±0.03mm |
Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
Frame | Big Steel Tube Structure |

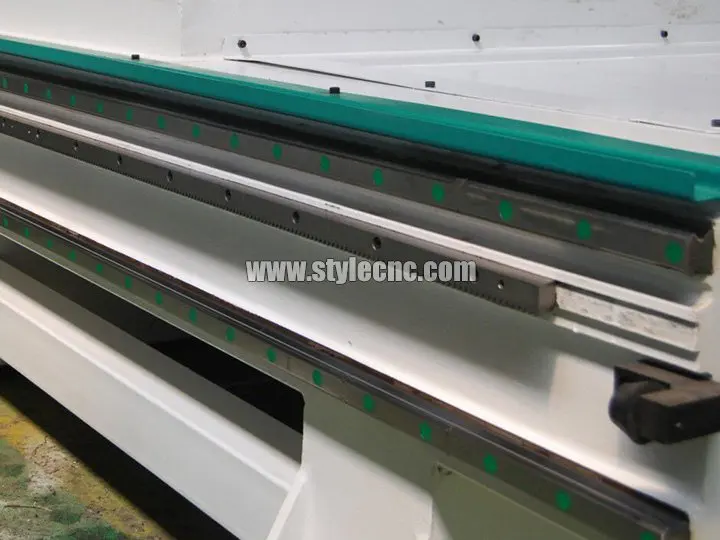

X, Y Structure | Rack and Pinion Drive,Hiwin Rail Linear Bearings |
Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
Max. Power Consumption | (Without Spindle) 4.5Kw |
Max. Rapid Travel Rate | 40000mm/min |
Max. Working Speed | 30000mm/min |
Spindle Power | 9.0KW |
Spindle Speed | 0-24000RPM |
Drive Motors | 850W Yaskawa Motors(Option: Siemens servo motors) |
Working Voltage | AC380V/50/60Hz,3PH |
Command Language | G Code |

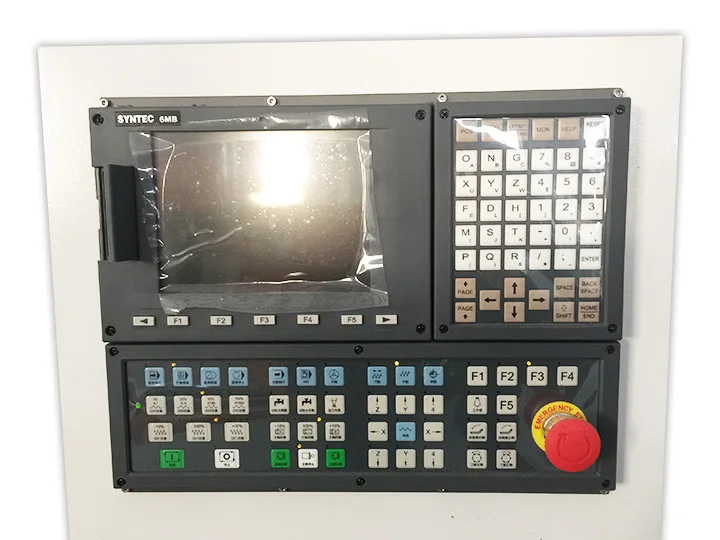

Operating System | Syntec Control System(Option:Siemens controller) |
Computer Interface | Ethernet |
Flash Memory | 512M |
Collet | ER32 |
X,Y Resolution | <0.03mm |
Software Compatibility | Type3/UcancameV9 software (Option: Artcam software) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Packing Size | 3300X2100X2300mm |
N.W. | 2650KG |
G.W. | 2850KG |
Optional Parts | Dust Collector/ Dust Hoods for three Axis |
Vacuum Pump | |
Rotary System | |
Mist-cooling System | |
Delta/ Panasonic Servo Motors | |
Colombo Spindle | |
Price Range | $22,800.00 - $38,000.00 |
Details
4 Axis CNC Router Machine Option Items
1. Bigger size like 1500*3000mm, 2000*3000mm,etc.
2. Rotary Device for processing column materials.
3. Dust collector.
4. Mist spray cooling system.
2. Rotary Device for processing column materials.
3. Dust collector.
4. Mist spray cooling system.
4 Axis CNC Router Machine Applications
Industry | Products |
Woodworking Industry | 1. Wood doors 2. Cabinets 3. Office furniture 4. Speakers 5. Musical instruments |
Panel Processing Industry | 1. Insulation 2. Plastic and chemical 3. PCB, ABS, PP, PE and other carbon mixture |
Decoration Industry | 1. Acrylic 2. PVC 3. MDF 4. Plastic 5. Copper, Aluminum and other soft metal, engraving and milling |
SAMPLES
4 Axis CNC Machine Extra Services
1. OEM Service is acceptable
2. 4 axis CNC machine body design and color can be customize.
3. 4 axis CNC machine specifications can be changed according to customer requirements
Other Informations for 4 Axis CNC Machine
1. Warranty: 1 year warranty for the whole 4 axis machine.
2. Packing: Plywood case with strong Iron steel pallet.
3. Delivery: By sea with LCL OR FCL.
4. Payment Method: by bank transfer or LC.
5. Payment Terms: 30% deposit before production, pay off 70% balance before shipment.
6. Training: Offer technician on-site training and installation/Life-time technical support is for free.
We also have 4th axis CNC routers for option
1. OEM Service is acceptable
2. 4 axis CNC machine body design and color can be customize.
3. 4 axis CNC machine specifications can be changed according to customer requirements
Other Informations for 4 Axis CNC Machine
1. Warranty: 1 year warranty for the whole 4 axis machine.
2. Packing: Plywood case with strong Iron steel pallet.
3. Delivery: By sea with LCL OR FCL.
4. Payment Method: by bank transfer or LC.
5. Payment Terms: 30% deposit before production, pay off 70% balance before shipment.
6. Training: Offer technician on-site training and installation/Life-time technical support is for free.
We also have 4th axis CNC routers for option
Package and Shipping
PACKAGE
1. Strong water resit bottom in plywood.
2. CNC spare parts with separated plywood case.
3. Corner protect by foam and fixed by protective film.
4. All covered by strong and hard protective film.
5. Vacuum packing.
6. Inside steel frame protector.
7. Plywood packing and steel strip outside fixed the box.
8. Finishing packing by normal container or frame container.
3. Corner protect by foam and fixed by protective film.
4. All covered by strong and hard protective film.
5. Vacuum packing.
6. Inside steel frame protector.
7. Plywood packing and steel strip outside fixed the box.
8. Finishing packing by normal container or frame container.
SHIPPING
All the CNC router machines can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
A CNC router machine firstly should be packaged well in a free-fumigation wooden crate. Usually, we deliver the CNC machine by ship, sometimes, as customer's requirements, we can also deliver by air or by train. When the CNC machine arrived at your sea port or destination, you can pick up with the bill of lading we offered. We can also arrange the cargo agent to send to your door.
ABOUT STYLECNC
JINAN STYLE MACHINERY CO.,LTD
Jinan Style Machinery Co.,Ltd was founded in 2003, which is a professional China CNC machine manufacturer with core technology and independent intellectual property rights, we are committed to the development and manufacture of CNC router machines (CNC wood routers, stone carving machines, metal CNC machines, 3D CNC routers, 3 axis CNC routers, 4 axis CNC routers, and 5 axis CNC routers), CNC laser machines (laser marking machines, laser engraving machines, laser cutting machines, and laser welding machines), CNC milling machines, CNC plasma cutting machines, CNC machining centers, CNC wood turning lathe machines, CNC spare parts, and other CNC machines. We are always providing customers with high quality products, competitive prices, and excellent services.
STYLECNC
STYLECNC is a self-owned brand of Jinan Style Machinery Co.,Ltd. As a leading enterprise of intelligent manufacturing in China, we are constantly innovating and developing over 16 years, our efforts bring us stable customers from home and abroad, you can find STYLECNC products in over 180 countries from Europe, Africa, Mid east, America, Oceania, and Southeast Asia, which drive us to be a worldwide CNC machine brand.
