Outside-inside PVDF hollow fiber UF membrane filter
Product Description
YOUBER Outside-inside PVDF hollow fiber UF membrane module for famous brand replacement
outside-inside PVDF Hollow fiber UF membranes filter Technical parameters:
Performance | Initial flow rate(T/H, 1Bar) | 3.5 |
Designed production flow rate(T/H,1Bar) | 1.0-2.0 | |
SDI | <1 | |
<0.1NTU | ||
SS removing rate | 99.9% | |
Microorganisms, bacteria, pathogens removing rate | 99.99% | |
Specification | Type | Outside to inside |
Membrane material | PVDF | |
Effective membrane area(m2) | 25 | |
Hollow fibers quantity | 6500pcs | |
Housing material | UPVC | |
Sealing material | Epoxy resin | |
Suggestion working conditions
| Suggest(TMP)(MPa) | 0.04-0.1 |
Max inlet water pressure(MPa) | 0.3 | |
Max TMP(MPa) | 0.2 | |
Working temperature | 5-45degrees | |
PH tolerance range | 2-13 | |
Tolerable residual chlorine concentration | 200PPm | |
Short - term tolerance to residual chlorine concentration | 500PPm |

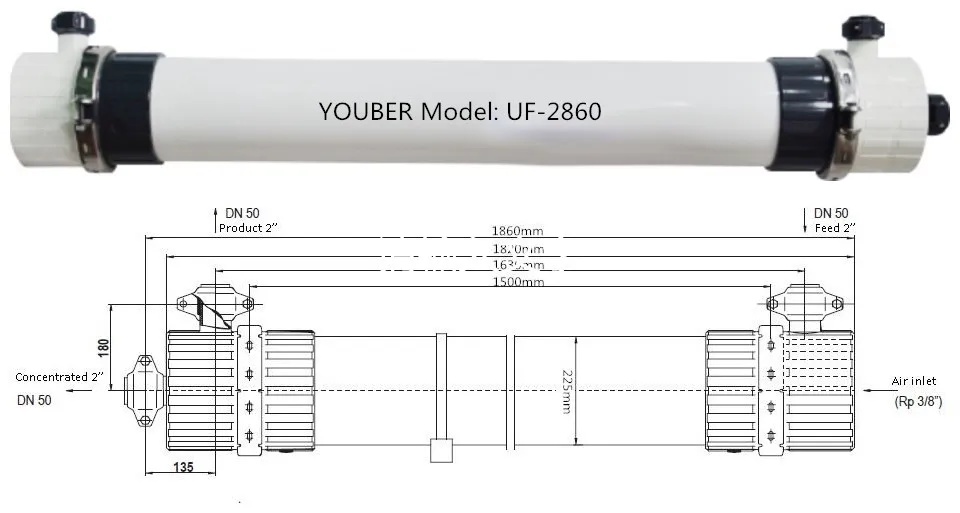

Model:UF-2860
YOUBER Outside-inside PVDF hollow fiber UF membrane filter for famous brand replacement
Technical Parameters:
Model | UF-2860 |
Fibers material | PVDF |
Fibers ID/OD | 0.7mm/1.3mm |
WMCO | 0.03μm |
Pure water flow rate (0.2Mpa,25℃) | 25000L/H |
Design flow rate | 1500-4000L/H |
Active membrane area (inside-outside) | 51m2 |
Shell material | UPVC |
Sealing material | epoxy resin |
Inlet/outlet port size | DN50 |
Air inlet pore size | RP 3/8” |
Usage conditions | |
Pre-treatment | 50-150um |
Operation mode | Outside-inside |
Working pressure | 0.02-0.2Mpa |
Max inlet pressure | 0.3MPa |
Max TMP | 0.15MPa |
Max air flush flow rate | 12Nm³/H |
Inlet pH range | 2-12 |
Tolerated continuous residual chlorine concentration | 1000 ppm |
Tolerated interval residual chlorine concentration | 2000 ppm |
Working Temp. | 1℃-40℃ |
Inlet water quality | Turbidity≤50NTU |
Production water quality | |
*Production water Turbidity | < 0.1NTU |
*Silt density index (SDI) | < 1 |
Particles(>0.2µm) | 100% removal rate |
Microorganism, Pathogen | 99.99% removal rate |
Backwash design | |
Backwash frequency | One time per 15-60 min |
Backwash pressure | ≤0.2MPa |
Backwash flow rate | 100-150L/ H.m2 |
Backwash dosing drugs | 500PPm NaCLO |
Dosing backwash frequency | Suggestion: Chemically enhanced backwash every 1-7 days |
Adding air mode | Air scrubbing wash before backwash |
Air backwash frequency | One time per 30-60 min |
Air volume (Nm3/h) | 8-12 |
Chemical cleaning design | |
Chemical cleaning frequency | One time per 1-4months |
Acid cleaning agent | Citric acid, oxalic acid or hydrochloric acid (solution of PH=2) |
Alkaline cleaning agent | 0.5%NaOH+0.1%NaClO(solution of PH=12) |
Note: * test under municipal tap water as raw water < 5NTU | |

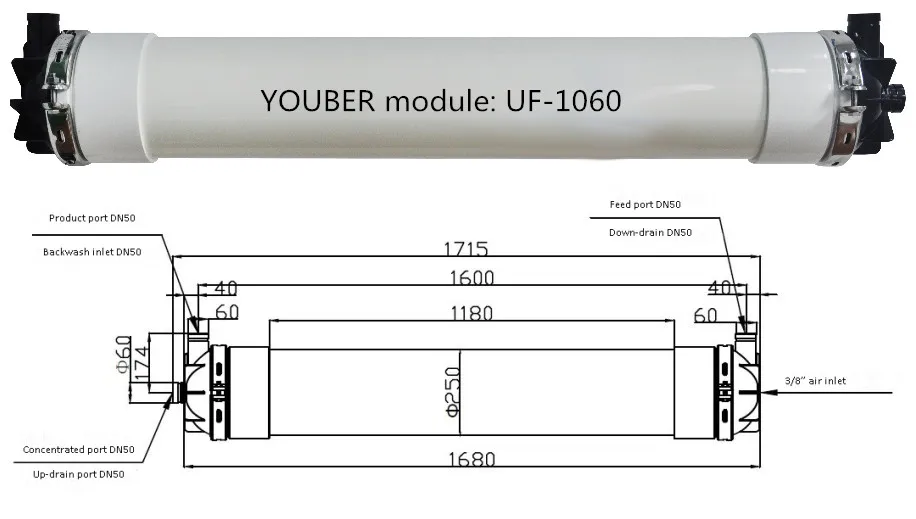

Model:UF-1060
YOUBER Outside-inside PVDF hollow fiber UF membrane filter for famous brand replacement
Technical Parameters:
Model | YLUF-1060 |
Fibers material | PVDF |
Fibers ID/OD | 0.7mm/1.3mm |
Pore size | 0.03um |
Pure water flow rate (0.2Mpa,25℃) | 36000L/H |
Design flow rate | 2000-6000L/H |
Active membrane area (inside-outside) | 77m2 |
Shell material | UPVC |
Sealing material | |
Inlet/outlet port size | DN50 |
Air inlet port | RP 3/8” |
Usage conditions | |
50-150um | |
Operation mode | Outside-inside |
Working pressure | 0.02-0.2Mpa |
Max inlet pressure | 0.3MPa |
Max TMP | 0.15MPa |
Inlet pH range | 2-12 |
Tolerated continuous residual chlorine concentration | 1000 ppm |
Tolerated interval residual chlorine concentration | 2000 ppm |
Working Temp. | 1℃-40℃ |
Inlet water quality | Turbidity≤50NTU |
Production water quality | |
*Production water Turbidity | < 0.1NTU |
*Silt density index (SDI) | < 1 |
Particles(>0.2µm) | 100% removal rate |
Microorganism, Pathogen | 99.99% removal rate |
Backwash frequency | One time per 15-60 min |
Backwash pressure | < 0.2MPa |
Backwash flow rate | 100-150L/ H.m2 |
Backwash dosing drugs | 500PPm NaCLO |
Dosing backwash frequency | Suggestion: Chemically enhanced backwash every 1-7days |
Air added method | Air scrub before backwash |
Air volume (Nm3/h) | 8-12 |
Chemical cleaning design | |
Chemical cleaning frequency | One time per 1-4months |
Acid cleaning agent | Citric acid, oxalic acid or hydrochloric acid (solution of PH=2) |
Alkali cleaning agent | 0.5%NaOH+0.1%NaClO(solution of PH=12) |
Note: * test under municipal tap water as raw water < 5NTU | |
Model:UF315-W10
YOUBER Outside-inside PVDF hollow fiber UF membrane filter for famous brand replacement
Technical Parameters:
Model | UF315-W10 |
Fibers material | PVDF |
Fibers ID/OD | 0.7mm/1.3mm |
WMCO | 0.03μm |
Pure water flow rate (0.2Mpa,25℃) | 20000L/H |
Design flow rate | 2380-7150L/H |
Active membrane area (inside-outside) | 90m2 |
Shell material | UPVC |
Sealing material | epoxy resin |
Inlet/outlet port size | DN65 |
Air inlet pore size | RP 3/8” |
Usage conditions | |
Pre-treatment | 50-150um |
Operation mode | Outside-inside |
Working pressure | 0.02-0.2Mpa |
Max inlet pressure | 0.3MPa |
Max TMP | 0.2MPa |
Max air flush flow rate | 7-12Nm³/H |
Inlet pH range | 2-12 |
Tolerated continuous residual chlorine concentration | 500 ppm |
Tolerated interval residual chlorine concentration | 1000 ppm |
Working Temp. | 5℃-40℃ |
Inlet water quality | Turbidity ≤ 30NTU |
Production water quality | |
*Production water Turbidity | < 0.1NTU |
*Silt density index (SDI) | < 1 |
Particles(>0.2µm) | 100% removal rate |
Microorganism, Pathogen | 99.99% removal rate |
Backwash design | |
Backwash frequency | One time per 30-60 min |
Backwash pressure | ≤0.2MPa |
Backwash flow rate | 100-150L/ H.m2 |
Backwash dosing drugs | 15-20PPm NaCLO |
Dosing backwash frequency | Suggestion: automatic dosing drugs while each time need to backwash |
Adding air mode | Air scrubbing wash before backwash |
Air backwash frequency | One time per 30-60 min |
Chemical cleaning design | |
One time per 1-4months | |
Acid cleaning agent | Citric acid, oxalic acid or hydrochloric acid (solution of PH=2) |
Alkaline cleaning agent | 0.5%NaOH+0.1%NaClO(solution of PH=12) |
Note: * test under municipal tap water as raw water < 5NTU | |
Model:UF-0880W
YOUBER Outside-inside PVDF hollow fiber UF membrane filter for famous brand replacement
Technical Parameters:
Model | UF-0880W |
Fibers material | PVDF |
Fibers ID/OD | 0.7mm/1.3mm |
WMCO | 0.03μm |
Pure water flow rate (0.2Mpa,25℃) | 17000L/H |
Design flow rate | 2040-6120L/H |
Active membrane area (inside-outside) | 77m2 |
Shell material | UPVC |
Sealing material | epoxy resin |
Inlet/outlet port size | DN50 |
Air inlet pore size | RP 3/8” |
Usage conditions | |
Pre-treatment | 50-150um |
Operation mode | Outside-inside |
Working pressure | 0.02-0.2Mpa |
Max inlet pressure | 0.3MPa |
Max TMP | 0.2MPa |
Max air flush flow rate | 7-12Nm³/H |
Inlet pH range | 2-12 |
Tolerated continuous residual chlorine concentration | 500 ppm |
Tolerated interval residual chlorine concentration | 1000 ppm |
Working Temp. | 5℃-45℃ |
Inlet water quality | Turbidity≤50NTU |
Production water quality | |
*Production water Turbidity | < 0.1NTU |
*Silt density index (SDI) | < 1 |
Particles(>0.2µm) | 100% removal rate |
Microorganism, Pathogen | 99.99% removal rate |
Backwash design | |
Backwash frequency | One time per 30-60 min |
Backwash pressure | ≤0.2MPa |
Backwash flow rate | 100-150L/ H.m2 |
Backwash dosing drugs | 15-20PPm NaCLO |
Dosing backwash frequency | Suggestion: automatic dosing drugs while each time need to backwash |
Adding air mode | Air scrubbing wash before backwash |
Air backwash frequency | One time per 30-60 min |
Chemical cleaning design | |
Chemical cleaning frequency | One time per 1-4months |
Acid cleaning agent | Citric acid, oxalic acid or hydrochloric acid (solution of PH=2) |
Alkaline cleaning agent | 0.5%NaOH+0.1%NaClO(solution of PH=12) |
Note: * test under municipal tap water as raw water < 5NTU | |
Model:UF-0860W
YOUBER Outside-inside PVDF hollow fiber UF membrane filter for famous brand replacement
Technical Parameters:
Model | UF-0860WZ |
Fibers material | PVDF |
Fibers ID/OD | 0.9mm/2.0mm |
WMCO | 0.1μm |
Pure water flow rate (0.2Mpa,25℃) | 15000L/H |
Design flow rate | 1280-3520L/H |
Active membrane area (inside-outside) | 32m2 |
Shell material | UPVC |
Sealing material | epoxy resin |
Inlet/outlet port size | DN50 |
Air inlet pore size | RP 3/8” |
Usage conditions | |
Pre-treatment | 50-150um |
Operation mode | Outside-inside |
Working pressure | 0.02-0.2Mpa |
Max inlet pressure | 0.2MPa |
Max TMP | 0.15MPa |
Max air flush flow rate | 12Nm³/H |
Inlet pH range | 2-12 |
Tolerated continuous residual chlorine concentration | 1000 ppm |
Tolerated interval residual chlorine concentration | 2000 ppm |
Working Temp. | 5℃-40℃ |
Inlet water quality | Turbidity ≤30NTU. (should add pretreatment while using surface water, river/well water, etc. can use cartridge filter(<150um) to make feed water turbidity ≤30NTU) |
Production water quality | |
*Production water Turbidity | < 0.2NTU |
*Silt density index (SDI) | < 1 |
Particles(>0.2µm) | 100% removal rate |
Microorganism, Pathogen | 99.99% removal rate |
Backwash design | |
Backwash frequency | One time per 30-60 min |
Backwash pressure | ≤0.1MPa |
Backwash flow rate | 100-150L/ H.m2 |
Backwash dosing drugs | 15-20PPm NaCLO |
Dosing backwash frequency | Suggestion: automatic dosing drugs while each time need to backwash |
Adding air mode | Adding air when backwash |
Adding air backwash inlet volume | Air water ratio 1:1 |
Air backwash frequency | One time per 30-60 min |
Chemical cleaning design | |
Chemical cleaning frequency | One time per 1-4months |
Acid cleaning agent | Citric acid, oxalic acid or hydrochloric acid (solution of PH=2) |
Alkaline cleaning agent | 0.5%NaOH+0.1%NaClO(solution of PH=12) |
Note: * test under municipal tap water as raw water < 5NTU | |

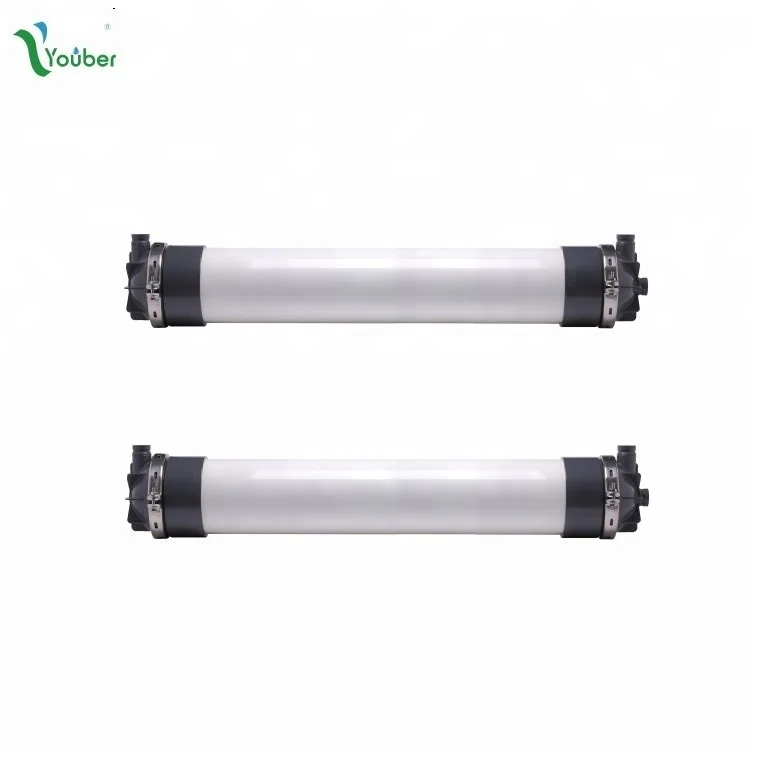

outside-inside PVDF Hollow fibers:
Related Products
Outdoor outside-inside Hollow fiber UF Ultrafiltration Membrane filter:
Packaging & Shipping
Hollow fiber UF Ultrafiltration Membrane filter Packaging: Standard export carton package
Company Information
YOUBER is a professional producer and provider of water treatment, we can accoding to the customers' requirements to do different membranes with different materials and different precision.
1.We are a professional manufacturer of Hollow fiber UF Ultrafiltration Membrane filter;
2. We can provide various dimension, different membrane materials like PVC, PES, PVDF etc, various filtration precision, various flow rate and performance personalized UF membrane module;
3. We can provide OEM, ODM service;
4. We also can provide membrane system desgin, installation, commisioning, maintenance service guidance and so on.
Welcome to YOUBER!
Похожие товары
Алюминиевые композитные панели для ультрафильтрационной мембраной от китайского поставщика полостная волокнистая ПХДФ мембраны UF 4021 4040 6040 8040 ПВДФ мембрана UF производитель
15,00 $ - 100,00 $
Китайский производитель Bangmo, мембранный модуль из ПВХ uf 8 дюймов для водоочистительной машины
22,00 $ - 200,00 $
Лучшая ультрафильтрующая мембрана из полого волокна по привлекательной цене, производитель промышленных мембран 4040/8040 мкФ
22,00 $ - 140,00 $
Внутренний фильтр для микрофильтрации UF, замена фильтра воды вертикального типа 8060 Norit
625,00 $
Горячая Распродажа 2020, термопресс по заводской цене, термопресс для футболок
UF-8060 UF мембранные модули для очистки воды
22,00 $ - 200,00 $
Лидер продаж 2860 2880, полые волоконные мембраны UF, система очистки воды, ультрафильтрующая мембрана от производителя
867,00 $ - 1 030,00 $
Новые поступления
Новинки товаров от производителей по оптовым ценам
Светлая Золотая морская солнечная энергия ландшафтное украшение постмодерн минималистский стиль чистая ручная роспись маслом 24x3 1 дюйм/60x80
35-53 $
Европейские антикварные простой Последние двойной металлической кровати
Автоматизированная складская система автоматического хранения в Гуанчжоу Eyda с эффективными стеллажами и
10 000-35 000 $
Декоративный чехол для PS5 Сменный Чехол консоли пластины Playstation5 пылезащитный с защитой от царапин
7,50-7,70 $
Лучшее качество детские подгузники для сухих подгузников новорожденных размер 2 4 и большие доставка или
3 $
Выключатель для формованного корпуса Schneider NSX100N 50KA AC 3P3D 25A TMD новая модель C10N3TM025
Буф2-.. М .. Краны
Оптовая продажа высококачественный сублимированный клубничный порошок Заводская поставка
5,50-6,40 $
