Product Description
Portable EV charging stations
IEC 62196-2 or SAE J1772
EV charger station
Current adjustable
WEEYU M2116/M2132, our best-selling smart charging station, delivers high performance, flexibility and value to thousands of satisfied EV drivers across the world. Designed for durability, safety and efficiency, it makes charging easy, reliable and cost-effective. Check out our complete data of smart EV charging stations.
1 Electric parameter | Tomato&Potato | |
1.1 Rated Frequency | 50/60Hz | |
1.2 Rated current(Adjustable) | 8/10/13/16A OR 8/10/13/16/32A | |
1.3 Rated voltage | 1-phase, 230V±15%, 50/60Hz | |
2 Portbale ev charger Mechnical Parameter | ||
2.1 IP Code | IP66 | |
2.2 Charging Adapter Cable | 5 meters cable or custom length | |
2.3 Dimensions | W × D × H = 240mm × 90mm × 70mm | |
2.4 Weight | ＜5kg | |
2.5 Input Plug Standard | Select one of the following options:Blue CEE, NEMA Plug, UK Plug, Schuko Plug or AU Plug | |
3 Portable Charging point Functional Description | ||
3.1 Charging Control Model | Plug and play | |
3.2 Display Screen | OLED screen (display charging current, voltage, output energy, charging time, state information, fault information and etc.) | |
3.3 Indicator Light | 3 indicator lights (indicate 3 status include power, connect, charging and fault) | |
3.4 RCD type | Type A | |
3.5 Adjustable output current | Button options: 8A/10A/13A/16A/32A | |
3.6 Preset function | Preset charging time trough the button | |
3.7 Safety Protection | surge protection, over temperature, leakage, over/under voltage, over current, ground protection | |
4 Environmental Conditions | ||
4.1 Operational environment | indoor or outdoor, good ventilation, no flammable, explosive or corrosive gases | |
4.2 Vibration | ＜0.5G, no violent vibration and impact | |
4.3 Altitude | ≤2000 meters | |
4.4 Storage Temperature | -40~ 75 ℃ (-104 ~ 167 ℉) | |
4.5 Operating Temperature | -30 ~ 55 ℃ (-22~ 131 ℉) | |
4.6 Operating humidity | 95%RH, no water droplet condensation | |
Details Images

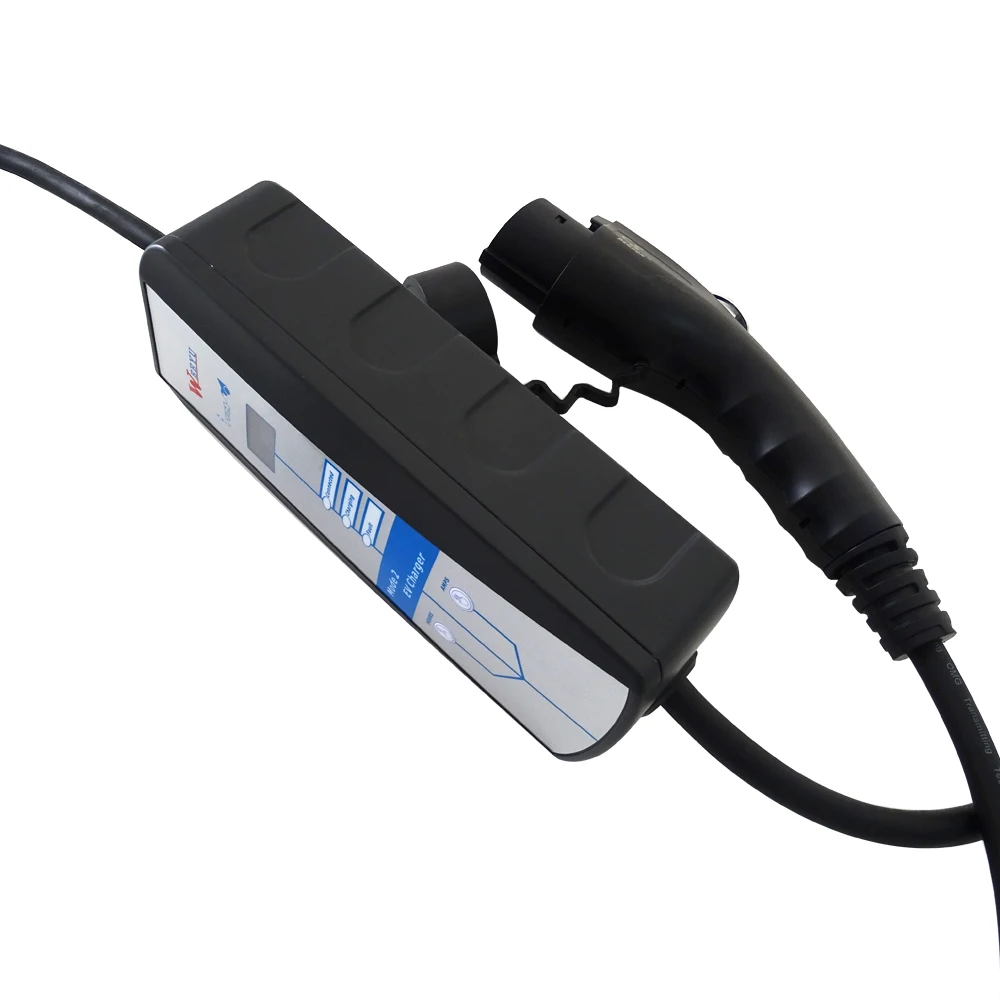

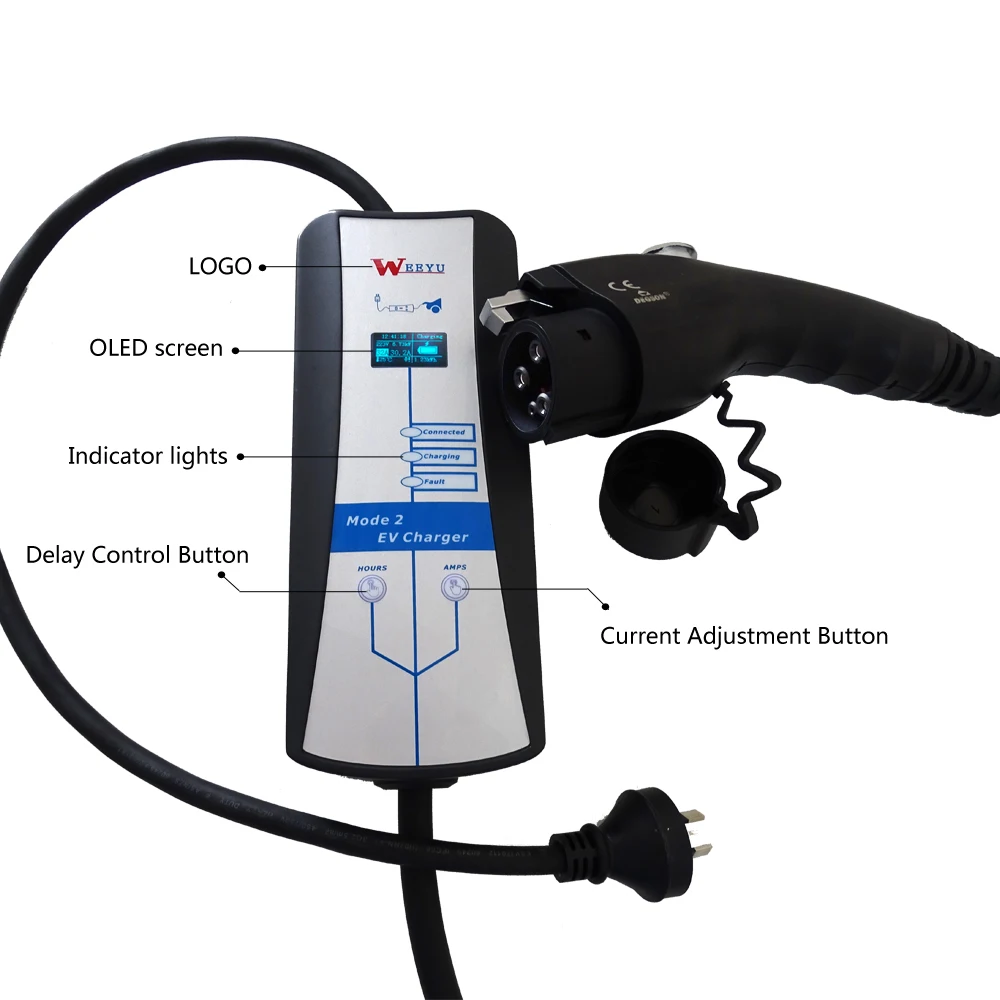

Portable EV Charger
✔ Customized LOGO or Front-panel .
✔ 3 indicator lights: indicate 3 status include power, charging and fault
✔ Current adjustment button: select an output current as follow, 8A/10A/13A/16A/32A
✔ Preset Button: Preset charging time
✔ Current adjustment button: select an output current as follow, 8A/10A/13A/16A/32A
✔ Preset Button: Preset charging time

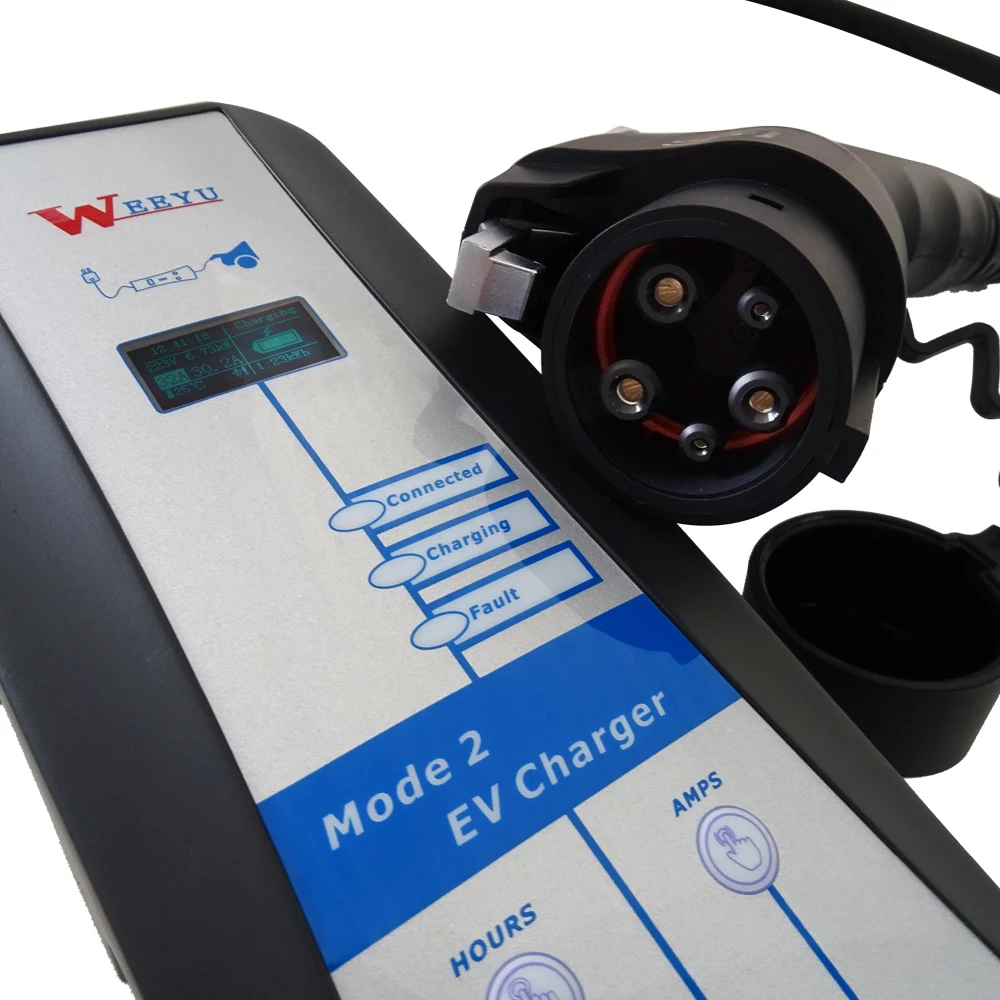

Portable EV Charger OLED Screen
✔ OLED screen: display charging current, voltage, output energy, charging time, state information, fault information etc.

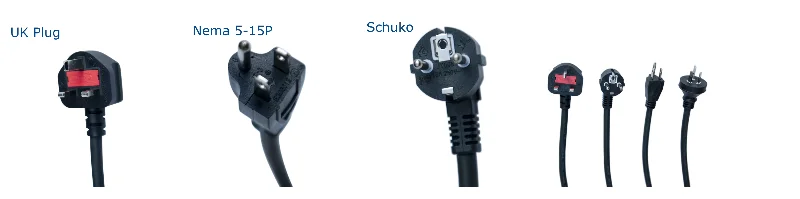

Portable EV Charging Plug
✔ We can offer UK Plug, Nema 5-15P and Schuko according to customer requirements.
Charging adapter: IEC 62196-2
Charging adapter: SAE J1772
Recommend Products
Portable EV Charger
√ 8/10/13/16/32A current adjustable with 5-10m charging cable
√ Portable ev charger made charging your car as easy as charging your smart phone both indoor and outdoor
√ Portable ev charger made charging your car as easy as charging your smart phone both indoor and outdoor
Floor-mounted EV Charging Staion
√ 16/32/40A, 220-250V/60Hz, 1-phase
√ 16/32A, 380-400V/60Hz, 3-phase
√ IEC 62196-2 or SAE J1772
√ Black Plexiglas panel Floor-mounted AC EVSE
√ Black Plexiglas panel Floor-mounted AC EVSE
How to Choose EV Charger
Charging Level EV Charger Model
Level 1 Charging Station - 120 Volt (uses standard home outlet)
Level 1 charging means charging by simply plugging your EV into a normal household electrical outlet (with an adapter that comes with your EV). For a Nissan Leaf, charging this way yields 4-5 miles of range per hour of charging, or about 22 hours for a full charge.This seems like a long charge time, but consider that 80% of drivers drive less than 40 miles per day.This means that the typical EV will not require a "full" charge each night, and could easily recharge in the hours while the car is idle in the garage.
Level 1 charging means charging by simply plugging your EV into a normal household electrical outlet (with an adapter that comes with your EV). For a Nissan Leaf, charging this way yields 4-5 miles of range per hour of charging, or about 22 hours for a full charge.This seems like a long charge time, but consider that 80% of drivers drive less than 40 miles per day.This means that the typical EV will not require a "full" charge each night, and could easily recharge in the hours while the car is idle in the garage.
Level 2 Charger - 220v/240v (same voltage used by your refrigerator)
Level 2 charging stations vary in their output from 3.3 kW (40 miles of range for 3 hour charge) to 16.8 kW (40 mile range with 40 minutes of charge). The optimal home charger usually fits somewhere in between, depending on your average commute and whether you have access to a charging station at work. Level 2 EV chargers require installation by qualified installers.
DC Fast Charging - High Speed EV Charging for Public Charging Networks
Public EV charging stations require fast charging, in order to facilitate short but worthwhile charging stops. You will notice an expanding number of electric vehicle charging stations sprouting up at your most common destinations .New EV chargers are being installed at supermarkets, coffee shops, malls, airports, along major highway rest areas and at your
workplace.
Level 2 charging stations vary in their output from 3.3 kW (40 miles of range for 3 hour charge) to 16.8 kW (40 mile range with 40 minutes of charge). The optimal home charger usually fits somewhere in between, depending on your average commute and whether you have access to a charging station at work. Level 2 EV chargers require installation by qualified installers.
DC Fast Charging - High Speed EV Charging for Public Charging Networks
Public EV charging stations require fast charging, in order to facilitate short but worthwhile charging stops. You will notice an expanding number of electric vehicle charging stations sprouting up at your most common destinations .New EV chargers are being installed at supermarkets, coffee shops, malls, airports, along major highway rest areas and at your
workplace.
Charging Times
Charging times vary by the type of Charging Station and the vehicles on-board charger. These charge times are approximate.
Company Introduction
About us :WEEYU is a manufacturer specializing in EV Charging products include EV charging stations, EV cables and EV connectors . Meanwhile, we also offer product customization service upon the request in order to meet the local market preferences and needs.
We strive to provide constantly updated products, perfect project solutions and efficient after-sales service to ensure our customers rank top in the market. We are committed to become the most professional EV charging equipment manufacturer in China and will keep working hard for it.Our factory has sufficient capacity to accommodate large scale production of EVSE.
We strive to provide constantly updated products, perfect project solutions and efficient after-sales service to ensure our customers rank top in the market. We are committed to become the most professional EV charging equipment manufacturer in China and will keep working hard for it.Our factory has sufficient capacity to accommodate large scale production of EVSE.
PCBA Production Line
Application
Part of EV Charging Station Projects
FAQ
Q1. What is your terms of packing of EV Charging point?
A: We pack our EV Charging Point in cartons.
Q2. What's the MOQ?
A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We will provide specific solutions for your requirements.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
If you can't find the exact product you need in the picture, don't walk away. Please feel free to contact us or send us the sample and we will reply you as soon as possible.
A: We pack our EV Charging Point in cartons.
Q2. What's the MOQ?
A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We will provide specific solutions for your requirements.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
If you can't find the exact product you need in the picture, don't walk away. Please feel free to contact us or send us the sample and we will reply you as soon as possible.
