Зарядное устройство для электромобилей 62196 Тип 2 7 кВт
- Категория: >>>
- Поставщик: Sichuan Injet New Energy Co. Ltd.
Сохранить в закладки 1600070355582:
Описание и отзывы
Характеристики
PRODUCT OVERVIEW

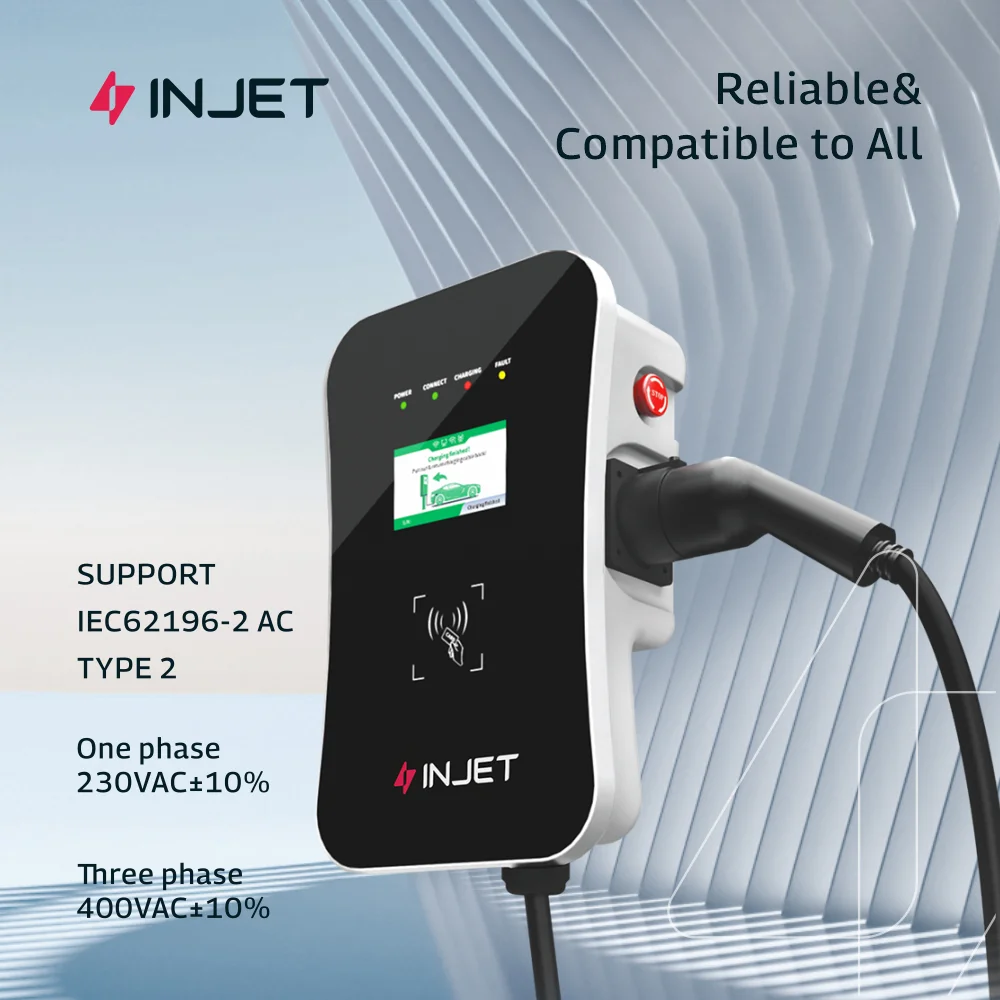

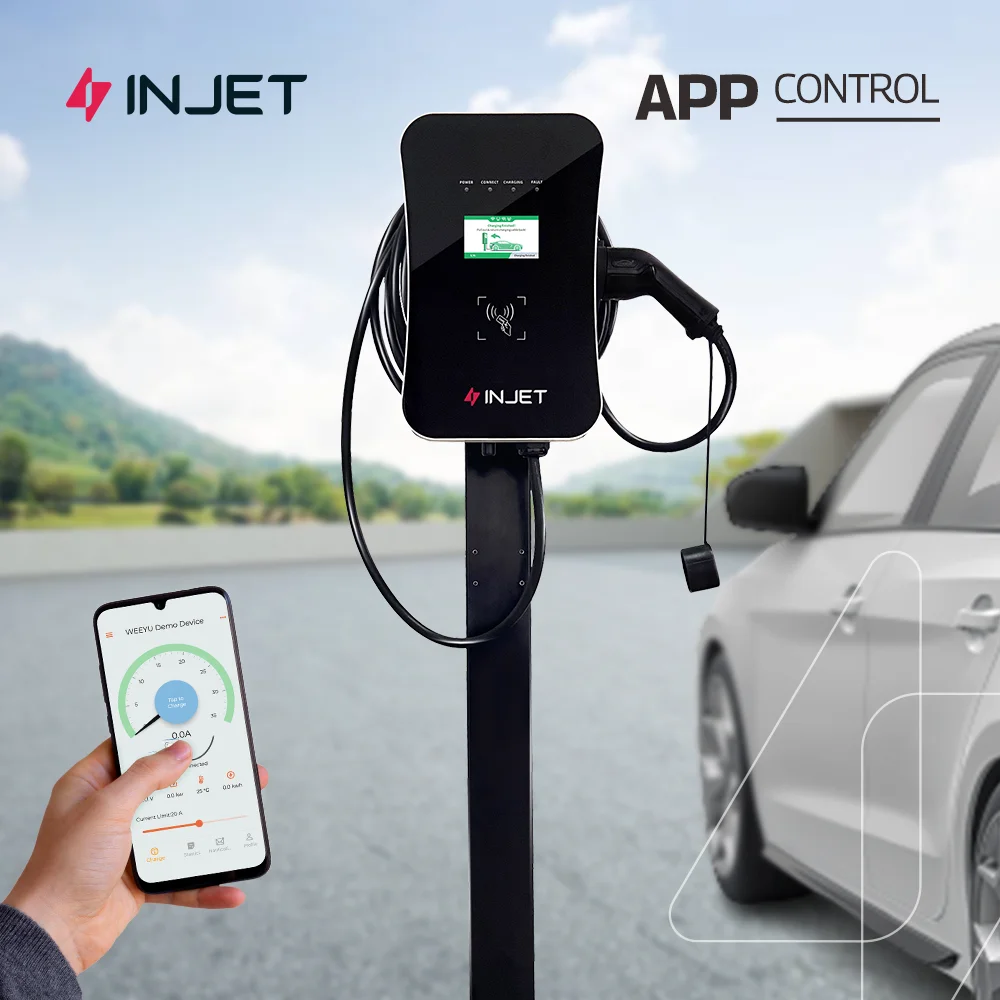

EVSE Electric Car Charger IEC 62196 Type 2 7kW Car EV Charger 16A 32A 22kW EV Charger Wallbox Charging Sation 11kW
PRODUCT INTRODUCTION
✔ For Europe market, we've got CE, ROHS, REACH for 7kw, 11kw, 22kw wallbox ev charger.
✔ For North America, we're getting UL, FCC, Energy Star certification of 7kw, 10kw ,ETL of 10kw, 11.5kw, 15.6kw, 19.2kwwallbox for whole charger.
✔ For North America, we're getting UL, FCC, Energy Star certification of 7kw, 10kw ,ETL of 10kw, 11.5kw, 15.6kw, 19.2kwwallbox for whole charger.
✔ For EU/North America, we're getting CE/ETL FCC, Energy Star certification of 20kw-320kw dc electric charging station for whole charger.
✔ Customize designs, logos, colors available even for small quantity and small business.
✔ 4.3 inch LED screen, Type B RCCB leakage protection for ev chargers.
✔ Manual available in different languages, English, Geman, Dutch, Italian, Spanish etc.
✔ 2 year warranty, 3 year warranty(optional).
✔ Customize designs, logos, colors available even for small quantity and small business.
✔ 4.3 inch LED screen, Type B RCCB leakage protection for ev chargers.
✔ Manual available in different languages, English, Geman, Dutch, Italian, Spanish etc.
✔ 2 year warranty, 3 year warranty(optional).
✔ Each EV charging station is with emergency stop button.
✔ Each wallbox EV charger comes with its own MCB/OCCP.
✔ Independently designed, different from other existing models in the market.
✔ Easy installation, maintaining and stable functioning.
✔ Solid durable metal box and full size LCD screen .
✔ Independently designed, different from other existing models in the market.
✔ Easy installation, maintaining and stable functioning.
✔ Solid durable metal box and full size LCD screen .
PRODUCT PARAMETERS
Power Specification | ||||||||
AC Power Input Rating | SAE Standard | IEC Standard | ||||||
AC Level 2 | 1-Phase | 3-Phase | ||||||
240V | 220V ± 15% | 380V ± 15% | ||||||
AC Power Output Rating | 3.5kW/16A | 3.5kW/16A | 11kW/16A | |||||
7kW/32A | 7kW/32A | 22kW/32A | ||||||
10kW/40A | N/A | 43kW/63A | ||||||
Rated Frequency | 50/60Hz | 50/60Hz | 50/60Hz | |||||
Connector Type | SAE J1772 (Type 1) | IEC 62196-2 (Type 2) | ||||||
User Interface & Control | ||||||||

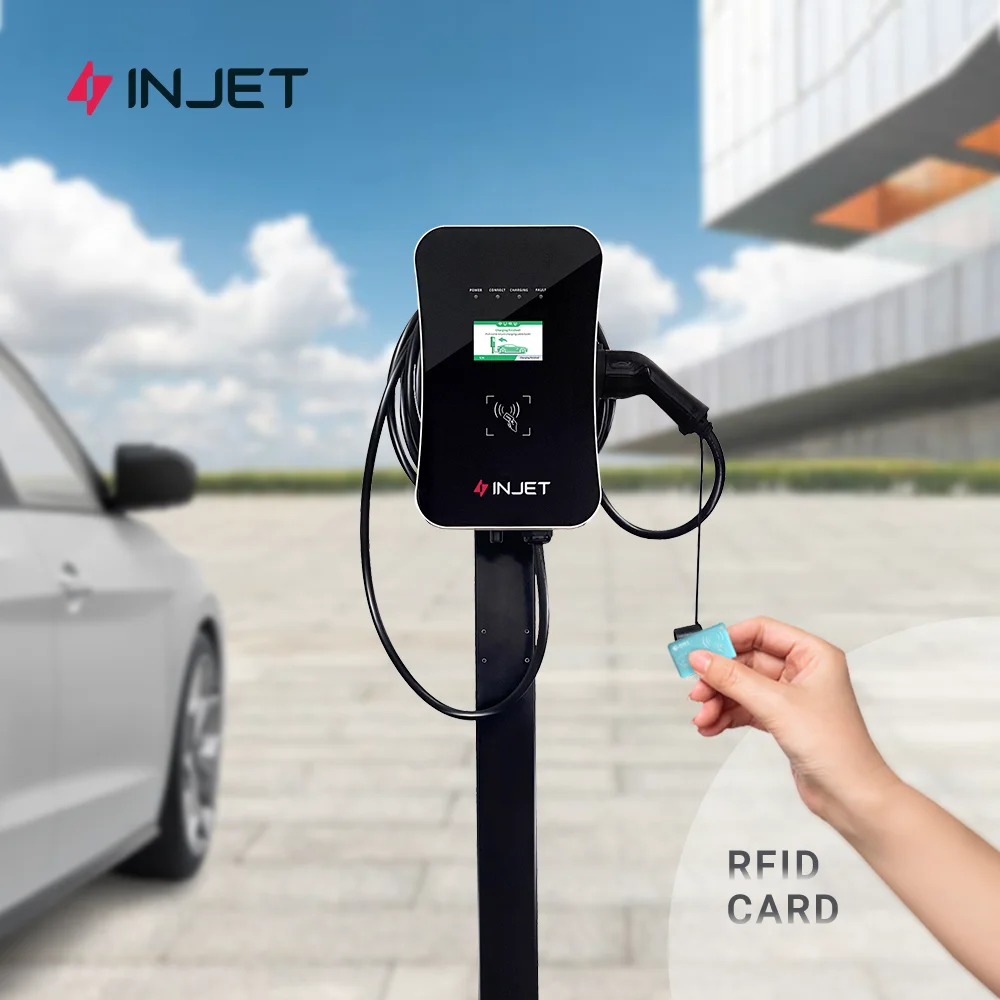

Charging Control | Plug and Play, RFID Card or App | |||||||
Display Screen | 4.3-inch LCD Screen | |||||||
Voice Prompt (Optional) | Voice guide of the charging process in English | |||||||
Indicators | 4 LED indicators-Power/Connect/Charging/Fault | |||||||
External Communication | LAN (RJ-45) and Wi-Fi | |||||||
OCPP Protocol (Optional) | 1.6 or 2.0.1 | |||||||
Environmental | ||||||||
Storage Temperature | -40 to 75℃ （-40 to 167℉) ambient | |||||||
Operating Temperature | -30 to 55℃ （-22 to 131℉) ambient | |||||||
Operating Humidity | Up to 95% non-condensing | |||||||
Altitude | ≤2000m | |||||||
Protection | ||||||||

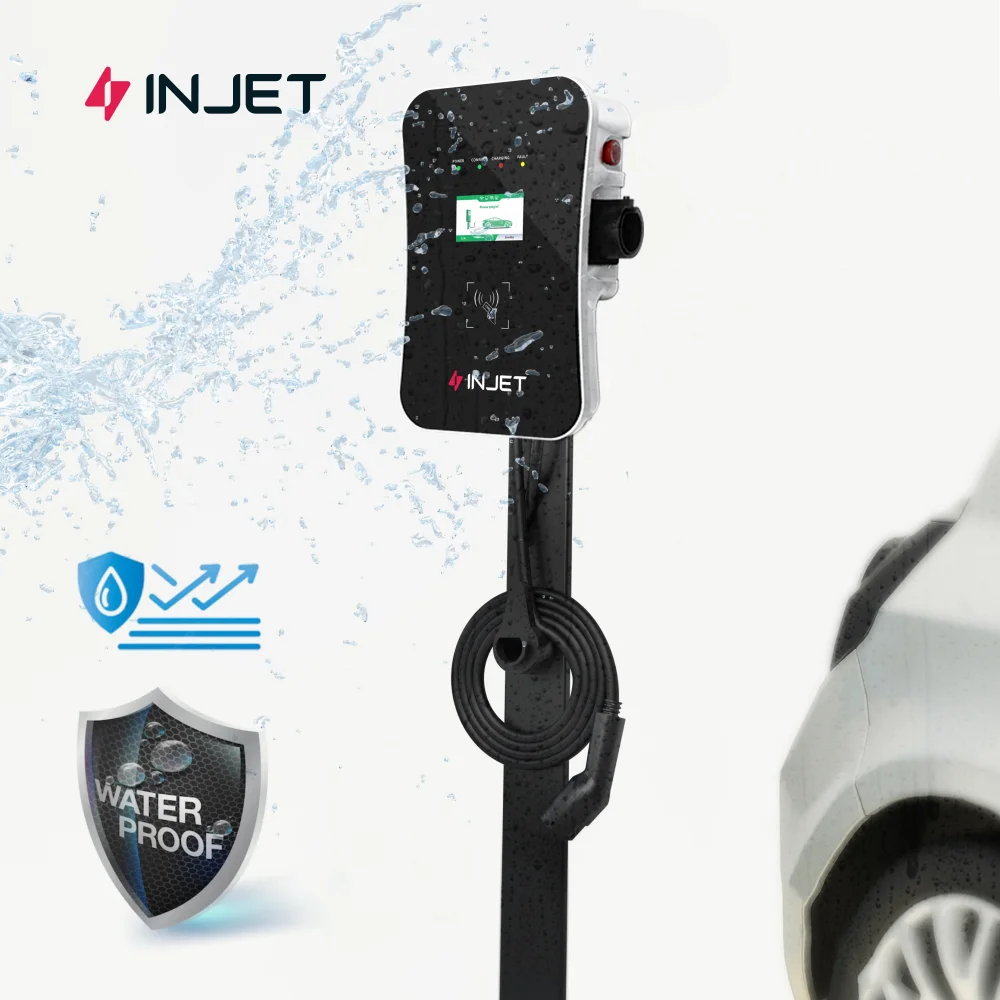

Protection Ratings | IP 65 | RCD | Type A / Type B | |||||
Over Voltage Protection | Yes | Under Voltage Protection | Yes | |||||
Over Load Protection | Yes | Short Circuit Protection | Yes | |||||
Earth Leakage Protection | Yes | Ground Protection | Yes | |||||
Over-temp Protection | Yes | Surge Protection | Yes | |||||
Wallbox Mechanical | ||||||||
Dimension (H x W x D, mm) | 410 x 260 x 164 | |||||||
Weight | 1-phase＜10kg; 3-phase＜12kg | |||||||
Charging Cable Length | 5m or Customize Length | |||||||
Enclosure Material | Front-Panel: Tempered Glass; Back-cover: Metal Plate | |||||||

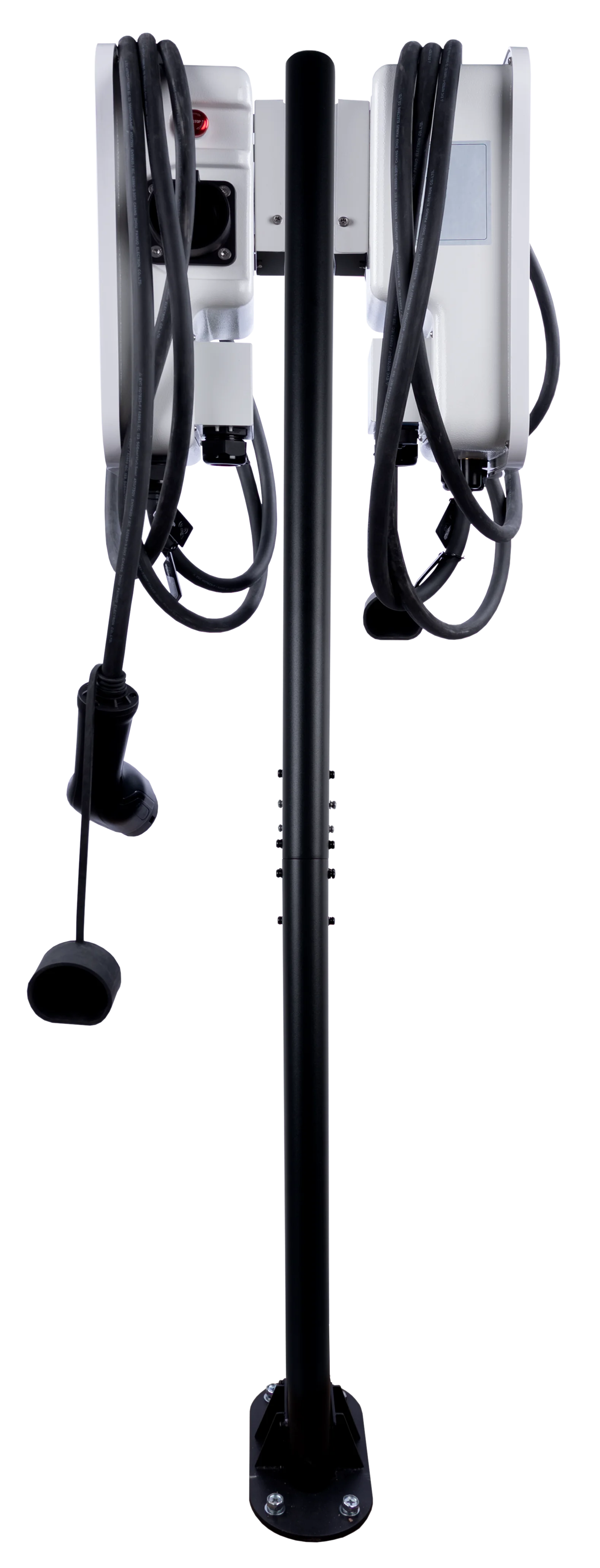

Mounting Pole Mechanical (Optional) | ||||||||
Dimension (H x W x D, mm) | 1400 x 200 x 100 | |||||||
Weight | ＜8kg | |||||||
Enclosure Material | Metal | |||||||
RECOMMOND PRODUCTS
COMPANY PROFILE
Today everyone’s talking about energy preserving, environmental protection, global warming and deteriorating habitation issues. EV emerged for this need along with more and more people driving EV. While as important as the development of EV itself, the infrastructure and accessories of powering those EV are equally critical to speed up this motion. So we decided to take part in, and to devote our efforts in the EVSE industry.
Though founded in 2016, INJET is not new to electric industry, as our parent company Injet Electric(a public company, stock code:300820) has been manufacturing electric products for over 28 years. Most of our engineers and management team are from Injet, those are the key asset of INJET, who independently designed our own charging station, which is different from other existing models in the market, and are relentlessly pursuing better, faster, more convenient new models.
The fast electric car EV charger charging station we mostly do include type 1, type 2, one phase, three phase, level 2 voltage,16A, 32A, 40A 48A 65A 80A current, 3.5kw, 7kw, 10kw, 11kw, 11.5kw, 15.6kw, 19.2kw 22kw charging station of SAE J1172 and IEC 62196-2 standards for home use(residential) and commercial use which cover most market needs in most countries.
The super fast electric car EV charger charging station we mostly do include CCS1, CCSS2 GB/T, 3phase, level 3 380-480 voltage,100A, 150A, 200A 250A current, 20kw, 30kw, 40kw, 60kw, 90kw 120kw 150kw 180kw 240kw 320kw charging station of EU and USA/CA standards for home use(residential) and commercial use which cover most market needs in most countries.
As a manufacturer of ev charging stations, to survive in this fierce market, our products are supposed to last long, to be safe, reliable, affordable and easy to use for everyone so we take quality, safety, stability, price, service and supports to our customers of great importance. Meanwhile, startups, small businesses and large corporate are all welcomed at INJET. We’re able to produce large quantity in the same time with the flexibility to do customize designs, logos and colors, samples and trial orders etc to boost your business and brand growth. Whatever you requires, we have the people, the technology and determination to make it happen for you!
FAQ
Q1: What is your terms of payment? |
A: We will recommend our customer to use different terms of payment based on difference in quantity of order. |
Q2: Do you test all your goods before delivery? |
A: Yes, we have 100% test before delivery. |
Q3:Can you produce according to the samples? |
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. |
Q4: What is your terms of packing? |
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. |
Q6: Are you Trading Company or manufacturer? |
A: We are professional EV charger manufacturer. |
Похожие товары

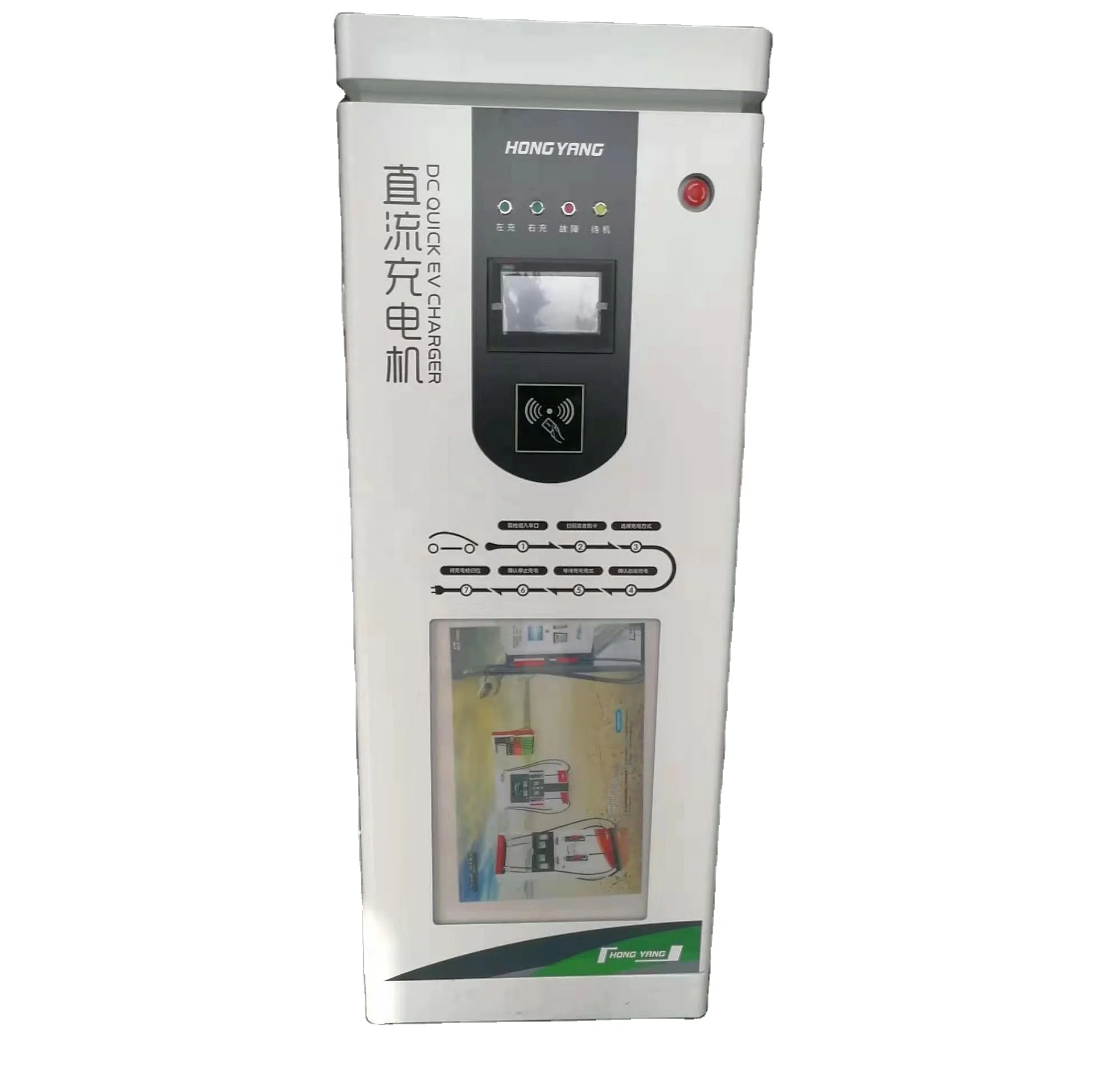

Зарядное устройство DC EV
682 204,13 ₽

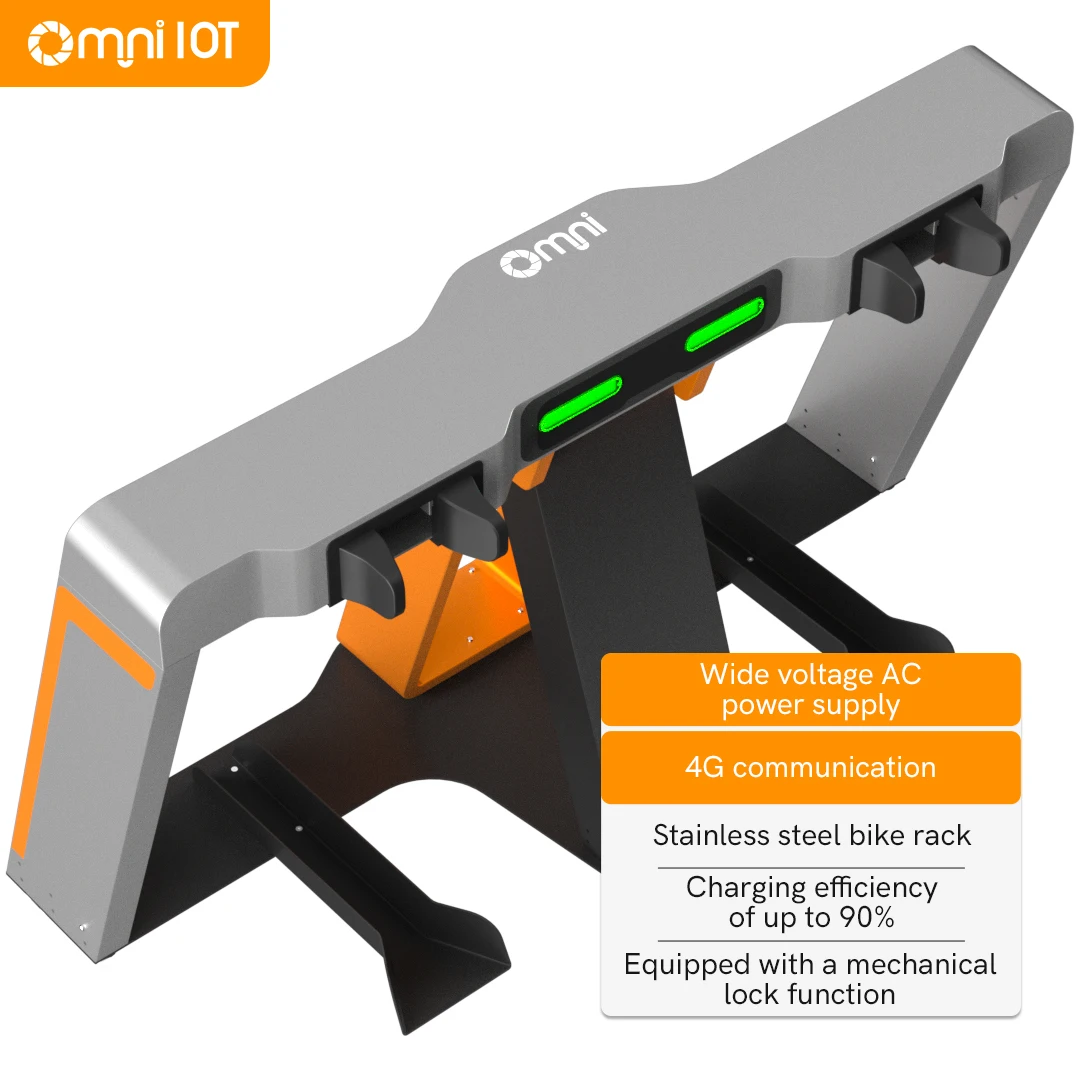

OEM IPX7 Аренда Smart Sharing Ebike общая напольная общественная зарядная/док-станция с приложением
110 816,58 ₽ - 199 558,58 ₽

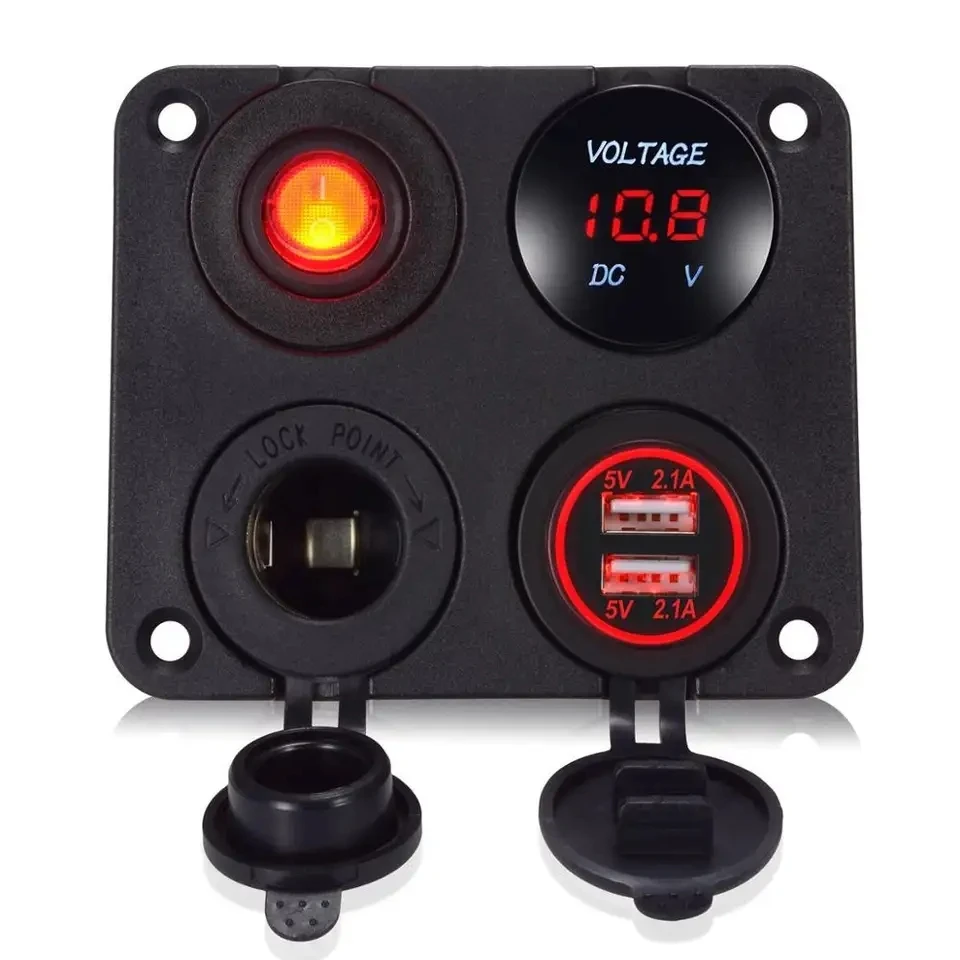

Разъем зарядного устройства с двойным usb-разъемом 4 2 А со светодиодным вольтметром и включенным нижним переключателем
831,96 ₽ - 1 053,82 ₽

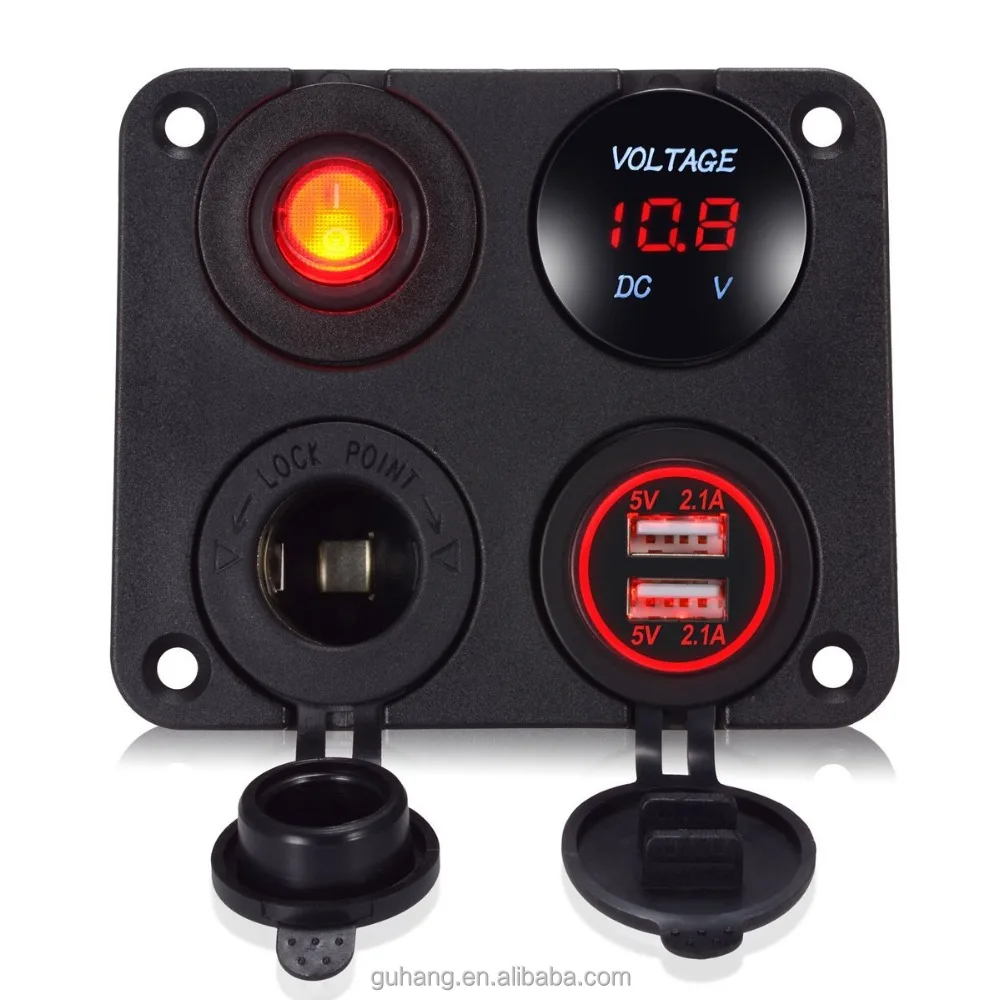

Разъем зарядного устройства с двойным usb-разъемом 4 2 А со светодиодным вольтметром и включенным нижним переключателем
865,24 ₽
Автомобильный Блестящий задний подлокотник подстаканник коробка для хранения Usb-порт зарядки VOLVO Xc60 Xc90 S60 V60 2021-2024
5 324,52 ₽ - 5 879,16 ₽

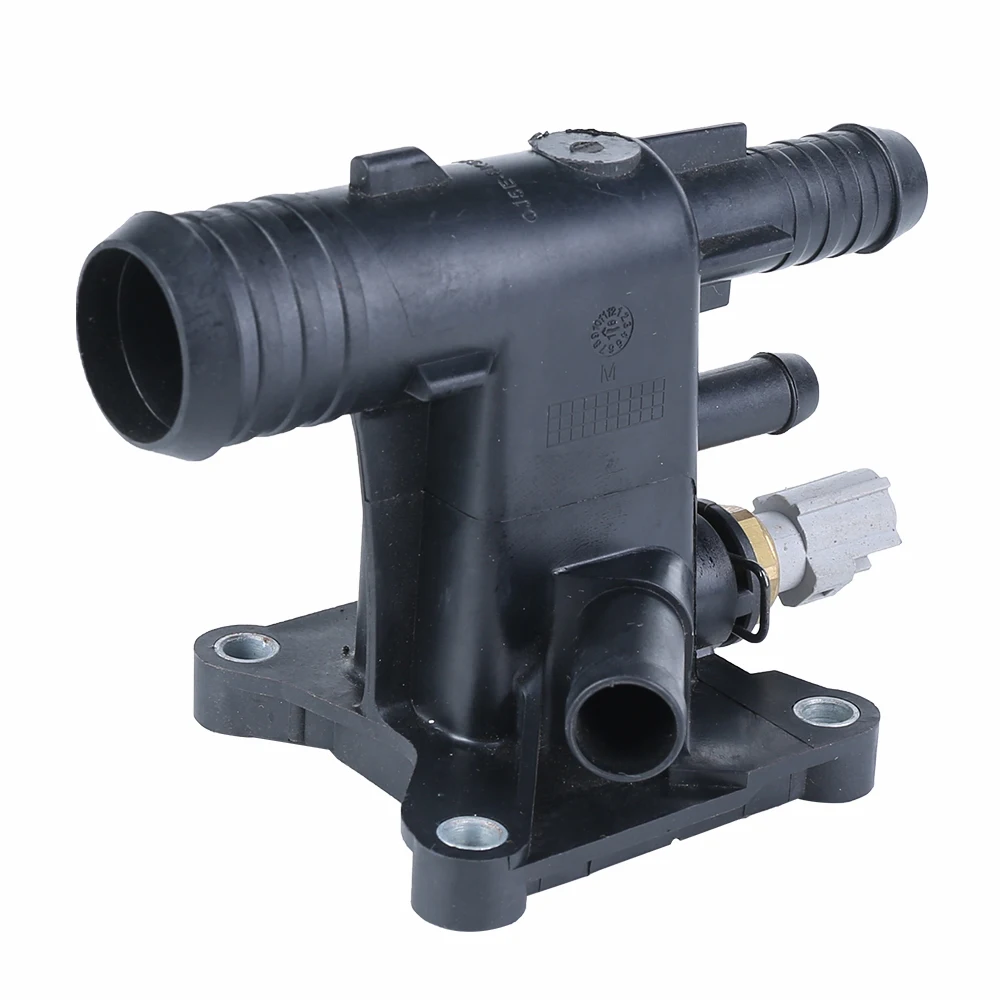

Фланец охлаждающей жидкости Womala 31422105 корпус термостата водяной выход подходит для автомобильного адаптера Volvo S60 S80 S80L V60 V70 XC60 запчасти
