Рентгеновский оборудование для осмотра багажа Zhonganxie 10080B
- Категория: >>>
- Поставщик: Heyuan Zhonganxie Technology Co. Ltd.
Сохранить в закладки 1600071028075:
Описание и отзывы
Характеристики
Product Description

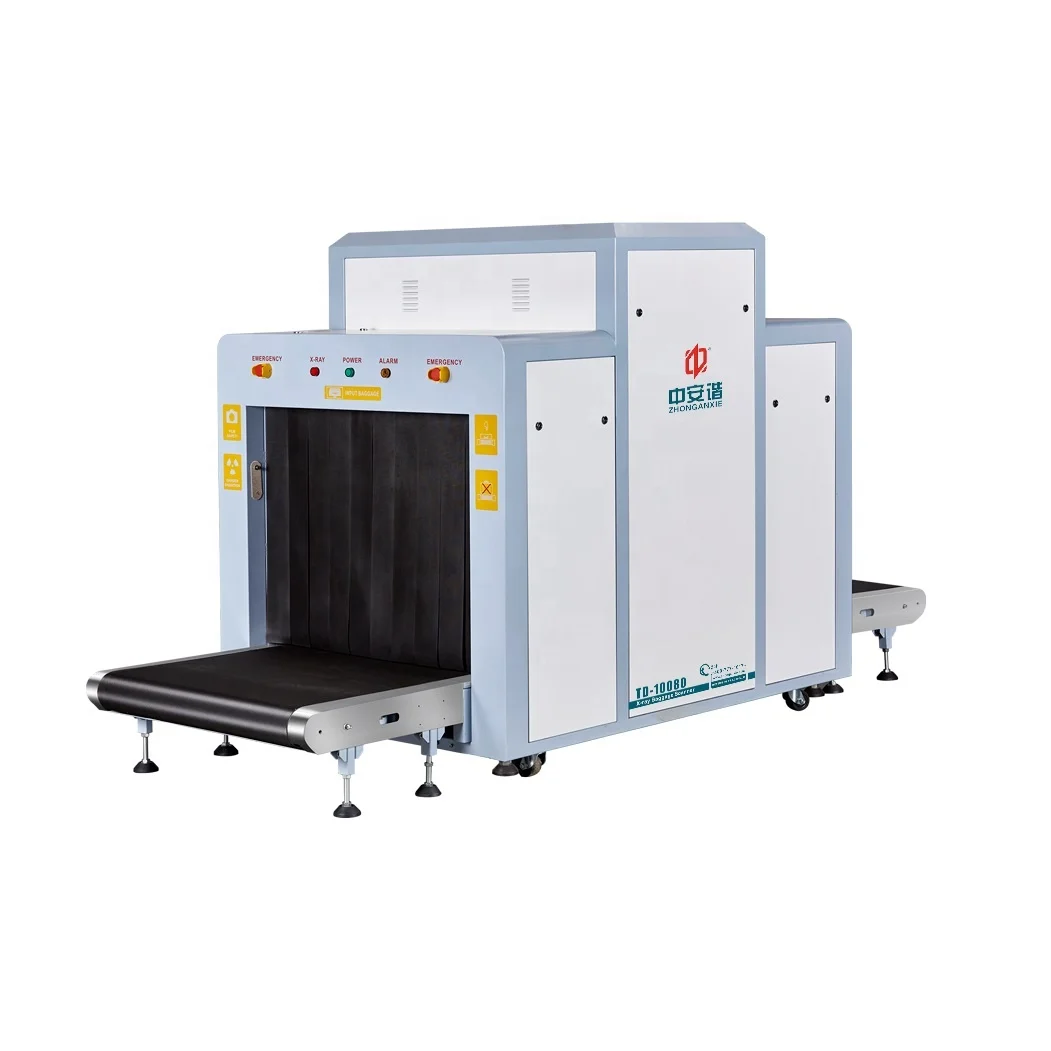

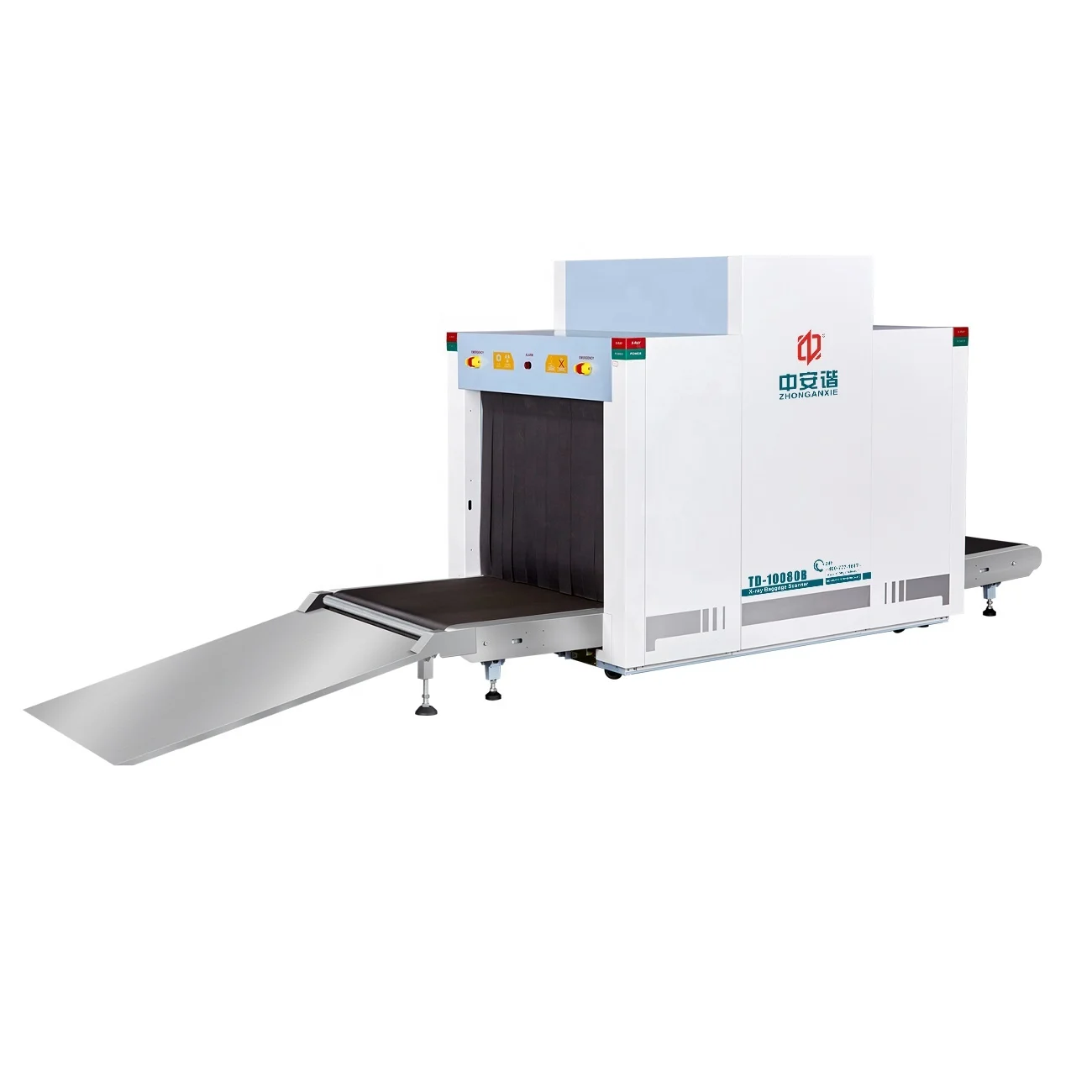

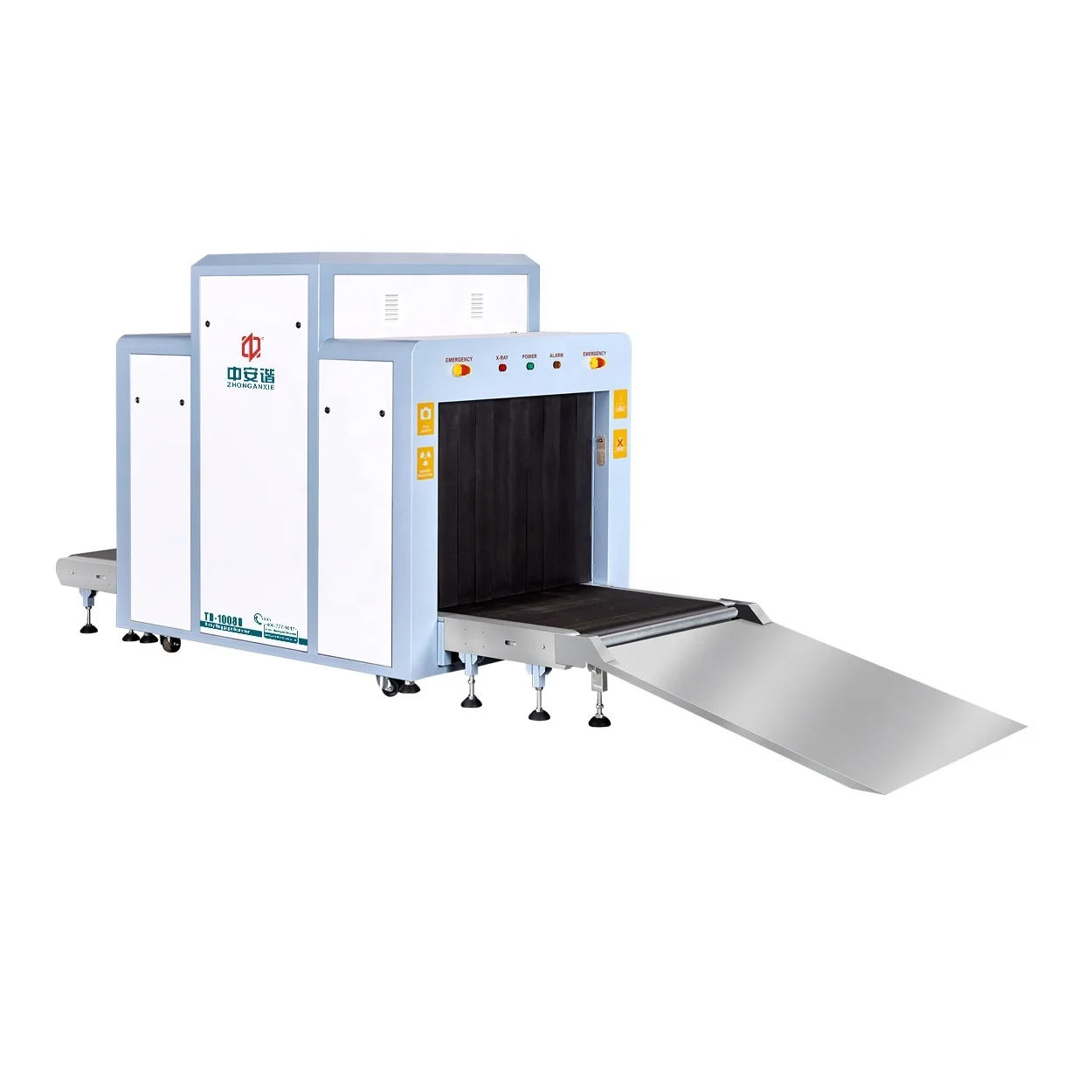

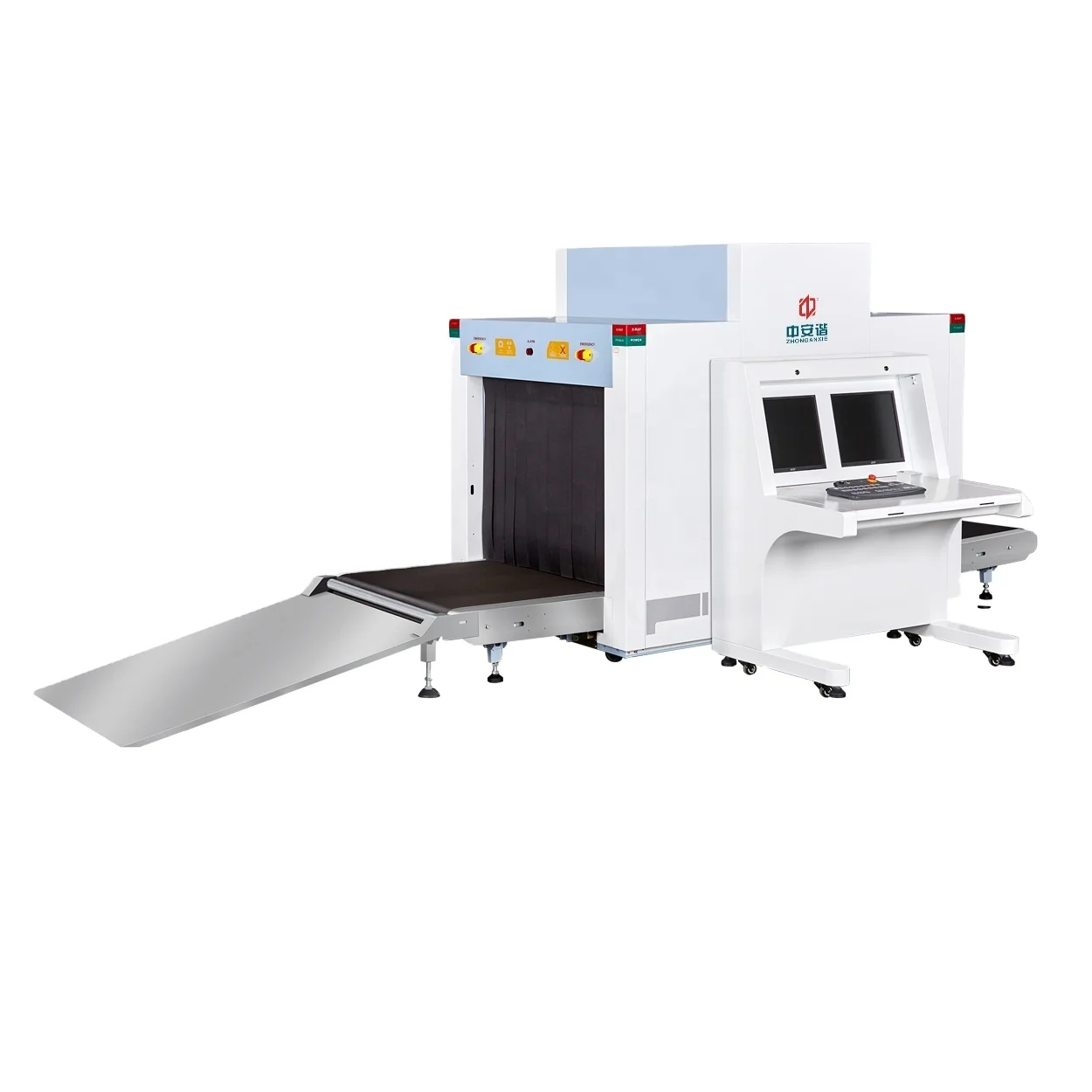

Airport Baggage Scanner X-Ray Machine Luggage Inspection Equipment Zhonganxie 10080B
X-Ray Baggage Scanner
Functional features
● Global leading parameters: in the inspection report issued by the ministry of public security, each parameter is leading other products. See the inspection report for details.
● energy-saving design: the machine can automatically sense objects, with luggage on the machine to start running, no luggage, the machine is still.(optional)
● one key shutdown control: when shutdown only need to rotate the key, automatic safety shutdown equipment, reduce equipment failure.
● environmental protection design: lead curtain external protective film, prevent guests from touching lead, avoid lead pollution.
● dynamic picture switching: the picture can be switched when it is still, and can be switched freely when it is dynamic
● energy-saving design: the machine can automatically sense objects, with luggage on the machine to start running, no luggage, the machine is still.(optional)
● one key shutdown control: when shutdown only need to rotate the key, automatic safety shutdown equipment, reduce equipment failure.
● environmental protection design: lead curtain external protective film, prevent guests from touching lead, avoid lead pollution.
● dynamic picture switching: the picture can be switched when it is still, and can be switched freely when it is dynamic
Product certification
● Strict internal quality control, implementation of engineering and production double inspection principle
● guarantee measures for machine parts
● Passed the security and police electronic products quality testing center of the ministry of public security
● EU CE certification
● passed ISO9001 quality management system certification
● ISO14001 environmental management system certification
● GB/T28001 occupational health and safety management system certification
● through the provincial environmental protection department radiation safety certification
● through the provincial occupational health detection center detection radiation dose test
● computer software copyright registration certificate of the national copyright administration of the People's Republic of China
● double soft certification
● guarantee measures for machine parts
● Passed the security and police electronic products quality testing center of the ministry of public security
● EU CE certification
● passed ISO9001 quality management system certification
● ISO14001 environmental management system certification
● GB/T28001 occupational health and safety management system certification
● through the provincial environmental protection department radiation safety certification
● through the provincial occupational health detection center detection radiation dose test
● computer software copyright registration certificate of the national copyright administration of the People's Republic of China
● double soft certification
Product Paramenters
Image processing system | ||
X-ray sensor | L-shaped photodiode array detector(multienergy), 12bit depth | |
Display | High resolution 19-inch LCD Samsung display | |
Image display | 24 bit color display | |
Edge enhancement | Outline and edge are more clearer | |
Super image enhancement | The images are more detailed | |
High penetration display | Improve the contrast of the bright areas in the image and make the easy to penetrate areas clearer | |
Low penetration display | Improve the contrast of dark areas in the image and make the hard-to-penetrate areas clearer | |
Magnifying lens | Local amplification function | |
Lighten/darken | Increase the brightness of the image/dim the image | |
Image pull-back/pull-forward | Display the first 20 images and perform any image processing on the current image | |
Image restoration | Image display restored to its original state | |
Image storage | Real-time save any image, and can carry out any image processing, continuous work save | |
Operating environment | ||
Working temperature／humidity | 0℃～45℃／20%～95% (non-condensing) | |
Storage temperature／humidity | -20℃～60℃／20%～95% (non-condensing) | |
Working voltage | 220VAC(±10%) 50±3Hz | |
Power consumption | 0.8KW(maximum) | |
Noise level | ≤ 55dB(A) | |
Technical standard | Technical parameter | |
Aisle size | 1000(W)×800(H)mm | |
Conveyor speed/efficiency | Hour detection 600ps / h toy shoes products | |
Load | 200kgs | |
Resolution | ∮0.0787 mm | |
Conveyor height from the ground | 700mm | |
Penetration | ≥10 mm | |
Monitor | 19-inch LCD monitor | |
Image Storage | 500G hard drive to save any image in real time, can store more than 100,000 and can make any image processing, and continuous work to save. | |
Single check dose | One-time inspection of the X-ray light source irradiation amount ≤ 0.8uGy | |
Leaking radiation dose rate | Away from any device outer surface of 5cm, the ray irradiation leak rate should be ≤ 0.12uGy / h | |
This is an X-ray security product with a large channel size,which is mainly used for security inspection in large stations,railway stations and other places,and can detect large luggage packages and suitcases.it is widely used in the detection of medium and large items. | ||
Details Images
Exhibition
Company Profile
Shenzhen Zhonganxie Technology Co., Ltd (Head Office)
Heyuan Zhonganxie Technoloy Co., Ltd (Factory)
Established in 2011, has been supplying security metal detection equipment for nearly 10 years. Our company have a plant of 13,000 ㎡, product line including:
Walk-through Metal Detectors
Hand-held metal detectors
Under Vehicle Inspection System
X Ray Security Scanner
Ground Search Metal Detectors
Hazardous liquid detector
Impurity detector for food and drug and etc.
Walk-through Metal Detectors
Hand-held metal detectors
Under Vehicle Inspection System
X Ray Security Scanner
Ground Search Metal Detectors
Hazardous liquid detector
Impurity detector for food and drug and etc.
Certifications
Contact Us
Похожие товары
Оптовые поставки, самые низкие цены, оригинальные мобильные телефоны для пожилых людей
20,00 $ - 25,00 $

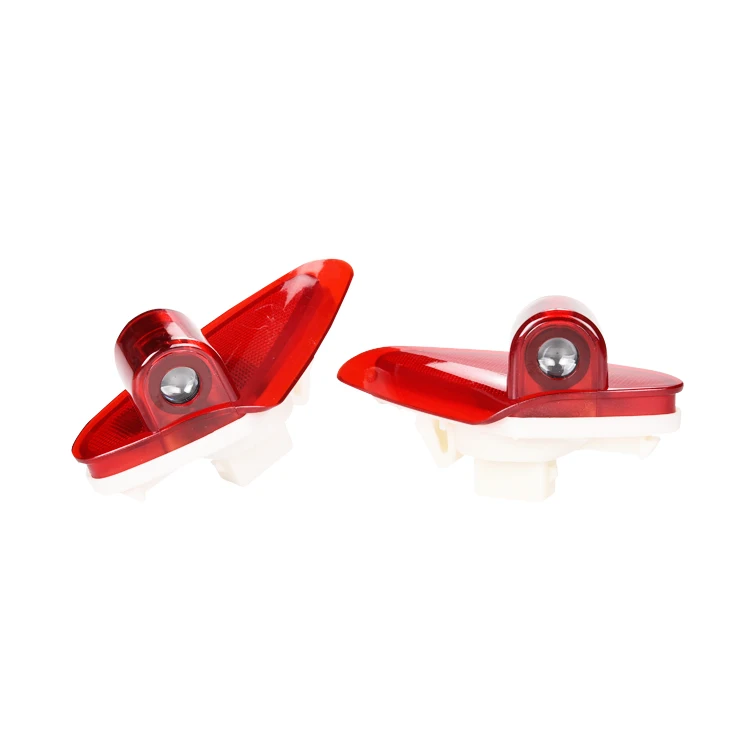

Светодиодный прожектор для двери автомобиля, освещение для двери автомобиля, светодиодный прожектор с логотипом, приветственное освещение для CHANA
5,69 $ - 6,99 $
Недорогие стулья для свадьбы, стулья для посетителей и складные стулья для спальни, которые не занимают много места, журнальный столик и стулья
18,00 $ - 22,50 $
Высококачественный метилтрис (метилэтилкетоксимино) Силан (МОП) cas 22984-54-9 силановый силоксан по цене производителя
3,60 $ - 10,00 $
Золотой пластиковый колпачок 20 л с крышкой и носиком для масла и жира
50 м длинный пенопластовый переносной кран или зажимной кран

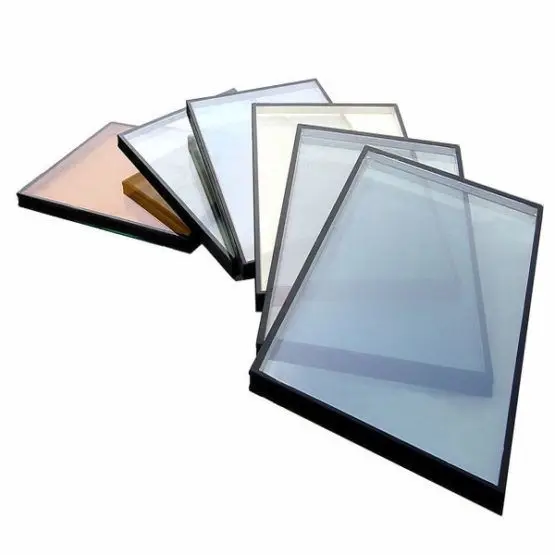

Прозрачное затемненное отражающее закаленное ламинированное двойное полое аргоновое низко-е изоляционное стекло цена
